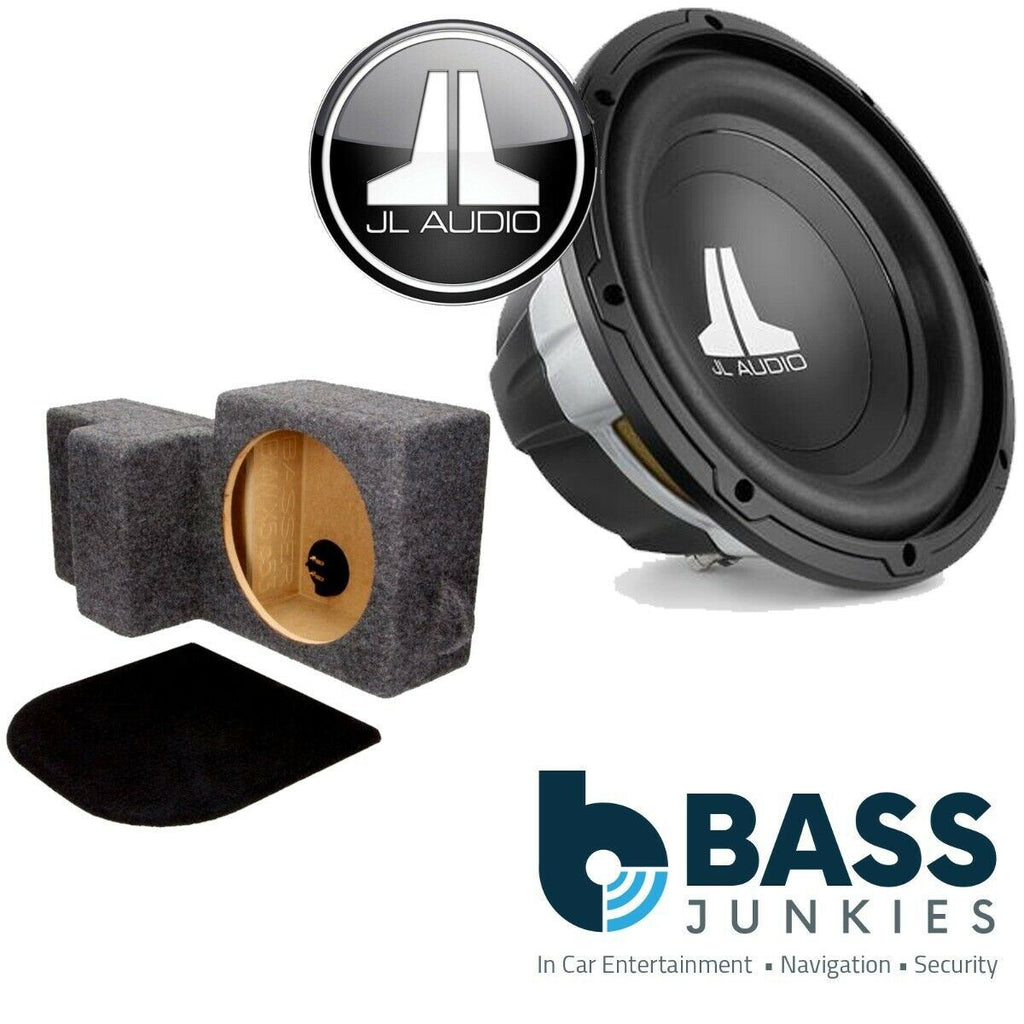

BMW X5 (E53) 1999-2006 JL Audio 10W0V3-4 - 10" Inch 300 Watts Car Subwoofer Custom Bass Box Kit
The 10WOV3-4 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The W0v3s incorporate a new terminal and a lead-wire system woven into the spider along with a new metallic silver frame finish that looks great in any installation.
When the going gets loud the W0v3s are built to perform like no other woofers in their price class making them ideal for those seeking high performance from an affordable subwoofer system.
Key Features:
- Free Air Resonance (Fs): 32.09 Hz
- Electrical “Q” (Qes): 0.640
- Mechanical “Q” (Qms): 10.752
- Total Speaker “Q” (Qts): 0.604
- Equivalent Compliance (Vas): 1.095 cu. ft. / 31.01 liters
- One-Way Linear Excursion (Xmax)*: 0.45 in. / 11.4 mm
- Reference Efficiency (no): 0.154%
- Efficiency (1W/1m)**: 84.07 dB SPL
- Effective Piston Area (Sd): 48.909 sq. in. / 0.0316 sq. m.
- DC Resistance (Re): 4.280 ohm
- Nominal Impedance (Znom): 4 ohm
- Thermal Power Handling (Pt): 300W
- Driver Displacement: 0.034 cu. ft. / 0.96 liters
- Net Weight: 7.50 lbs. / 3.40 kg
Bass Box Enclosure
T1 Audio subwoofer enclosure is a perfect way to improve bass in the car. By matching to the vehicle it takes a little space and doesn't interfere in regular car use. Box parameters are selcted individual so they can be installed in most popular subwoofers and simultaneously provide great bass in the car.
Specification:
- Subwoofer Size: 10" (250mm) 25cm
- Max Subwoofer Depth: 128mm
- Carpet: Black/Grey/Anthracite
- Location: Right Wheel Arch
Please note: Carpet colour may vary from listing depending on availability at time of purchase and all box sizes are approximate.
