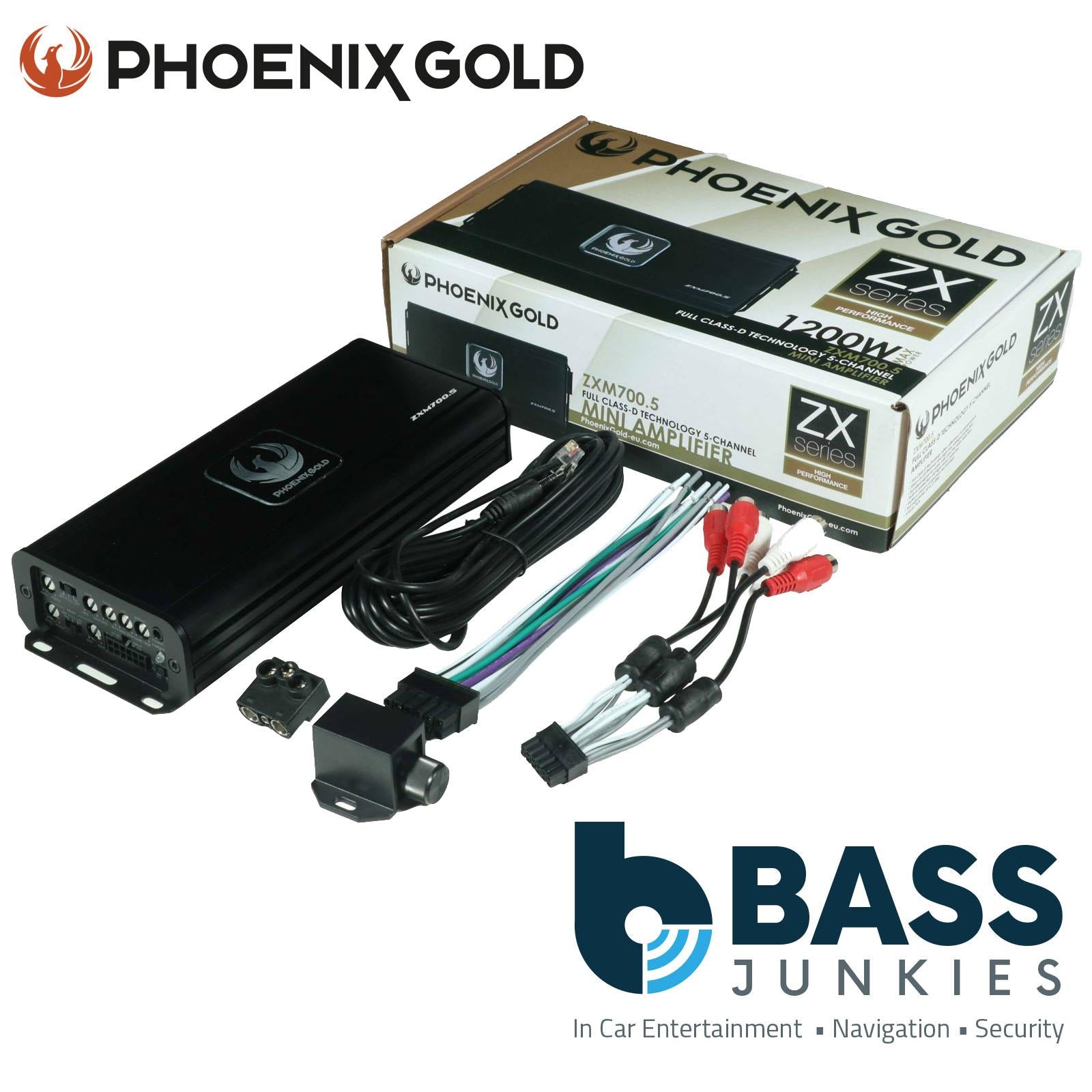

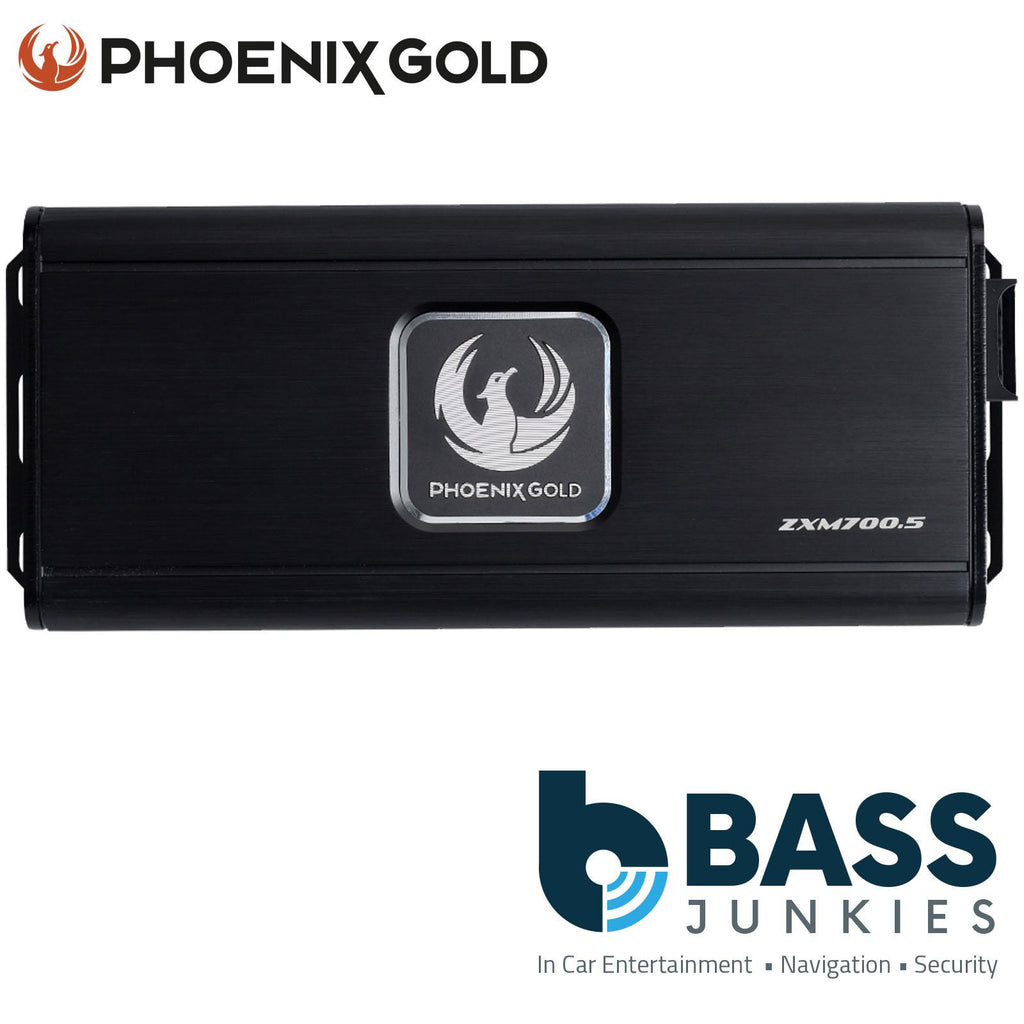

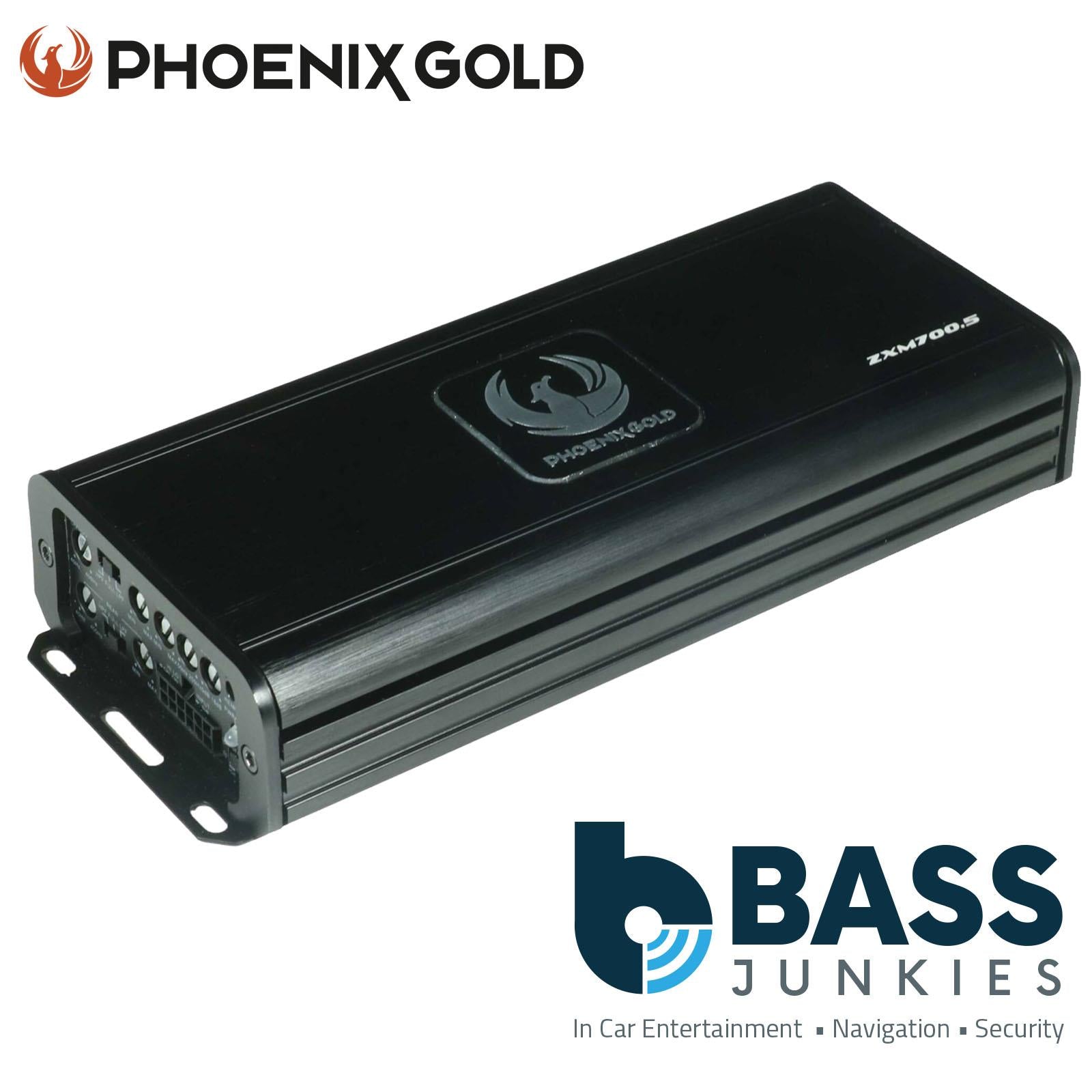

Phoenix Gold ZXM700.5 Amp ZX Series 5 Channel Class D Ultra Compact Mini Amplifier
ZXM700.5 – Small in size big in power
The ZXM700.5 is an impressive 5-channel Mini Amplifier. Despite its ultra-compact chassis, the ZXM700.5 delivers over 700W RMS, providing all the features and power you would expect from a full-size 5-channel amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions.
ZXM700.5 – 5 Channel Mini Amplifier
The Pinnacle of Power and Precision
Introducing the ZXM700.5, the latest marvel in our ZXM Family. After extensive development and refinement, this 5-channel amplifier sets new standards in compact audio engineering. Despite its ultra-compact chassis, the ZXM700.5 delivers over 700W RMS, providing all the features and power you would expect from a full-size 5-channel amplifier. Experience the perfect synergy of size, performance, and versatility with the ZXM700.5.
Key Features:
- Unmatched Power in a Compact Design: The ZXM700.5 is designed to fit seamlessly into any setup, offering over 700W RMS while maintaining a remarkably small footprint. Ideal for those who demand high performance without compromising space.
- Comprehensive Channel Configuration: The amplifier supports 4 or 5-channel inputs, allowing for flexible integration into any audio system. Whether you’re driving a full speaker system or adding a subwoofer, the ZXM700.5 has you covered.

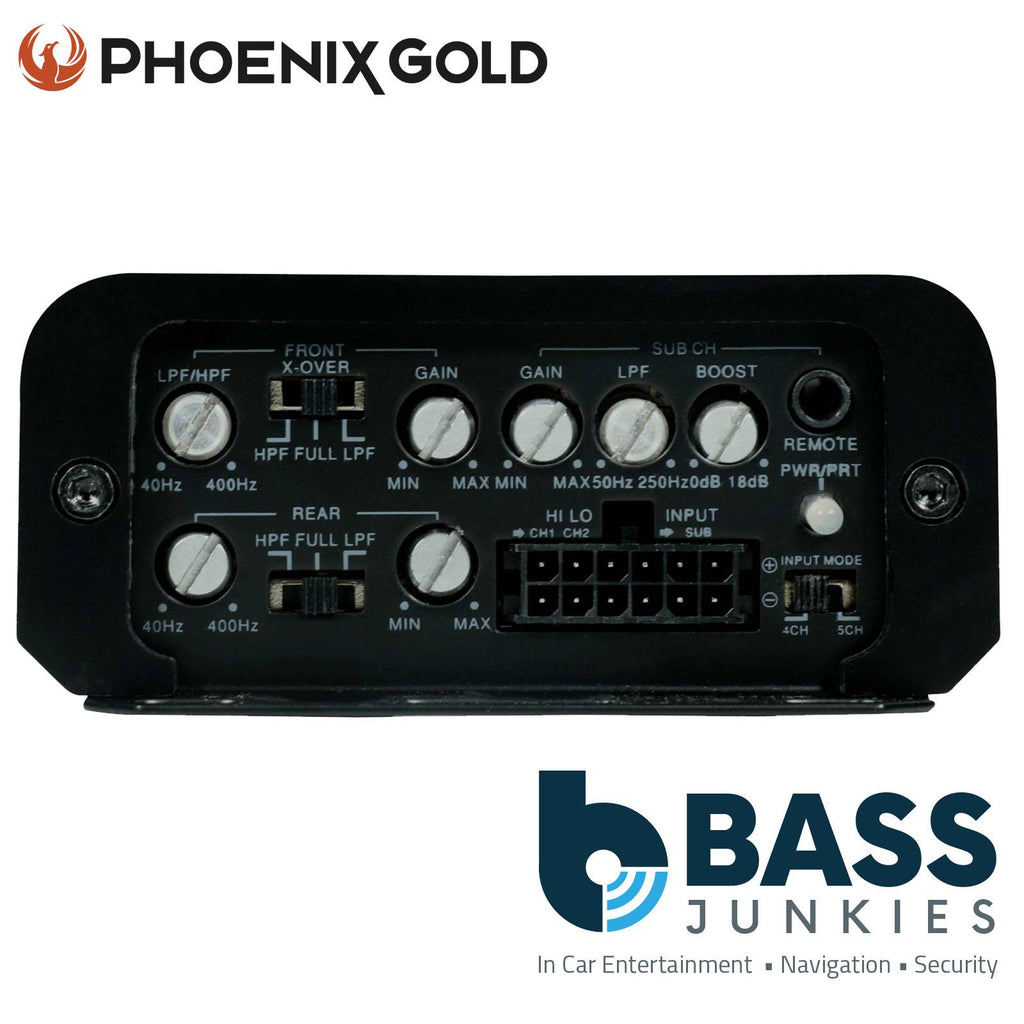

- Advanced Audio Control: Equipped with high-pass (HP) and low-pass (LP) filters for all channels, ensuring precise tuning and exceptional sound quality. Tailor your audio experience with ease and precision.
- Versatile Input Options: The ZXM700.5 handles both high-level and low-level inputs, making it compatible with a wide range of audio sources and installation configurations.
- Remote Gain Control for Sub Channel: Adjust your bass levels on the fly with the included remote gain controller, providing instant access to deep, rich bass.
- Superior Sound Quality: Enjoy crystal-clear audio with a signal-to-noise ratio exceeding 90dB and minimal total harmonic distortion. The ZXM700.5 ensures every note is reproduced with stunning clarity and accuracy.

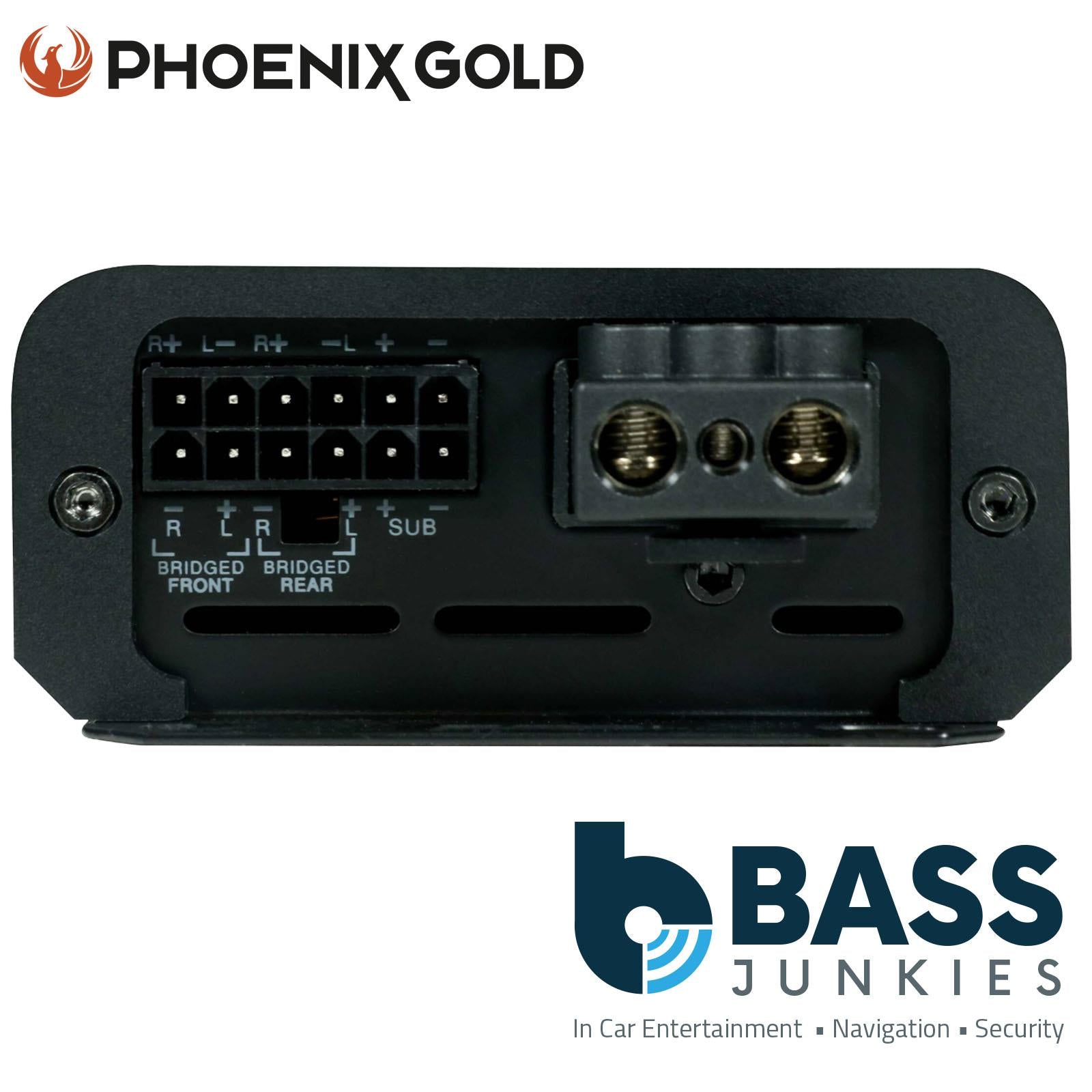

- Quick and Easy Installation: Featuring a specially designed quick connector for the power, ground and remote, the ZXM700.5 makes installation fast and hassle-free, saving you time and effort.
Specifications:
-
Rated @ 14.4V < 1% T.H.D:
- 4x60W + 230W @ 4-Ohm
- 4x100W + 350W @ 2-Ohm
- 2x200W bridged @ 4-Ohm
-
Filters:
- High-Pass (HP) & Low-Pass (LP) filters for 4 channels: 40 – 420Hz, 12dB
- Low-Pass (LP) filters for SUB channel: 24dB
- Bass Boost: 0-18dB
- Input Sensitivity: 0.2V-10.0V
- Signal/Noise Ratio: >90dB
- Total Harmonic Distortion: <1.0%
- Remote Bass Knob: Included
- Dimensions: 202×83.1×34.8mm
Experience Unparalleled Audio Performance
The ZXM700.5 is not just an amplifier; it’s a testament to the relentless pursuit of audio excellence. Upgrade your car’s audio system today with the ZXM700.5 and experience the ultimate blend of power, precision, and portability. Join the revolution in car audio technology and discover why the ZXM700.5 is the definitive choice for discerning audiophiles.
