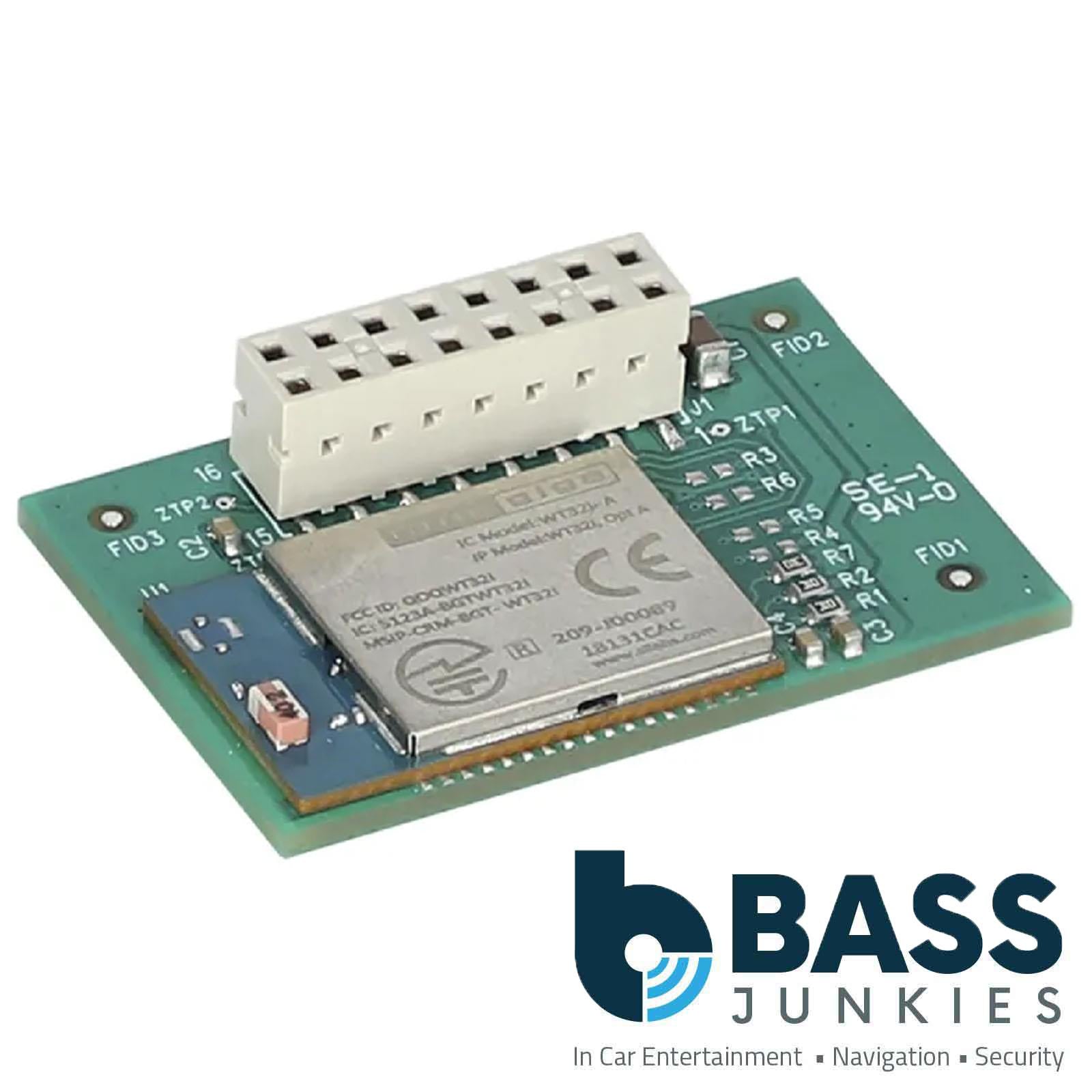

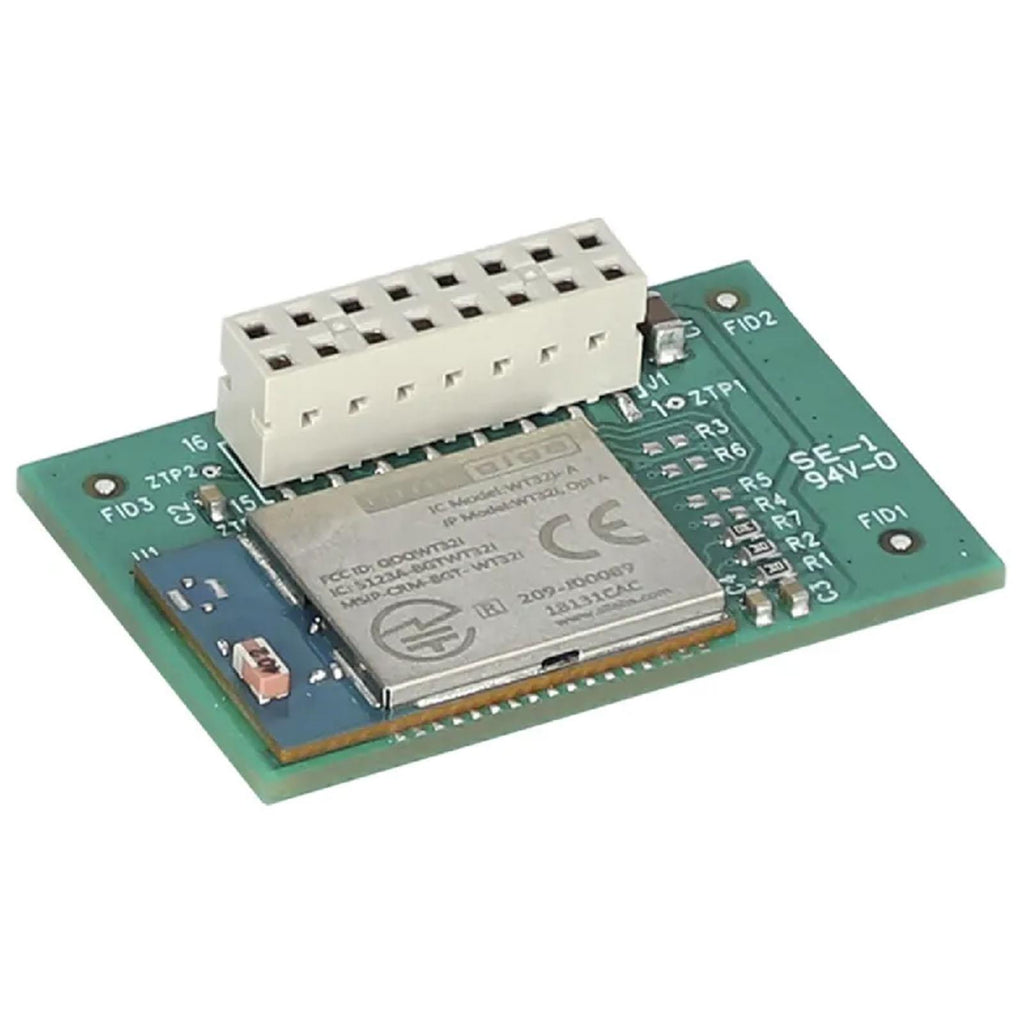

AXDSPL-BT Universal Bluetooth Input for AXDSP-L for Direct Music Streaming
Bluetooth expansion module designed to add wireless audio streaming to the AXDSP-L processor.
Installs directly onto the internal 16-pin header and allows music to stream straight into the DSP.
Volume is controlled from the phone, or with the optional AXBK-1 controller.
Features:
• Adds Bluetooth streaming to the AXDSP-L
• Direct music input to DSP
• Uses phone volume or optional AXBK-1
• Simple internal plug-in installation
• Secure 16-pin header connection
Installation Overview:
• Unplug AXDSP-L from vehicle
• Remove four screws and top cover
• Locate 16-pin header
• Align and press AXDSPL-BT onto header (must match orientation)
• Reinstall cover
AXBK-1 Wiring:
• Brown → AXDSP-L
• Orange → AXLK-1
• Black → ground
Clean, compact way to add Bluetooth streaming to your AXDSP-L setup.
