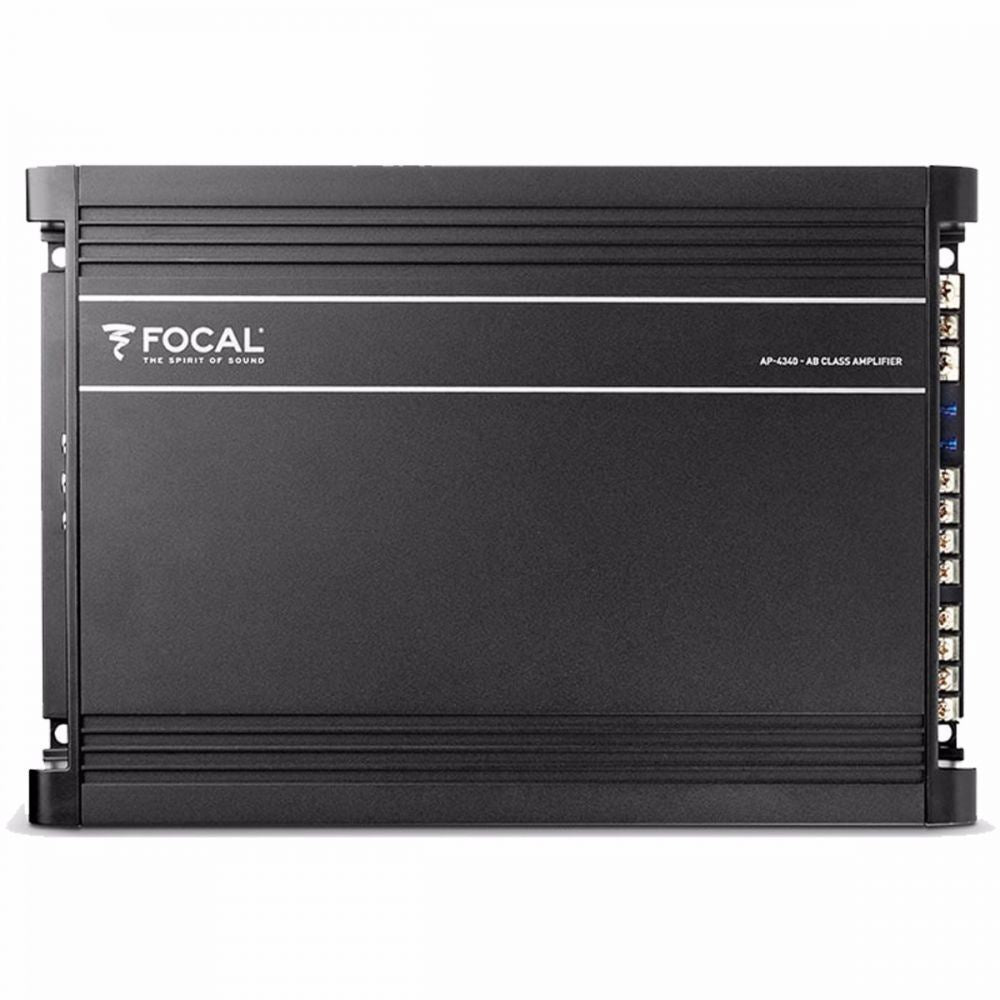

Focal AP-4340 - AUDITOR 4 Channel Amplifier
The AP-4340 4-channel class AB amplifier can be used in three modes: 4, 3 or 2-channel.
In 4-channel mode, its CEA power of 4 x 70W RMS will allow you to get the most from your Auditor kits installed up front and in the rear. The 3-channel mode enables you connect a kit to channels one and two, as well as an Auditor subwoofer to channels three and four in bridged mode for a CEA power of 190W RMS under 2 Ohms. The 2-channel mode, which consists of bridging channels 1-2 and 3-4, provides a CEA power of 2 x 190W RMS under 2 Ohms.
Key Features:
- 4-channel car amplifier
- 70 watts RMS x 4 at 4 ohms (95 watts RMS x 4 at 2 ohms)
- 190 watts RMS x 2 at 4 ohms (bridged mode)
- CEA-2006 compliant
- Class AB amp technology
- channel 1-2: variable high-pass filter (60-1200 Hz)
- channel 3-4: high-pass filter (100-2200 Hz) or low-pass filter (50-250 Hz)
- channel 3-4: selectable bass boost (0, 6, 12 dB at 45 Hz)
- preamp inputs and outputs
- 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- total harmonic distortion: 0.06%
- frequency response: 10-30,000 Hz
- fuse rating: 15A x 2
- dimensions: 13-5/16""W x 2-3/16""H x 9-5/16""D
"
