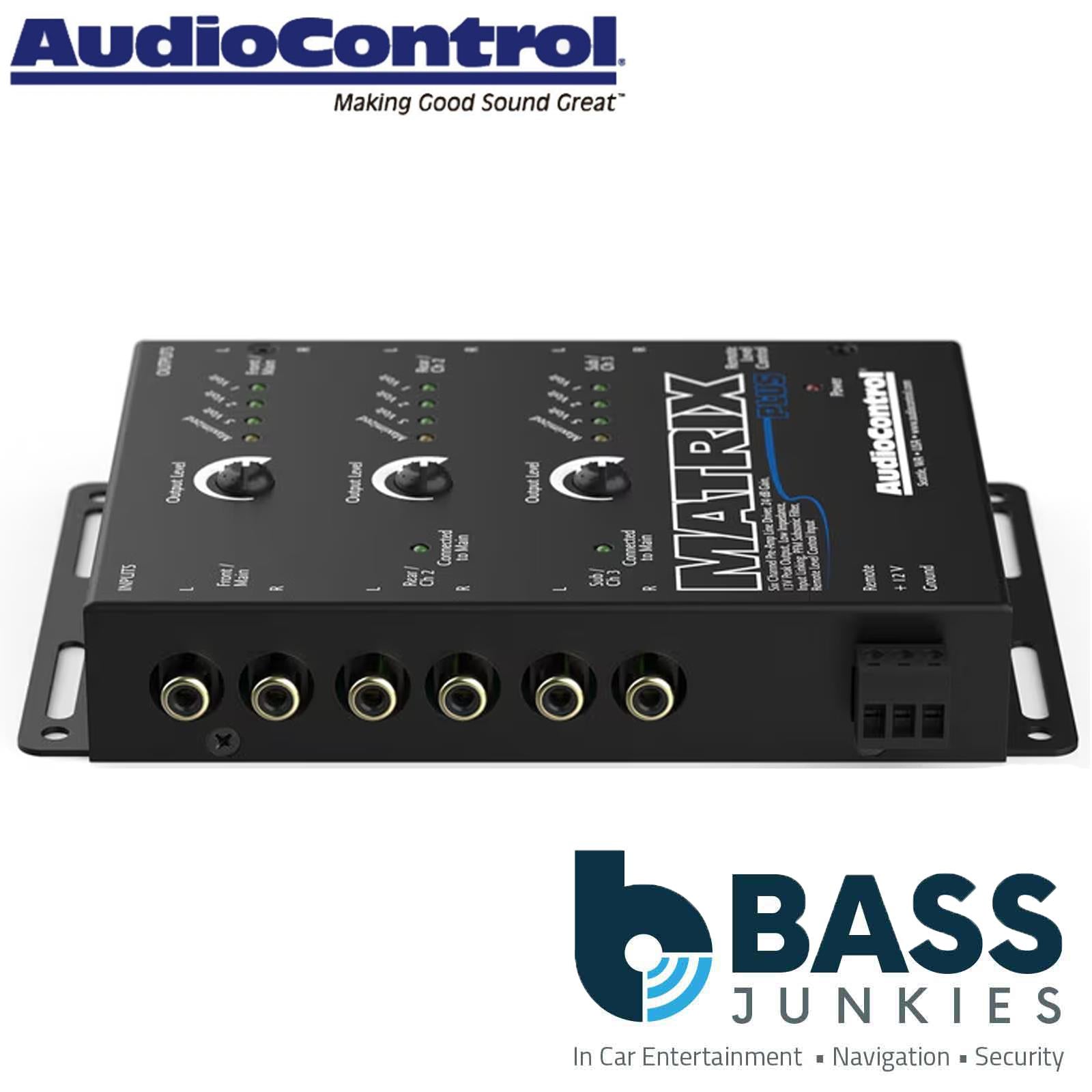

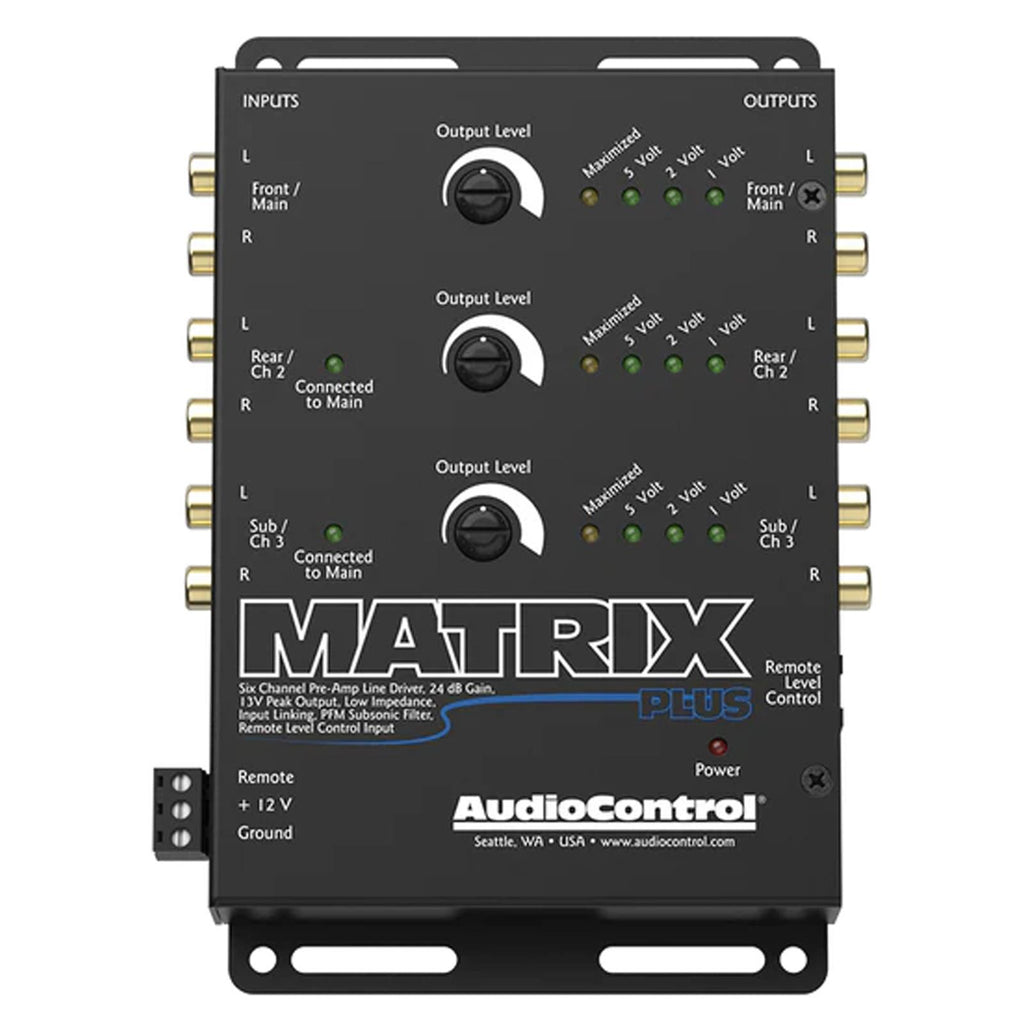

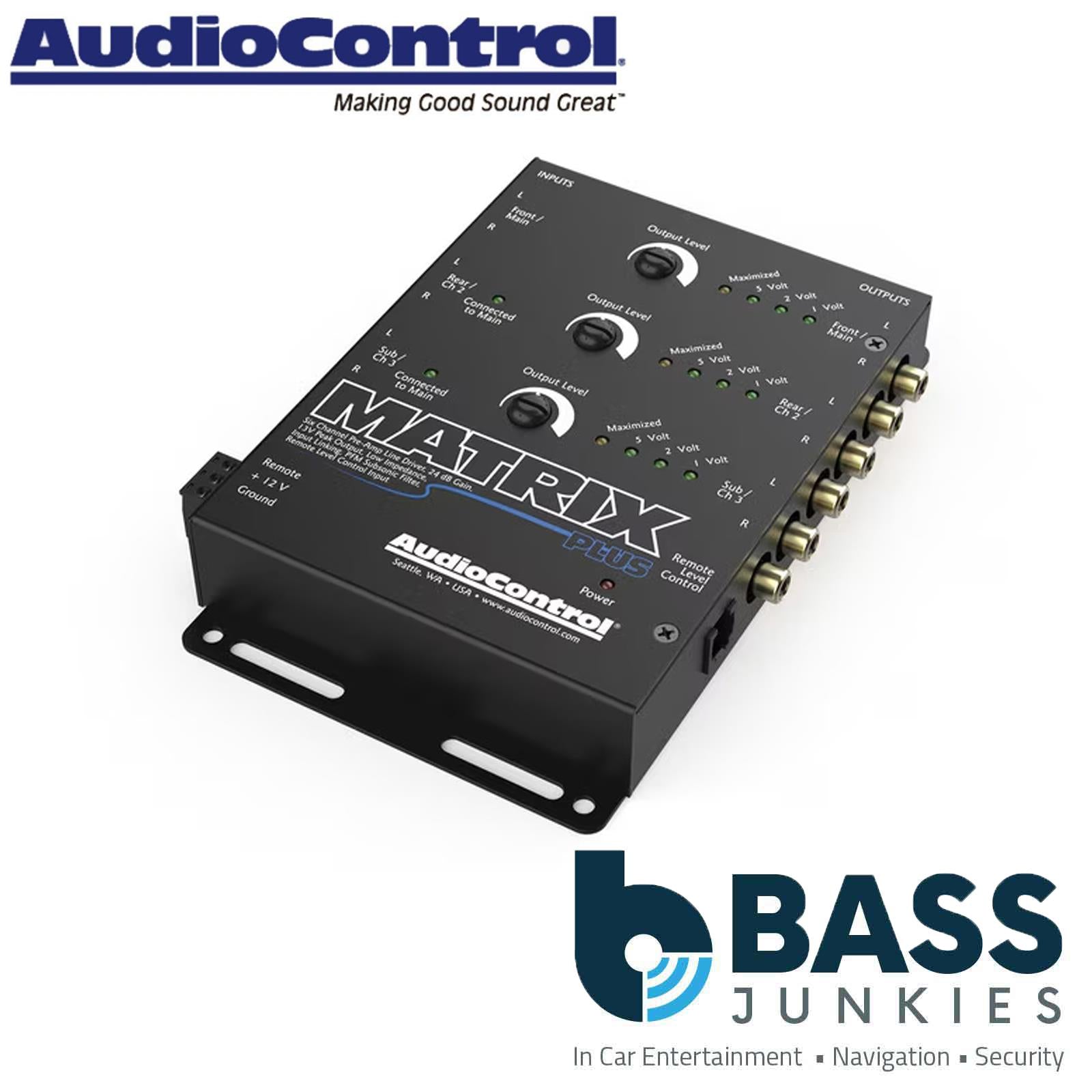

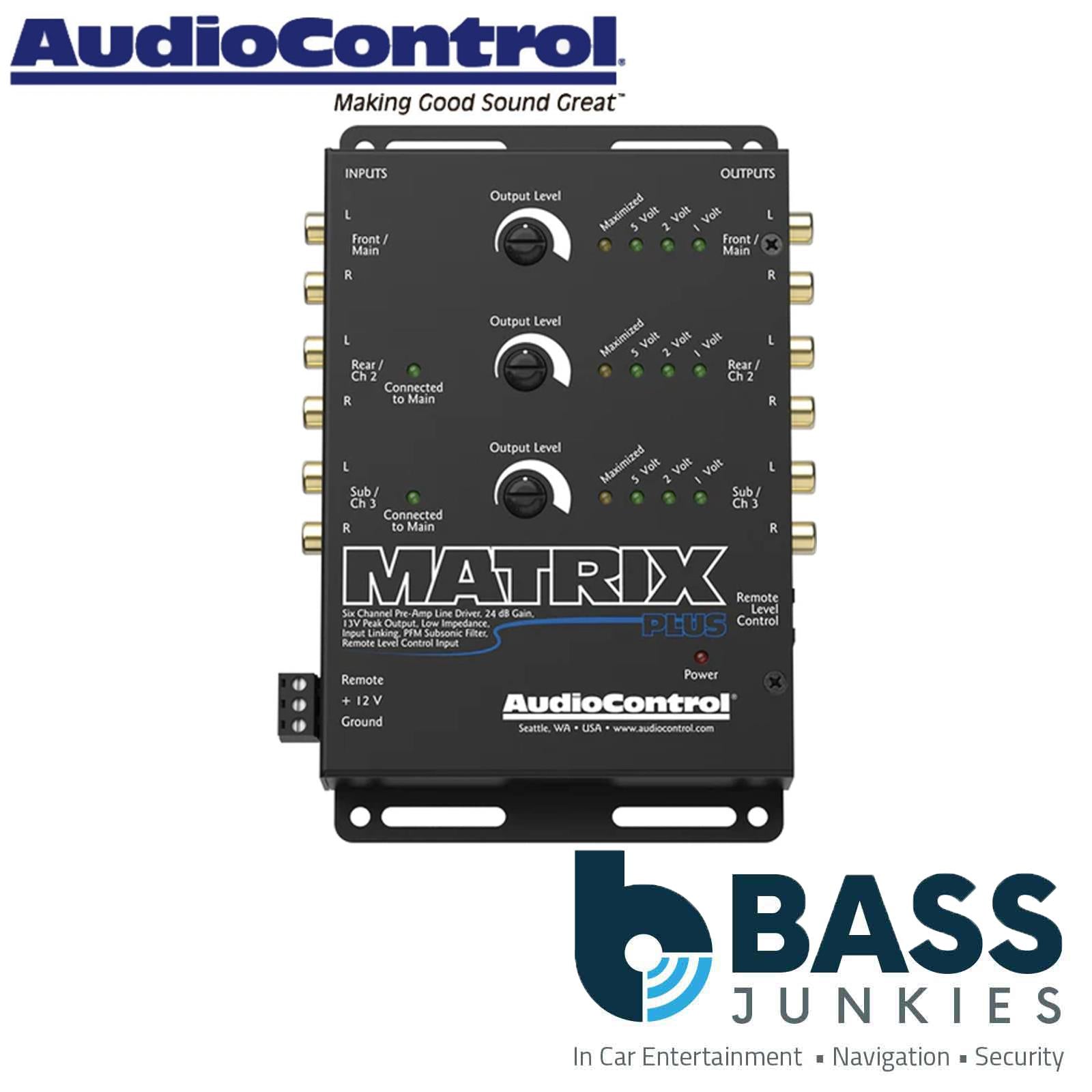

AudioControl Matrix Plus 6-Channel Preamp Line Driver with Remote Level Option
The AudioControl Matrix Plus is a high-performance six-channel preamp line driver designed to dramatically improve signal strength and sound quality in aftermarket car audio systems. Modern factory and aftermarket head units often produce low pre-amp voltage, which can result in weak output and poor amplifier performance. The Matrix Plus solves this by boosting signal voltage and maintaining clarity, even over long cable runs.
With up to 24 dB of gain, the Matrix Plus can increase signal levels to 9.5 volts RMS / 13 volts peak, delivering strong, clean audio to multiple amplifiers. It is ideal for complex systems, SPL builds, multi-amplifier setups, and installations using multiple audio sources such as multimedia players or video game consoles.
The Matrix Plus also features intelligent signal routing, allowing two input channels to feed all six outputs, with each output capable of driving up to seven amplifiers. Built-in level matching ensures smooth, consistent volume when switching between different sources.
An optional remote dash-mounted level control allows easy adjustment of overall system volume or subwoofer output from the driver’s seat.
Key Features
-
Six-channel preamp line driver
-
Up to 24 dB of gain
-
13V peak / 9.5V RMS high-voltage output
-
Six channels of input and output
-
Balanced differential inputs
-
Low-impedance outputs for noise-free signal transfer
-
Ultra-low distortion, ultra-quiet operation
-
Internal channel linking for multi-amp systems
-
Each output can drive up to seven amplifiers
-
Optional remote level control support (ACR-1)
-
Built-in PFM subsonic filter
-
Individual output level controls
-
Selectable ground isolation
-
Optimum voltage indicator LEDs
Ideal For
-
Factory or low-voltage head units
-
Multi-amplifier systems
-
SPL and competition builds
-
Long RCA cable runs
-
Systems with multiple audio sources
A powerful signal-boosting solution designed to put your car audio system into high gear while maintaining clarity, control, and flexibility.
