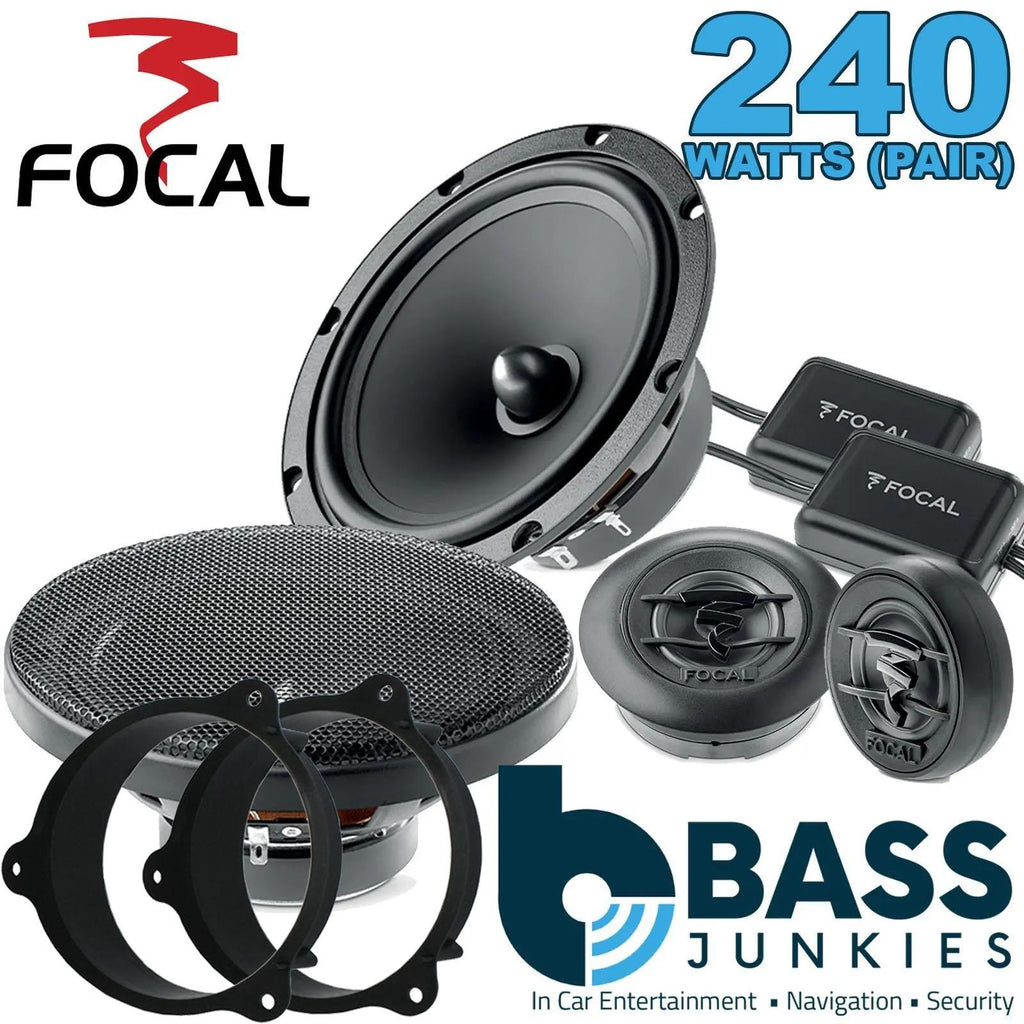

Focal Auditor ASE165 2-Way Component Kit Supplied with Brackets to fit 6.5" Speakers to Mercedes Citan (Front Doors 130mm. W415 Model) [2012-2021]

Roll over image to zoom in Click on image to zoom

Focal Auditor ASE165 2-Way Component Kit Supplied with Brackets to fit 6.5" Speakers to Mercedes Citan (Front Doors 130mm. W415 Model) [2012-2021]

Name: Focal Auditor ASE165 2-Way Component Kit Supplied with Brackets to fit 6.5" Speakers to Mercedes Citan (Front Doors 130mm. W415 Model) [2012-2021]
Brand: Bassjunkies
SKU: ASE130_CT25MC20
Price: 114.95 GBP
Availability: InStock

SKU: ASE130_CT25MC20

Model: ASE130_CT25MC20

Price:

£114.95

Quantity:

Share this product

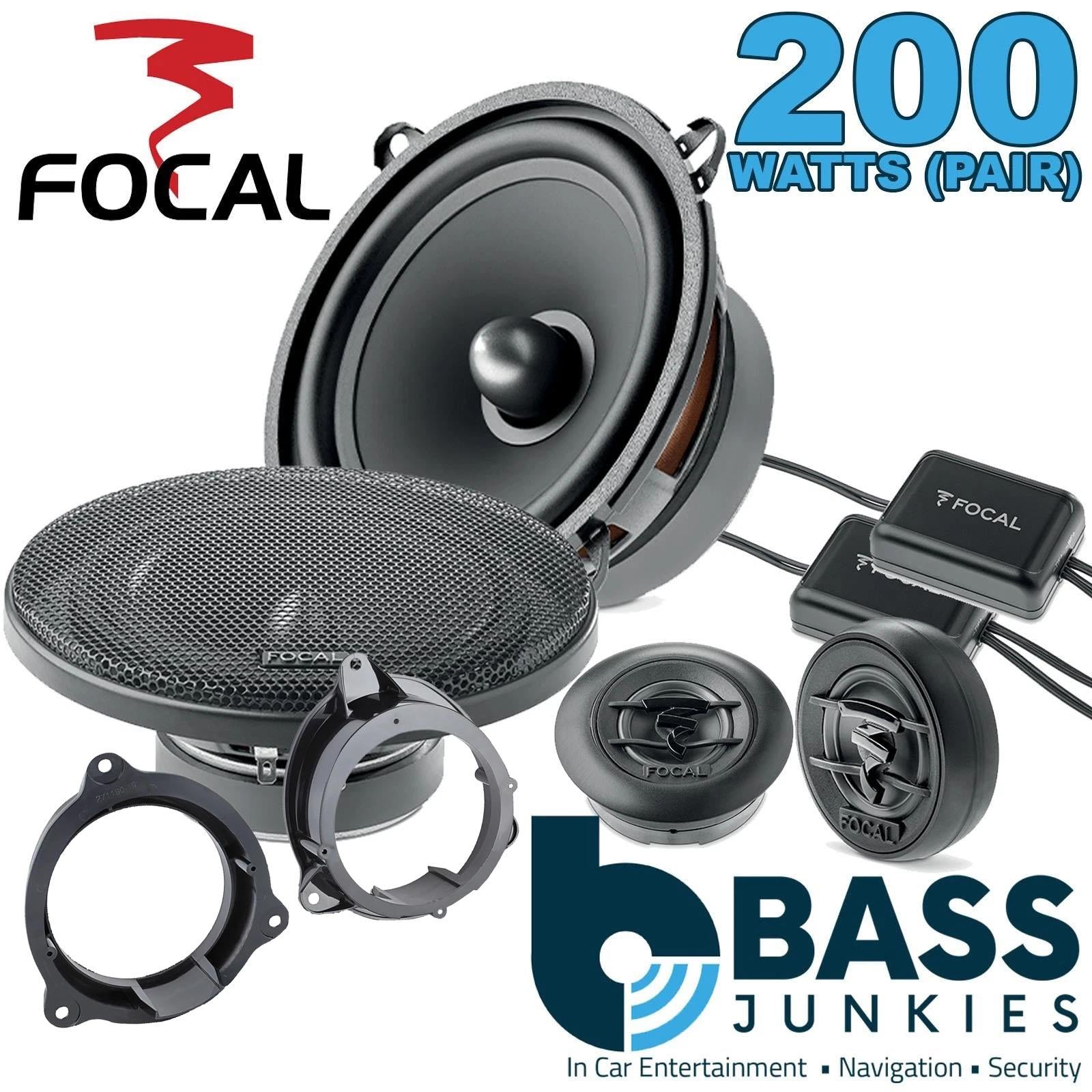

Focal Auditor ASE165 130mm/13cm/5.25"Car Component Speakers (Pair Max 240 watts) Fits Mercedes Citan 2012-21

5.25" 2 Way Component Speaker Kit - Focal Car Audio ASE 165

With a dimension of 165mm, the ASE 165 component kit is a fundamental of the Auditor line. For nearly 20 years this system has benefited from many upgrades and has built its reputation around its reliability and its acoustic qualities which are unique to Focal and offered at a very attractive price. Combined with electronics or directly

connected to the vehicle's original amplifier, this kit will considerably improve the audio experience in any type of cabin.

Offering plenty of installation options, ASE 165 can be linked with other electronics or directly connected to the vehicle’s original amplifier. The tweeters can be mounted directly in the A-pillars or positioned in the vehicle's original locations. The kit's high power handling, combined with high sensitivity, guarantees an unrivalled level of performance in its category. It is perfect for a début Focal system and/or for improving your original sound system.

Multiple Mounting Options

The woofers can be either surface-mounted (grill provided) or installed in the vehicle's original locations. The inverted dome tweeters are delivered with brackets for surface or ‘flush’ mounting. The tweeter can also be removed from its flush support if you want to install it in the original tweeter’s location.

Design

The steel basket of the speaker driver is rigid and durable. The flat grilles supplied, in ABS and Mesh, are just as good-looking as they are inherent in the kit's performance. Finally, the black lacquer finish on the tweeter means it assimilates seamlessly into the cabin of all modern vehicles.

Specifications

Type: 2-way component kit
Woofer: 130mm
Depth: 62.5mm
Cone: Polypropylene
Maximum power: 120W
Nominal power: 60W RMS
Sensitivity: (2.83V/1m) 91.5dB
Frequency response: 60Hz - 21kHz
Impedance: 4 Ω
Voice-coil diameter: 25mm
Magnet: Ferrite
Suspension: Butyl
Tweeter: Inverted dome tweeter
Crossover: Crossover Box

Technical Specifications

Nominal power: 60W
Maximum power: 120W
Sensitivity: 91.5dB
Nom. impedance: 4 â„¦
Frequency response: 60Hz-21kHz
Cone: Polypropylene
Surround: Butyl
VC diameter: 25mm 1"
Net weight: 850g

Parameters

Rdc: 3.3 â„¦
Fs: 71Hz
Mms: 13.8g
Cms: 0.36mm/N
Vas: 9 l
Qts: 0.9
Qes: 1.1
Qms: 8
Bxl: 4.3 N/A
Sd: 132cm

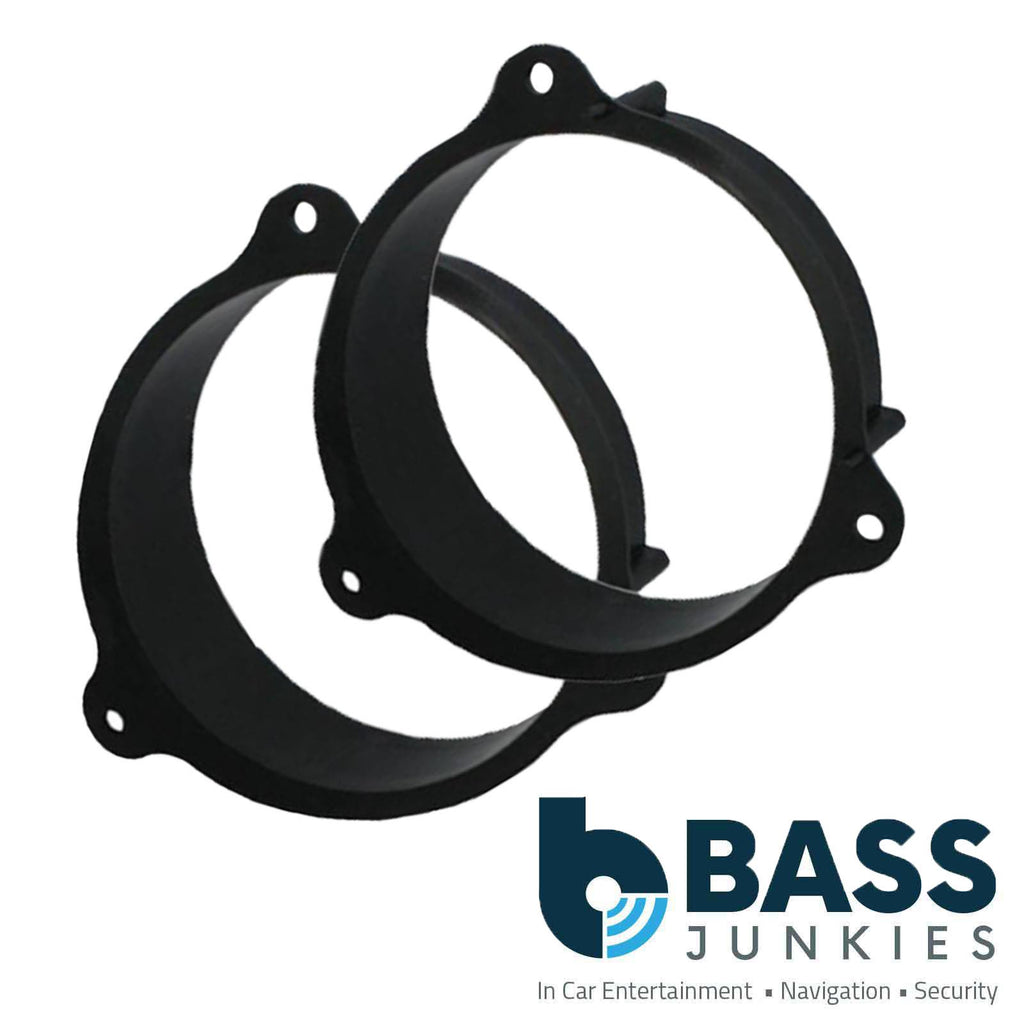

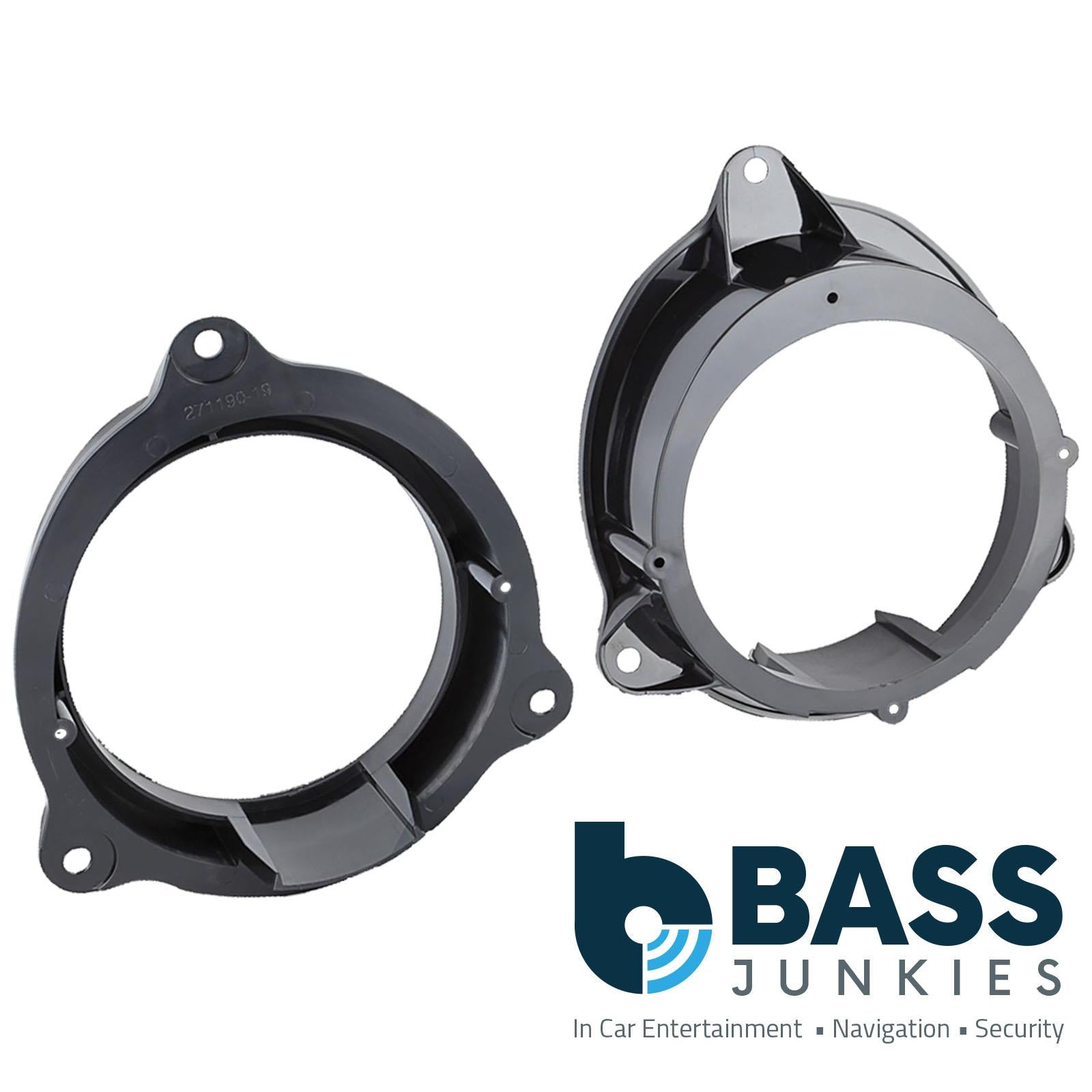

This will fit the following vehicles:

Mercedes Citan 2012-2021 [ Front Doors 130mm. W415 Model]

Please Note: Please make sure that is the correct Speaker Adaptor for your car by firstly checking to see if your make, model and year of car is listed in the vehicle breakdown above. Secondly by checking to see if the shape of bracket in the picture listed is the same as you have in your vehicle.

Note: Sold As A Pair. (Wire adapters maybe required in addition to these brackets)
