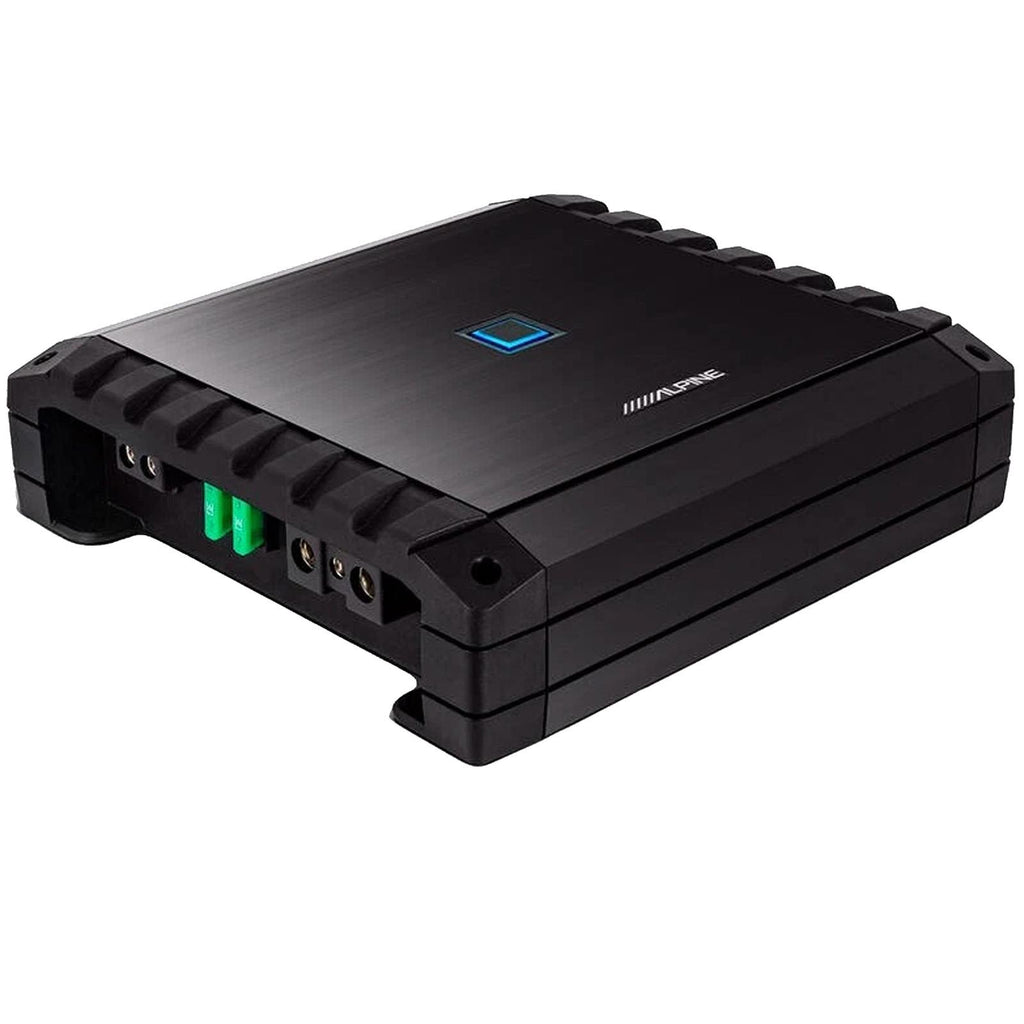

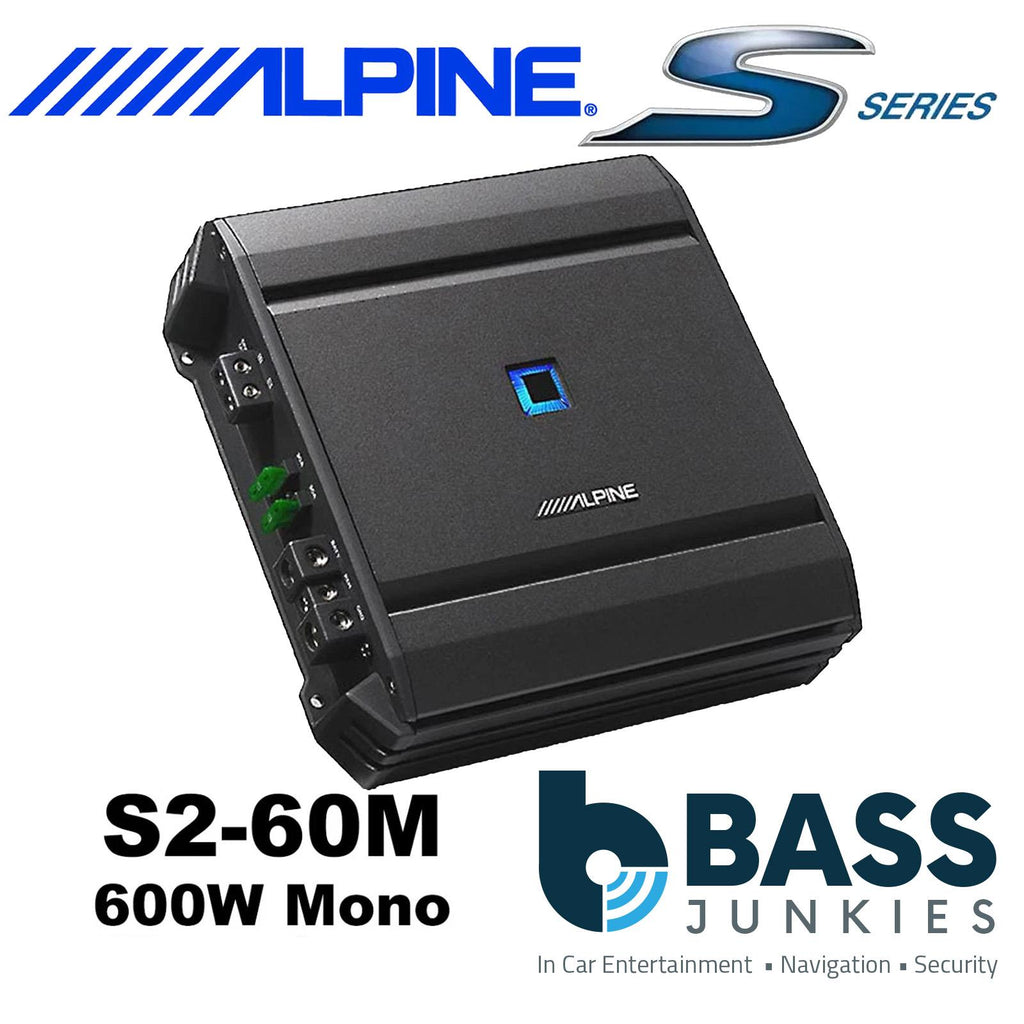

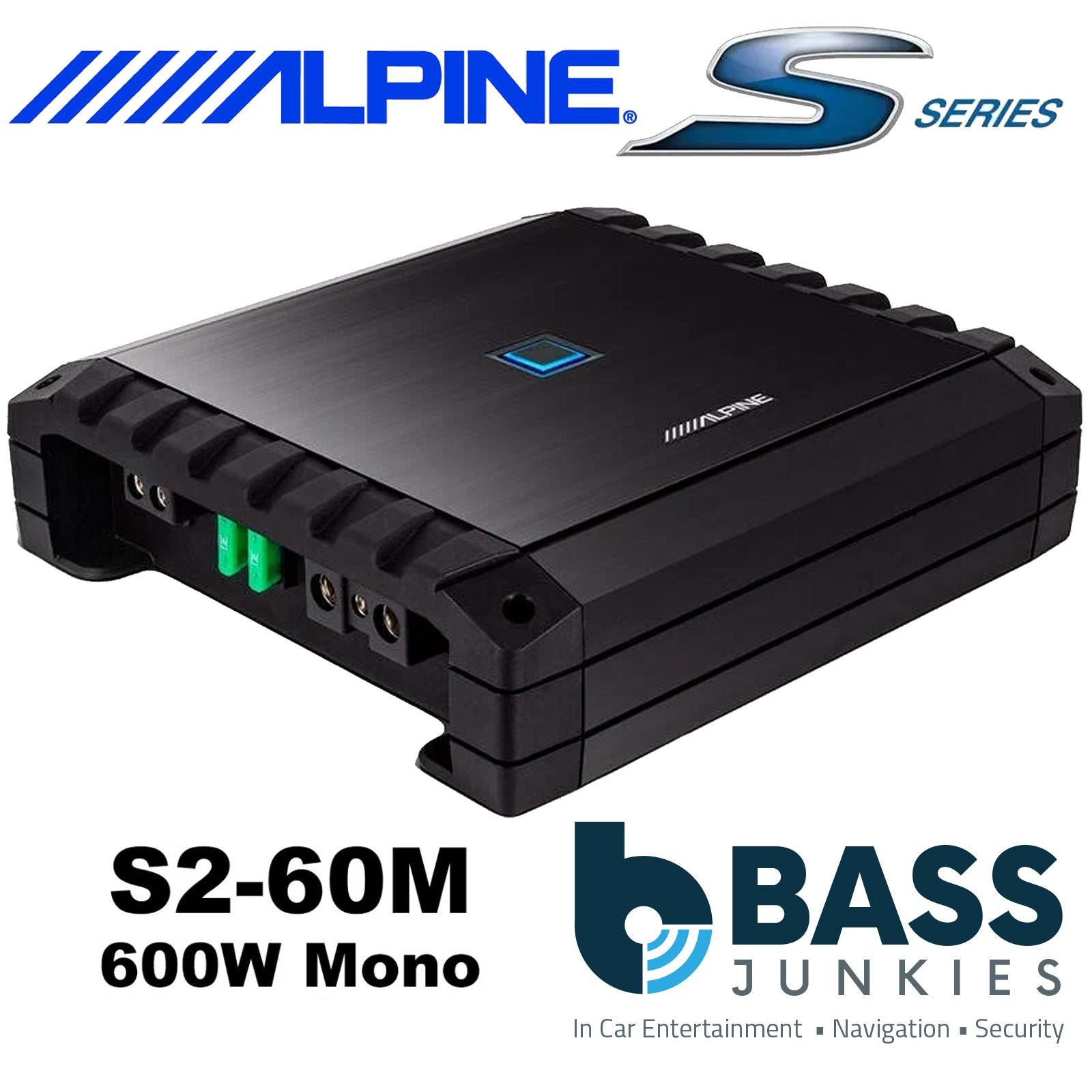

Alpine S2-A60M - S-Series 600 Watts RMS Mono Block Car Amplifier Bass Power Amp
The new generation of Alpine S Series amplifiers are designed to take your in-car audio experience to the next level without breaking the bank. With a sleek new design and updated features over their predecessors, these amplifiers offer exceptional performance and power at an affordable budget.
The next generation mono subwoofer amplifier from S Series S2-A60M makes it much easier to get great bass into your vehicle, delivering up to 600 Watts of RMS power at 2 Ohms. Variable bass boost lets you add a little extra punch and impact for more low-frequency enjoyment. You can also add an optional wired remote to control the bass level from the front seat.
High-pass and low-pass filters They allow you to control the frequency spectrum that reaches your speakers and subwoofers. The amplifier is equipped with inputs a high level, so you can install it in almost all vehicles, even in those with standard radio. When using speaker-level inputs, the amplifier can detect the incoming signal and turn itself on, eliminating the need to connect a separate turn-on lead to the receiver or fuse box.
General
- 600 W Mono Power Amplifier
- Class-D Amplification (Digital)
- Channel Design: Mono Channel

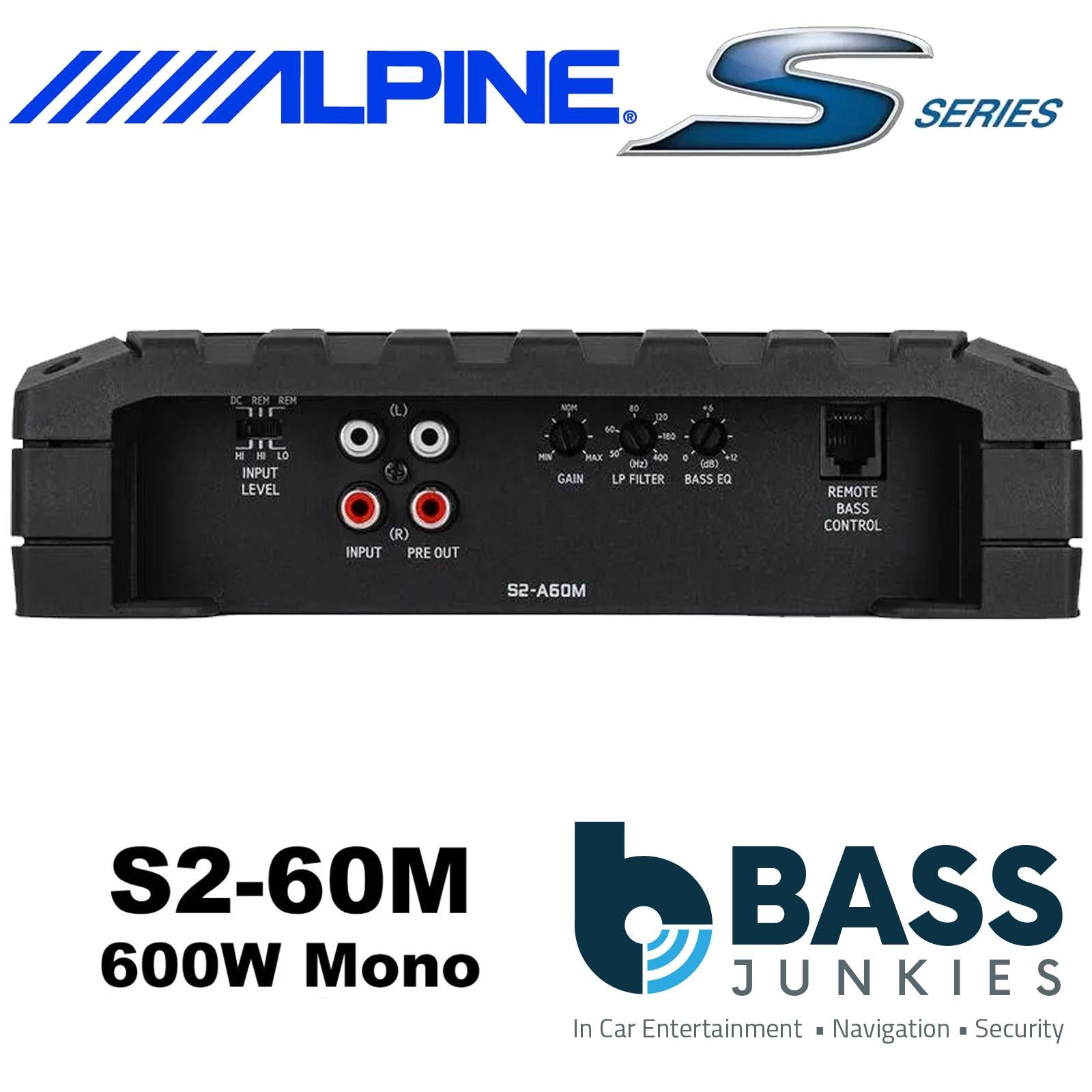

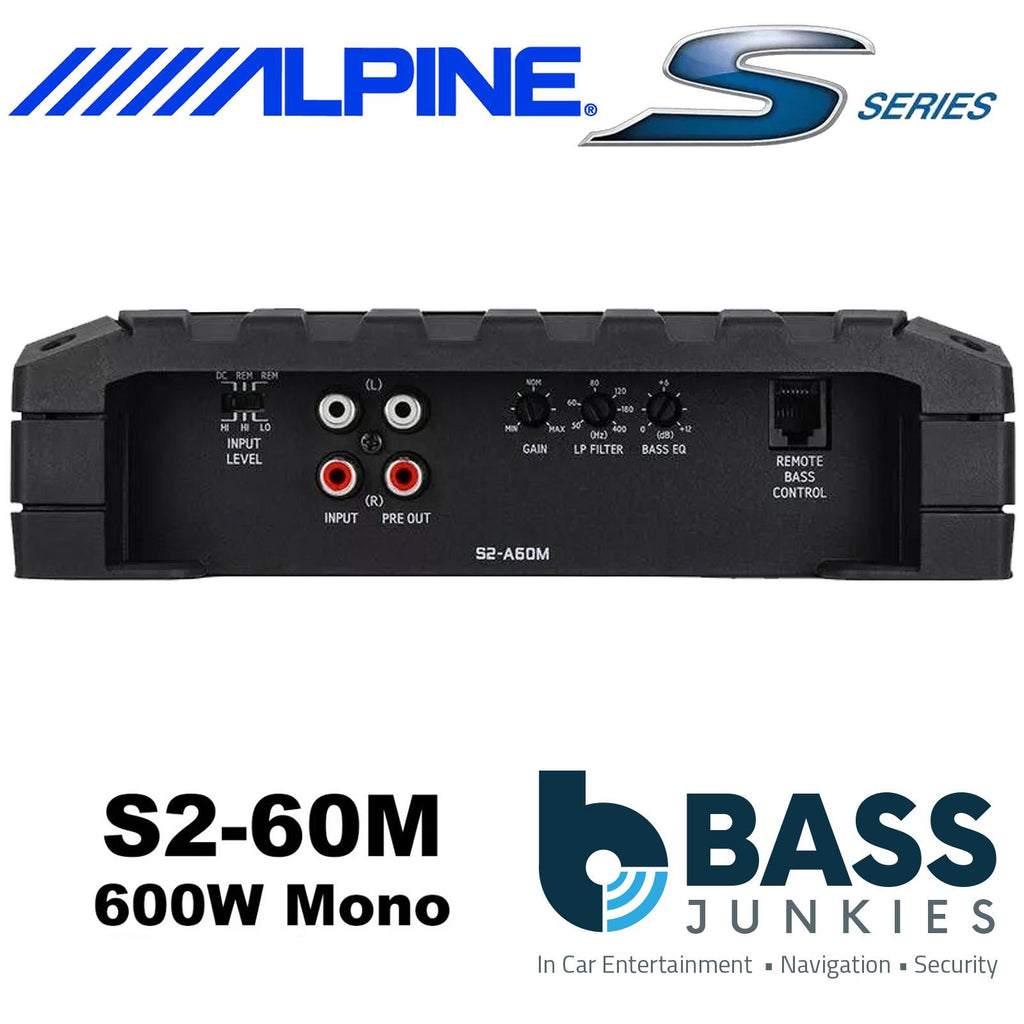

- Side panel controls
- Thermal Management Control

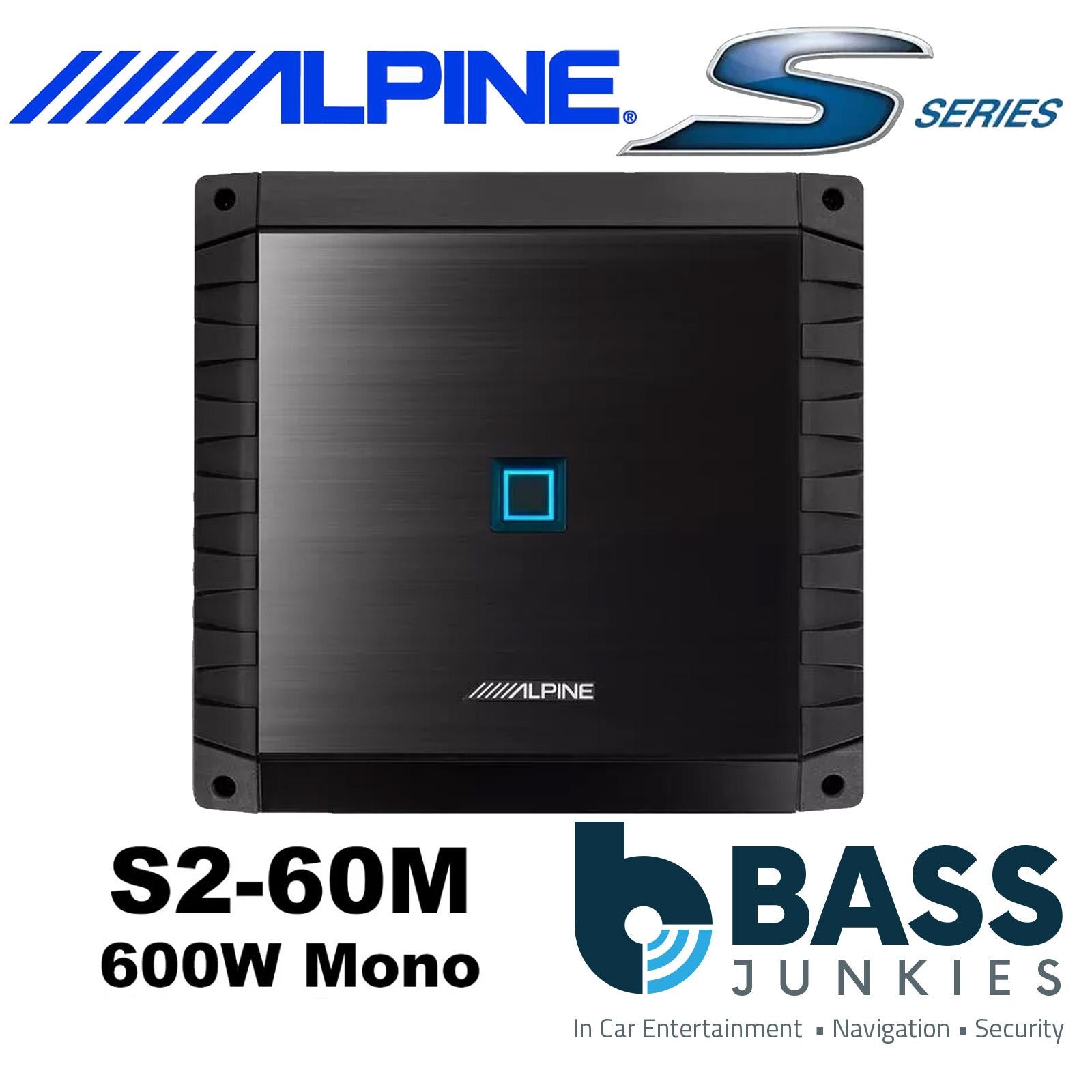

- Top Mounted LED Power/Status Indicator
- Speaker Level Input
- 3 turn-on modes (DC HI, Remote HI, Remote LO)
- Input Channel Selector Switch for Subwoofer
- Crossover: Variable Low-pass Filter (LPF)
- Adjustable Gain Control
- Bass EQ
- Remote Bass Control (RUX-KNOB2) Optional
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)

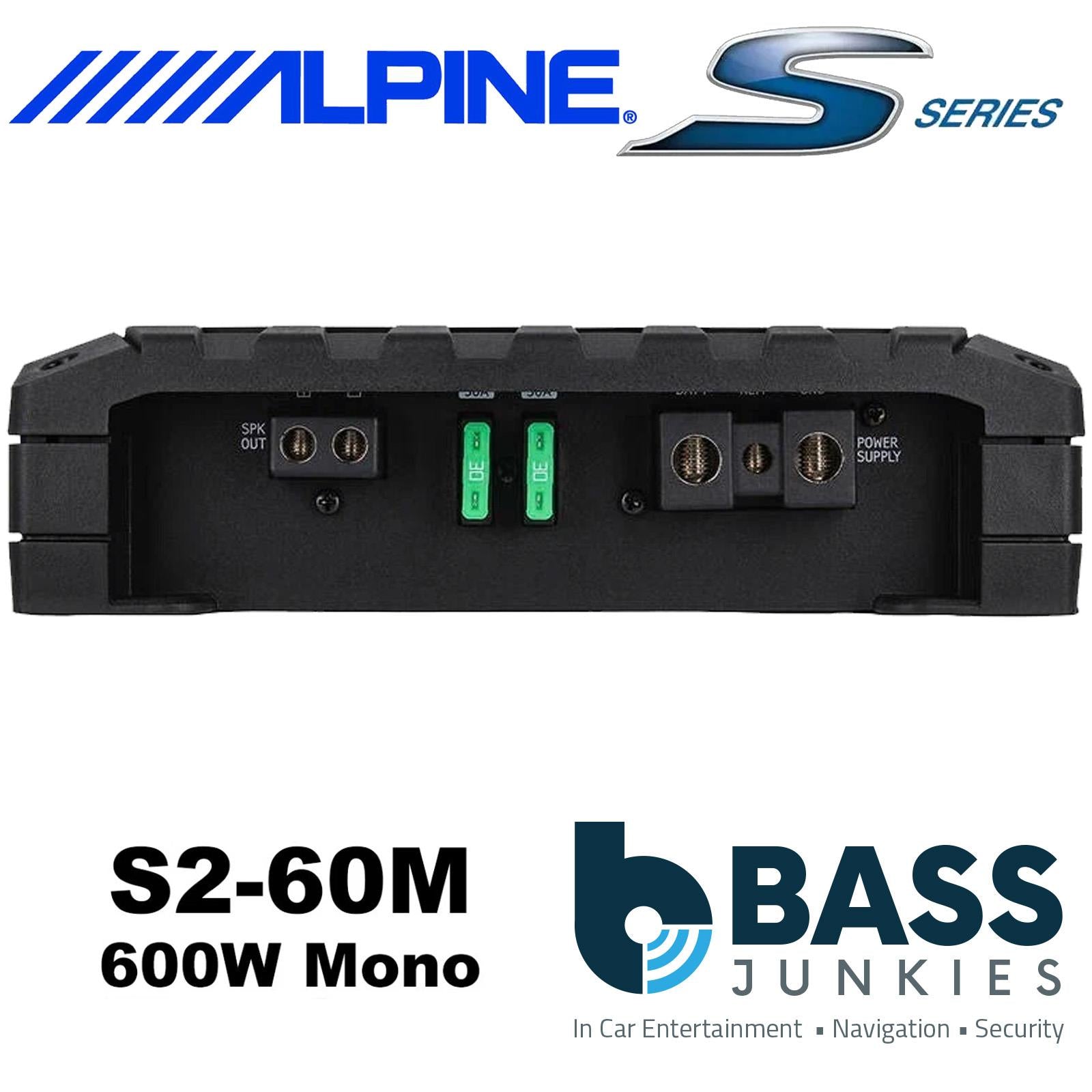

- Two-sided Terminal Layout
- Built-in Selectable / Adjustable Crossovers
- Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)
- Power Rating: 14.4 V, < 0.1% THD +N
- Power Output: 330 W RMS x 1 @ 4 Ω, 600 W RMS x 1 @ 2 Ω, 600 W RMS x 1 @ 1 Ω
- S/N Ratio: > 85 dB
- Frequency Response: 10 Hz - 400 Hz
- Damping Factor: > 1000
- Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
- High Level Input with automatic power on
- Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz – 400Hz
- THD+N (@ 10W into 4 Ohms): <0.03%
- Damping Factor: >1000
- Weight: 2.2kg
RMS Power Ratings
- Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 600 Watts
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 600 Watts
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 330 Watts
Sound Tuning
- Crossover: Variable LPF: 50-400Hz (-24dB/oct)
- Bass EQ (+12dB)
Dimensions
- Heat Sink (WxHxD) mm: 220 x 57 x 210
