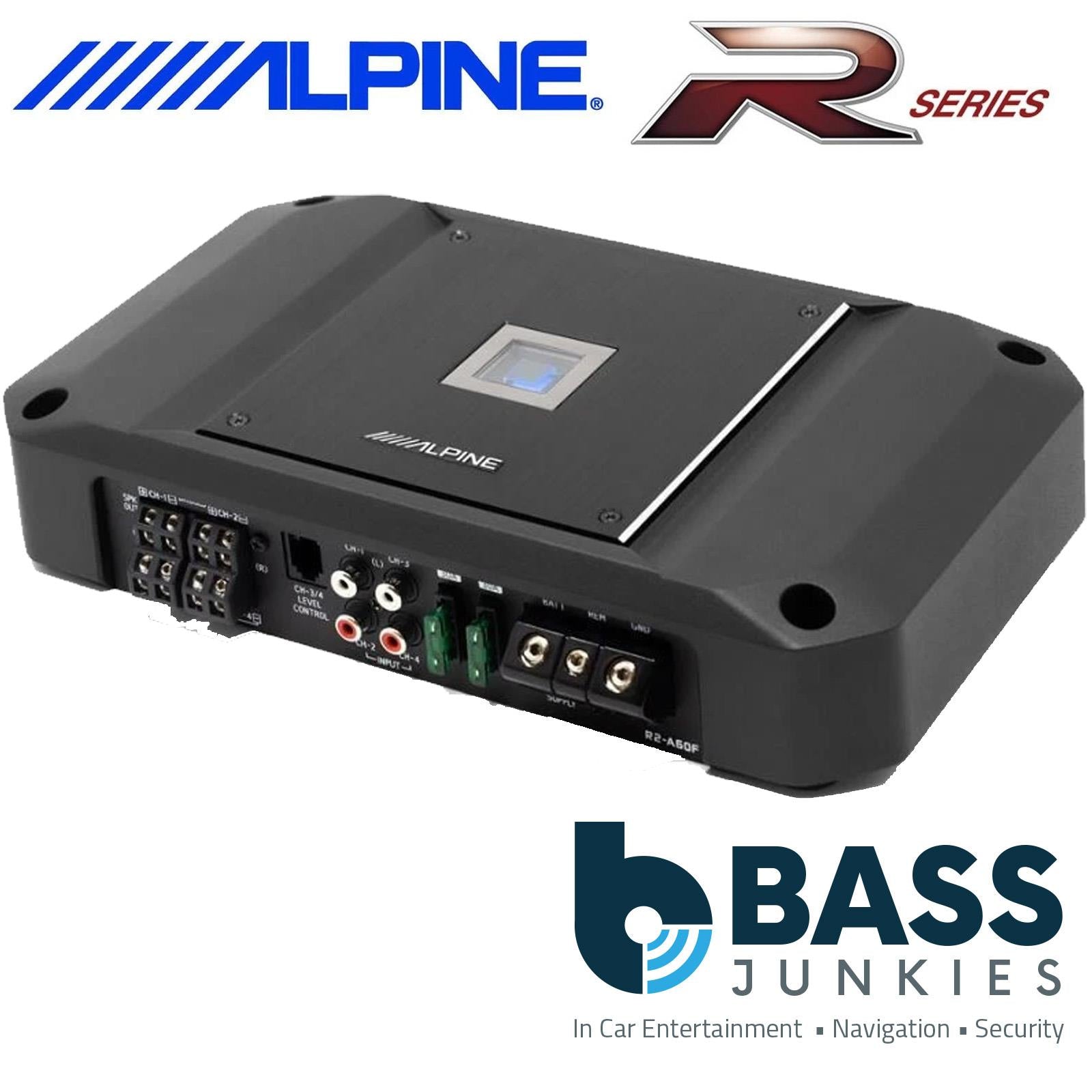

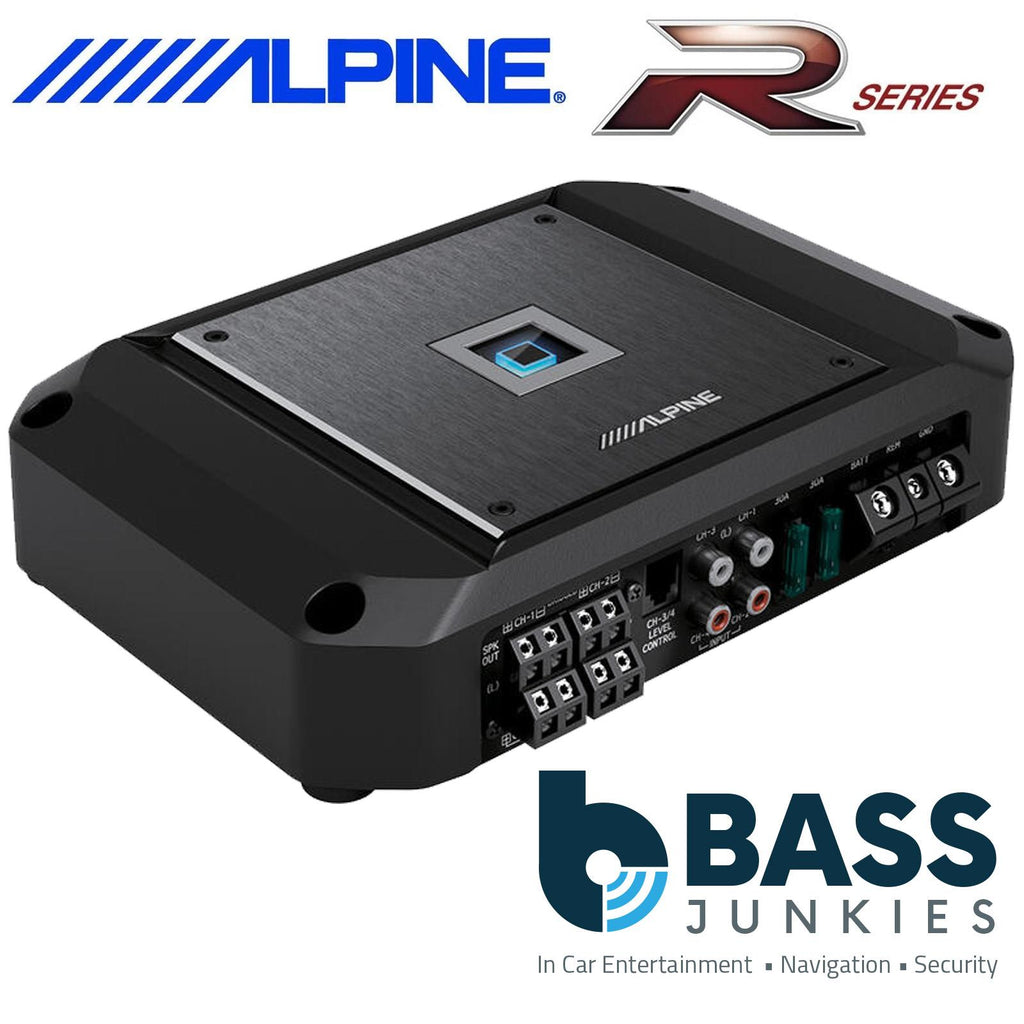

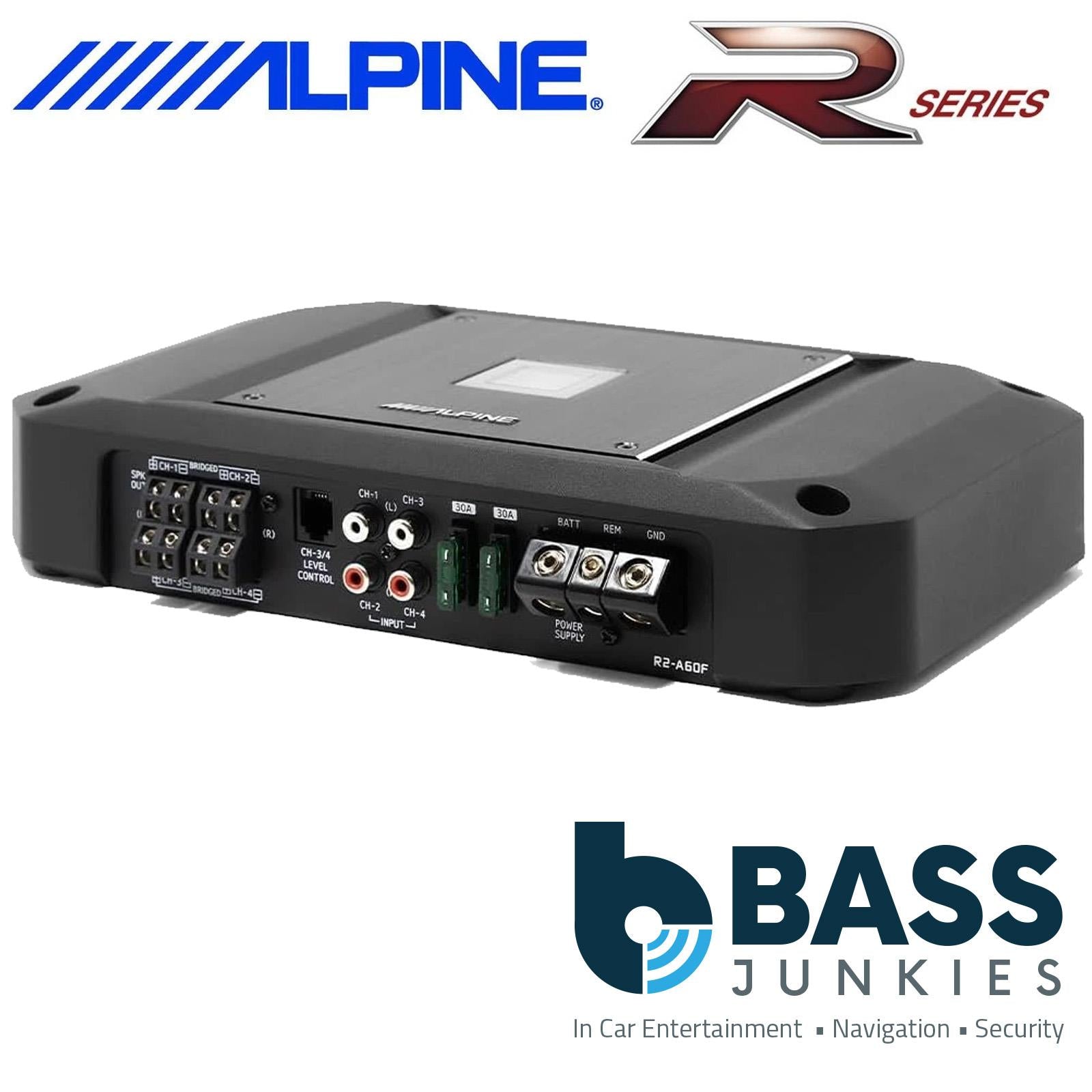

Alpine R2-A60F - 600 Watts RMS 4 Channel Class-D Car Amplifier Hi-Res Audio Amp
The “R-Series” line of speakers, subwoofers and amplifiers have a heritage of sound quality you can hear from a block away, and the newly added R-Series amplifiers are no exception. Aside from their best-in-class performance, these amplifiers are tuned to emphasize the characteristics of the R-Series speakers and subwoofers, giving you that legendary R-Series experience. They have a 15% reduced footprint compared to the previous models and are easier to install.
Alpine's R-Series R2-A60F amplifier reproduces high-frequency sounds up to 45,000 Hz and is Hi-Res Audio compliant, so you can enjoy the crystal-clear sound and enhanced realism you want in your music. We built some of our top-of-the-line amplifier technology into this R-Series amp, including high-efficiency transformers, premium low-noise custom capacitors, and low-distortion dual "Sierra" feedback/correction circuitry. Whether playing high- or standard-resolution music files, you can count on superior sound quality from this amp.
The Alpine R2-A60F 4-channel amp produces 100 Watts RMS per channel @4 Ohms, perfectly matching the power ratings of Alpine's new R-Series speakers. You can also use this versatile amp in 3-channel mode, driving a pair of speakers with the front channels, and bridging the rear channels to send up to 300 Watts RMS to a subwoofer. Advanced Class-D amp technology allows this powerful amp to be built small enough to fit in almost any location.
Specifications
- Hi-Res Audio Certified (Up to 45 kHz)
- 4-Channel Amplifier
- Alpine’s Class D Amplifier Circuit
- Reduced Footprint (15% smaller compared to the previous R-A60F model)

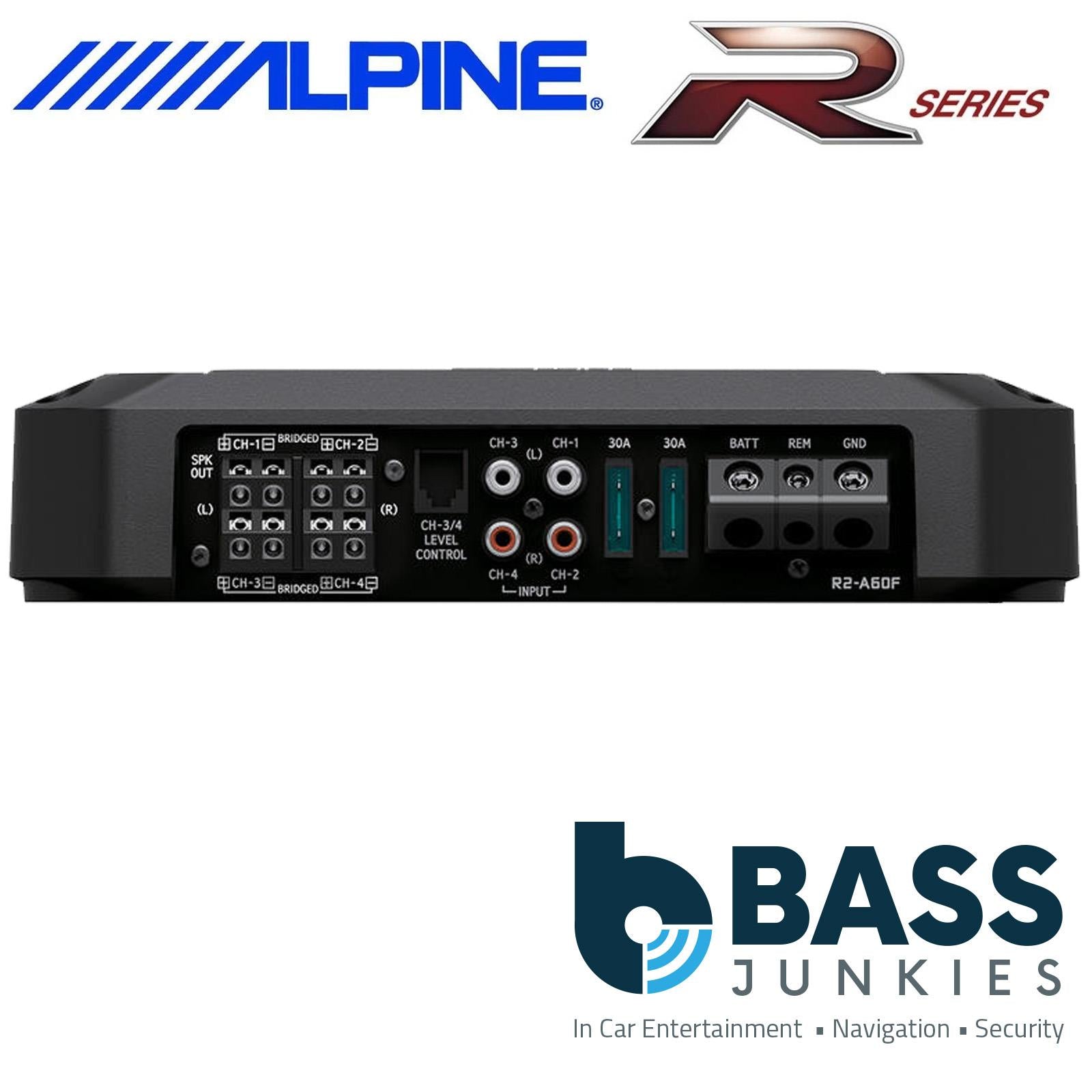

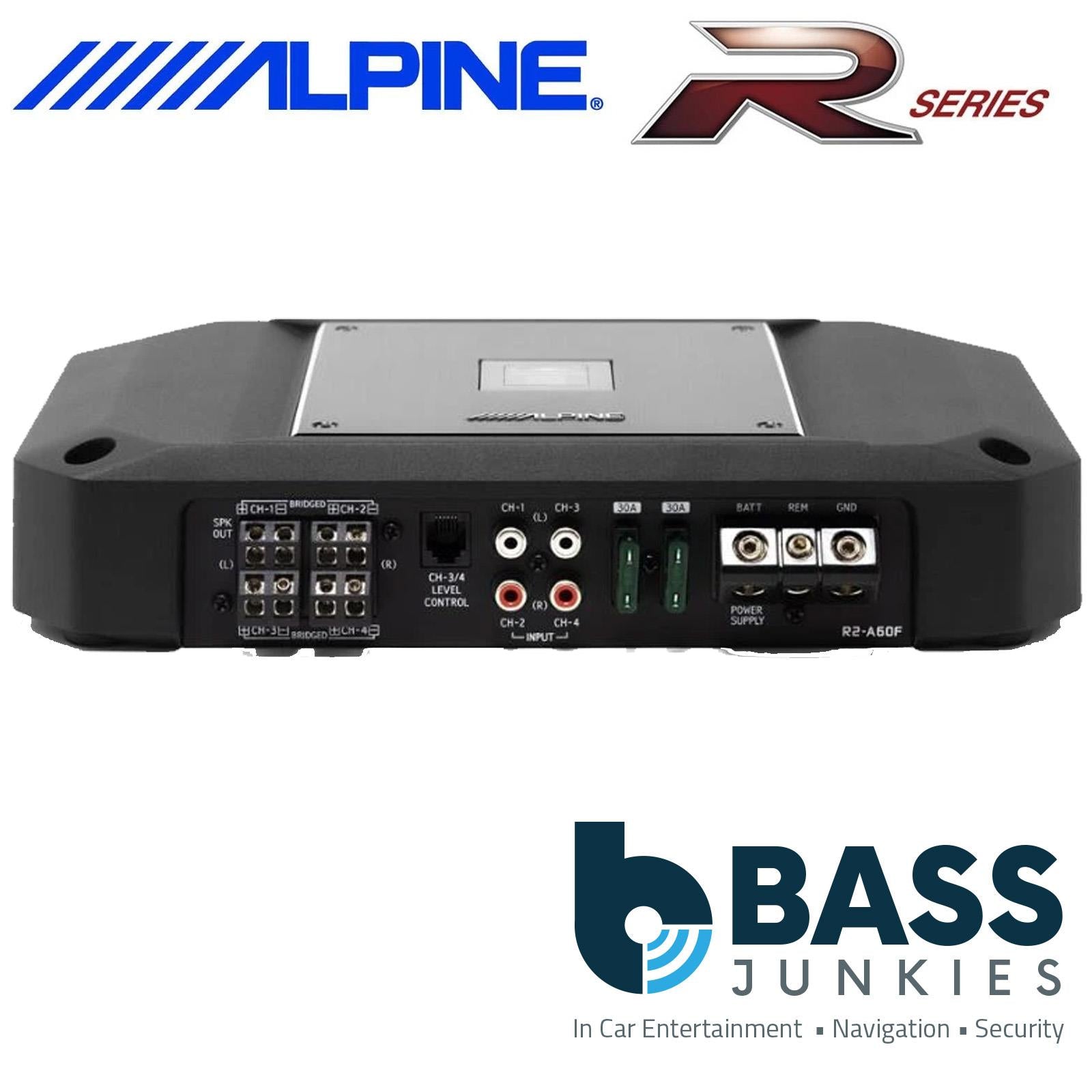

- One-Sided Terminal Layout

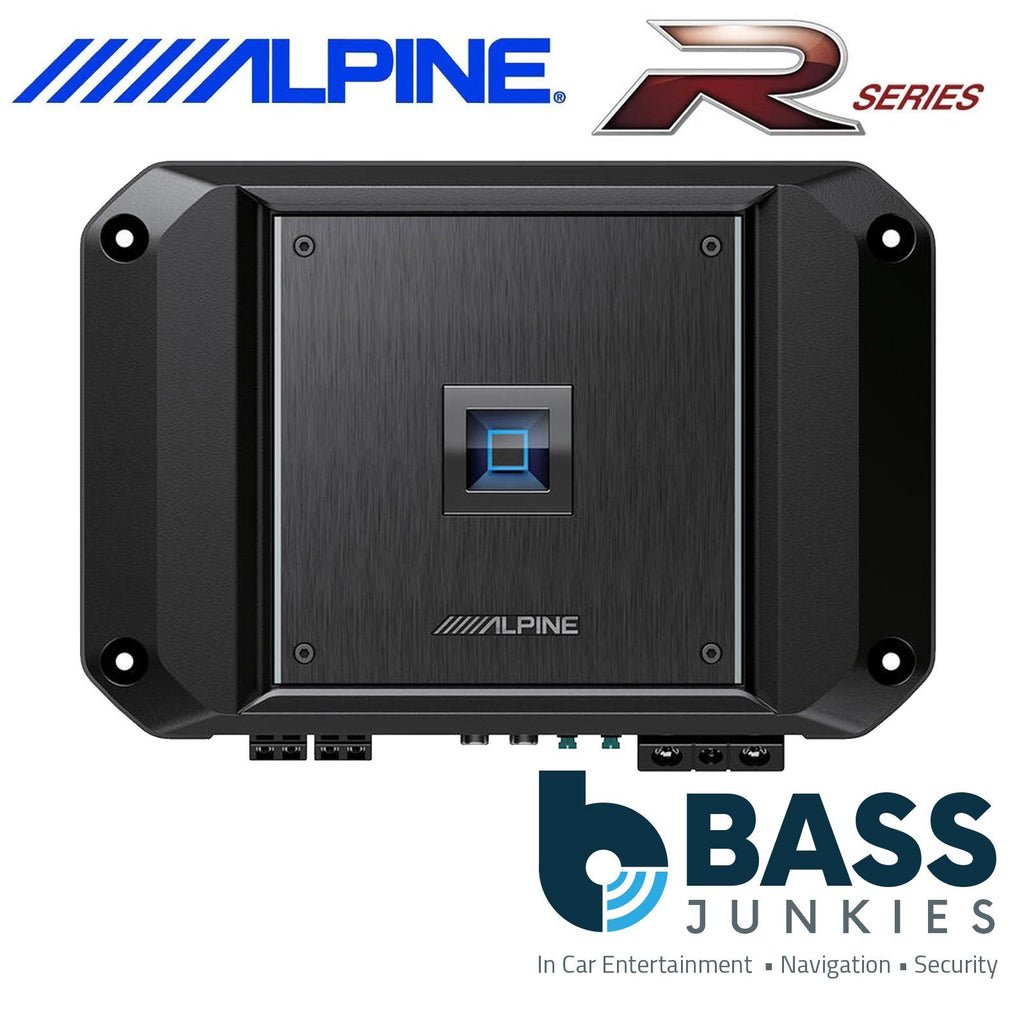

- Top Panel Sound Controls
- Integrated Mounting Feet for Simple Installation
- Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)
- Power Rating: 14.4 V, ≤ 1% THD +N
- Power Output: 100 W x 4 @ 4 Ω, 150 W x 2 @ 2 Ω
- Bridged Power: 300 W x 2 @ 4 Ω
- S/N Ratio: > 80 dB
- Frequency Response: 10 Hz - 45 kHz
- Damping Factor: > 100
- CTA-2006-D Certification
Dimensions:
282 x 55 x 165 mm
Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)
