MATCH Extension Card slot

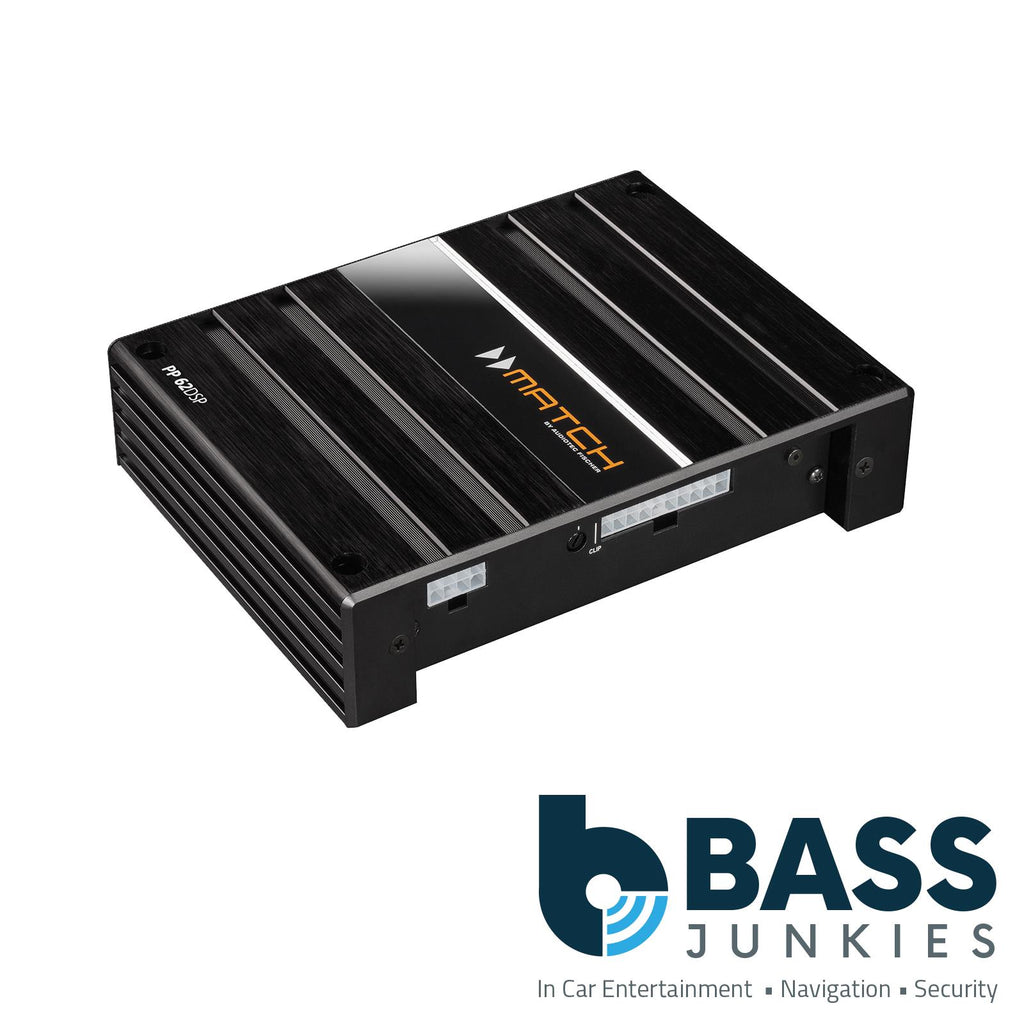

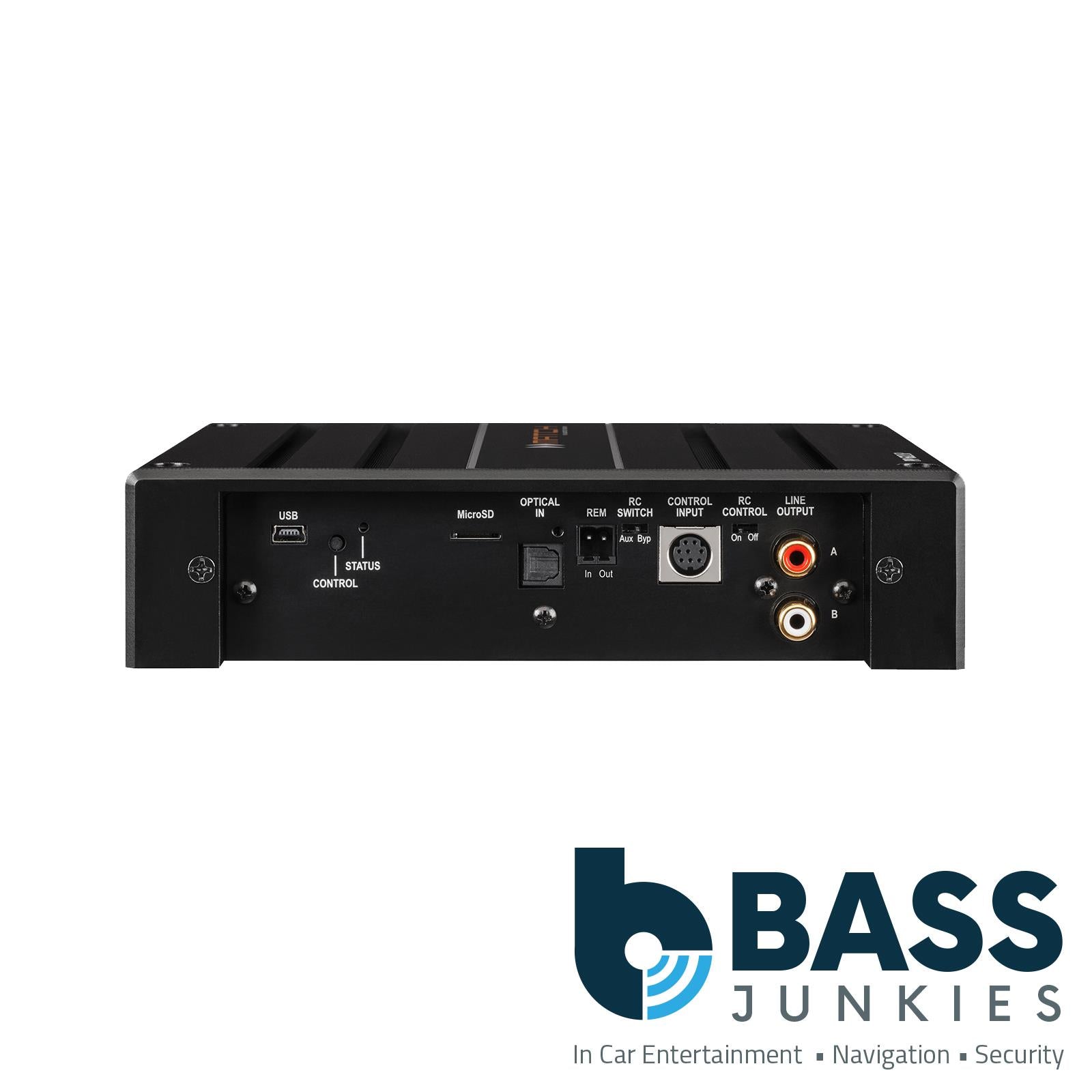

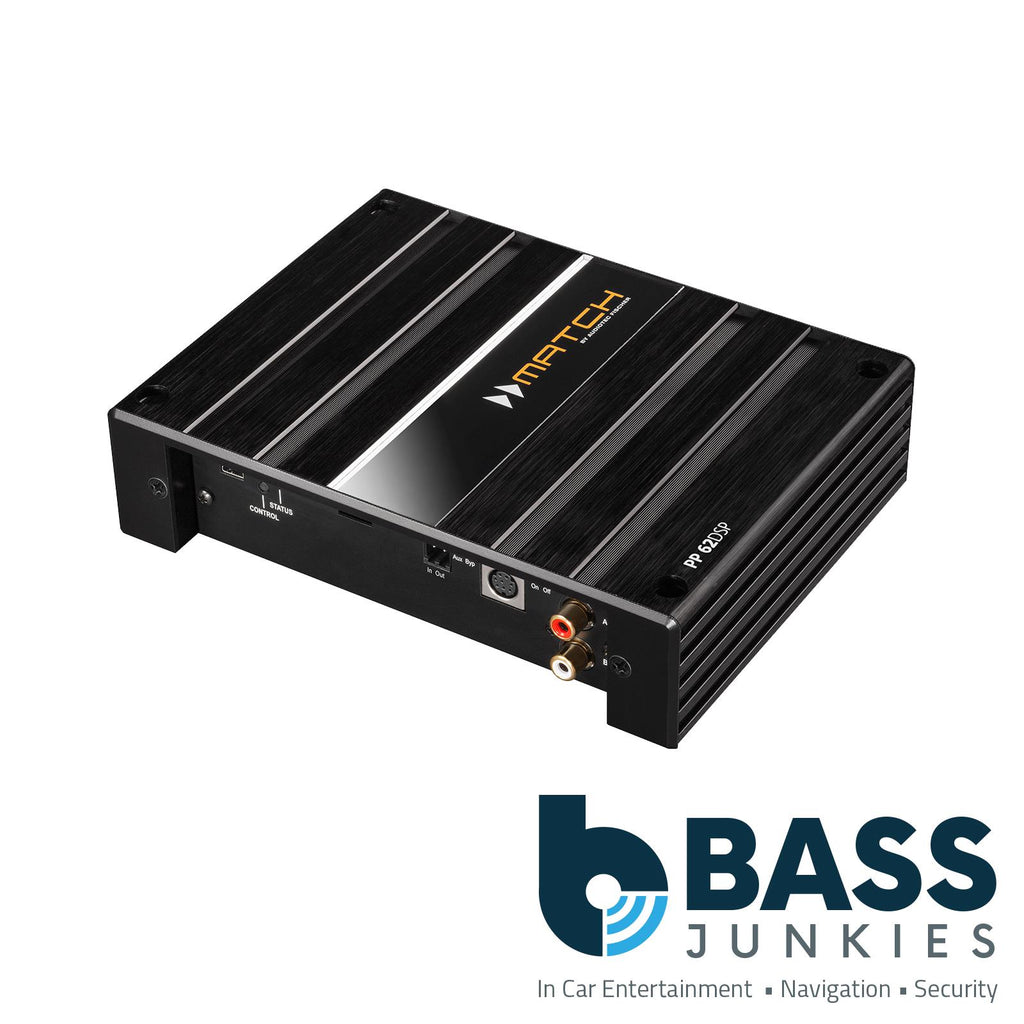

It is possible to extend the functionality of the MATCH PP 62DSP amplifier by inserting an optional MATCH Extension Card (MEC) - for example a Bluetooth® Audio Streaming module, an optical digital input or an AUX input.
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If an usual amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) are often the result - but not with the PP 62DSP.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Power Save Mode
The “Power Save Mode” is incorporated in all car-specific setups as well as in the basic setup of the DSP PC-Tool software. It allows to significantly reduce the power consumption of the PP 62DSP (or any additional connected amplifier) once there’s no input signal for more than 60 seconds. Please note that in many up-to-date cars with “CAN” or any other internal bus structures it may happen that the car radio (and therefore the PP 62DSP as well) remains “invisibly” turned on for up to 45 min. after leaving the car!
Once the “Power Save Mode” is active the output stages of the PP 62DSP and its remote output will be turned off, thus reducing current draw to less than 250 mA. The amp will turn again to full operation within 2 sec. if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or completely deactivate the “Power Save made” via the DSP PC-Tool.

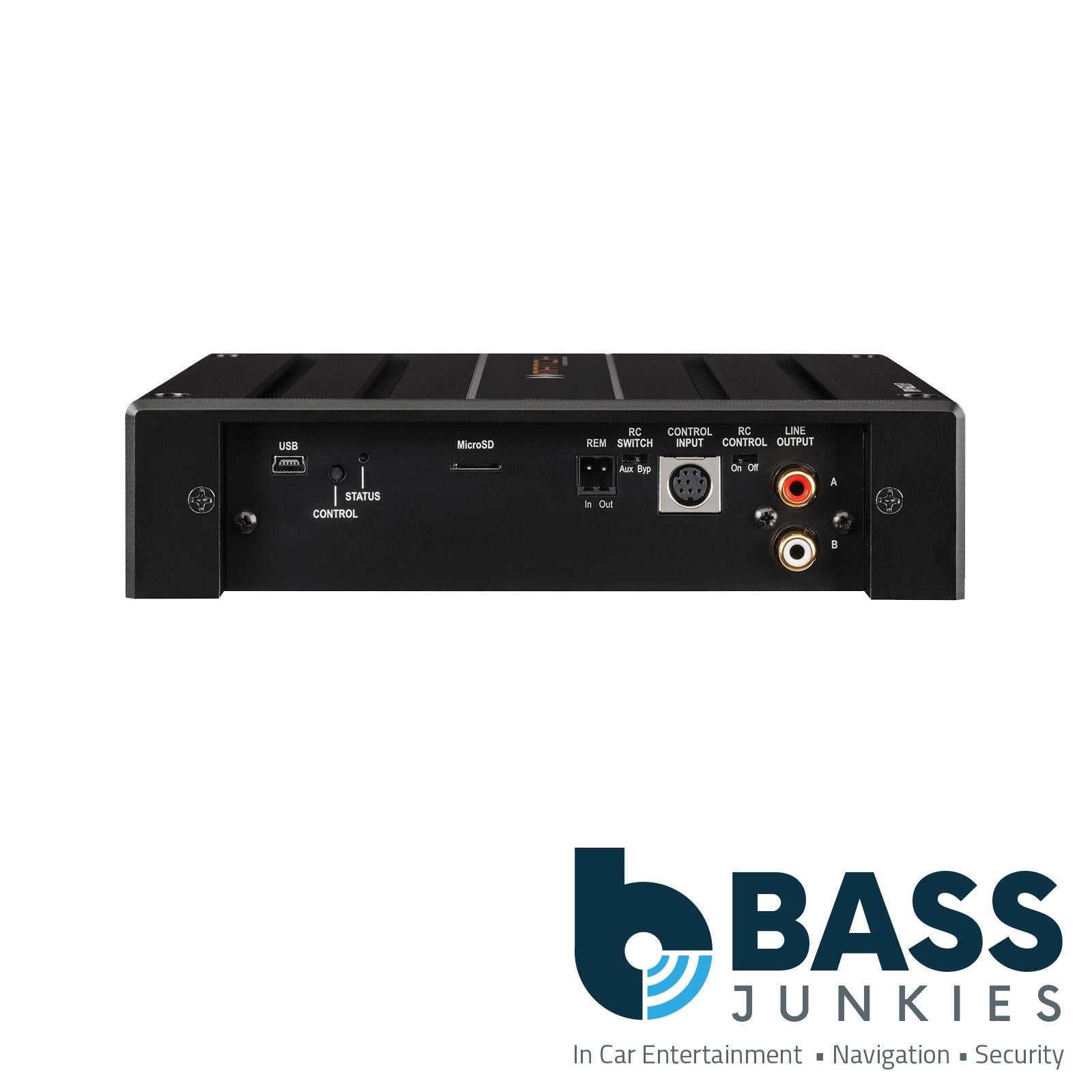

MicroSD
The MicroSD card reader allows to easily configure the DSP inside the amplifier without the need of directly connecting a personal computer. A large number of car-specific setups is available for free on www.audiotec-fischer.com.
Simply download your desired setup and copy it to any MicroSD card. Finally insert the MicroSD card into the PP 62DSP and the copy process will start automatically. After that the amplifier is perfectly programmed to dramatically upgrade the sound quality of your car factory audio system.
Specifications:
| Output power RMS / max. | |
| - @ 4 Ohms | 4 x 35 / 70 Watts (Font/Rear channels) |
| - @ 2 Ohms | 4 x 50 / 100 Watts (Font/Rear channels) |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| - Subwoofer output @ 4 Ohms | - |
| - Subwoofer output @ 2 Ohms | 1 x 160 / 320 Watts (4 channels each 40 / 80 Watts) |
| Amplifier technology | Class AB |

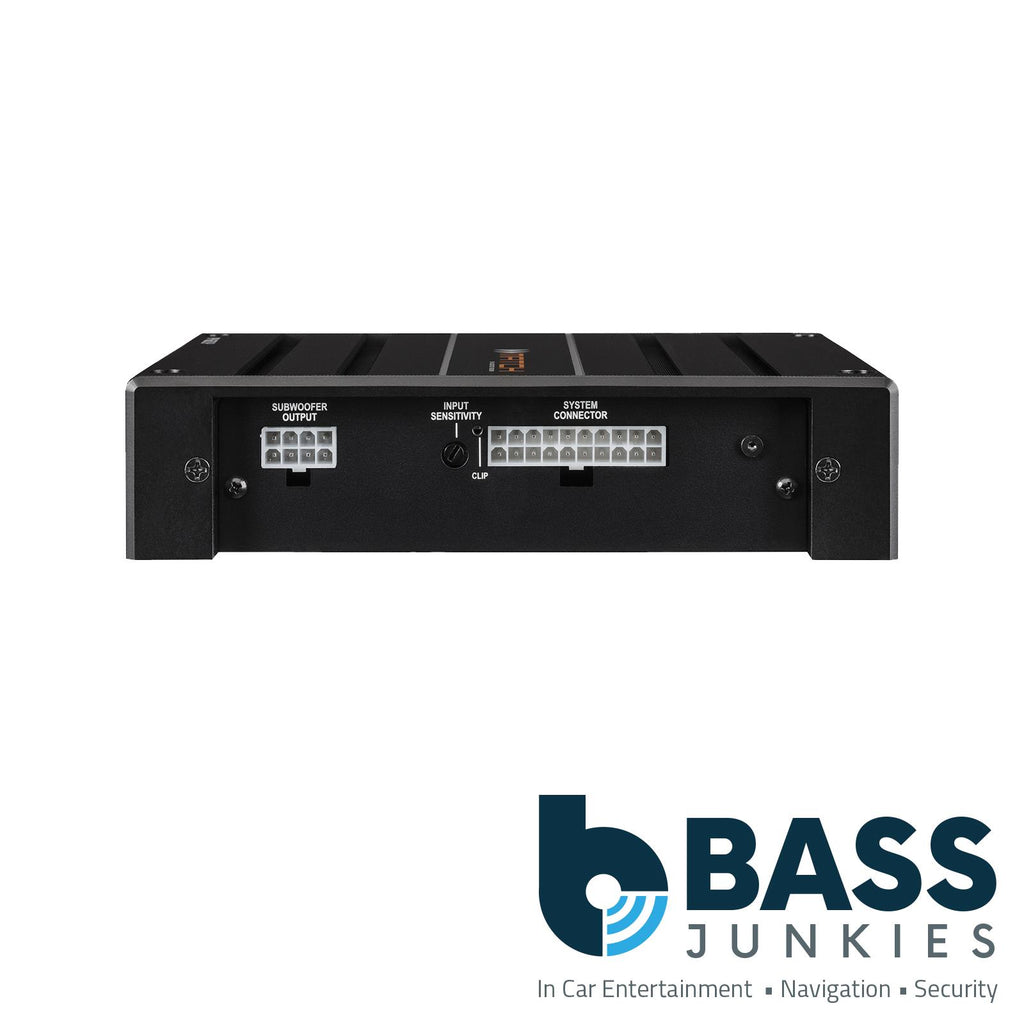

| Inputs |
4 x Highlevel speaker input 1x MEC 1 x Remote In |
| Input sensitivity | Highlevel 5 - 11 Volts |
| Input impedance RCA / Cinch | - |
| Input impedance highlevel | 13 Ohms |
| Outputs |
8 x Speaker output 2 x RCA / Cinch 1 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts RMS |
| Frequency response | 20 Hz - 22,000 Hz |
| DSP resolution | 56 Bit |
| DSP power | 172 MHz |
| Sampling rate | 48 kHz |
| DSP type | Audio signal processor |
| Signal converters |
A/D: BurrBrown D/A: BurrBrown |
| Signal-to-noise ratio digital input | - |
| Signal-to-noise ratio analog input | 103 dB (A-weighted) |
| Distortion (THD) | < 0.01 % |
| Damping factor | > 100 |
| Operating voltage | 10.5 Volts (max. 5 sec.down to 6 Volts) |
| Current draw | 670 mA |
| Max. remote output current | 500 mA |
| Fuse | 1 x 20 A Maxi-fuse (APX) |
| Additional features | Variable input sensitivity, fully stabilized internal power supply with start-/stop capability, 56 Bit digital signal processing, internal memory for two different sound setups, USB input, MATCH Extension Card slot, input for optional remote control, stereo line outputs with balanced output transformers (floating ground) |
| Dimensions (H x W x D) |
44 x 185 x 139 mm / 1.73 x 7.28 x 5.47“ |
