Car Sound Deadening Mats and Foam

How to choose car sound deadening in 2026

Sound deadening is the single biggest sound quality upgrade you can make for the money. Before you spend on bigger speakers or a louder amp, fix the panel resonance, road noise and door rattle that the factory build leaves behind. Done properly, sound deadening cuts cabin noise by 3 to 6 decibels and transforms the perceived output of even a modest stereo. Done badly, it adds weight and traps moisture. This guide breaks down exactly what to buy and where to fit it.

Where to apply: doors, floor, roof and boot

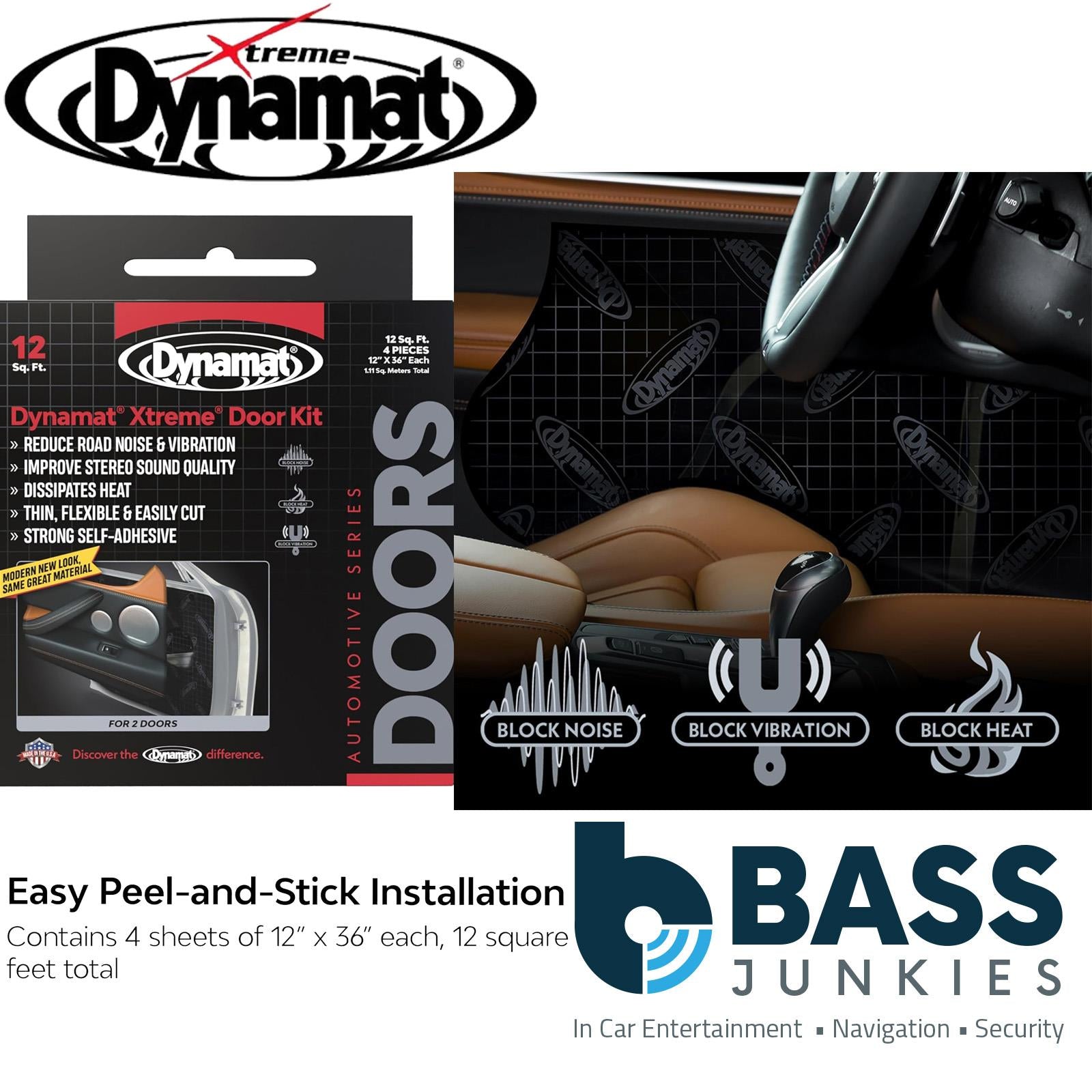

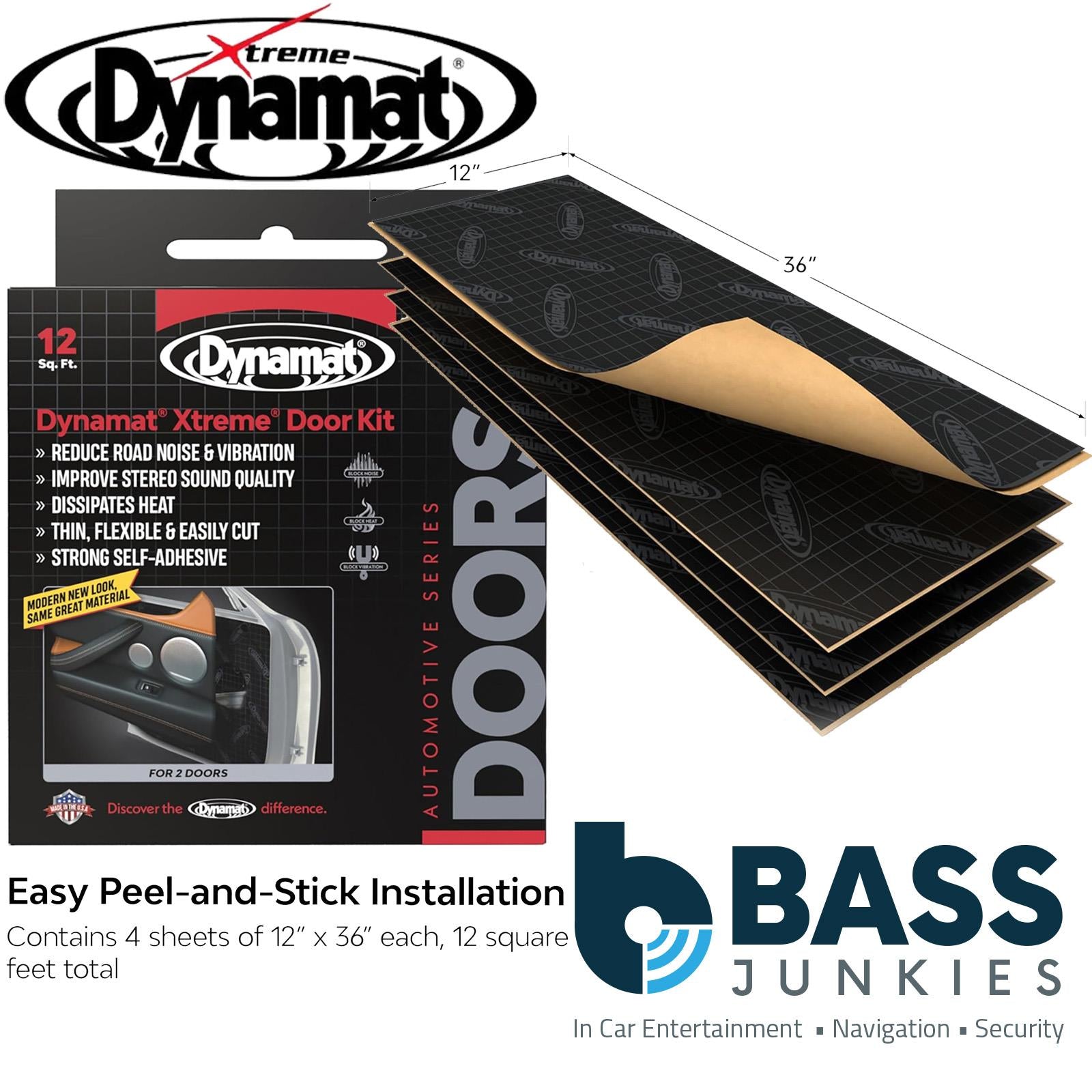

• Doors. The most important panel. Skin the outer door with butyl mats to stop the speaker cone fighting against a flexing steel sheet.
• Floor and transmission tunnel. Cuts road and exhaust drone. The biggest gain for refinement on motorway journeys.
• Boot floor and arches. Essential for subwoofer installs. Stops the boot pan acting as a second cone that masks the sub.
• Roof. Reduces rain drum and improves vocal clarity from front speakers.
• Bulkhead. Worth treating on diesel vans and pickups to drop engine bleed through.

Mass loaded butyl vs closed-cell foam

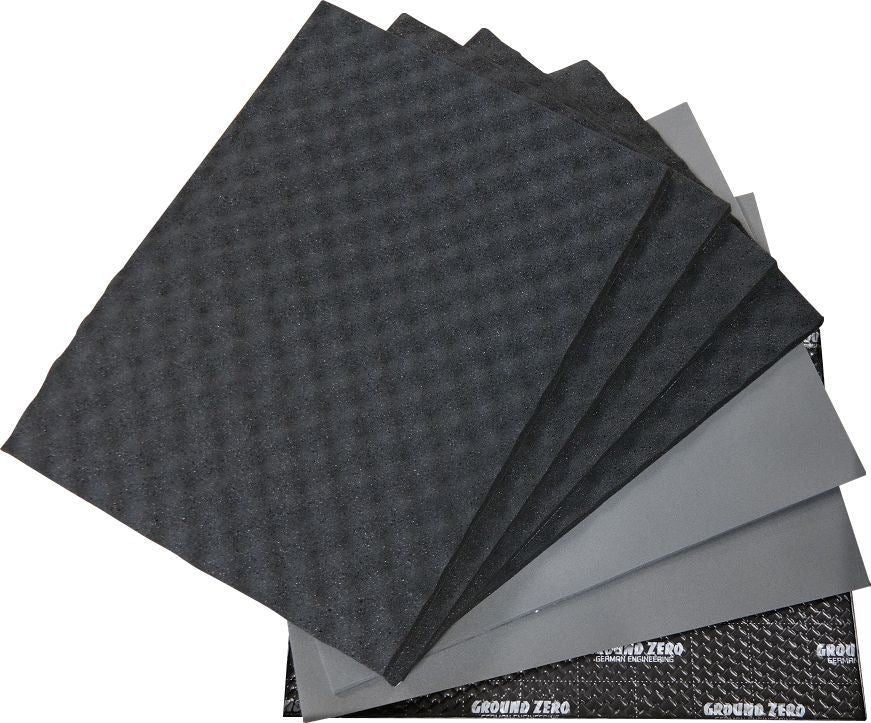

Two layers do two different jobs. Butyl mats with an aluminium constraining layer add mass to thin steel and stop panels resonating. Closed-cell foam sits over the butyl as a decoupler that absorbs higher frequency noise and stops rattles from clips and trim. A typical UK door upgrade uses 50 percent butyl coverage with a full foam overlay. Buying foam without butyl, or butyl without foam, leaves measurable performance on the table.

Coverage and thickness

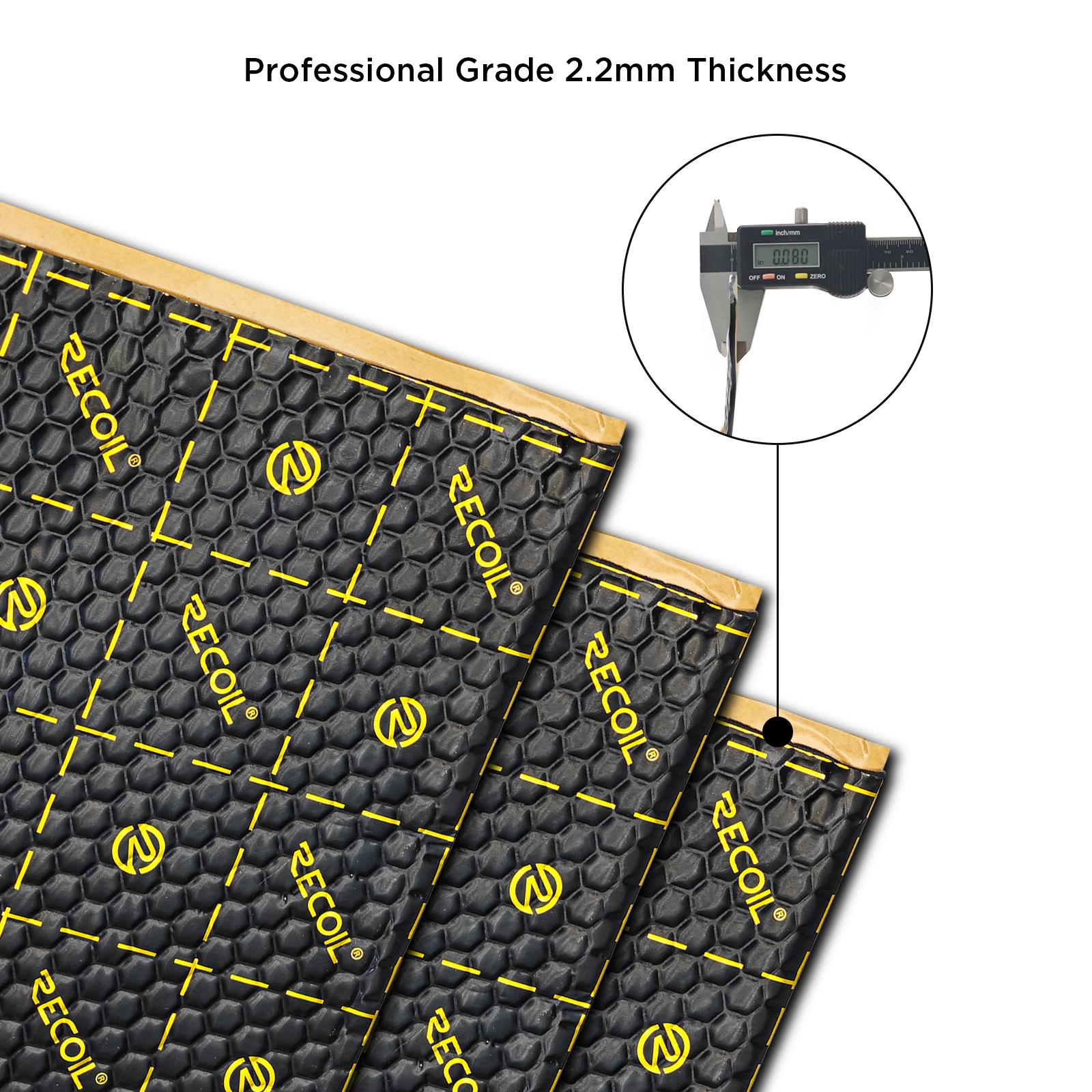

You do not need to skin every panel end to end. Around 50 to 60 percent coverage with 2mm butyl is the proven sweet spot for doors and floor. Thicker 3mm or 4mm mats add diminishing returns and a lot of weight. For boot SPL builds, run double layers under the parcel shelf and across the boot floor to lock the cabin pressure.

Brand quality at a glance

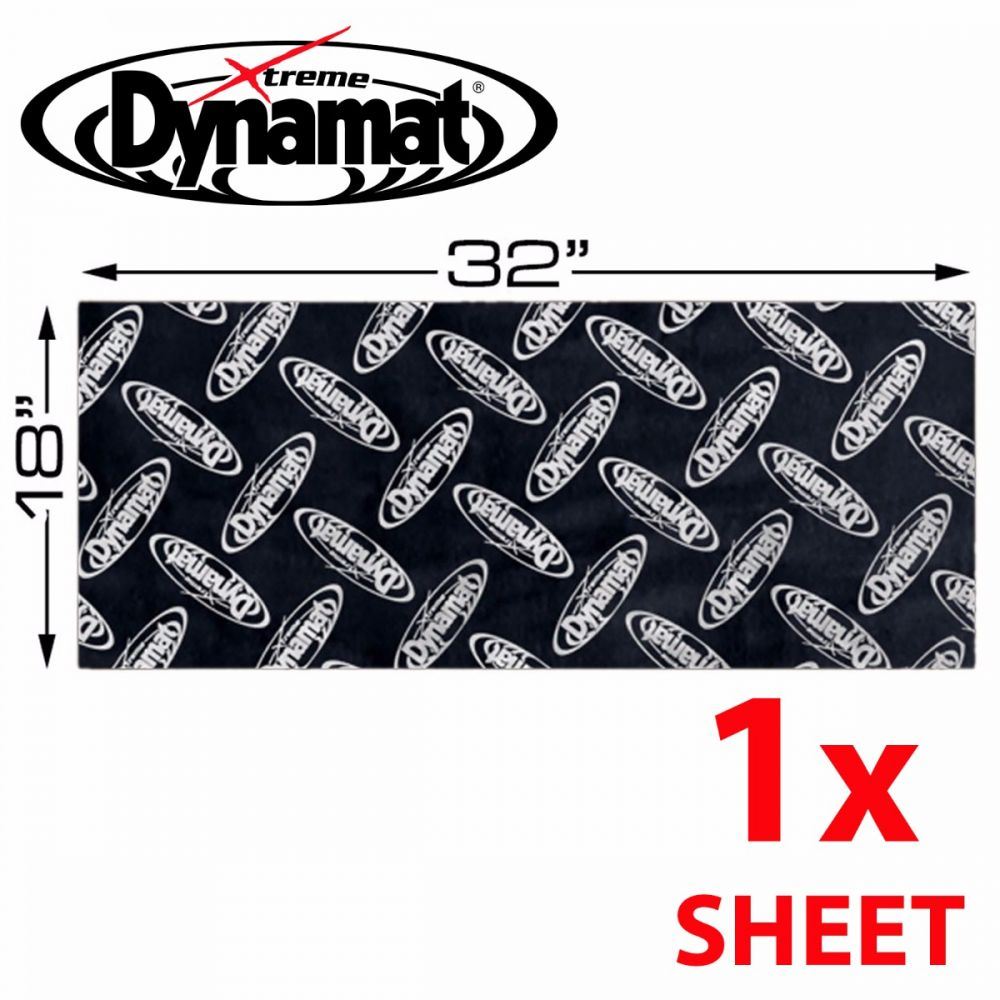

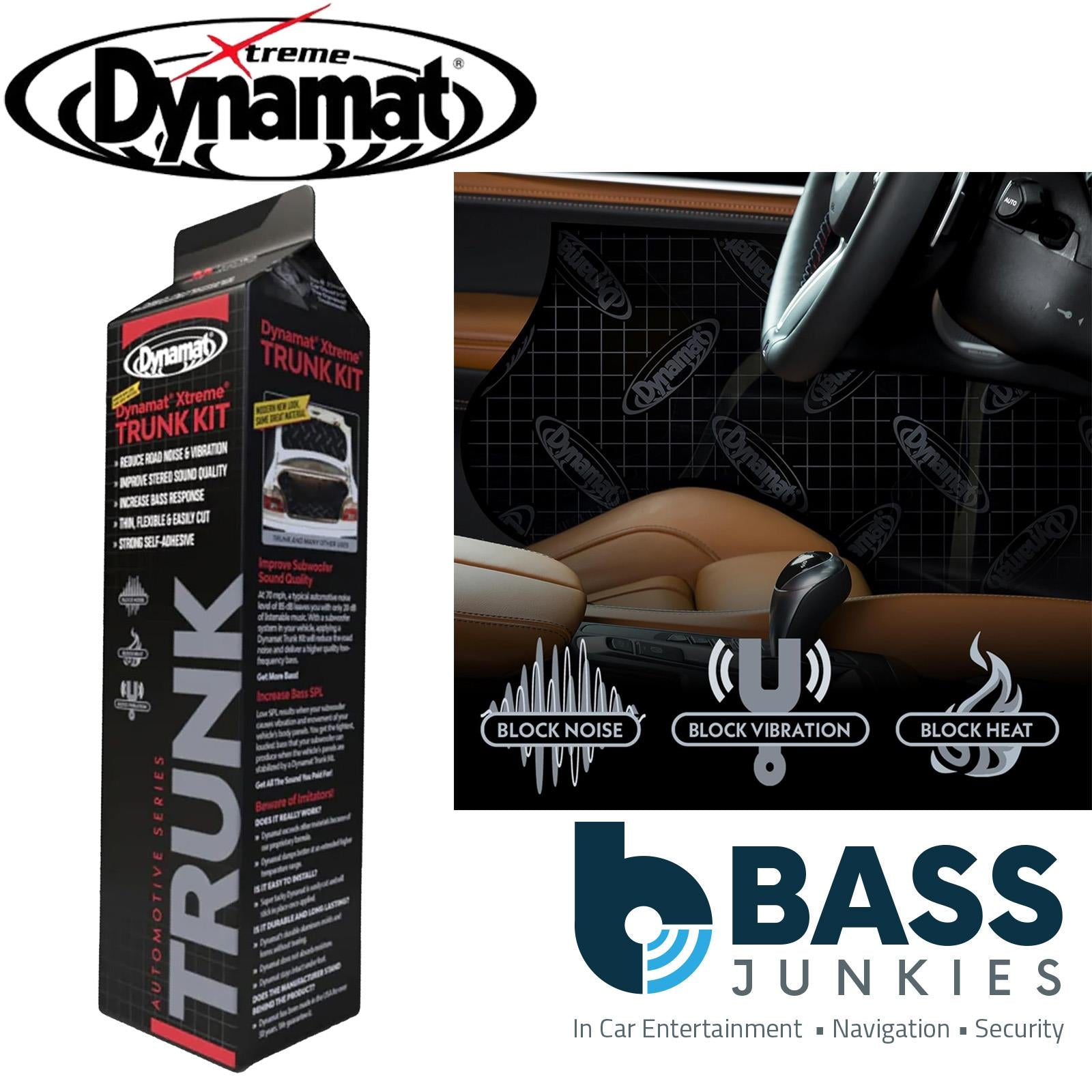

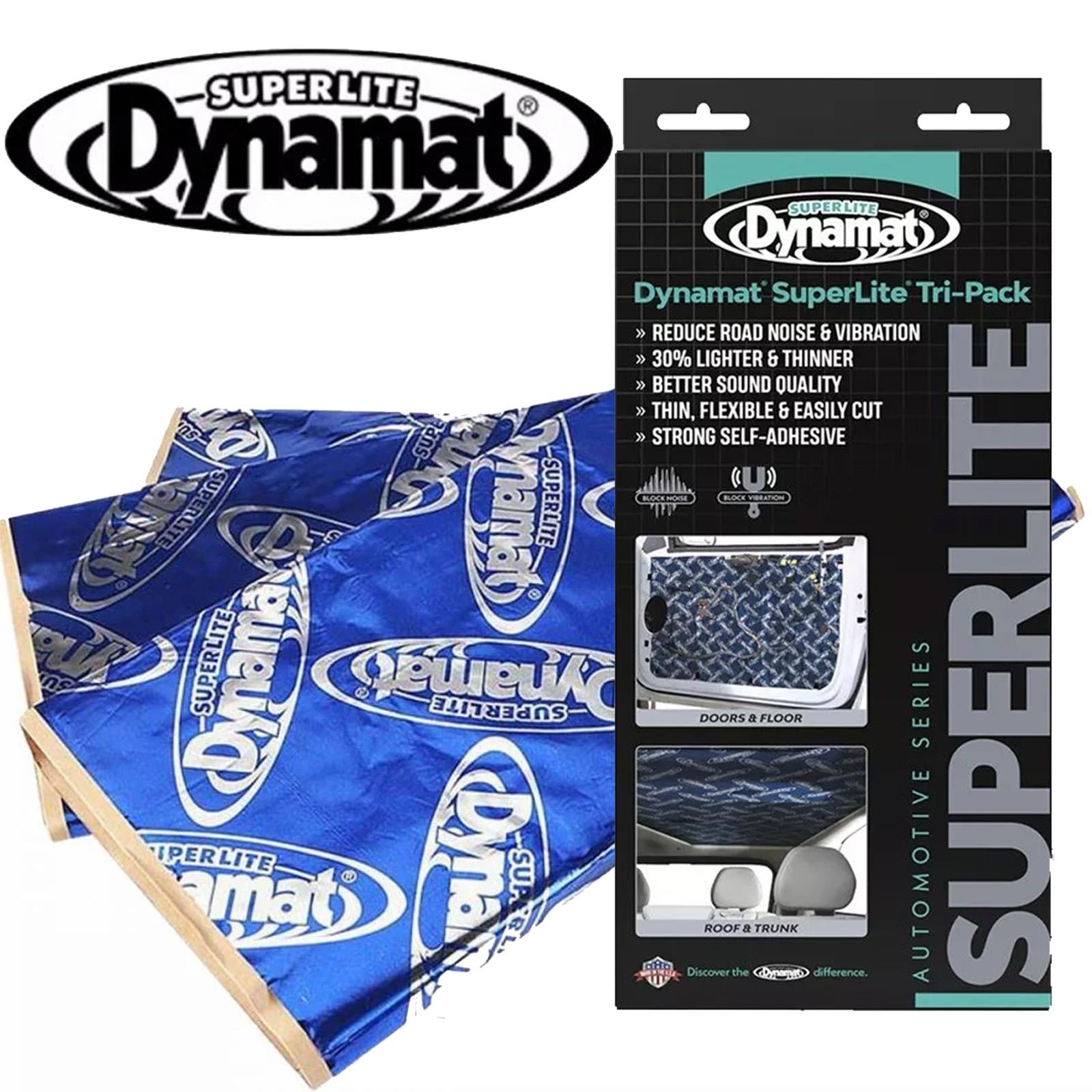

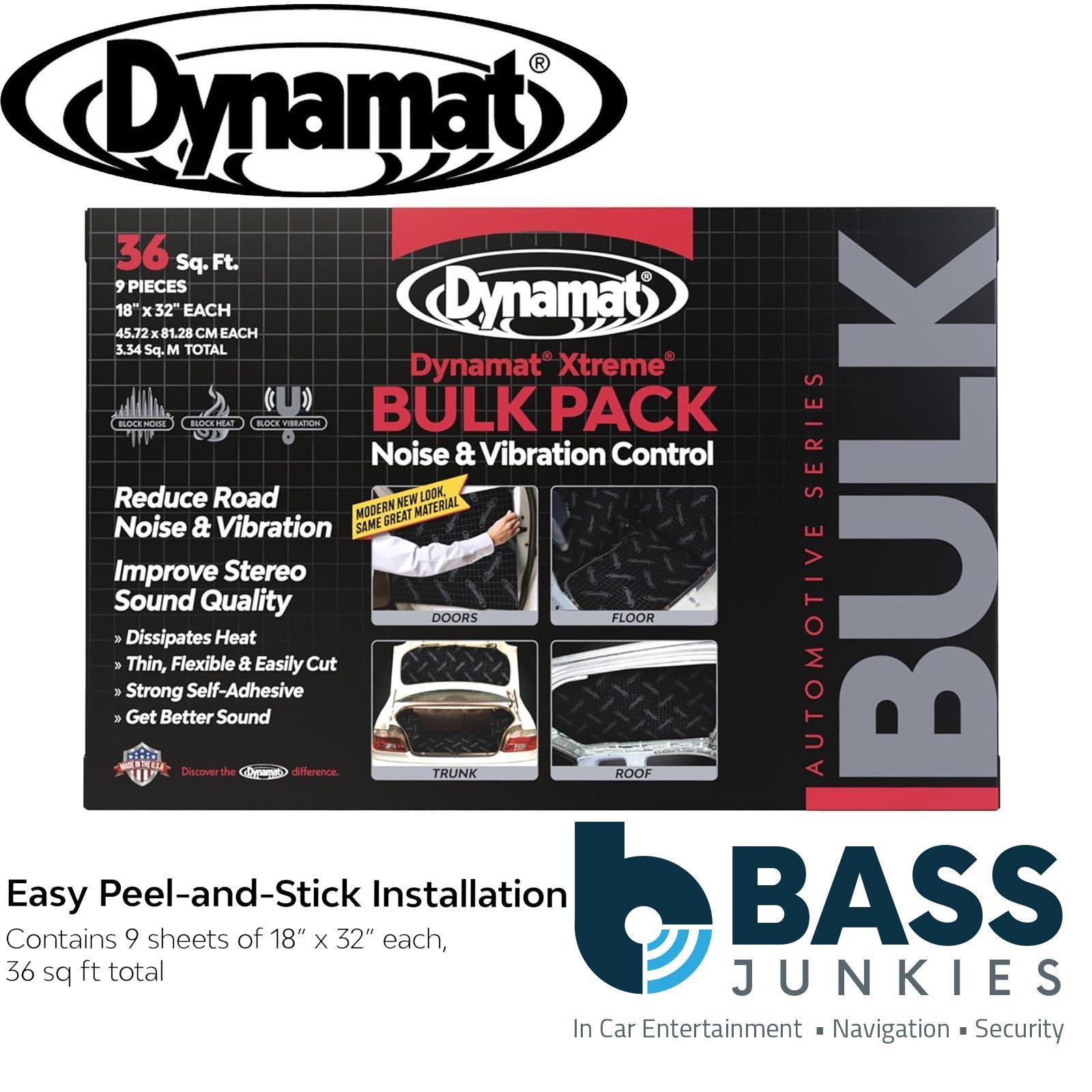

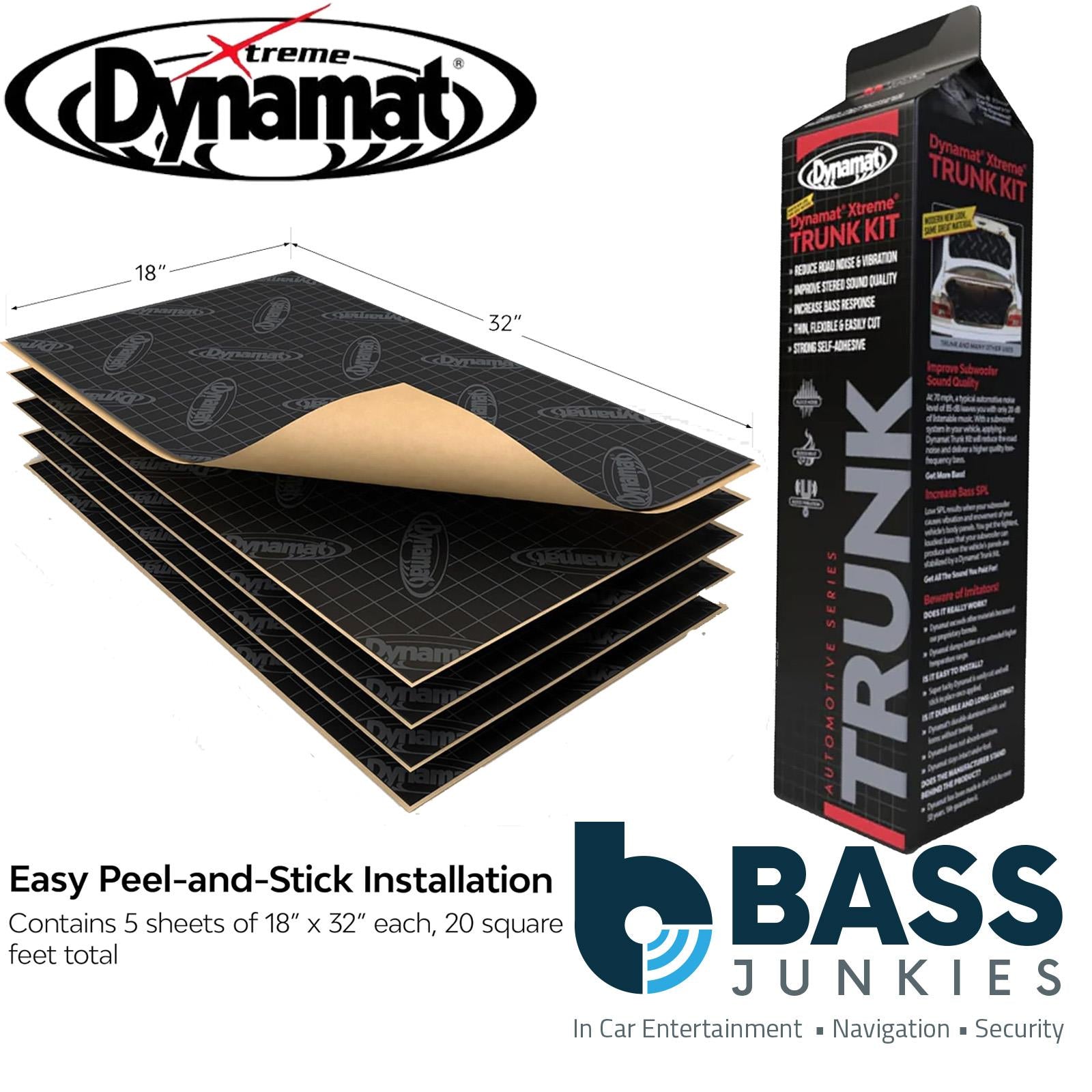

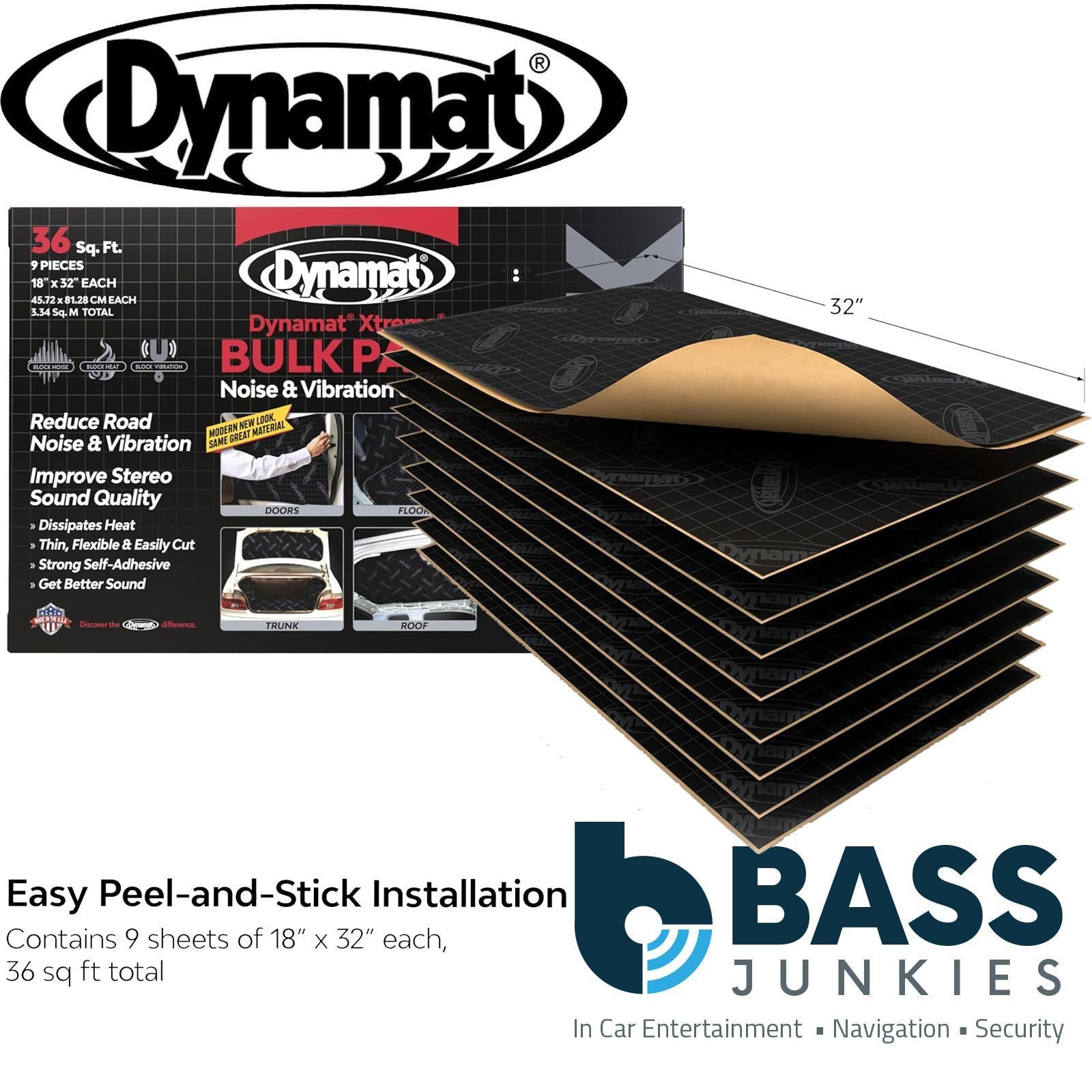

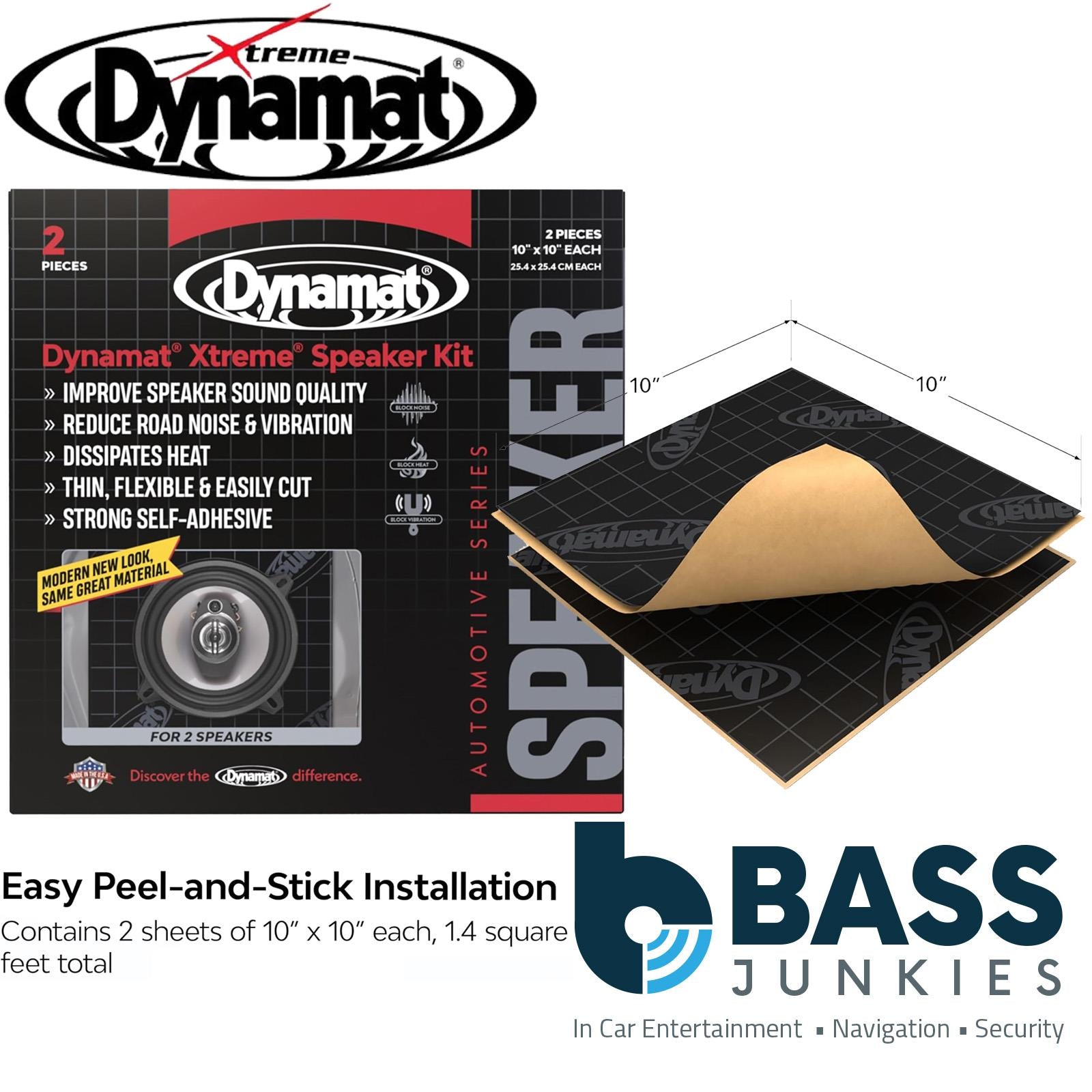

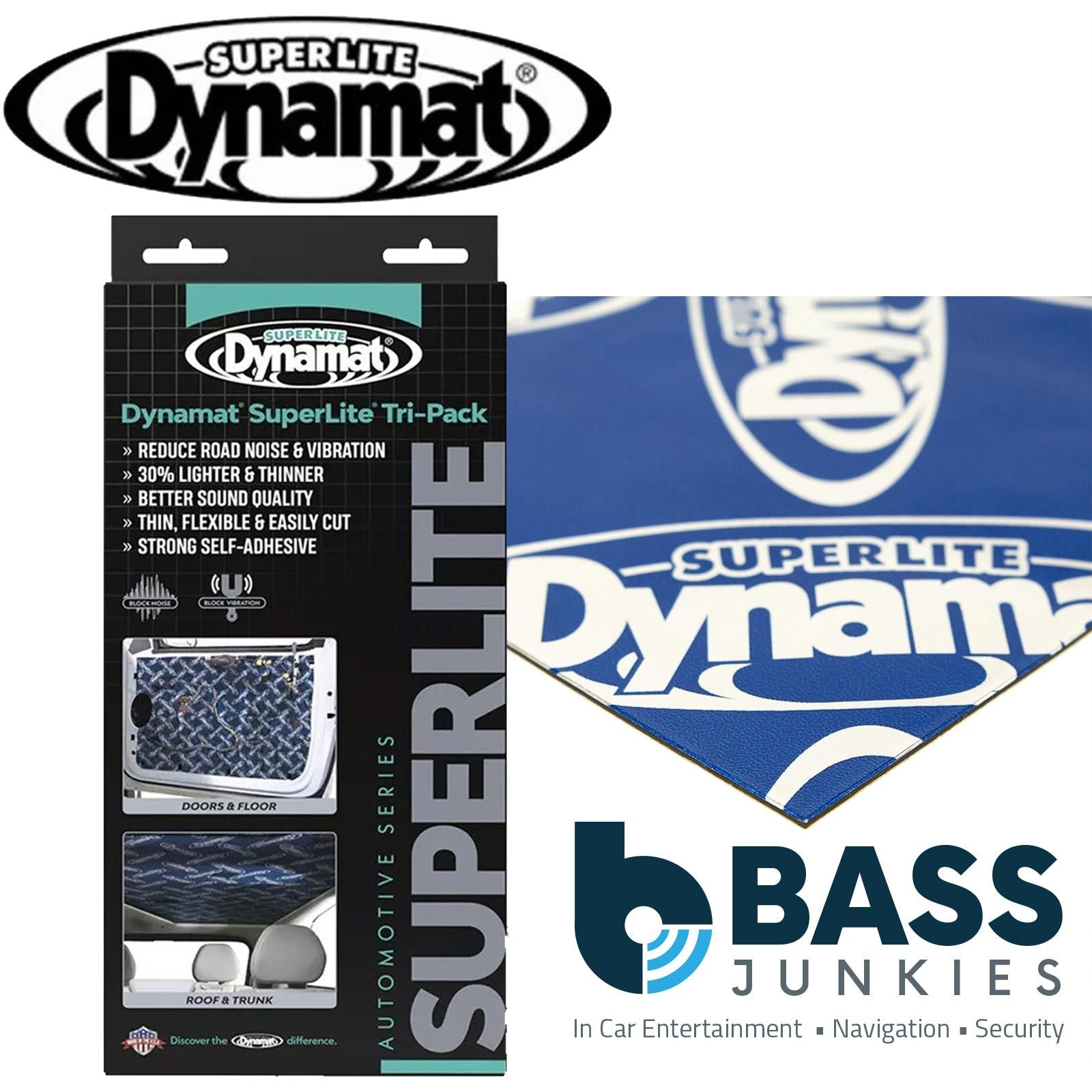

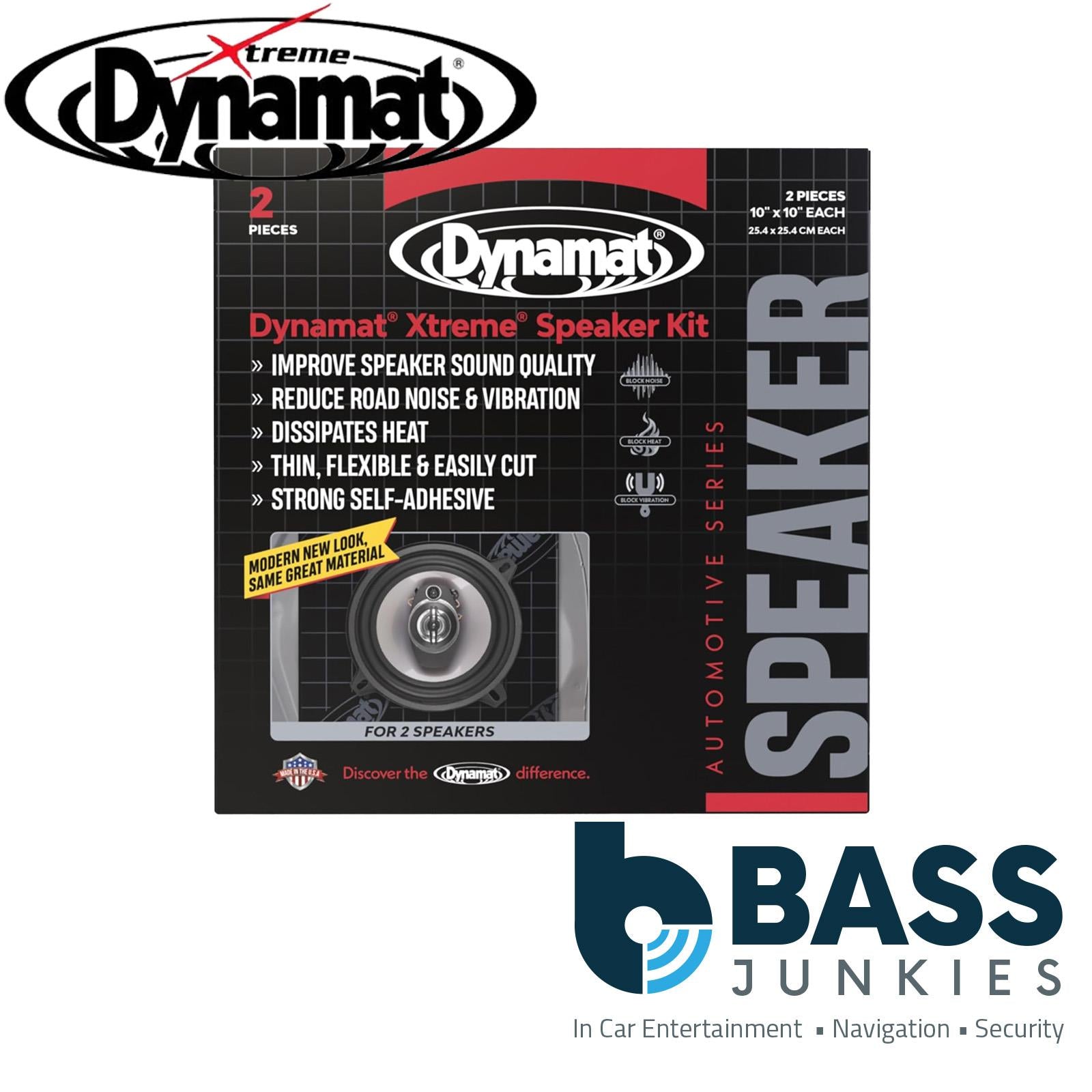

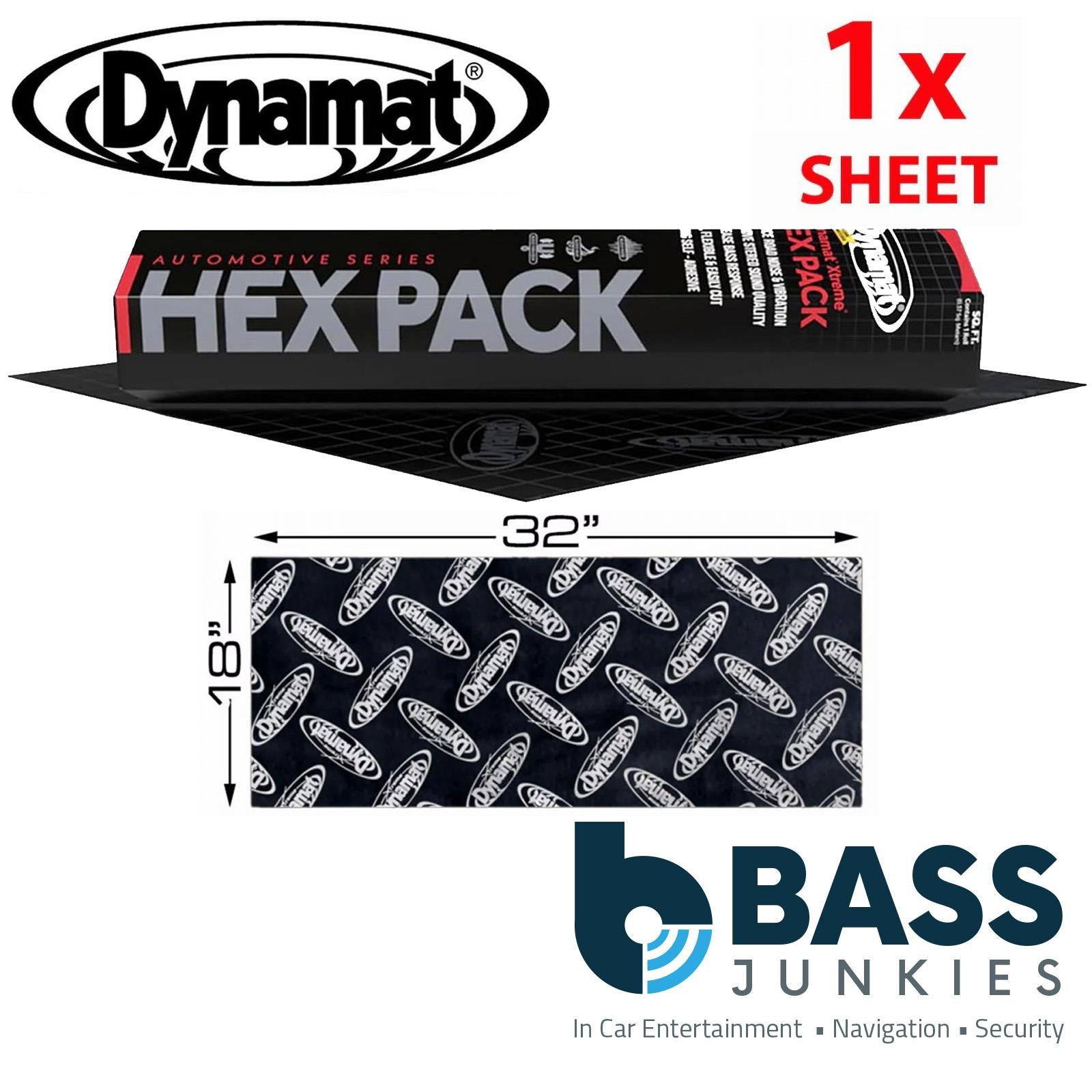

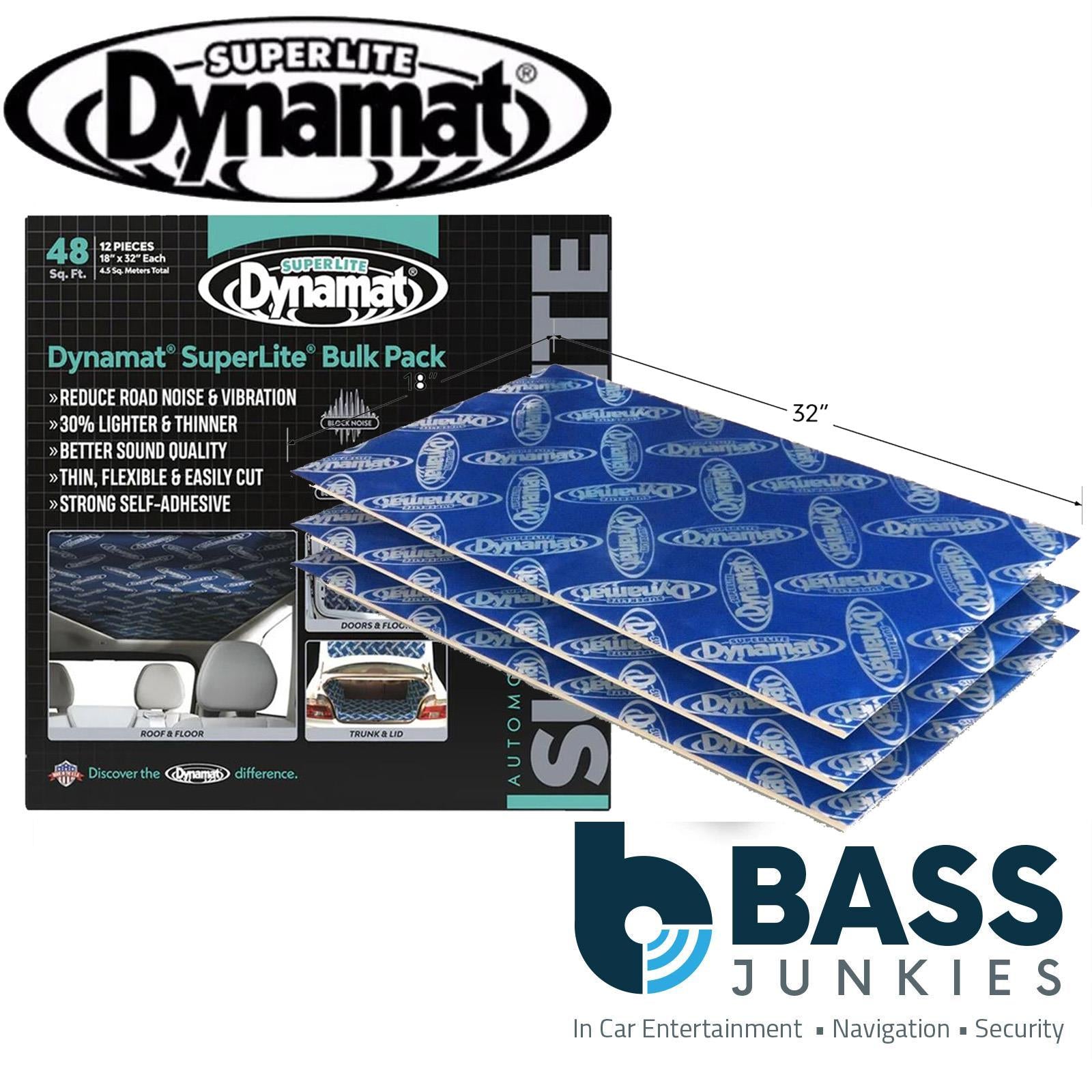

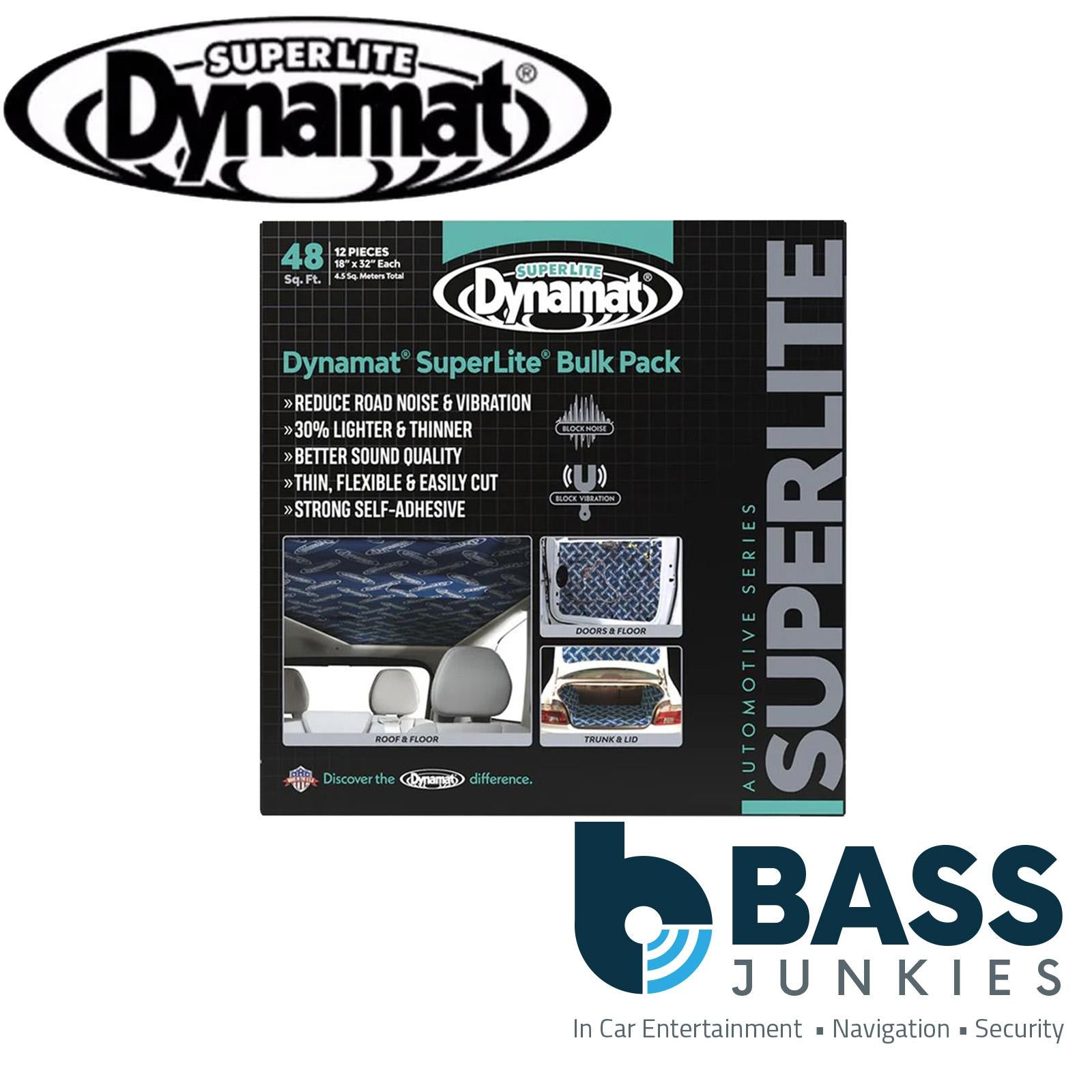

• Dynamat. The original premium butyl mat, still the benchmark for thick gauge constraining layers.

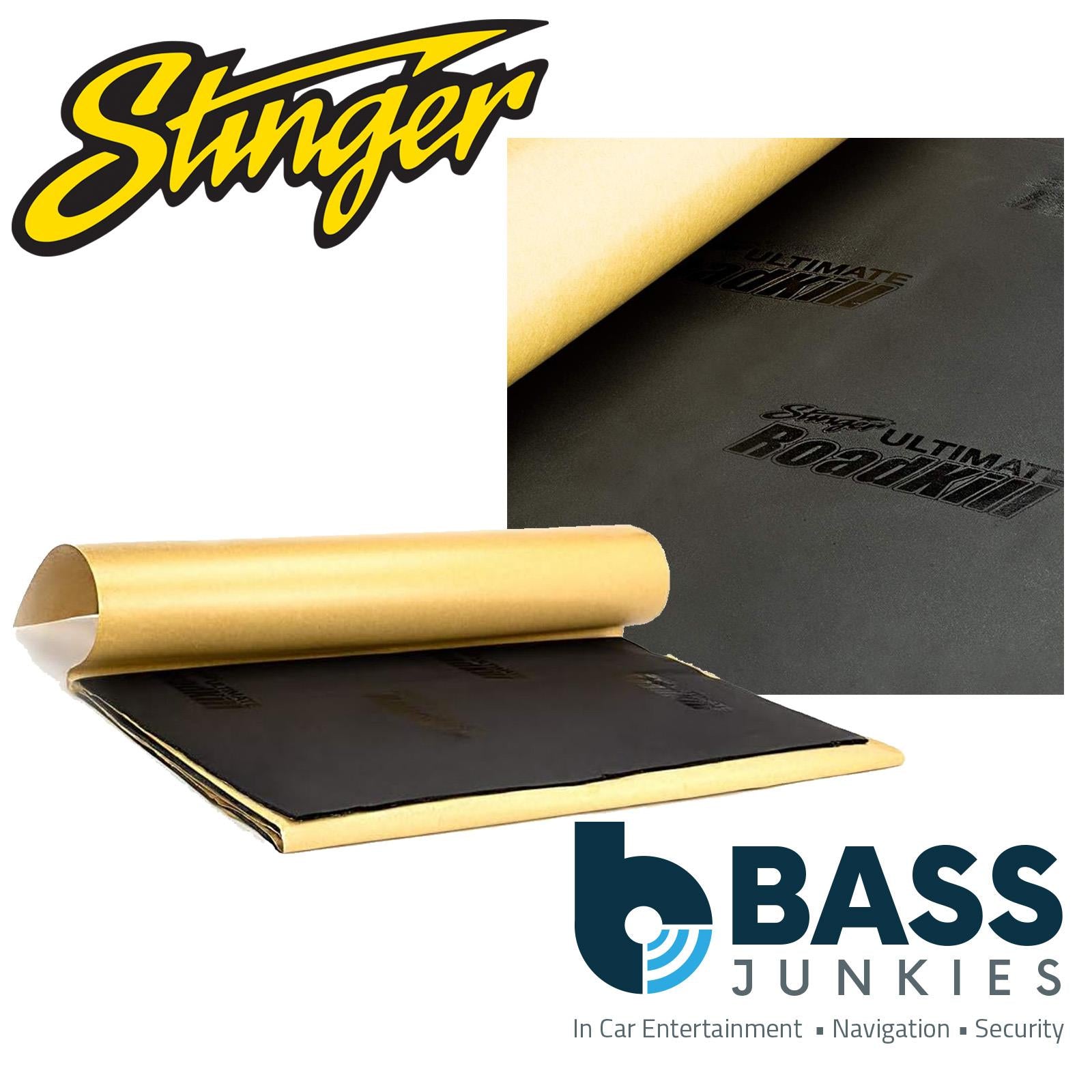

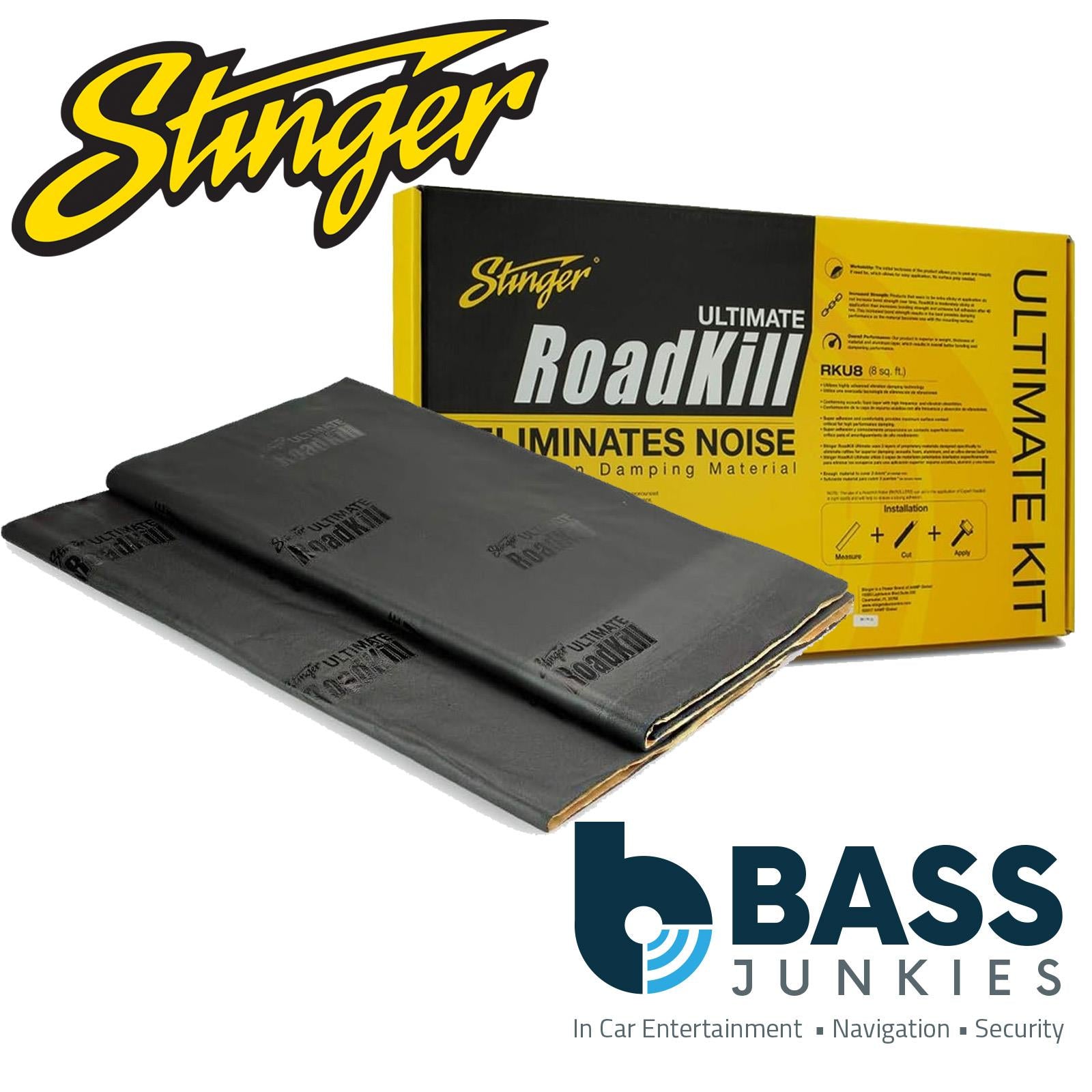

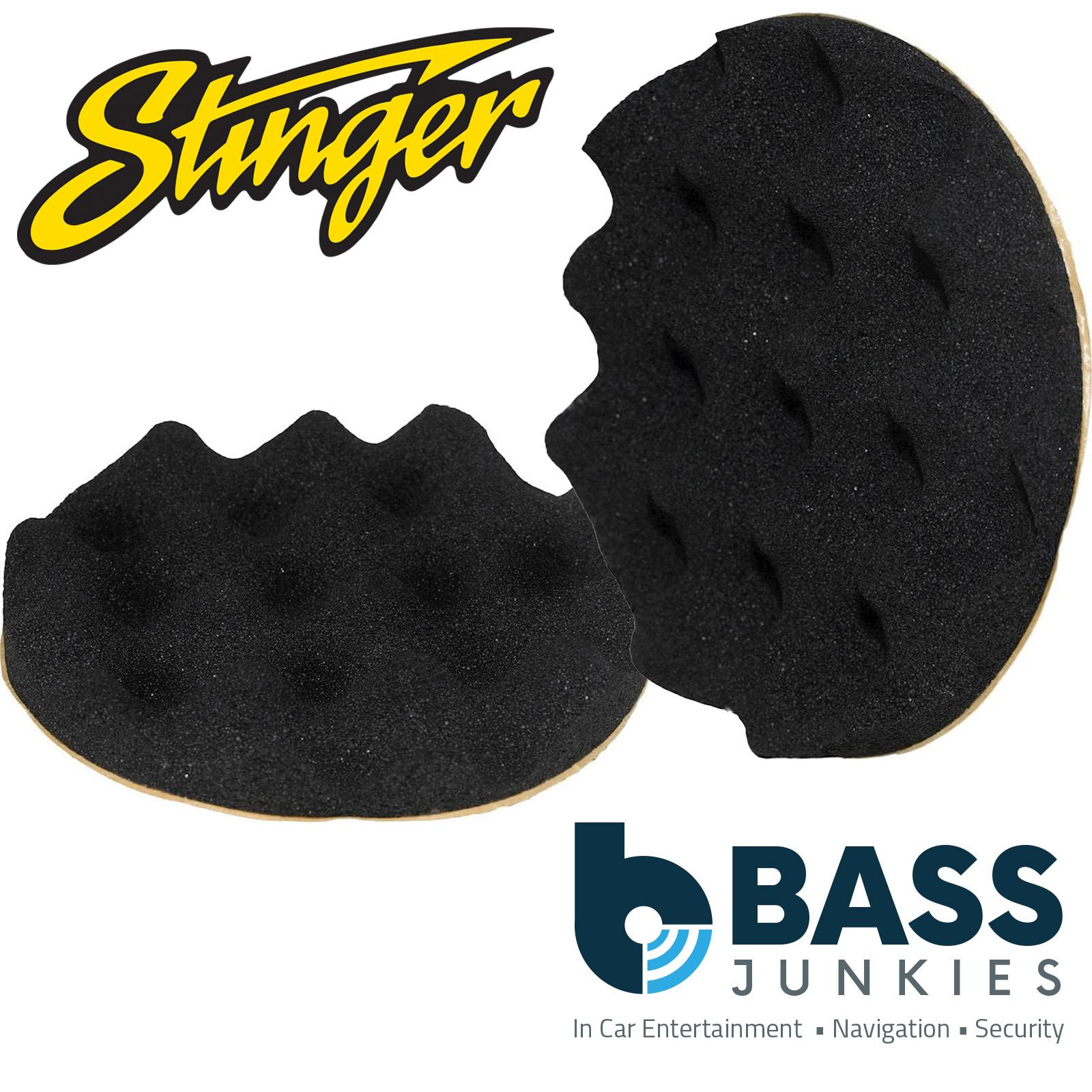

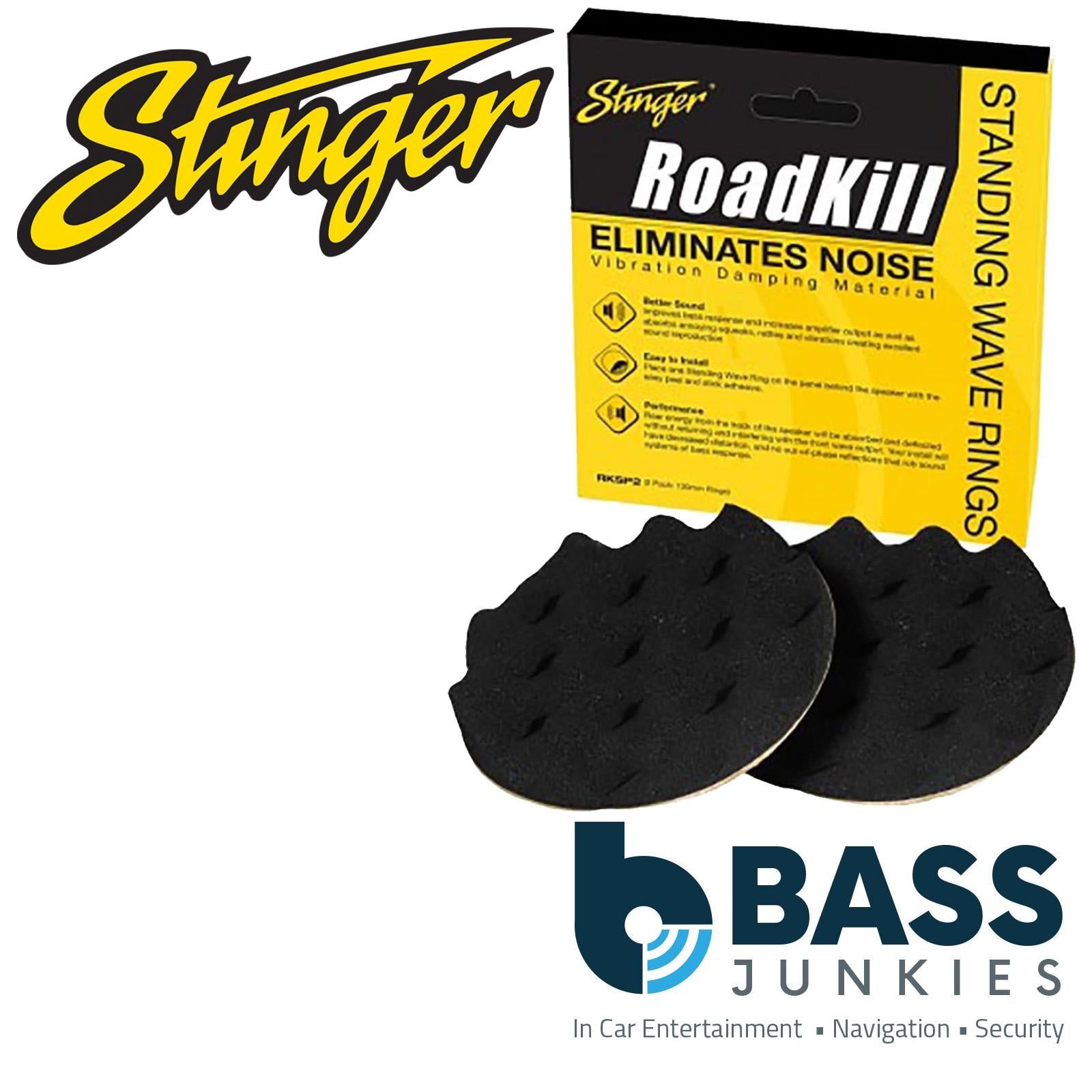

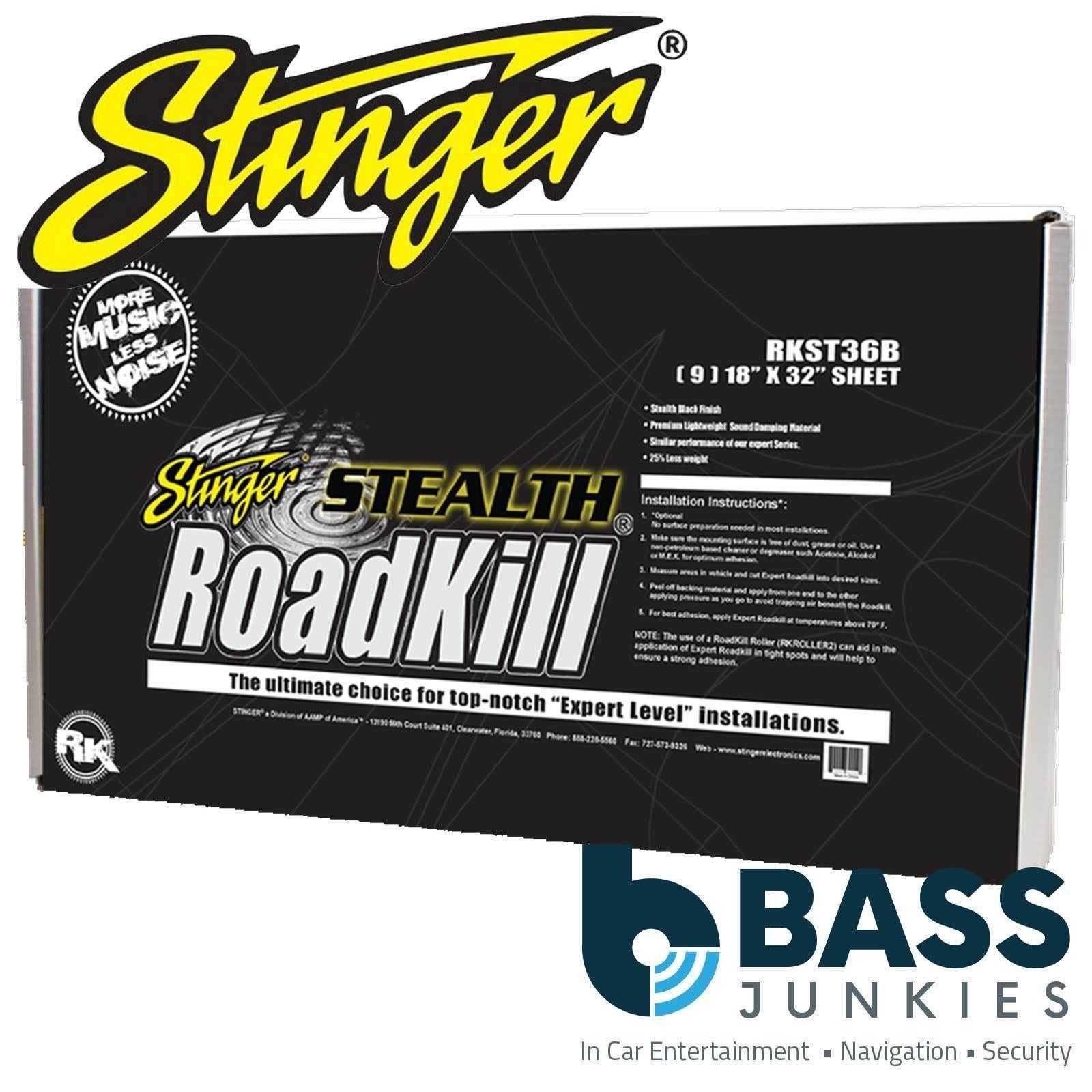

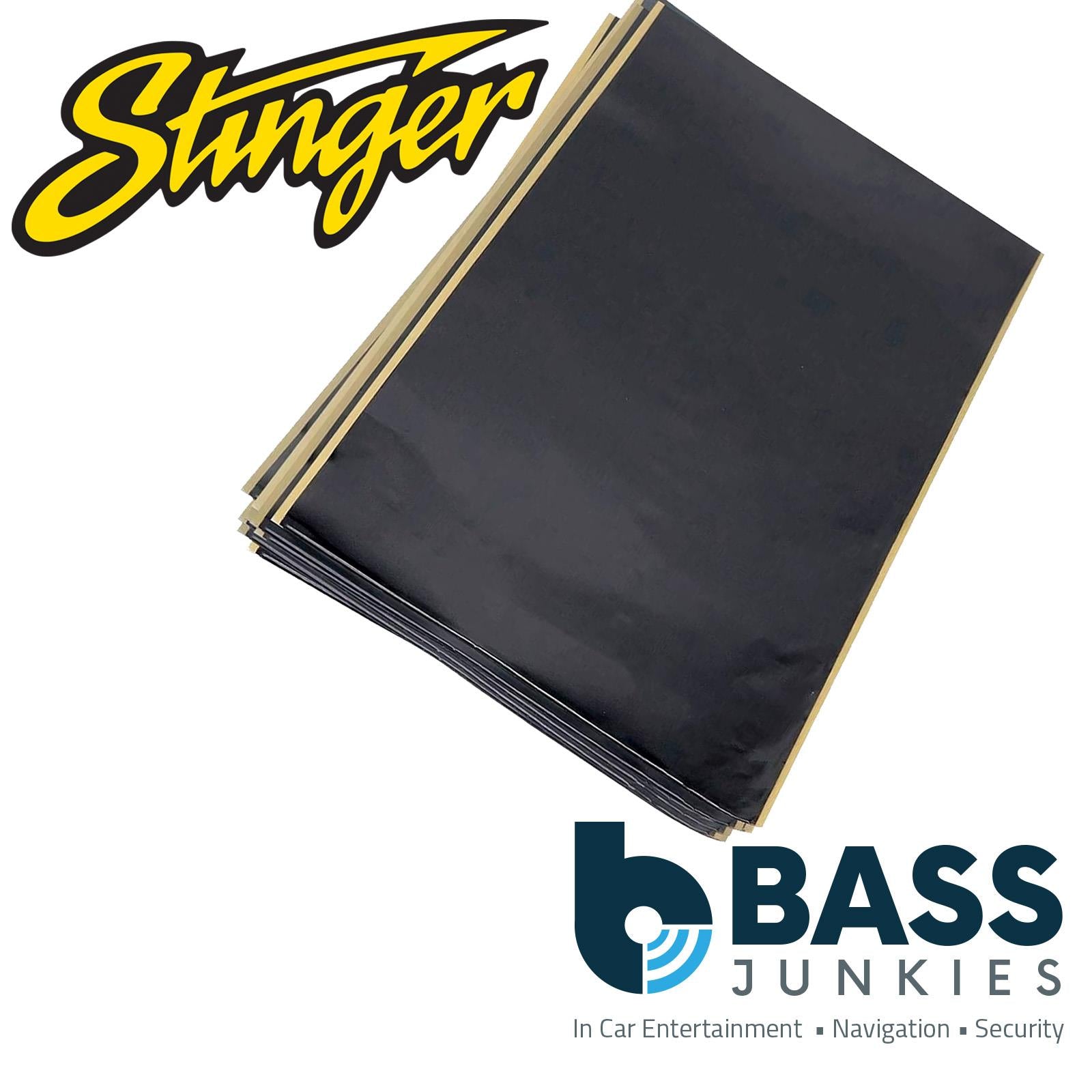

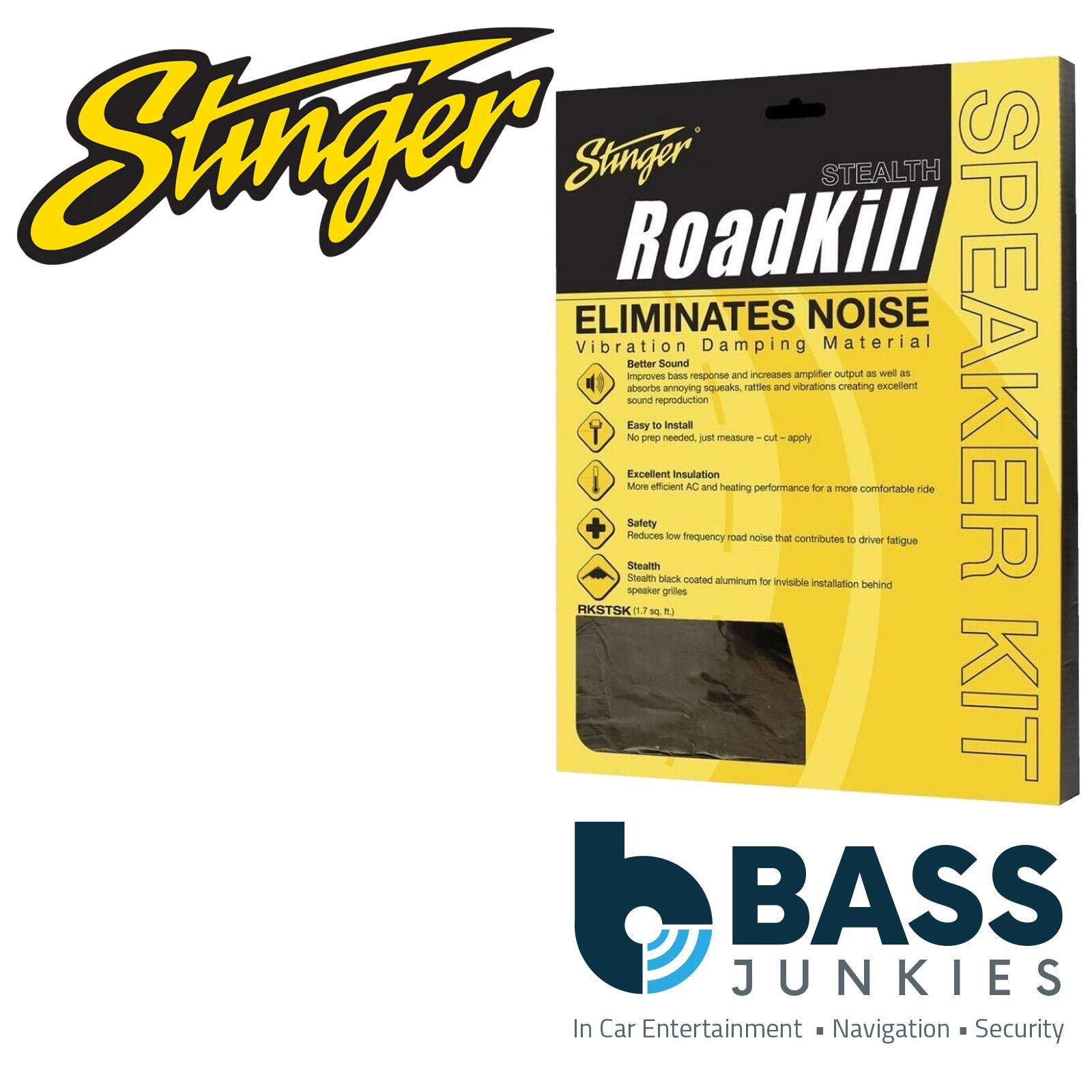

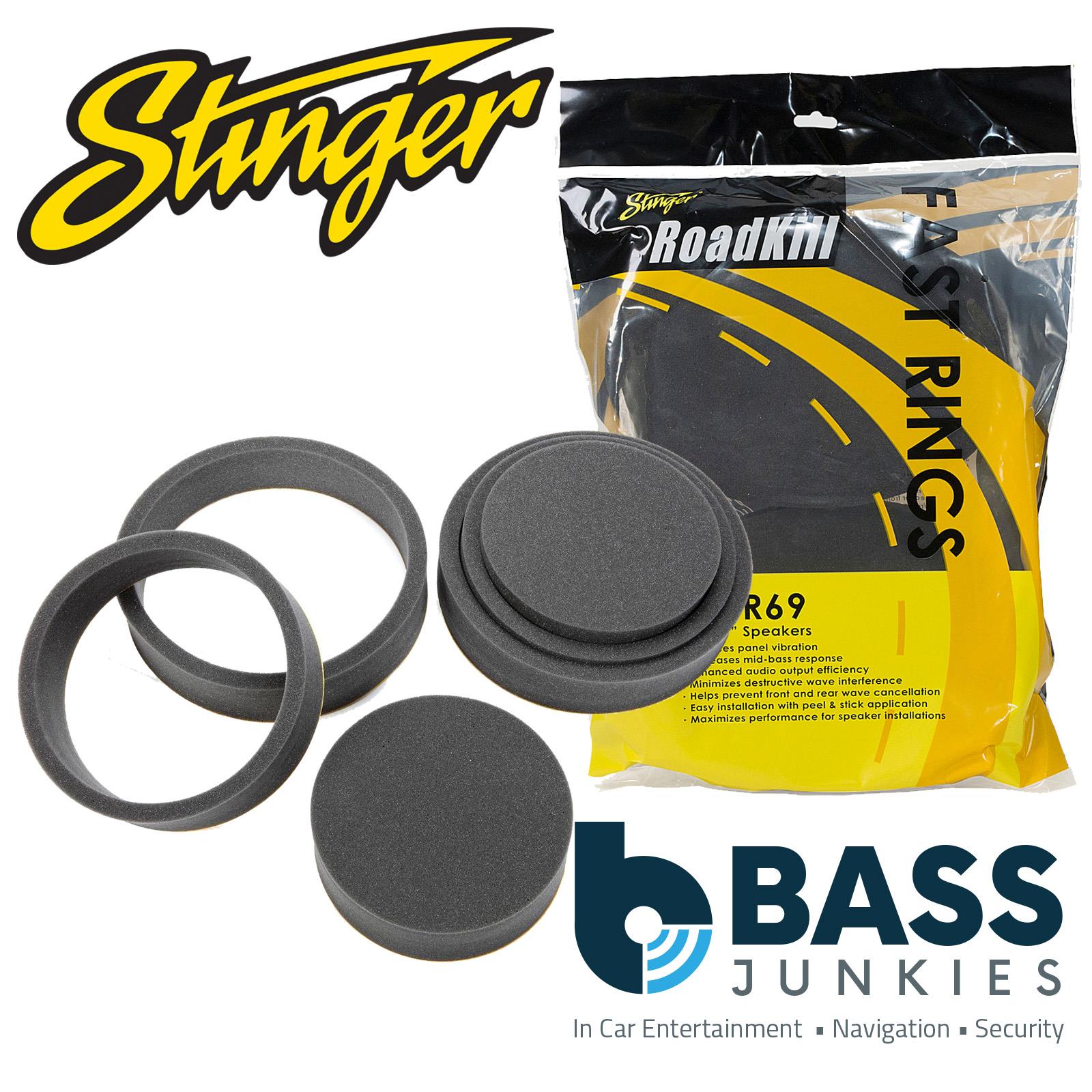

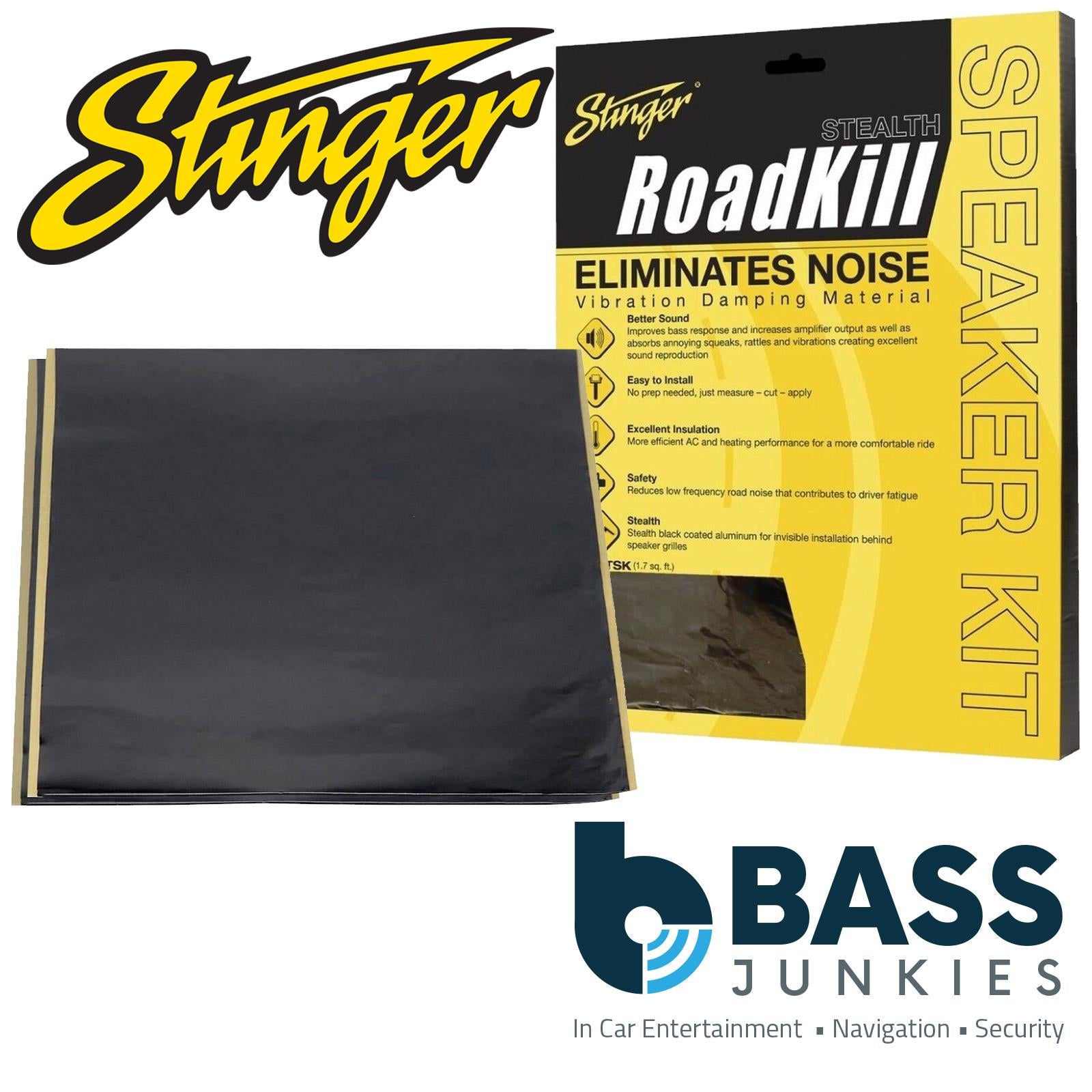

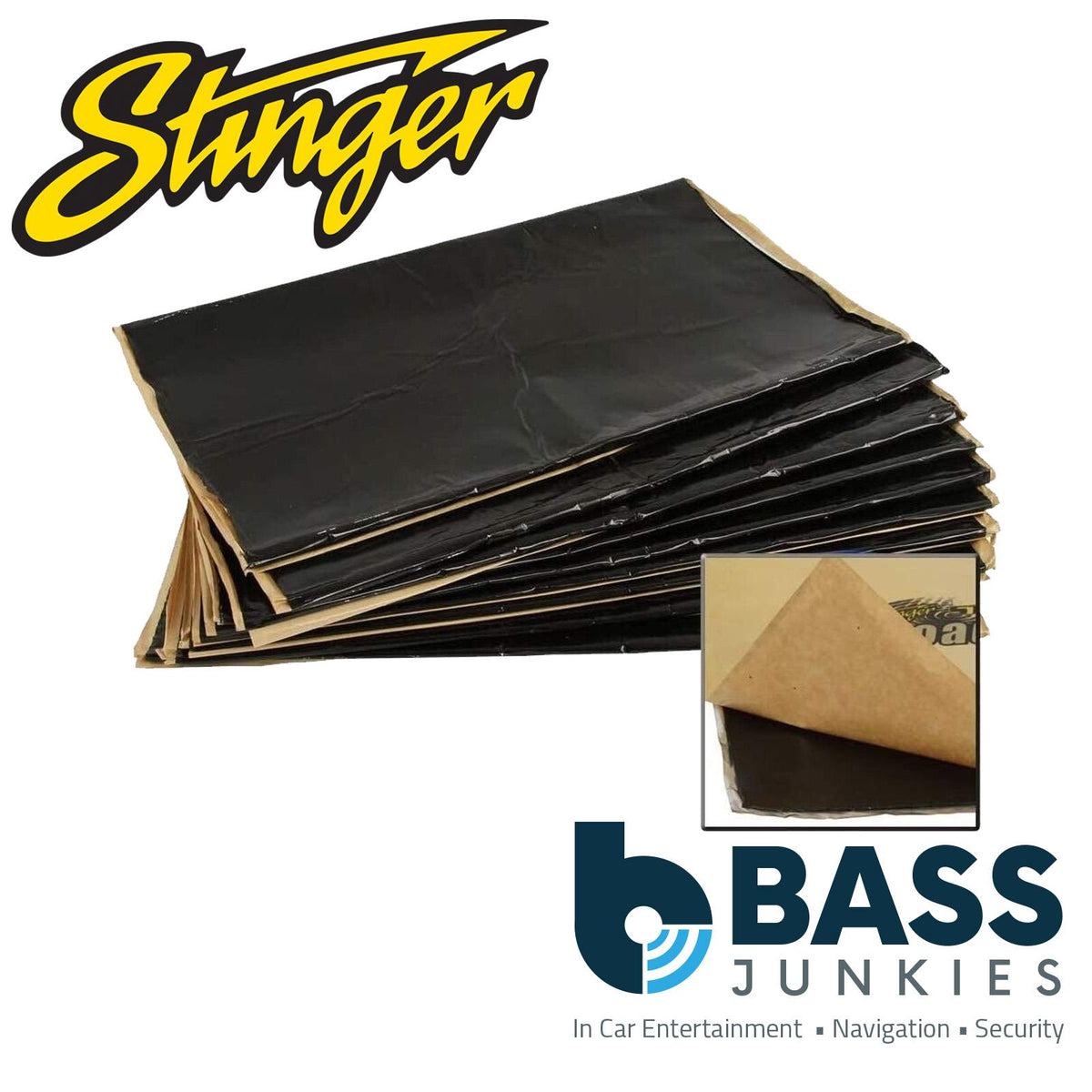

• Stinger Roadkill. Excellent value butyl, the most widely fitted street build option in 2026.

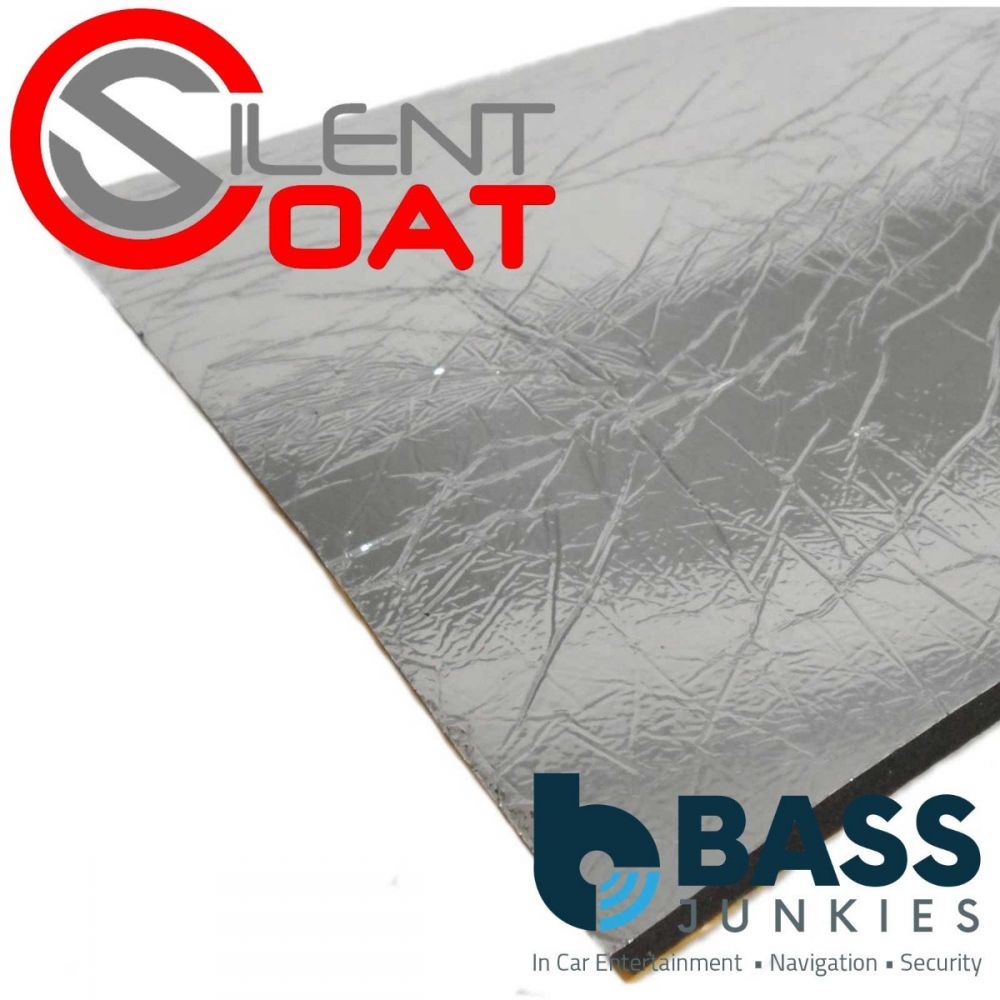

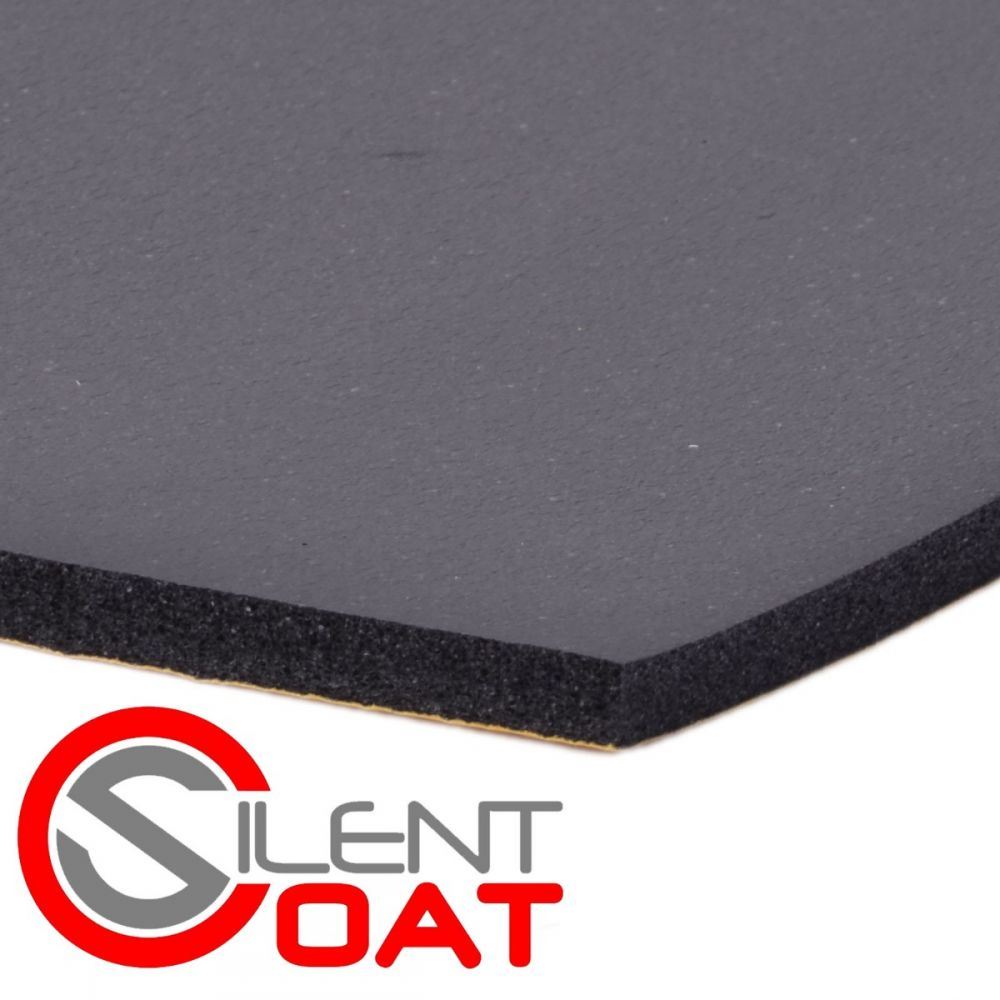

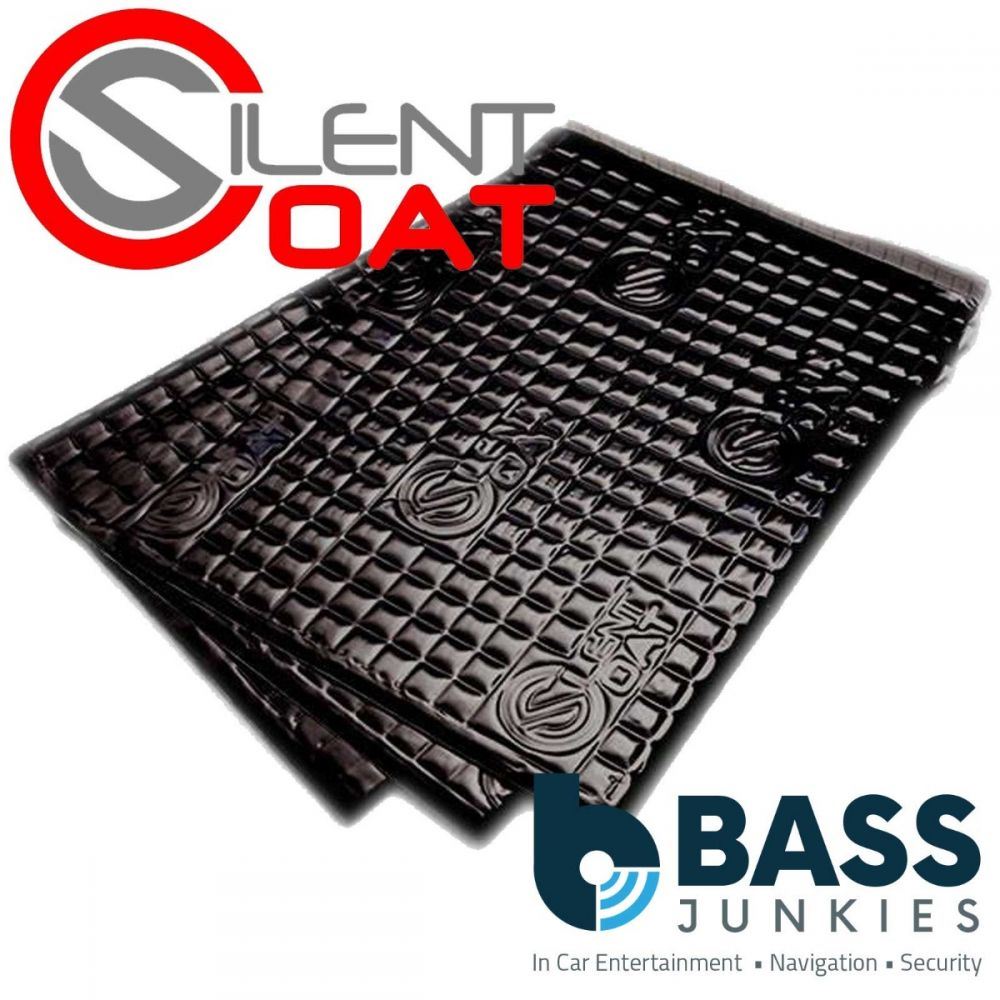

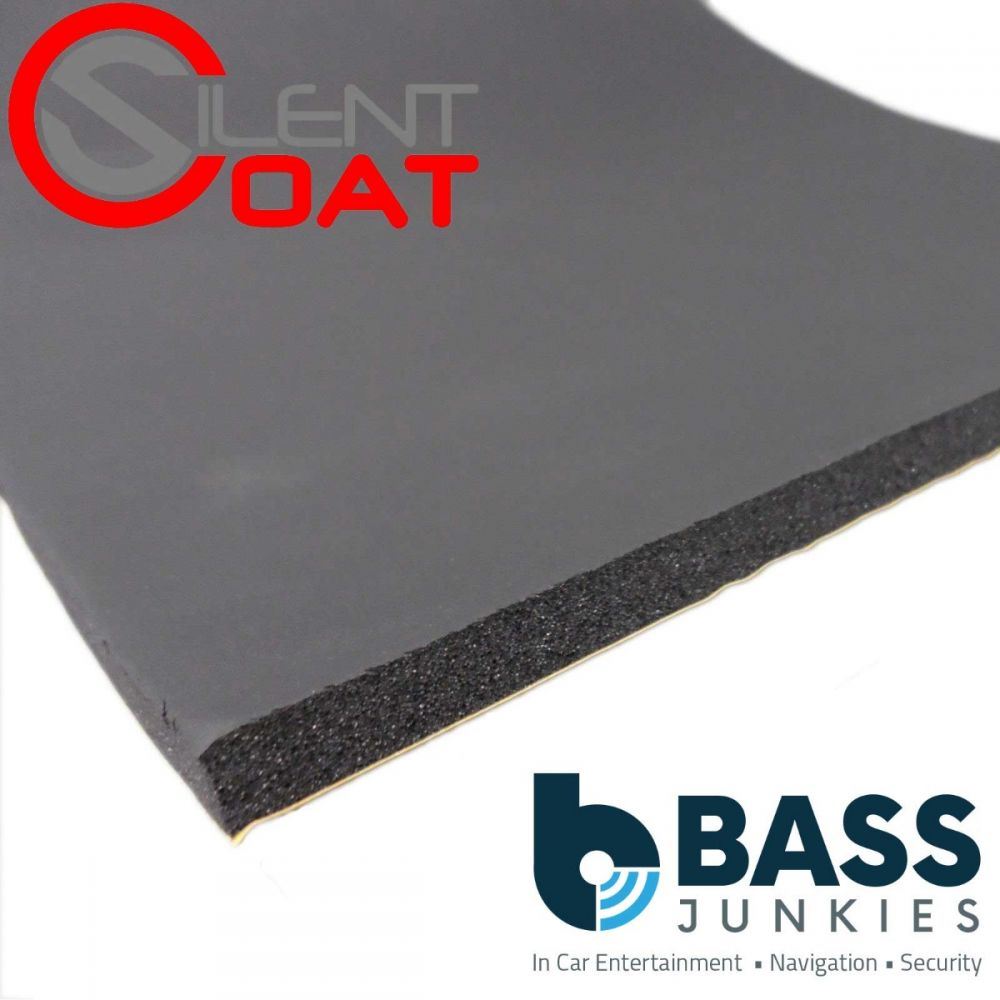

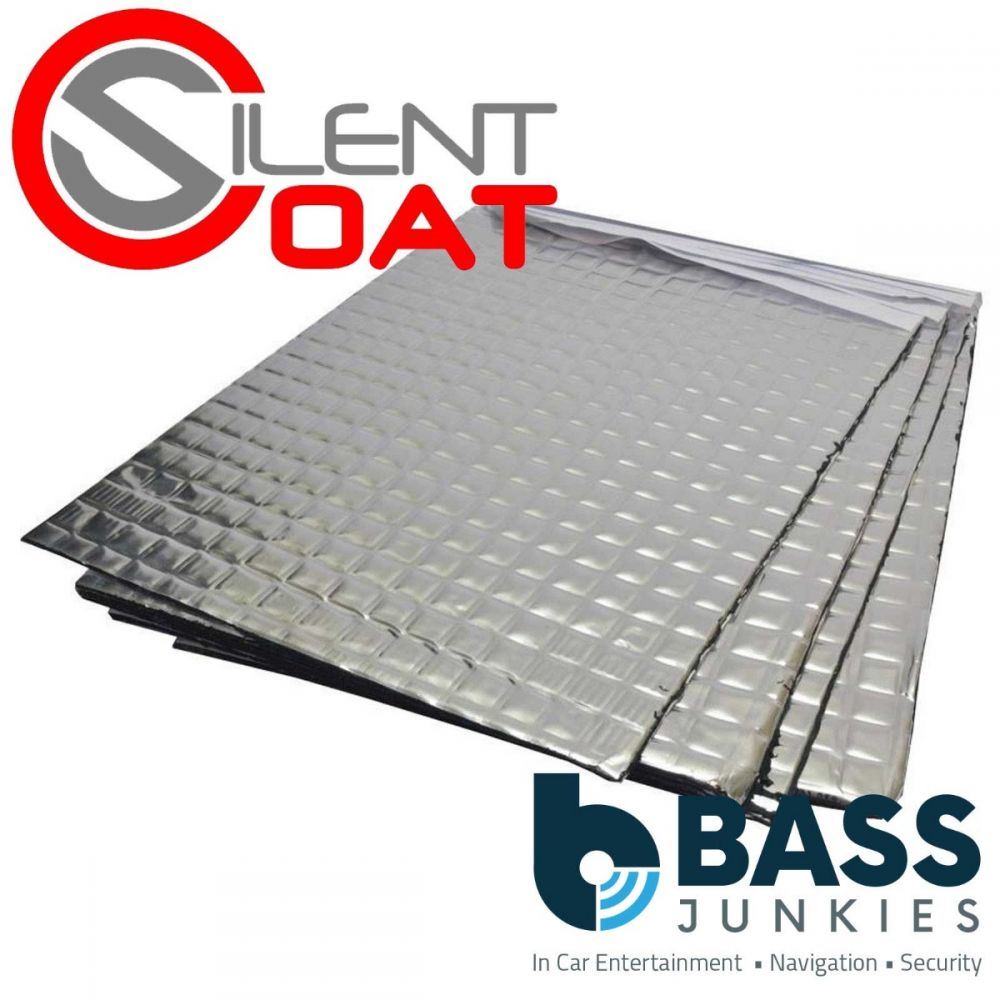

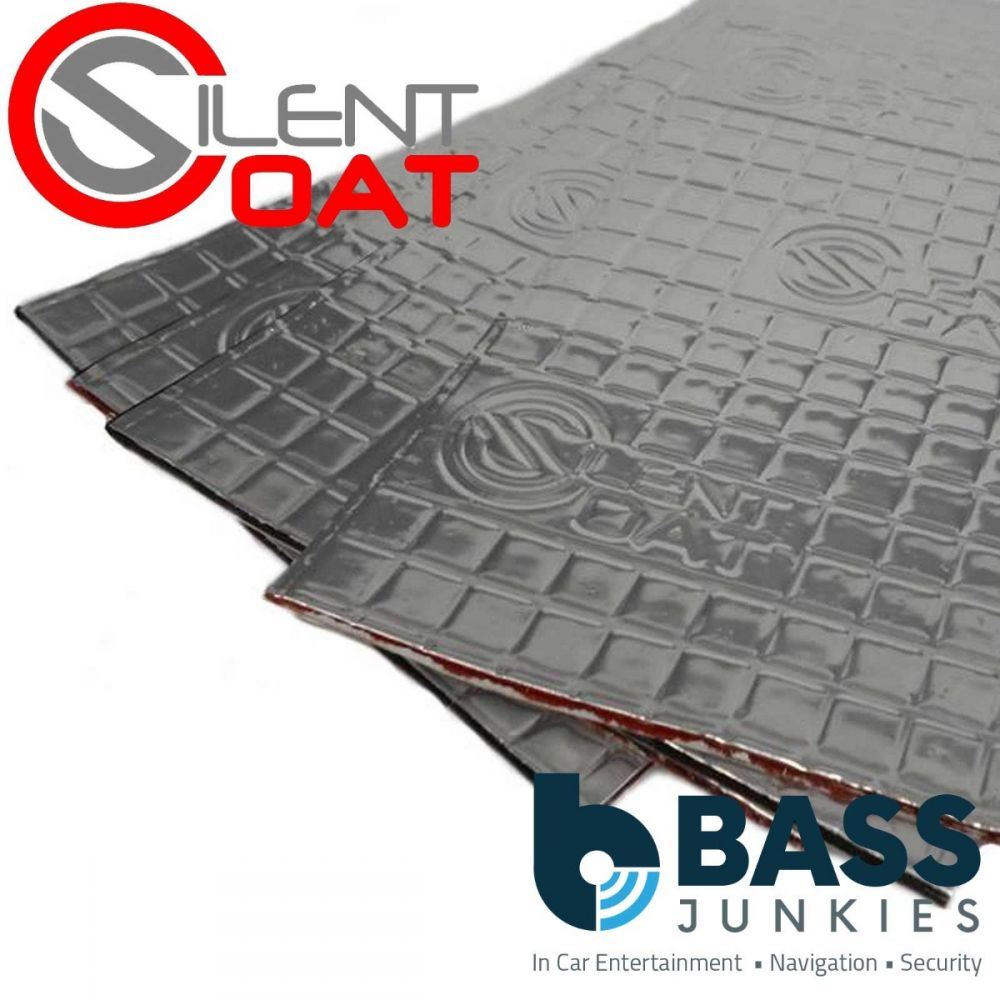

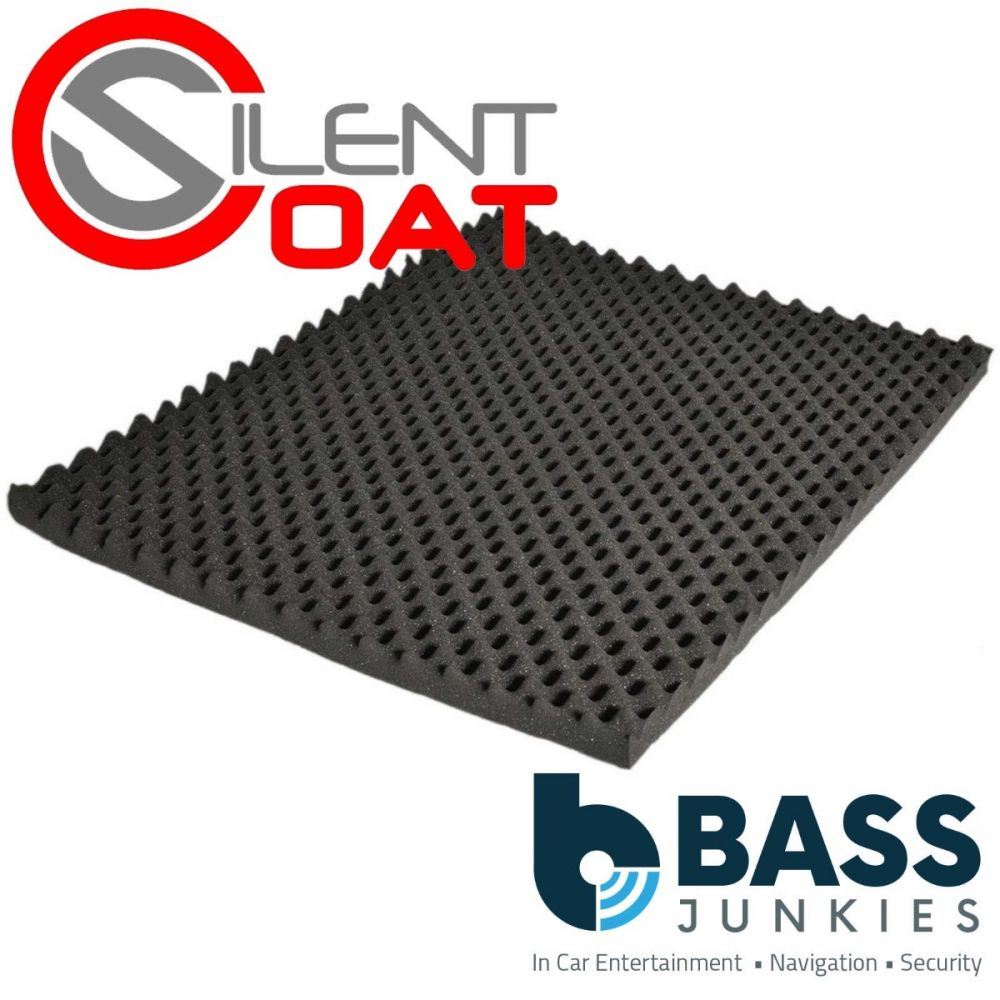

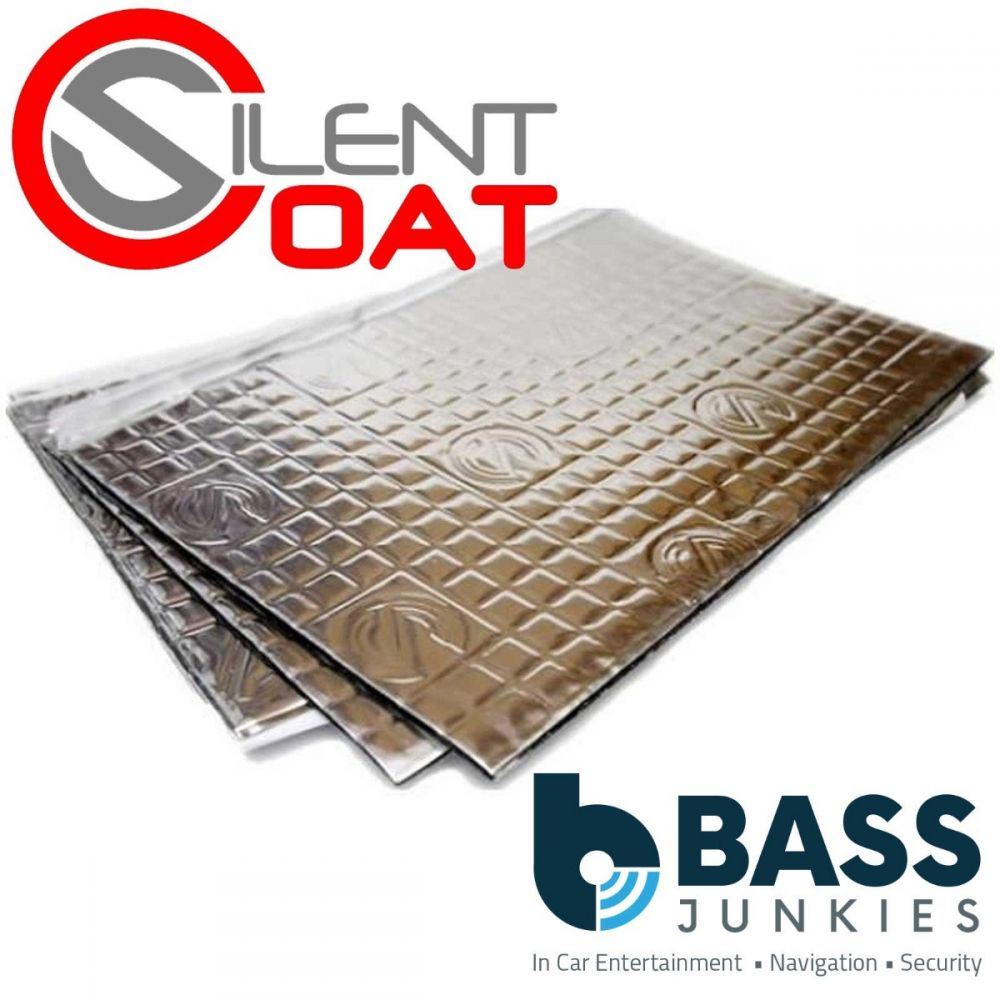

• Hush Mat and Silent Coat. European made, strong adhesive, sized for awkward UK door cavities.
• ACV and Vibe. Reliable mid tier butyl plus matching closed-cell foam in bundle kits.
• ConnectS2 and Phoenix Gold. Trade focused rolls and pre-cut kits for professional installers.

Tools and prep you will need

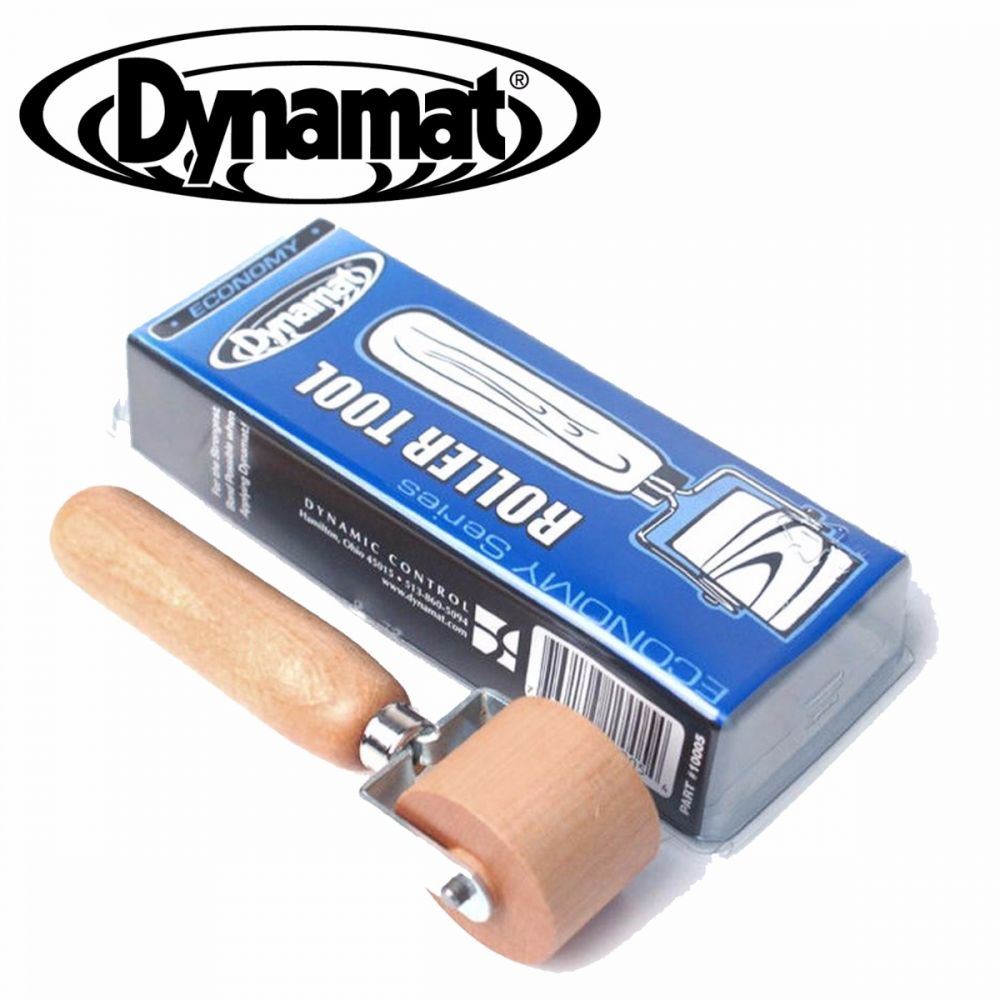

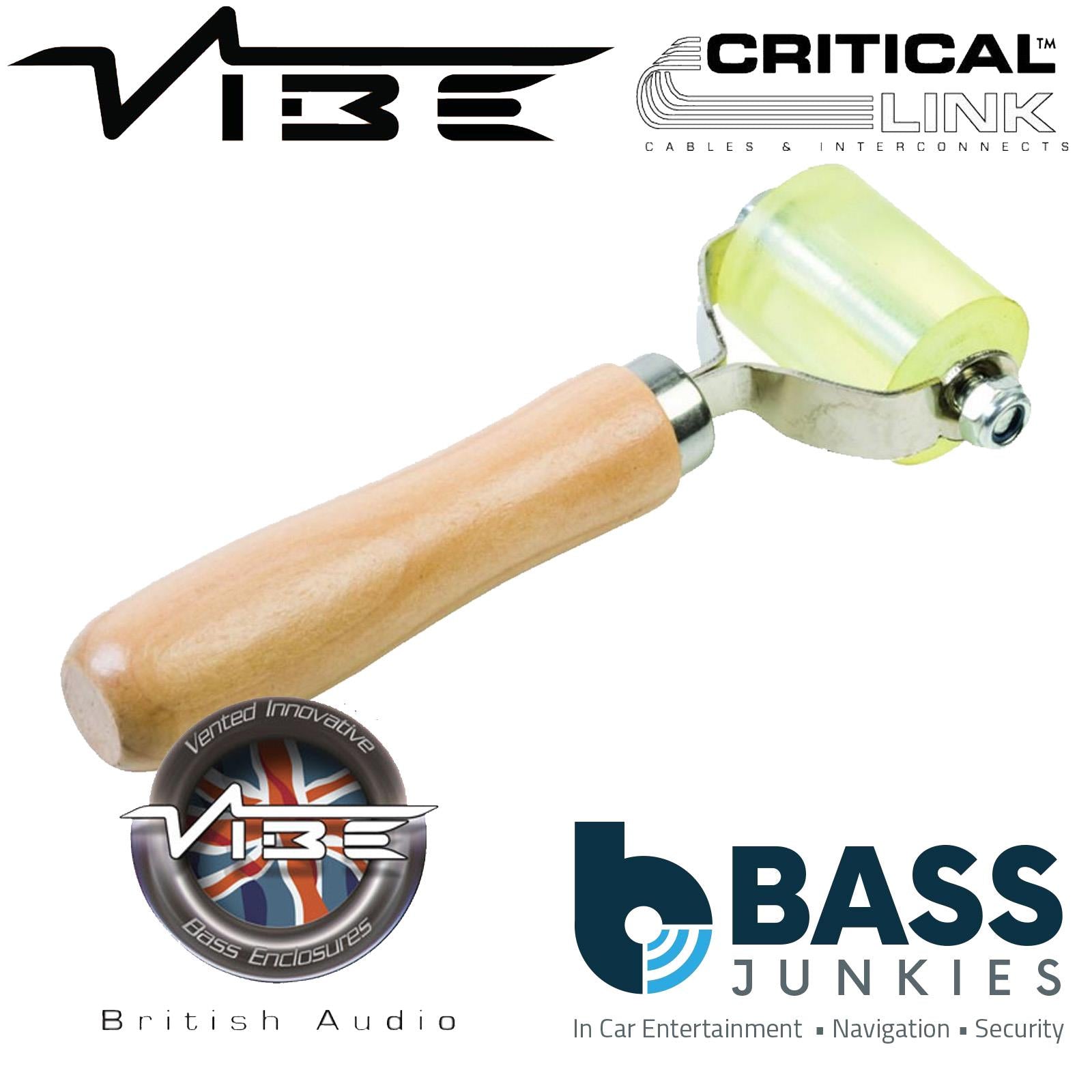

Sound deadening only works on a clean panel. Strip the trim, vacuum the dust and degrease every surface with isopropyl alcohol before any mat goes down. A heat gun on a low setting helps the butyl conform to curved sections. A small steel roller welds the adhesive properly. Skipping prep is the single biggest reason mats lift off doors in the first summer.

Compatibility and fitting

• Butyl mats. 2mm thickness, aluminium constraining layer, sized for door cards and floor pans.

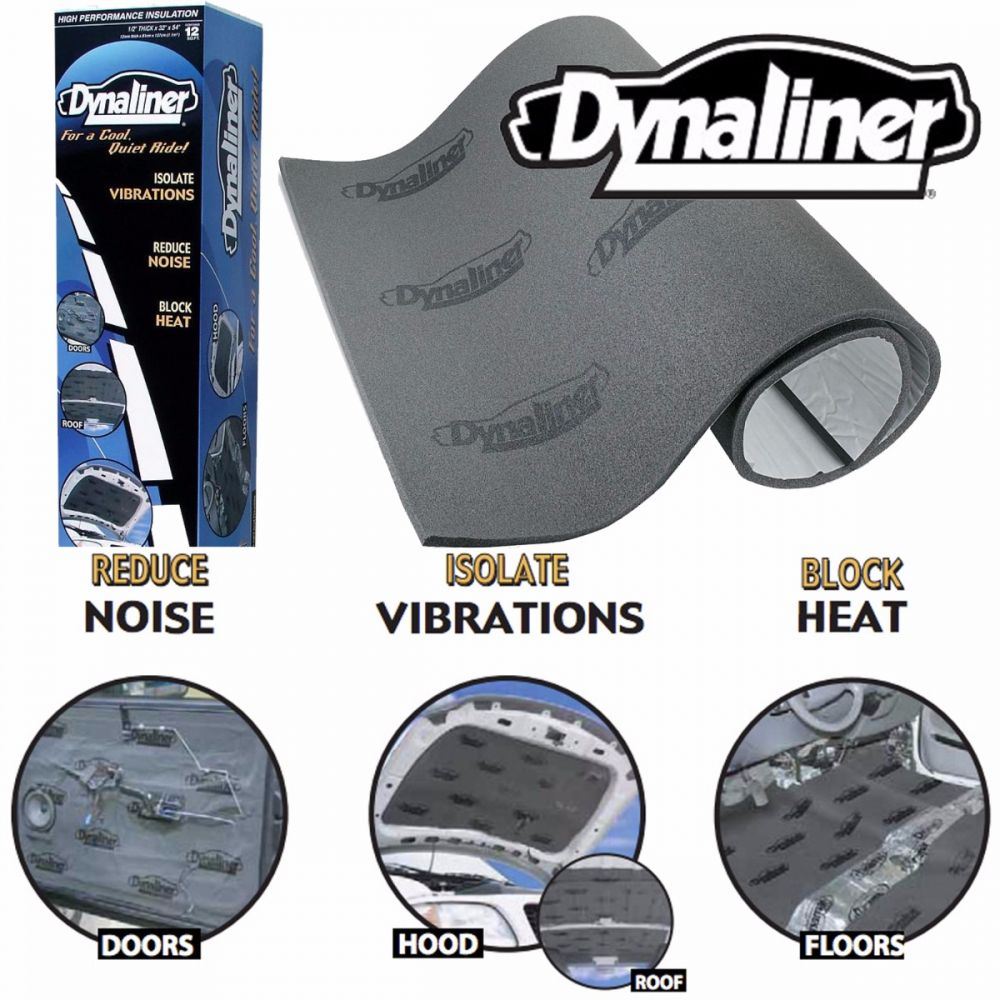

• Closed-cell foam. 6mm or 9mm, fitted over the butyl as a decoupler.
• Trim clip kit. Replace any clips that snap during removal so the door card refits cleanly.
• Isopropyl alcohol and lint free cloths. Required for proper adhesion on bare steel.
• Heat gun and steel roller. Essential for a clean install that lasts.

Common mistakes to avoid

Fitting closed-cell foam without butyl underneath gives short term comfort but no resonance control. Skinning 100 percent of the panel doubles the weight for negligible gain. Reusing old trim clips that have lost their grip causes rattles that no mat will fix. And never cover drain holes inside the door, water needs somewhere to go.

Why buy from Bass Junkies

Bass Junkies has supplied and fitted sound deadening from our Wolverhampton workshop since 1995. We stock Dynamat, Stinger, Hush Mat, ACV and Vibe in proper depth, with most rolls and bundle kits ready to ship same day. If you need help sizing a kit for your specific car, choosing between butyl thicknesses, or planning a full cabin install around a subwoofer build, call the team on 01902 863 005 and we will spec the right materials first time.
