SONY 6.2" Screen Blutooth Double Din Stereo Fitting Kit + Steering Wheel Stalk Controls to fit Ford C-Max 2003-10 | Ford Fiesta 2005-08 | Ford Focus 2004-07 | Ford Fusion 2005-12 | Ford Galaxy 2006- | Ford Kuga 2008-12 | Ford S-Max 2006- | Ford Transit 20

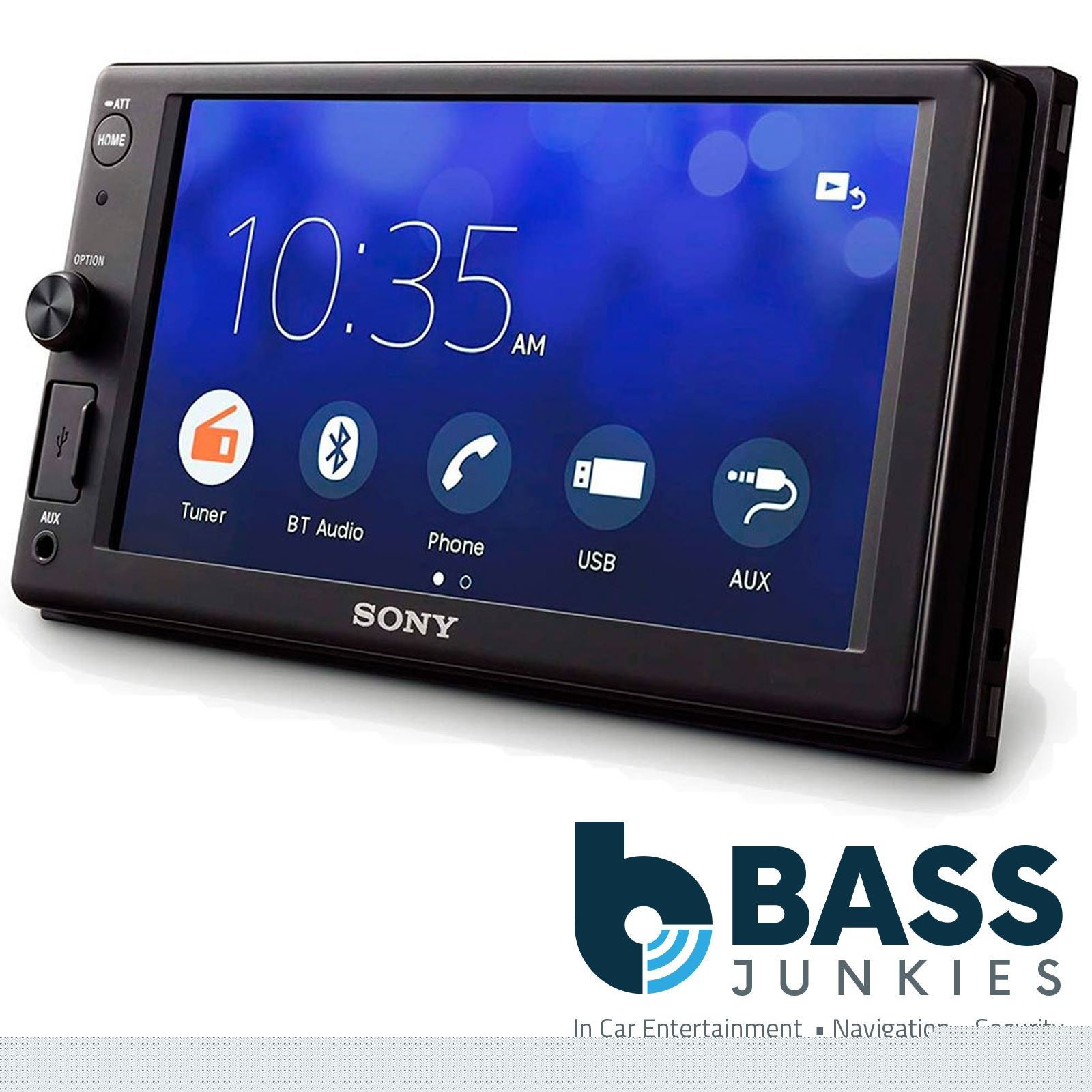

Sony XAV-1550D Car Stereo (15.7cm) 6.2" Double Din Bluetooth | USB | Aux-In | DAB+ Radio | FM Radio | WebLink | Rear�view camera ready | Anti-Glare Screen + Complete installation kit including black double DIN fascia panel, interface, antenna adapter and head unit patch lead. For vehicles without 12V ignition feed in harness

Sony XAV-1550D Car Stereo features
Turn or push to control
The ergonomic rotary dial makes operation distraction free. Turn it to control volume, or push the integrated button to launch sound control menus. Alternatively, hold the button to use voice commands.
Hear music your way
Multiple customization options let you adapt the audio experience to your liking. And with the built-in powerful amplification, music sounds clear even at high volumes.
Rear view camera ready
Got a rear camera installed? View its feed through the screen, along with customizable guidelines that help you back in safely.
Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.
Listen to DAB+ radio
Tune into DAB+ radio for even more choice and better audio quality. The receiver picks up your DAB favorites too.

Technical Details
• Output Power 55W x4
• Pre Out 3 Pre (Front / Rear / Sub x 1)
• Aux-In
• Rear View Camera in
• USB (Front x 1)
• Firmware upgradability
• DSO (Dynamic Stage Organizer)
• Equalizer 10-band Graphic Equalizer
• EXTRA BASS (Off / 1 / 2)

Connectivity
• Bluetooth®

Tuner Features
• Preset DAB18 / FM12 / AM6
• Auto Memory BTM
• RDS / EON (RDS)

Bluetooth Profile
• HFP (1.6)
• A2DP (1.3)
• AVRCP (1.3)
• PBAP (1.1)

Bluetooth Calling Features
• Speed Dial (6 memories)
• Recent Calls (# of)
• Last Dialed Call (select from the dialed call history)
• Phonebook Access via PBAP
• Alphabetical Phonebook Sorting
• Ring Volume Level Control
• Call Volume Level Control
• External Microphone Supplied
• Battery Reminder
• Signal Strength Indication

Bluetooth Audio Features
• Audio Codec (Bluetooth Audio) SBC / AAC
• Pause (Bluetooth Audio)
• CUE / REV
• TRACK +∕−
• Group (Folder) +∕−
• Audio Level Adjustment -6dB to +6dB
• Repeat Control (Audio Device side)
• Shuffle Control (Audio Device side)
• Meta Data Indication

Panel Design
• Panel Surface Finish Color Black
• Key Illumination (White)
• Monitor(AVC)
• LCD Type TFT Active Matrix
• Screen Aspect 16: 9
• Screen Diagonal (inch / mm) 6.2 inch
• Screen Size (W x H mm) 137.52 x 77.232 (mm)
• Resolution (DOT) 800 x 480
• Dimmer
• Contrast Ratio 600
• Brightness 400cd / m2
• Display Panel
• Key Illumination Initial (White)
• Dimmer Adjust
• User Interface
• Touch Panel / Resistive + AG (Not Multi Touch Compatible)
• Gesture Command
• Parking Control
• Parking Line Adjust
• Aspect Ratio Select
• Rear View Camera-In Marker Setting

Features:
• Upgrade to an aftermarket head unit and retain the OEM fit, finish and functionality of your vehicle

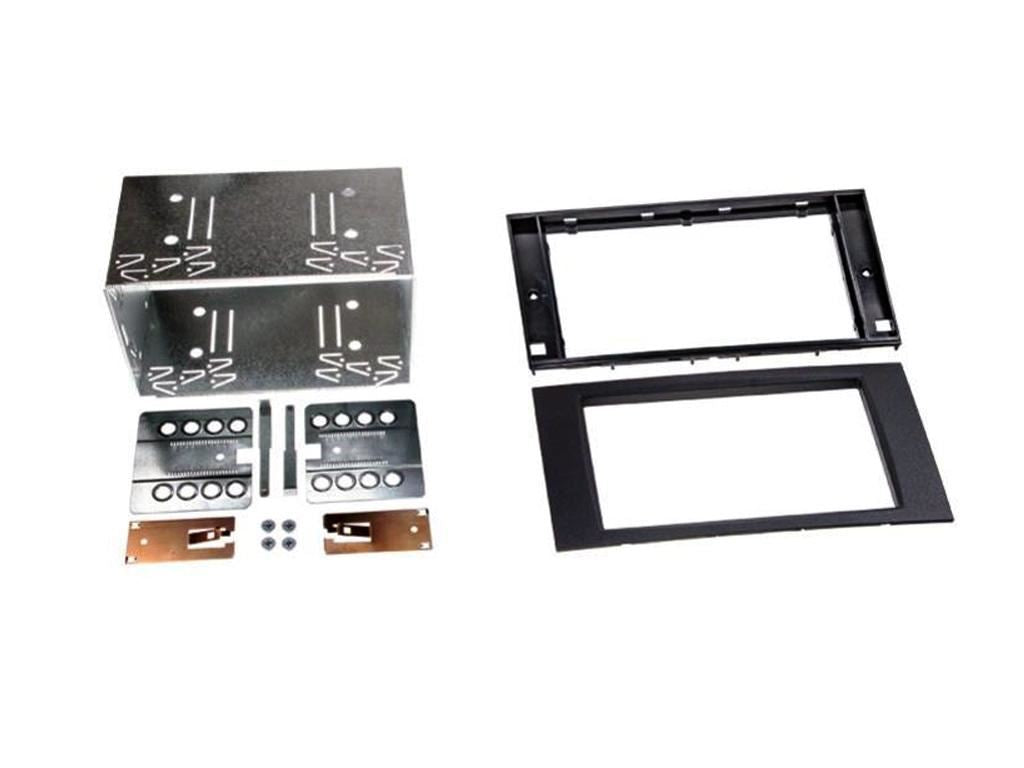

• Includes mounting brackets and fitting accessories

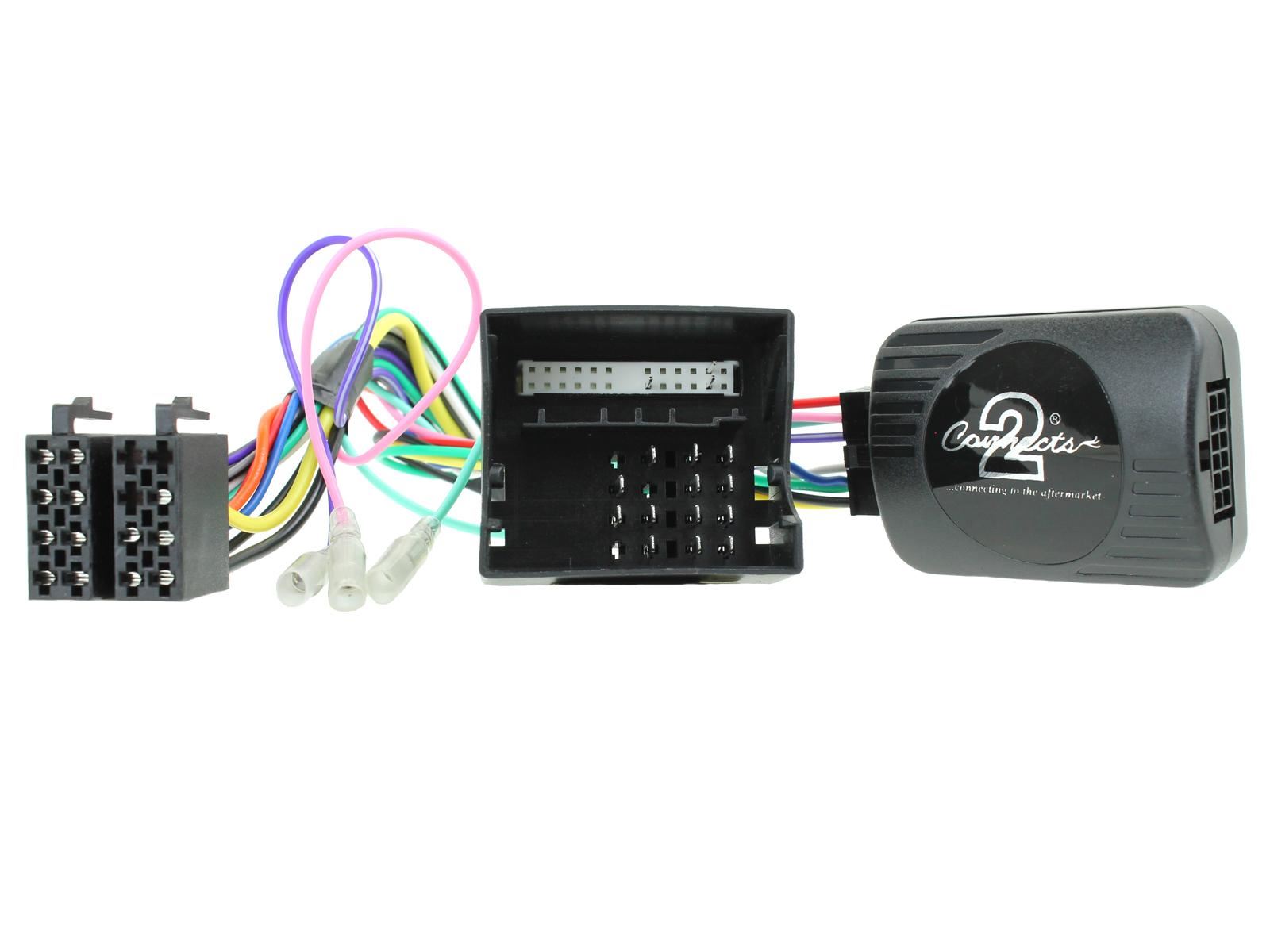

• Retains steering wheel control functionality
• Provides outputs for speed pulse, park brake and reverse gear

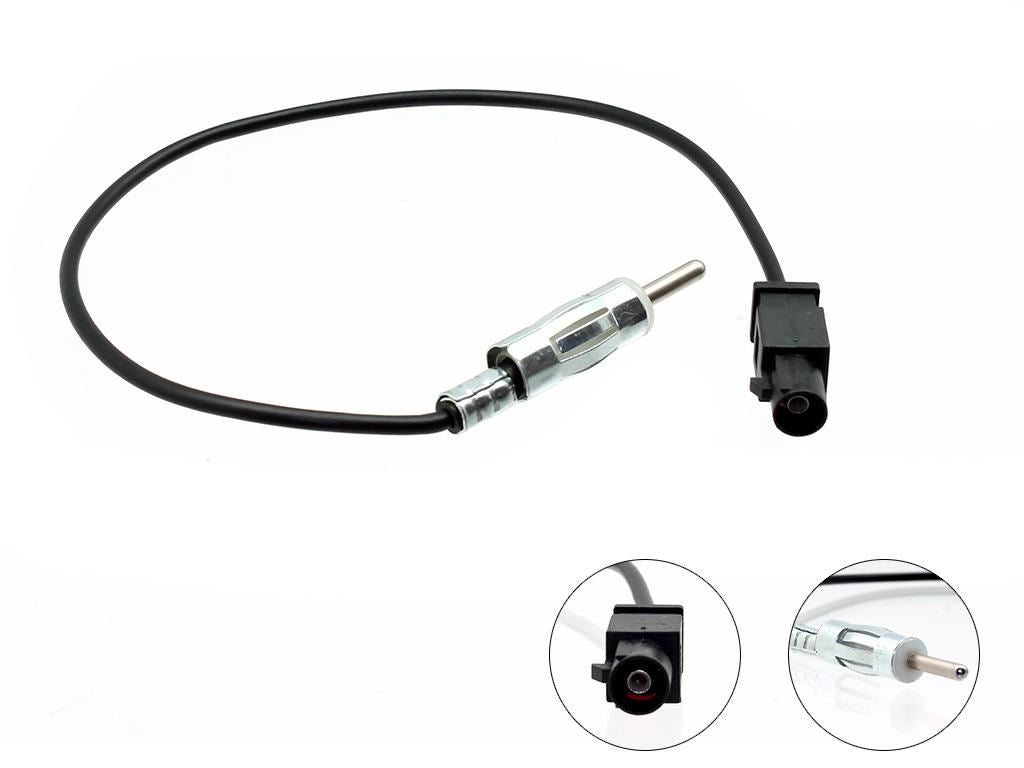

• Kit includes universal patch lead and antenna adapter
• This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

This kit is designed to fit the following vehicles:
• Ford C-Max 2003-2010 Connection:Quadlock (Fakra)
• Ford Fiesta 2005-2008 Connection: Quadlock (Fakra)
• Ford Focus 2004-2007 Connection: Quadlock (Fakra)
• Ford Fusion 2005-2012 Connection: Quadlock (Fakra)
• Ford Galaxy 2006- Connection: Quadlock (Fakra)
• Ford Kuga 2008-2012 Connection: Quadlock (Fakra)
• Ford S-Max 2006- Connection: Quadlock (Fakra)
• Ford Transit 2006-2013 Connection: Quadlock (Fakra)

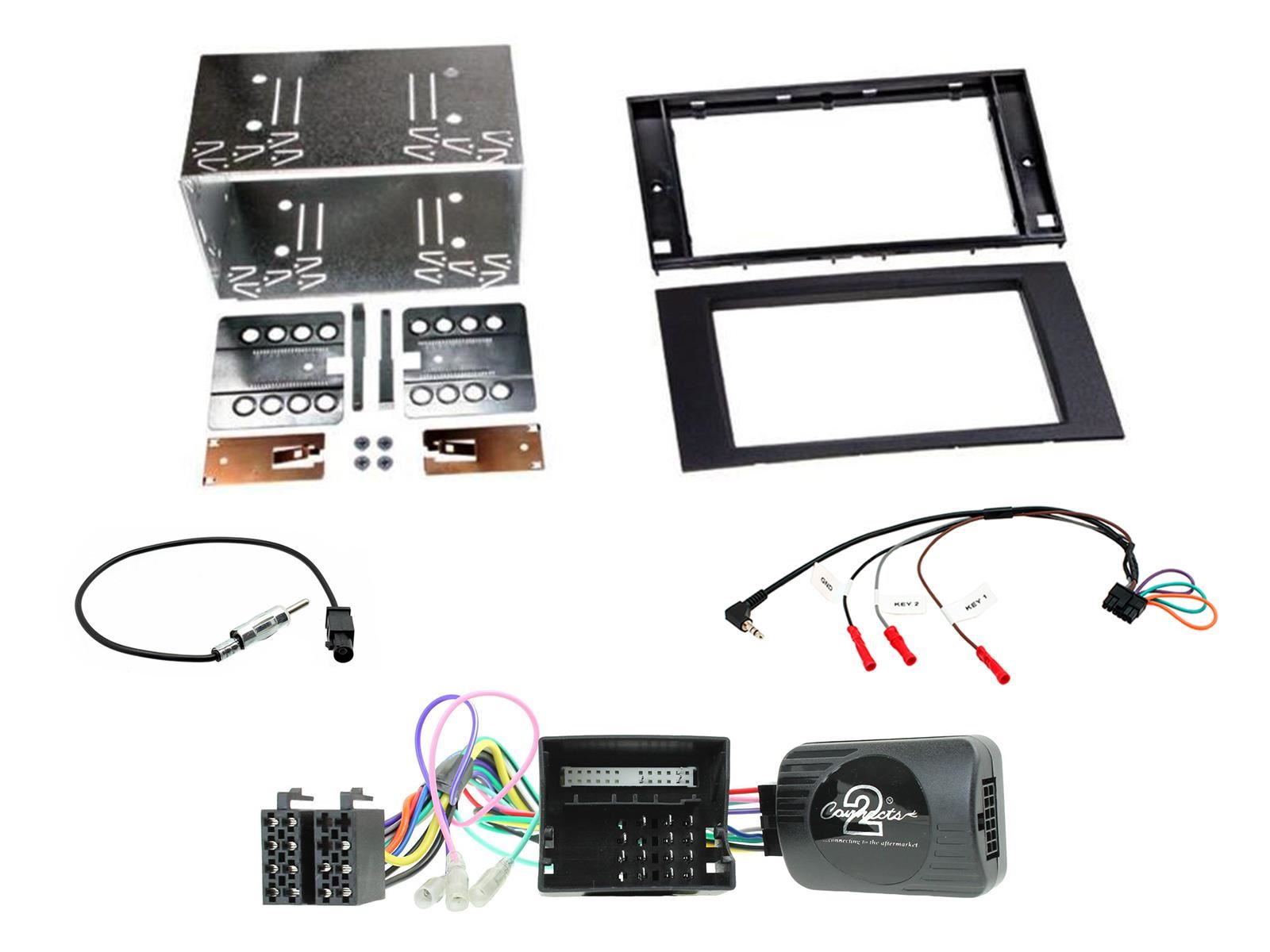

What you will receive when you purchase this listing:
Sony XAV-1550D
Fitting Frame
ISO connector
Warranty Card
Instruction Manual
Vehicle specific fitting kit which fits vehicles listed above.
