KENWOOD X502-1 - 1500 WATTS X-SERIES CLASS D MONO CHANNEL POWER AMPLIFIER

Key Features

• Mono channel digital power amplifier
• D-class Amplifier
• Compact chassis
• Built-in low pass filter
• Speaker Level Input
• Signal sensing Turn-on
• Extruded aluminum heat sink design
• 2 ohms load capability

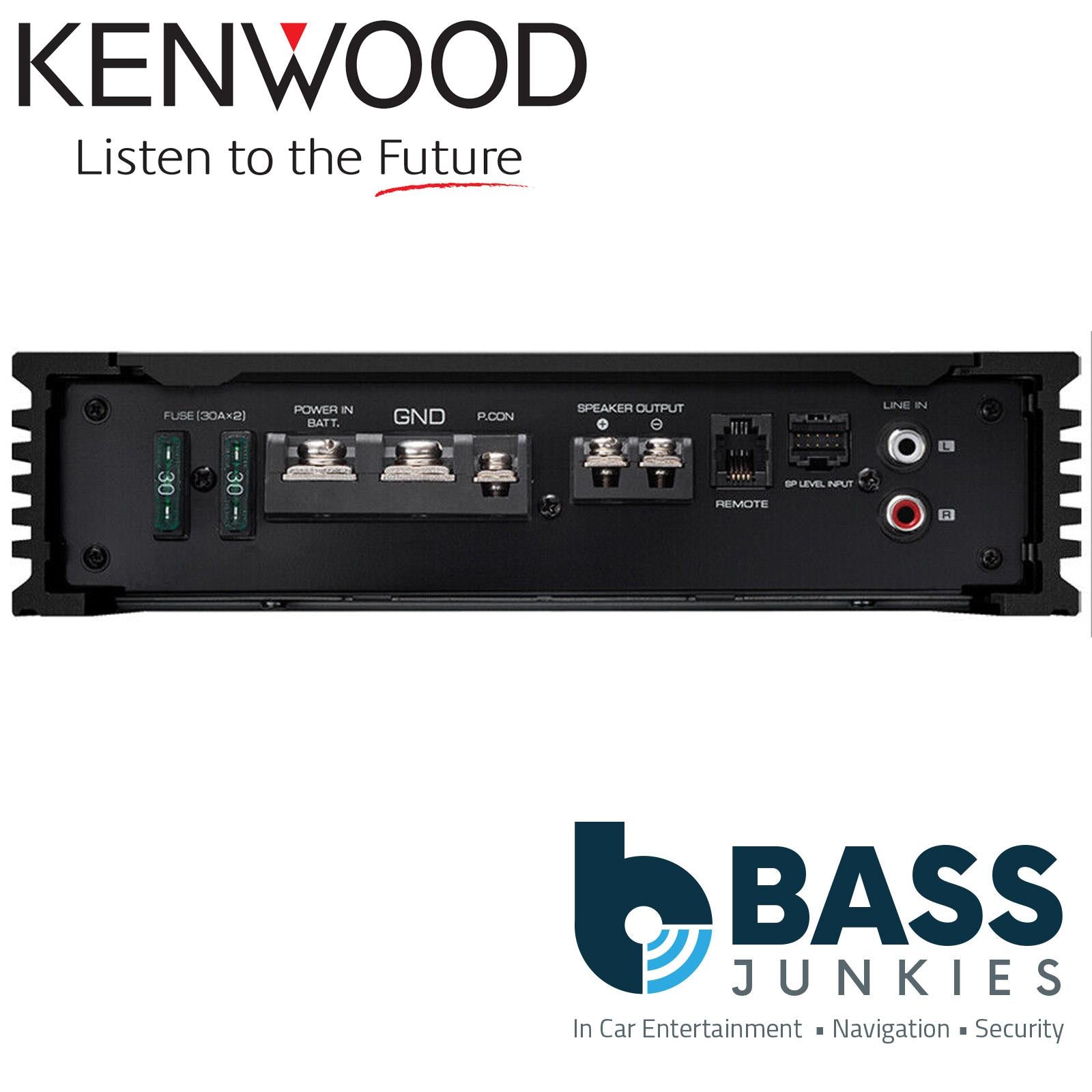

• Screw-type terminals

Amplifier Features

• Class D Amplifier
• Full Range Digital Amplifier
• Load Capability 2Ω Stable
• Rated power output (4Ω) 300W x 1 (4Ω)
• Rated power output  500W x 1 (2Ω)
• CEA-2006 Compliant
• Low-pass Filter
• Switched Mode Power supply, with Power MOS-FET
• Single Side Terminals
• Die-Cast Aluminium Heat Sink

Amplifier-Specifications

• Rated power output (4Ω, 14,4V) 300W x 1 (20Hz ~ 200Hz, 1%THD)
• Rated power output (2Ω, 14,4V) 500W x 1 (100Hz, 1%THD)
• Rated power output (CEA-2006) 300Watts RMS x 1 at 4 ohms and 1% THD

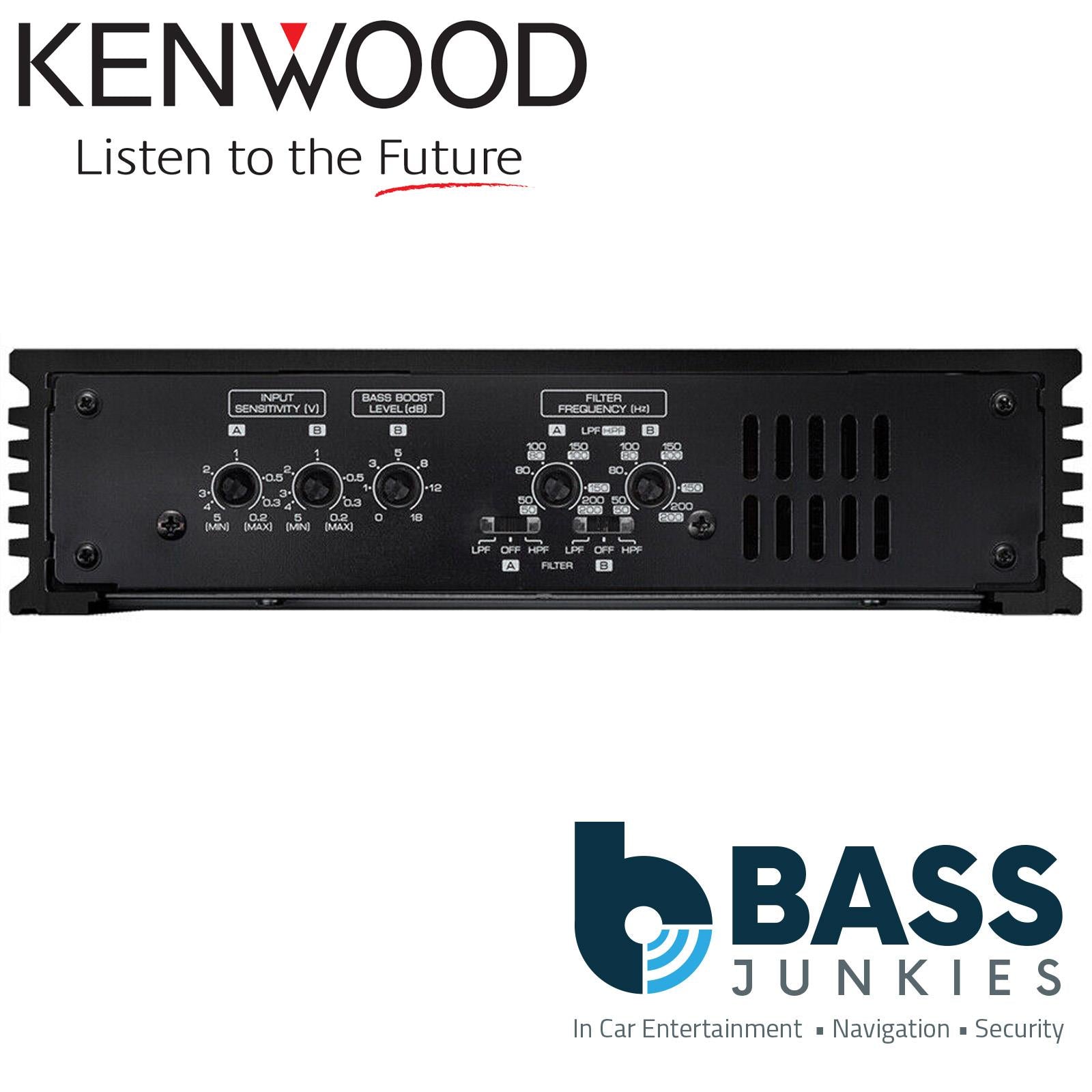

• Low-pass Filter 50~200Hz (-24dB/oct)
• Bass Boost Circuit 40Hz, 18dB (B-Channel)
• RCA Input Sensitivity  0.2 ~ 5V
• Input Impedance 10kΩ
• Signal to Noise Ratio 100dB
• Signal to noise ratio (CEA-2006)
• 85dBa (Reference: 1 Watt into 4 Ohms)
• Frequency response (+0dB, -1dB) 20Hz ~ 200Hz
• Operating voltage  14.4V (11V ～ 16V allowable)
• Maximum current consumption 25A
• Installation Size (WxHxD) 213 x 53 x 149 (mm)
• Weight 1.5kg
