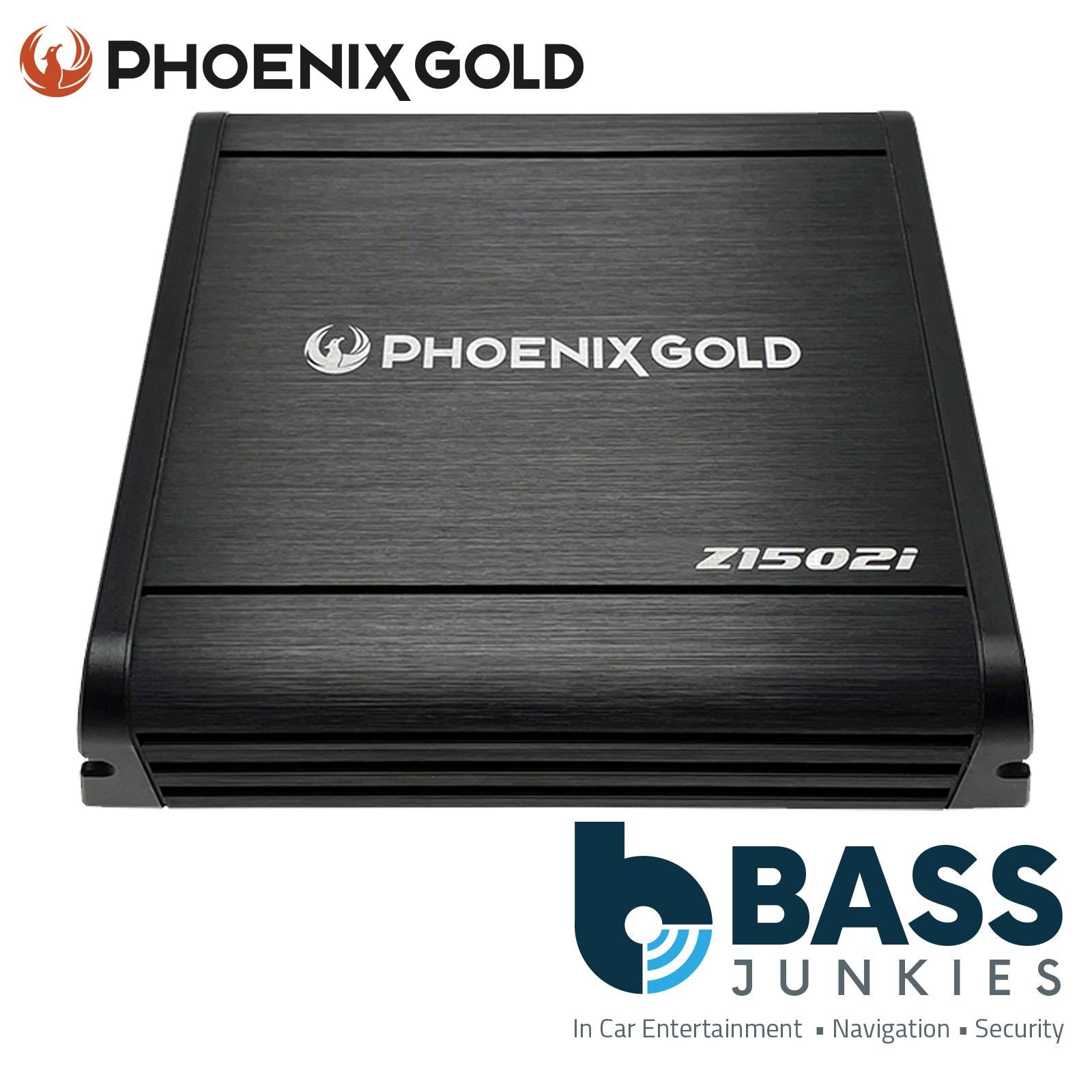

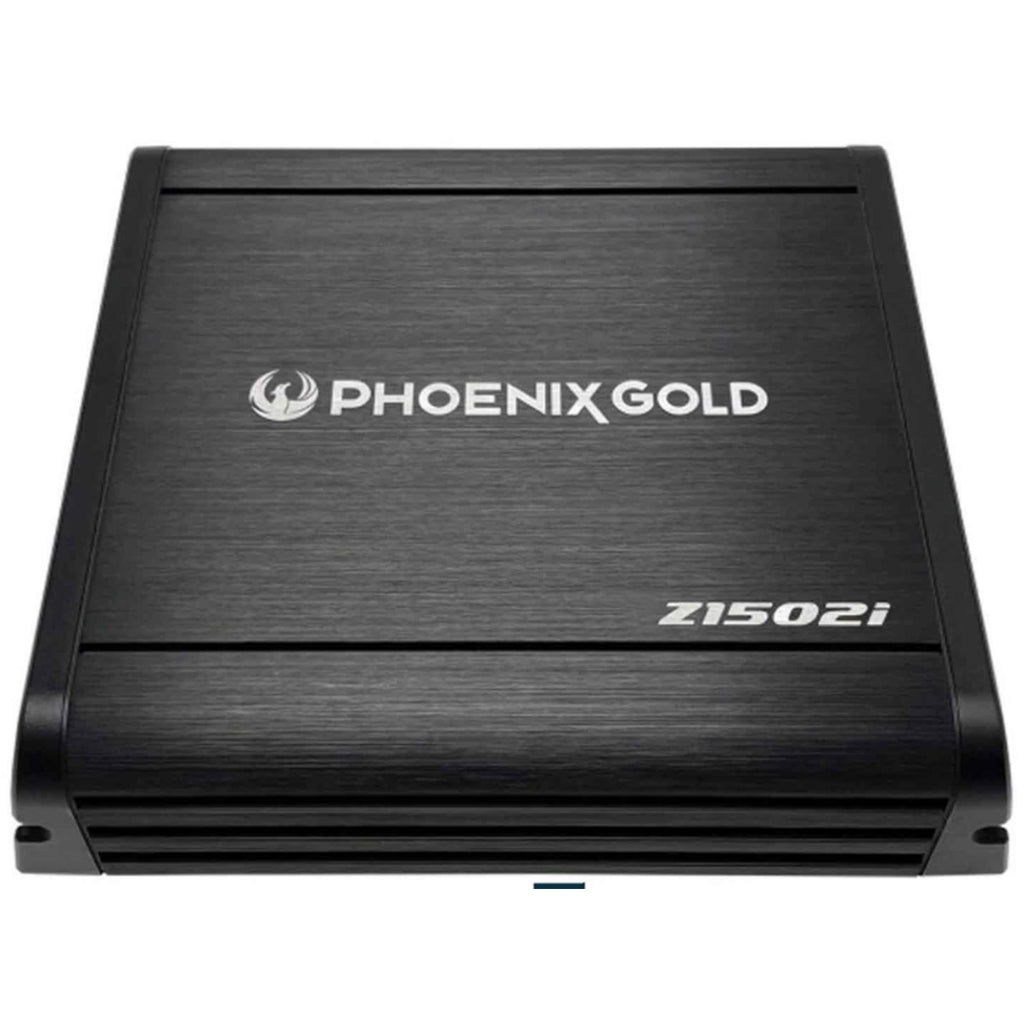

Phoenix Gold Z1502i - Z Series 400 Watts 2 Channel Hi/Lo Input Car Amp Amplifier
Features
- Intergrated cooling fan regulates amplifier temperature for sustained performance
- OEM connection ready compatible with aftermarket or original source units
- High level auto turn on powers on the amplifier when an audio signal is supplied
- 4 way protection circuit :
- Thermal / Reversed power / Polarity / Low voltage / Short circuit
- Heavy duty connector block provides maximum current supply
Specifications
- Compact Class A/B 2-Channel Amplifier
- Power (MAX) 400 Watts Bridged
- 70 Watts x 2 @ 4 Ohm RMS
- 100 Watts x 2 @ 2 Ohm RMS
- 200 Watts x 1 @ 4 Ohm bridged RMS
- Frequency Response 20Hz - 20kHz
- Signal to Noise Ratio >96dB
- High & Low Pass Crossover 6dB per Octave
- Crossover Range 50Hz - 400Hz
- Bass Boost @ 45Hz 0 to +18dB
- Low - High Level Input Range 0.2V to 10V
- Minimum Load Impedance 2ohm stereo & 4ohm bridged
- Dimensions (L x W x H) 184 x 160 x 48mm
