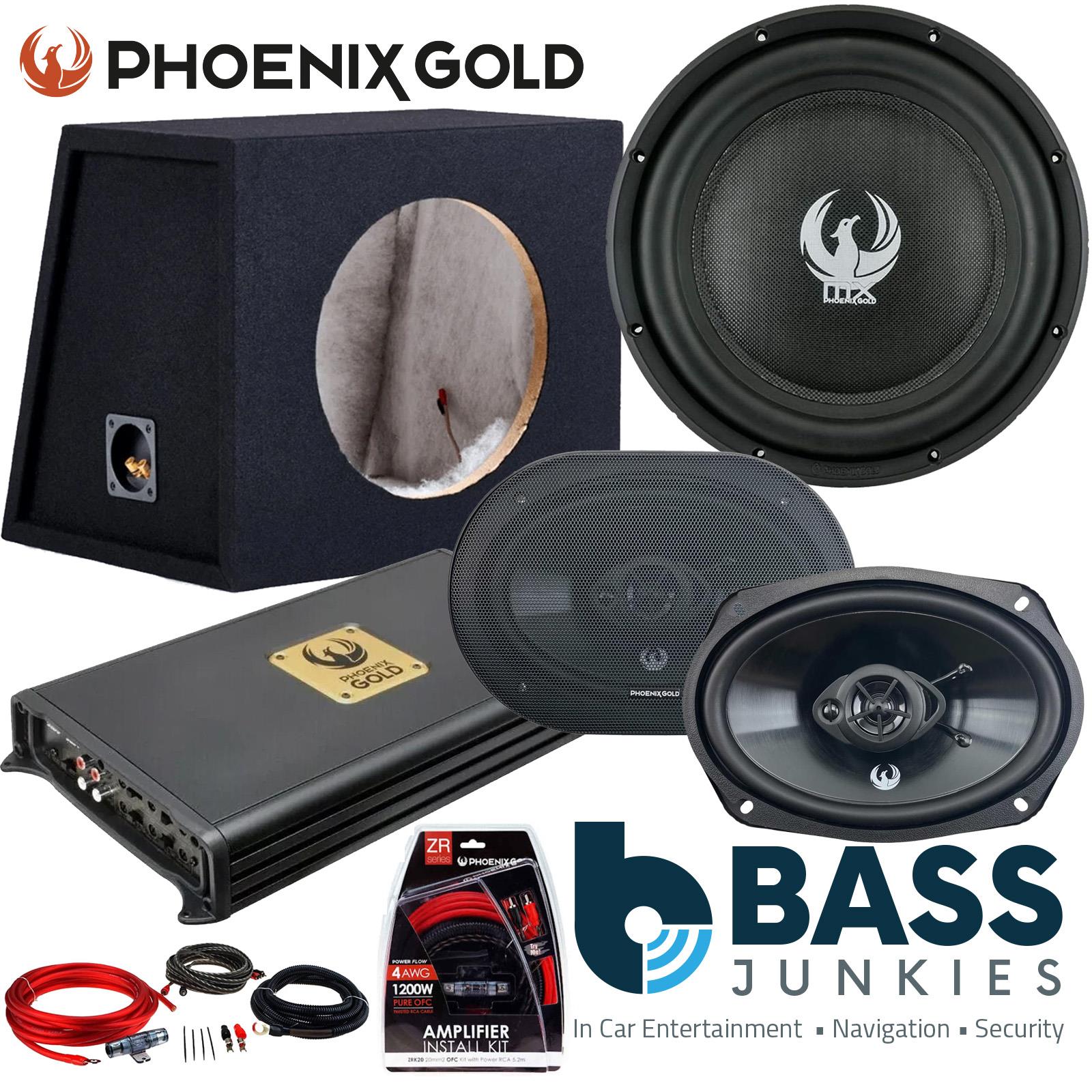

Phoenix Gold MX12D2 12" 30cm 600 Watts Car Subwoofer & MDF Sealed Bass Box with Phoenix Gold 4 Channel Amplifier Phoenix Gold 6"x9" Car Speakers & Full Amp Wiring Kit

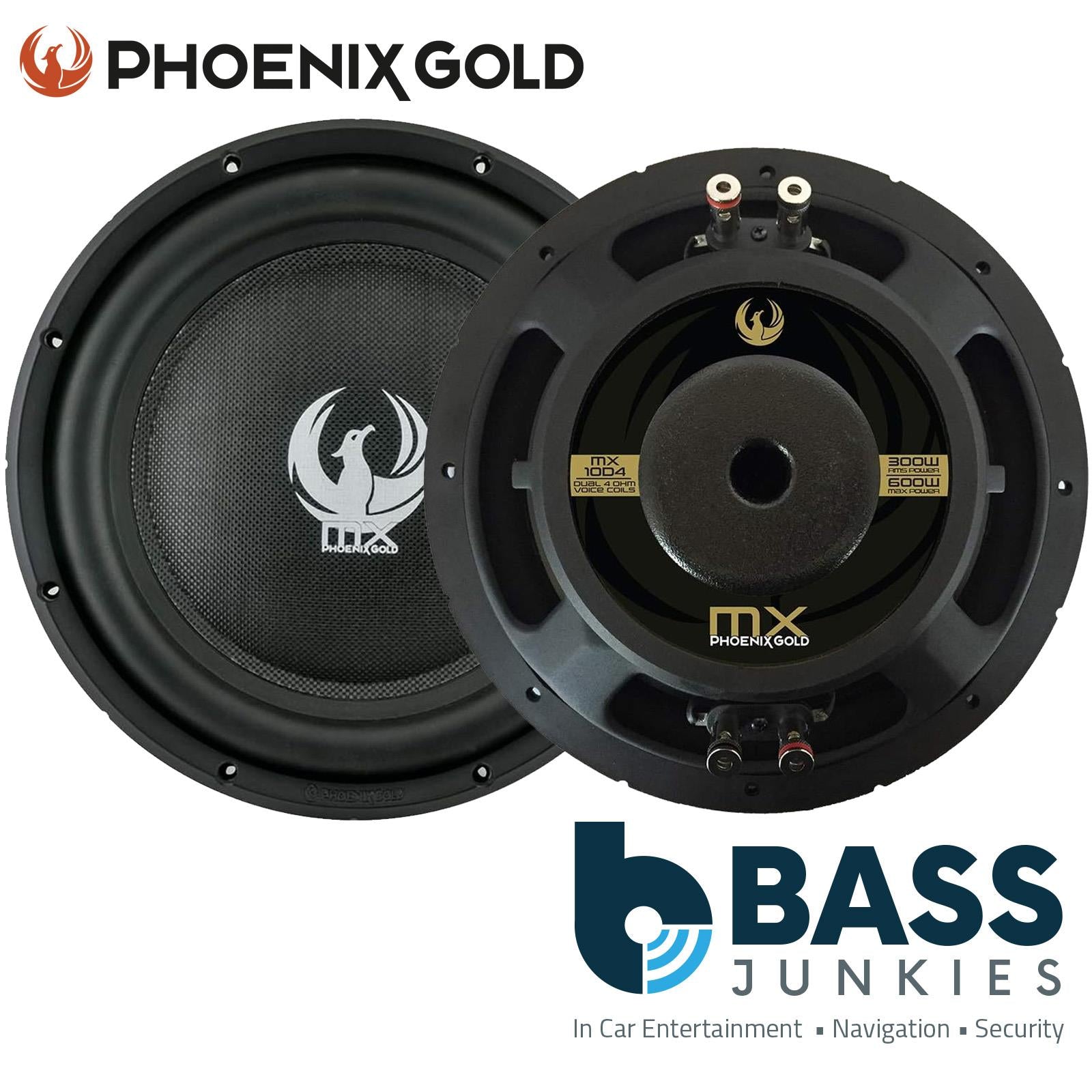

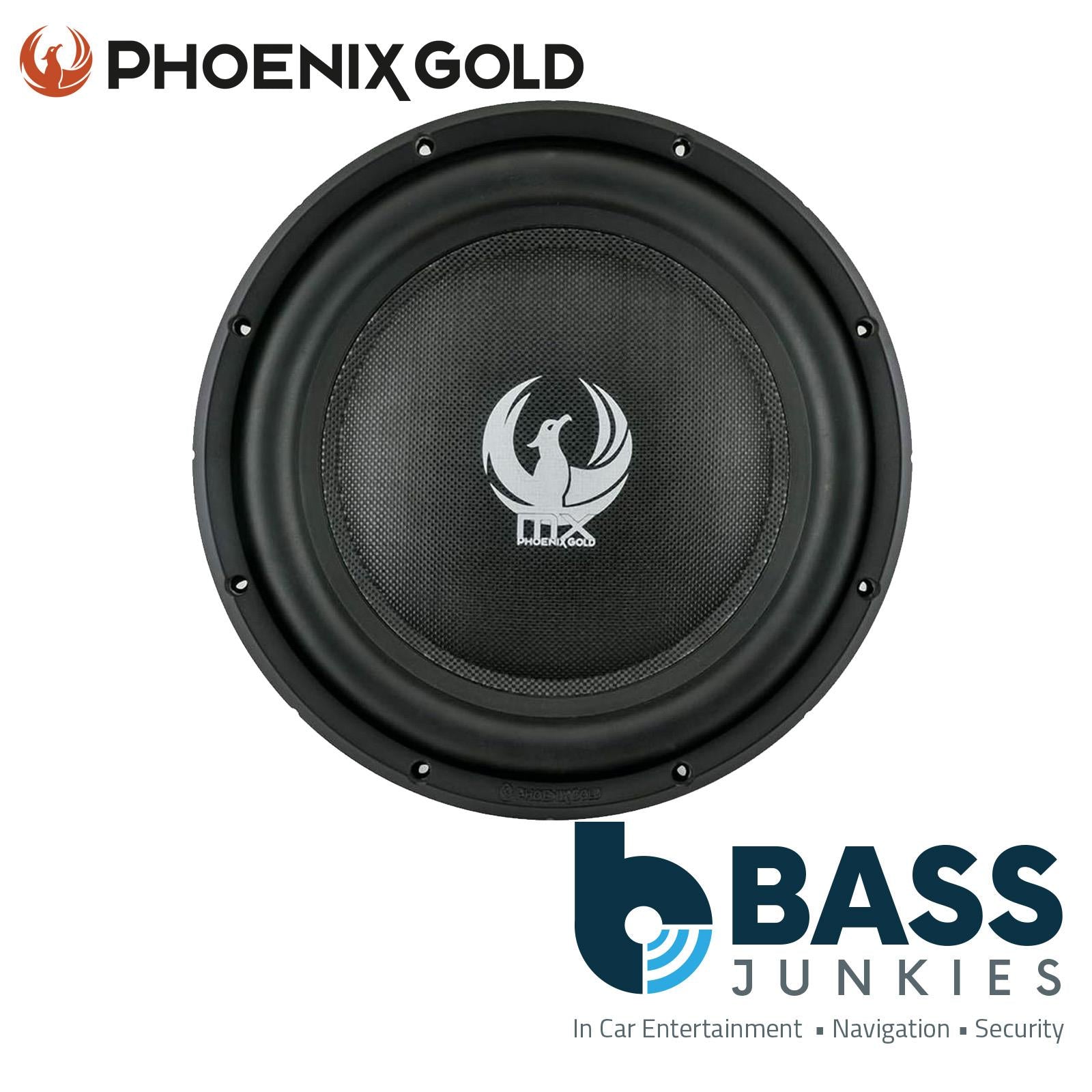

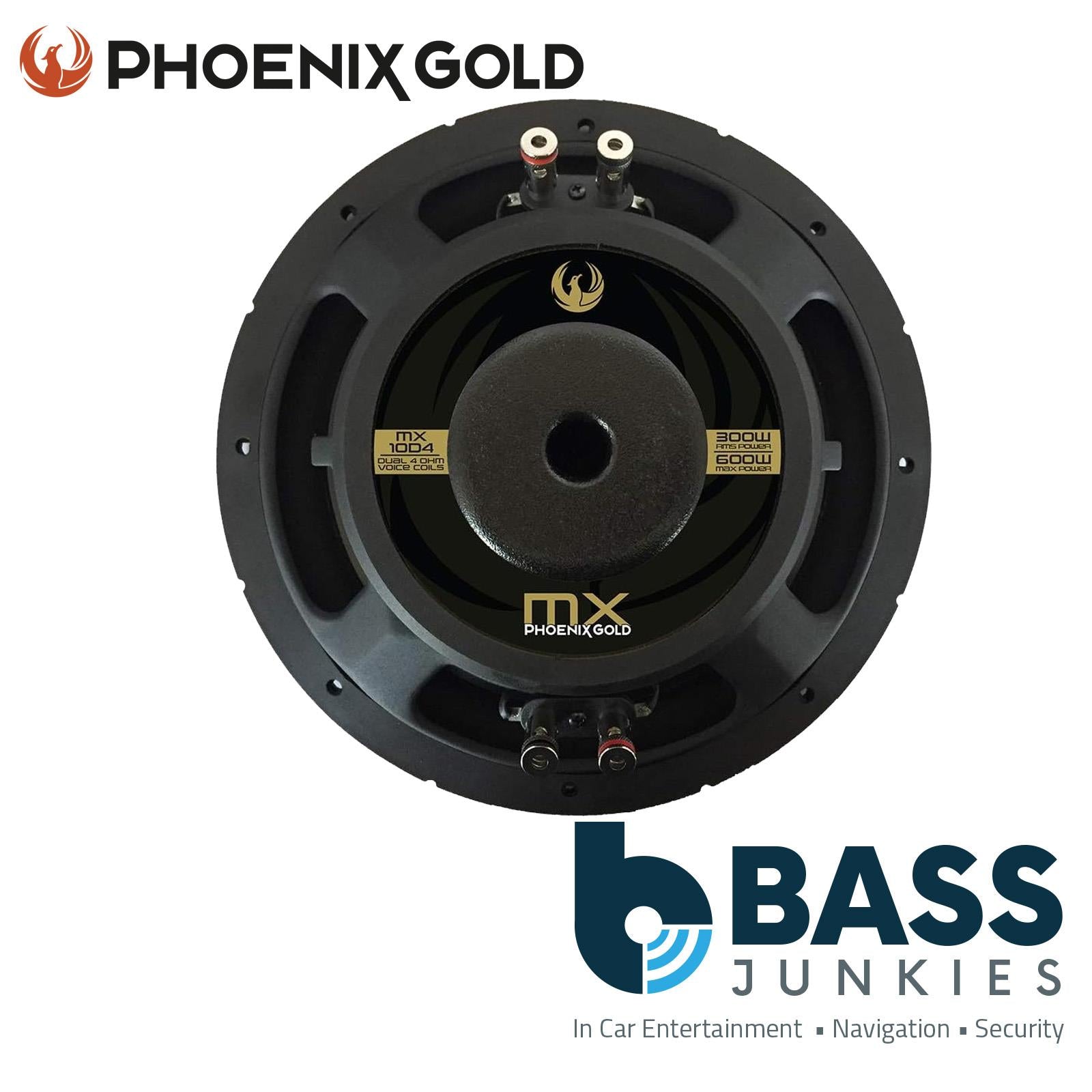

Phoenix Gold MX12D2 Subwoofer
MX12D2 is Phoenix Gold’s 12” dual voice coil 2 Ohm slimline subwoofer. Packing 600 watts power, delivering tight, clean, articulate, goose bump inducing bass; jam packed with every musical detail.
Engineered to overcome the hurdle of lack space for BIG BASS in trucks and the compact vehicle market. The MX subwoofers are here to deliver outstanding performance to the most demanding listener and keep the music going. The MX “shallow mount” subwoofers heavy duty construction starts with the Phoeniroll Surround that promotes an exact linear range of motion within the 22mm of peak-to-peak excursion.
Followed by a light yet ridged glass fiber-reinforced cone, matched with an oversized sophisticated motor structure consisting of a high temperature Torriform voice coils made of pure OFC cooper coupled with KlaraForm Vented Kapton former. Followed by a progressive rolled spider with rugged woven tinsel leads, resulting in a subwoofer that is optimized for maintaining precise control, and maximum reliability while being pushed to the limit!
Features
- 12" Shallow Subwoofer
- 2" 2 Ohm DVC KSV Voice Coil
- RMS Wattage: 300 Watts
- Peak Wattage: 600 Watts
- 11mm of Linear Excursion
- High Excursion CAE/CAD Motor Design
- KlaraForm Vented Kapton Former technology reduces distortion by reducing heat and resistance
- Glass Fiber Reinforced Cone for Increased Low End
- Phoeniroll Surround Technology promotes linear motion
- Torriform Voice Coil Technology: Effectively dissipates heat and minimizes distortion
- Nickel Plated 12 Gauge Speaker Terminal
- Optimized for Sealed Enclosures
- Powder Coated Anti-Resonant Steel Basket

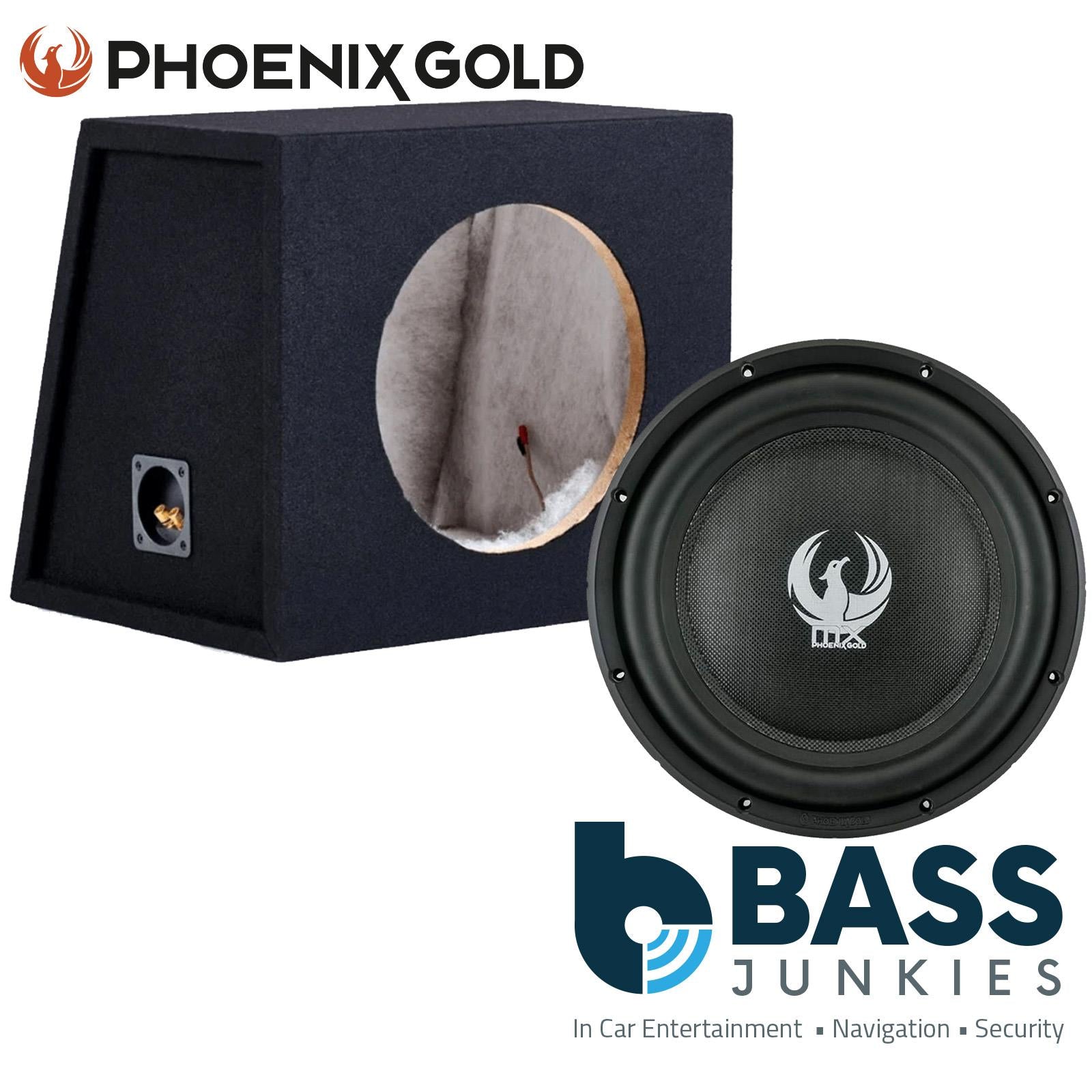

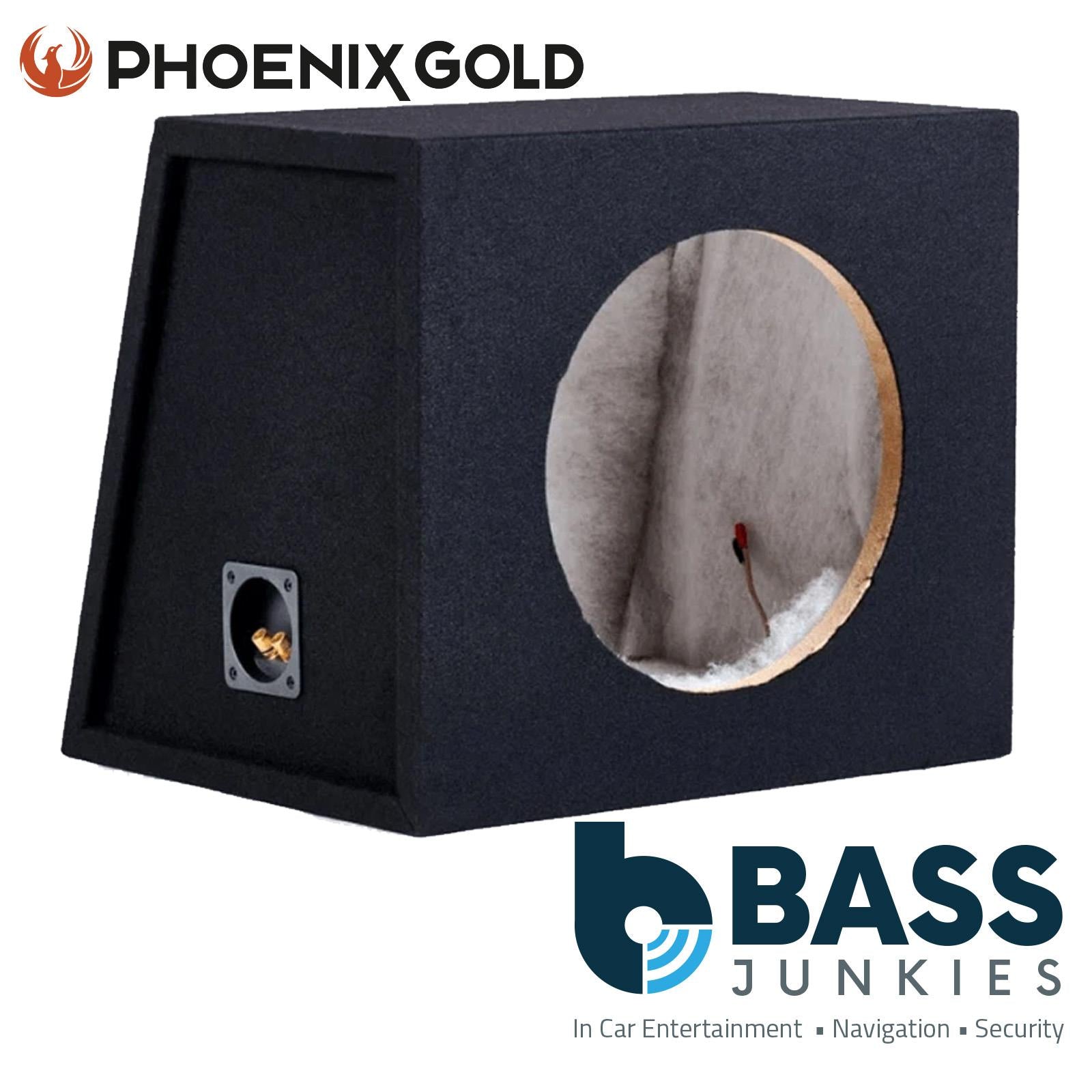

12" MDF Bass Box Enclosure
The correct enclosure for your woofers is crucial for good bass in your car. Thats why we have an extensive line of woofer enclosures to fit virtually any vehicle and woofer arrangement. From a single 8-inch to three 12-inchers
We have the right combination of quality style and performance. These boxes use superior MDF (medium density fiberboard) for rock-hard vibration-free sound; are fully sealed for airtight bass; and include gold-plated terminal connectors.
Black Carpeted Sealed Sub Subwoofer Car Bass Box with Speaker Terminal Post
Features:
- T1 Audio subwoofer speaker box
- Black carpeted finish
- MDF construction
- Designed to fit a 12 inch subwoofer
- 1.2 cuft
- Ideal for use with car stereo boot builds & installations
- Side connection for connecting speaker cables
- Sealed box design
Box Dimensions (external) Approx:
- 22" width
- 14" hieght
- 12" bottom depth
- 8.5 Top depth
Please Note Boxes have a sloped back, all sizes are approximate and carpet shades and sizes can vary

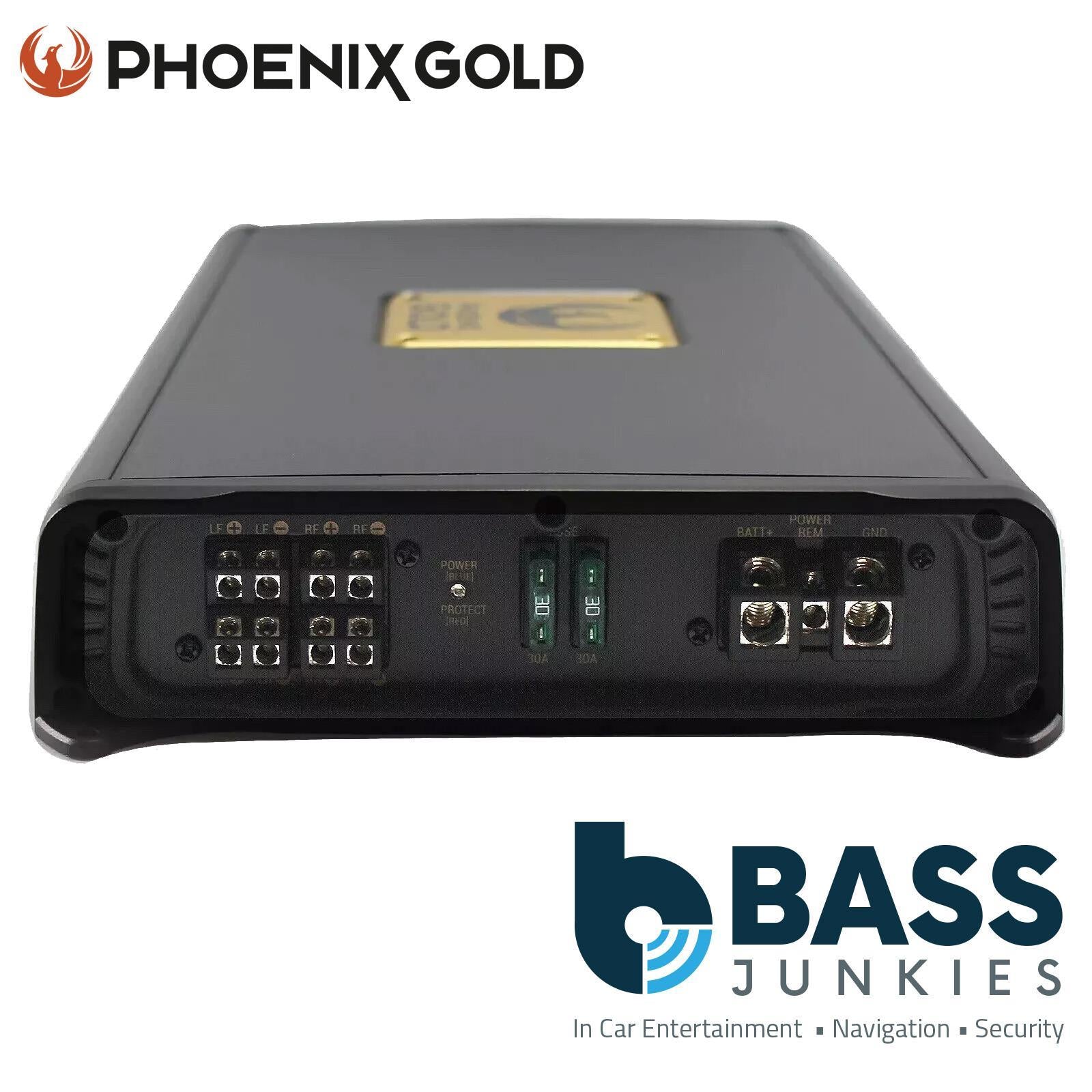

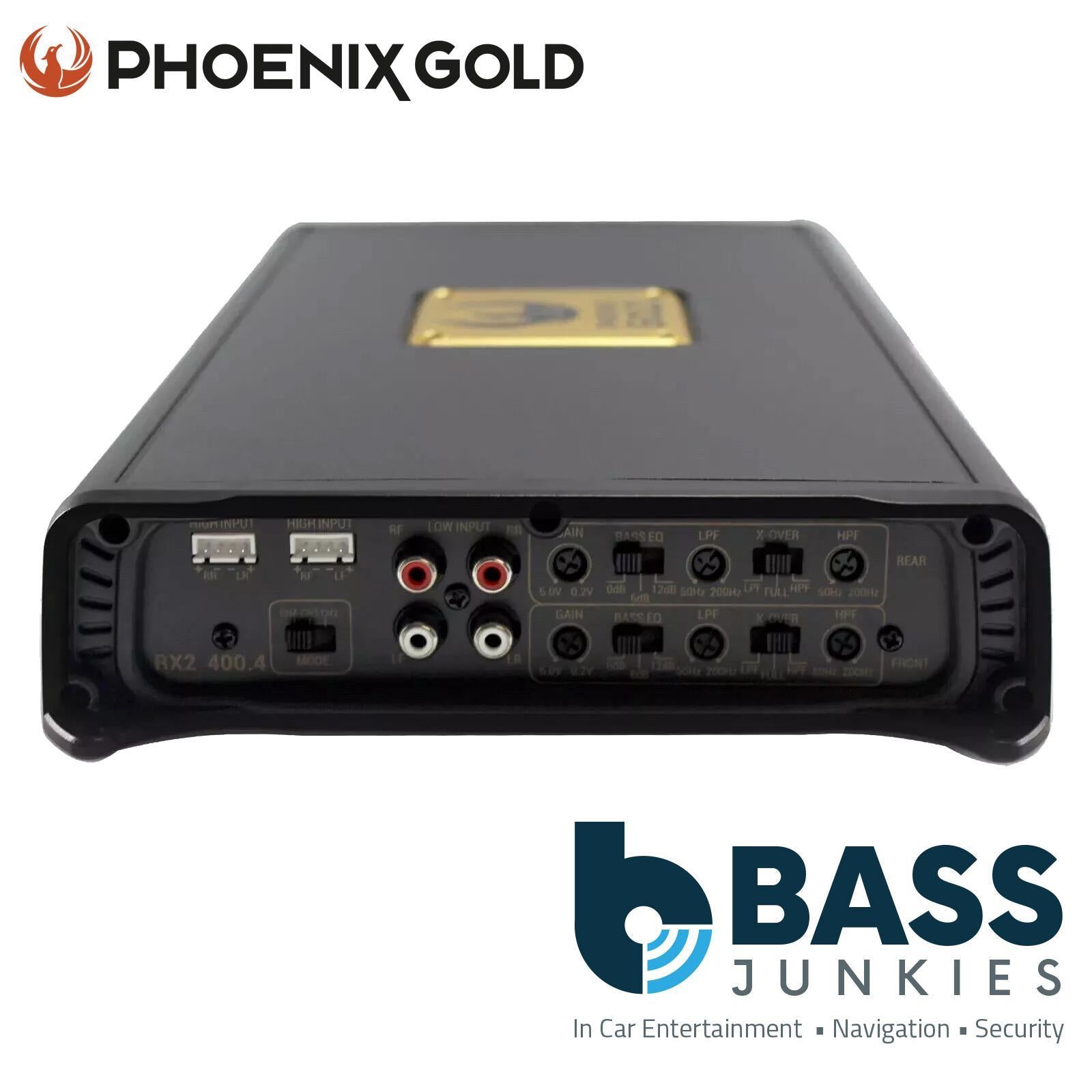

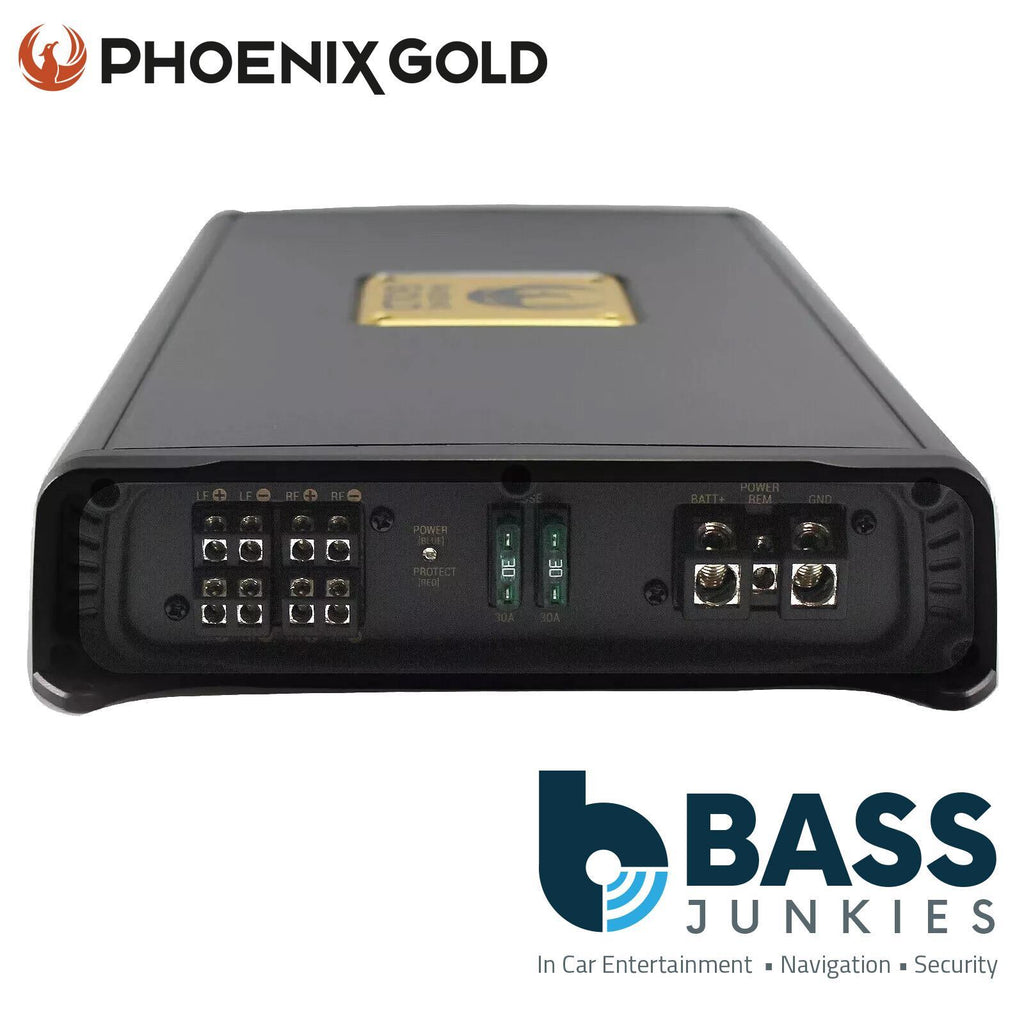

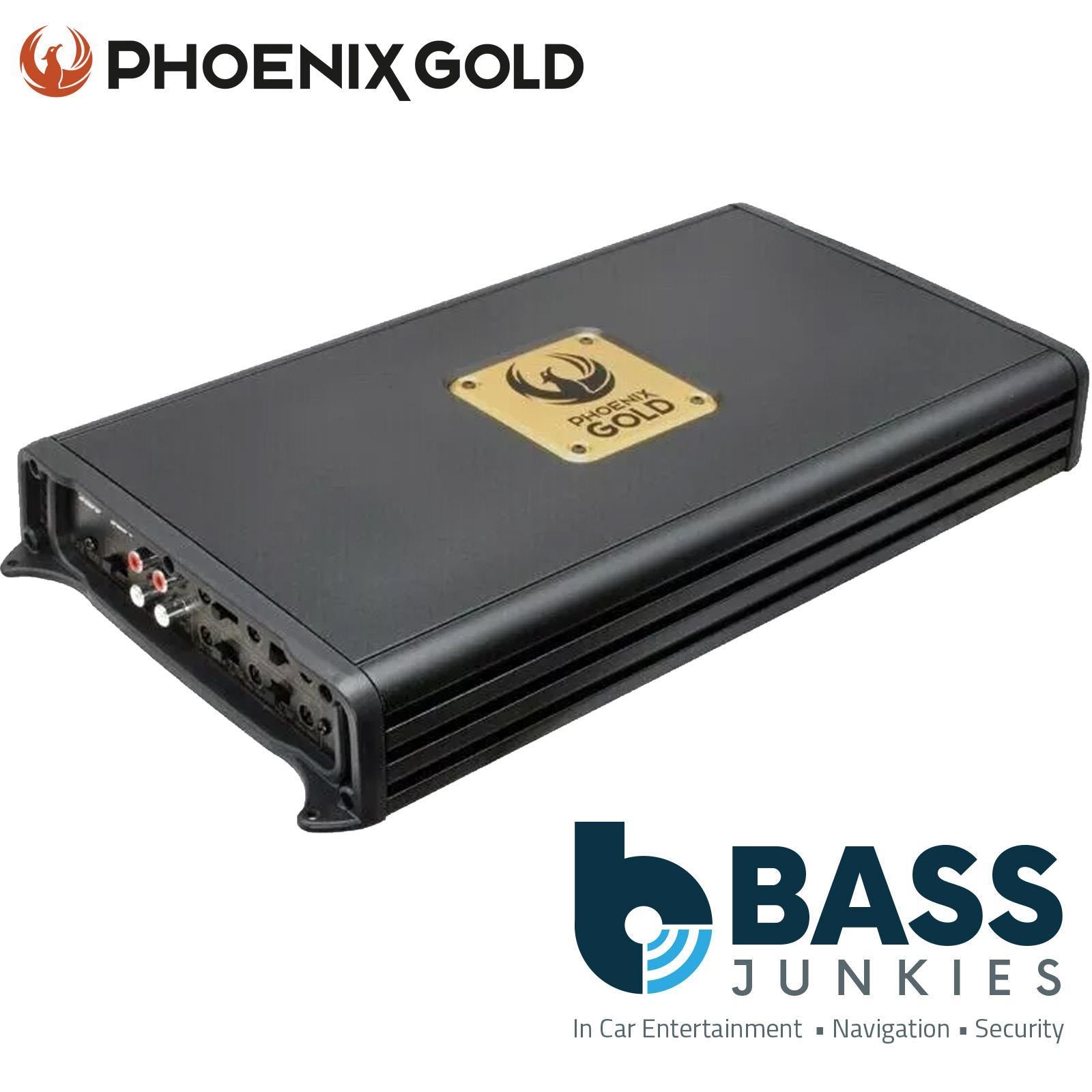

Phoenix Gold RX2400.4 Car Amplifier
RX2 400.4 is a powerful 4 channel 400W Class A/B amplifier delivering massive power to support your systems needs. Configure as a 4ch for an active components setup or as a front/rear stage amplifier. How about for a full system? Setup as 3ch mode you can run your front stage and a subwoofer. Configure in 2ch mode for 200 watts x2 on whatever you choose. Anyway you configure it, you will be rewarded with efficient sound and musical quality while wrapped in a sleek, low profile chassis designed for versatility.
RX2400.4 Product Features:
- Class A/B Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies
- Rotatable Badging for installation flexibility
- High level Inputs for Easy OEM Integration
- Audio Precision Quality Control Verification
RX2400.4 Product Specifications:
- RMS Power Ratings listed at less than 1% THD @ 14.4v
- Number of Channels: 4
- 4Ω: CH 1 - 4 75W x 4
- 2Ω: CH 1 - 4 100W x 4
- 2CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged 200W x 2
- 3CH Mode: 1/2 4Ω Stereo & 3+4 4Ω Bridged 75W x 2 + 200W x 1
- 3CH Mode: 1/2 2Ω Stereo & 3+4 4Ω Bridged 100W x 2 + 200W x1
- Total RMS Power (Sum of rated power): 400 Watts
- Bridgeable:
- Crossover Mode: FULL/HP/LP
- CH 1 - 4 50Hz - 200Hz @ 12dB / Oct Linkwitz Riley
- Input Channels: 4CH F/R, 3 CH FRONT, 2 CH FRONT
- Input Mode: Unbalanced / Balanced
- Processing: Bass Boost 0dB / +6dB / +12dB @45hz
Input Sensitivity:
- .2v - 6v Unbalanced RCA Low-Level
- .5v - 15v Balanced Hi-Level Harness
- Signal to Noise (@ CEA Standard): >80dB
- Frequency Response: Full Range CH 1 - 4 10Hz - 40kHz
- Topology Class: A/B
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power TerminalS: 4 Gauge
- Speaker Terminal: 10 Gauge
- On Board Fusing: 2 x 30A ATC
- Recommended Inline Fuse: 50A
Dimensions (L x W x H): 15.74” x 8.11” x 1.98” - 400mm x 206mm x 50.5mm

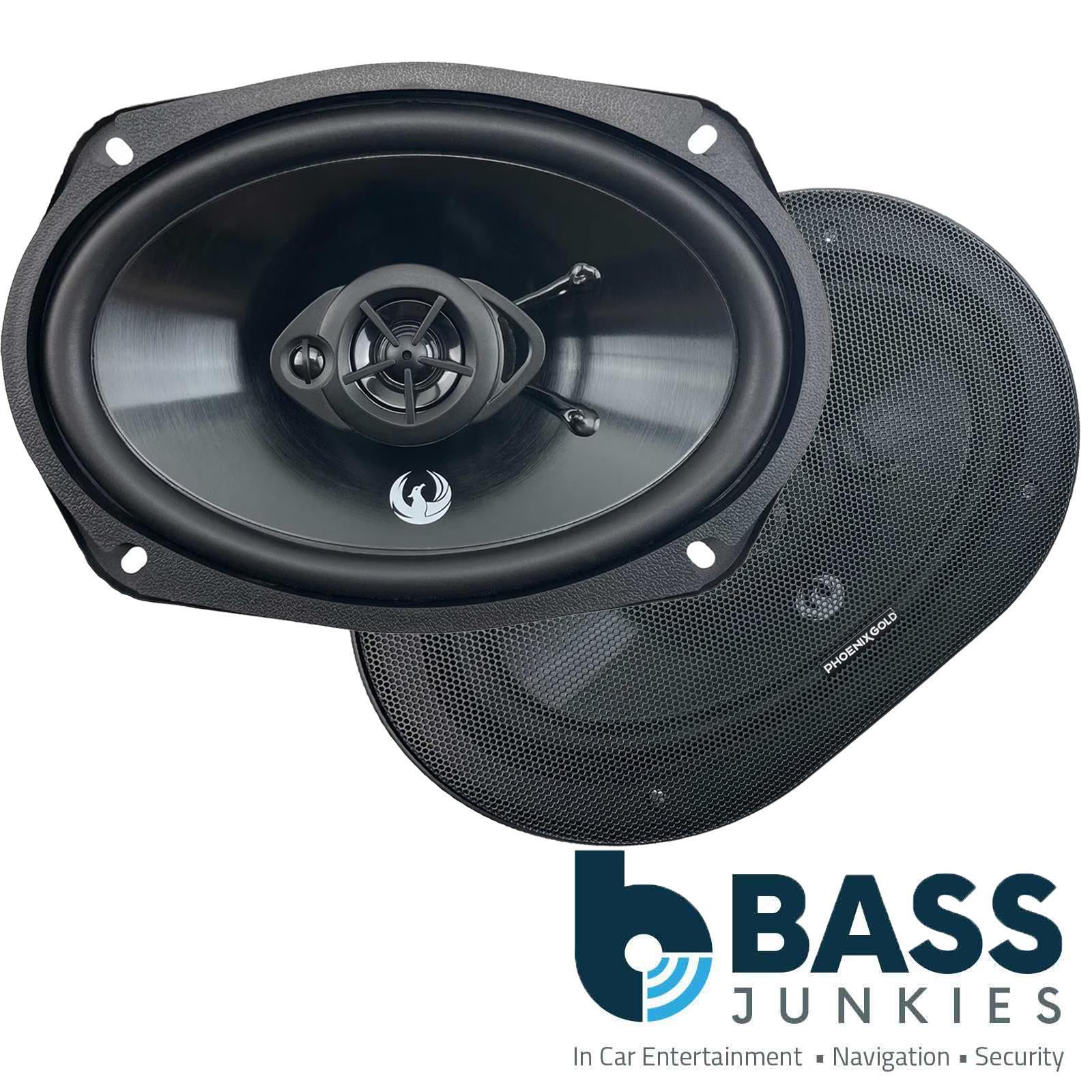

Phoenix Gold Z69CXi 6x9 Car Speakers
The Phoenix Gold Z69CXi 6x9" coaxial speakers deliver powerful, full-range sound with a design that ensures easy installation in a wide variety of applications. These speakers are built with high-quality materials for long-lasting durability and superior audio performance. Whether you're upgrading your factory speakers or designing a custom audio setup, the Z69CXi is an excellent choice for those looking for premium sound and reliable performance.
Featuring a 2-way coaxial design, the Z69CXi produces crisp highs, rich mids, and deep lows, providing a complete listening experience. The integrated tweeter enhances high-frequency response, while the compact basket design ensures straightforward, quick installation in tight spaces.
Designed for anyone who wants to boost their audio quality without dealing with complex installations, the Z69CXi speakers offer incredible value with their balanced sound and robust construction.
Key Features:
- 6x9" 2-Way Coaxial Design
- Premium Build Quality for Superior Sound
- Integrated Tweeter for Enhanced High-Frequency Response
- Compact Basket for Easy Installation
- Ideal for Upgrading Factory Systems or Custom Builds

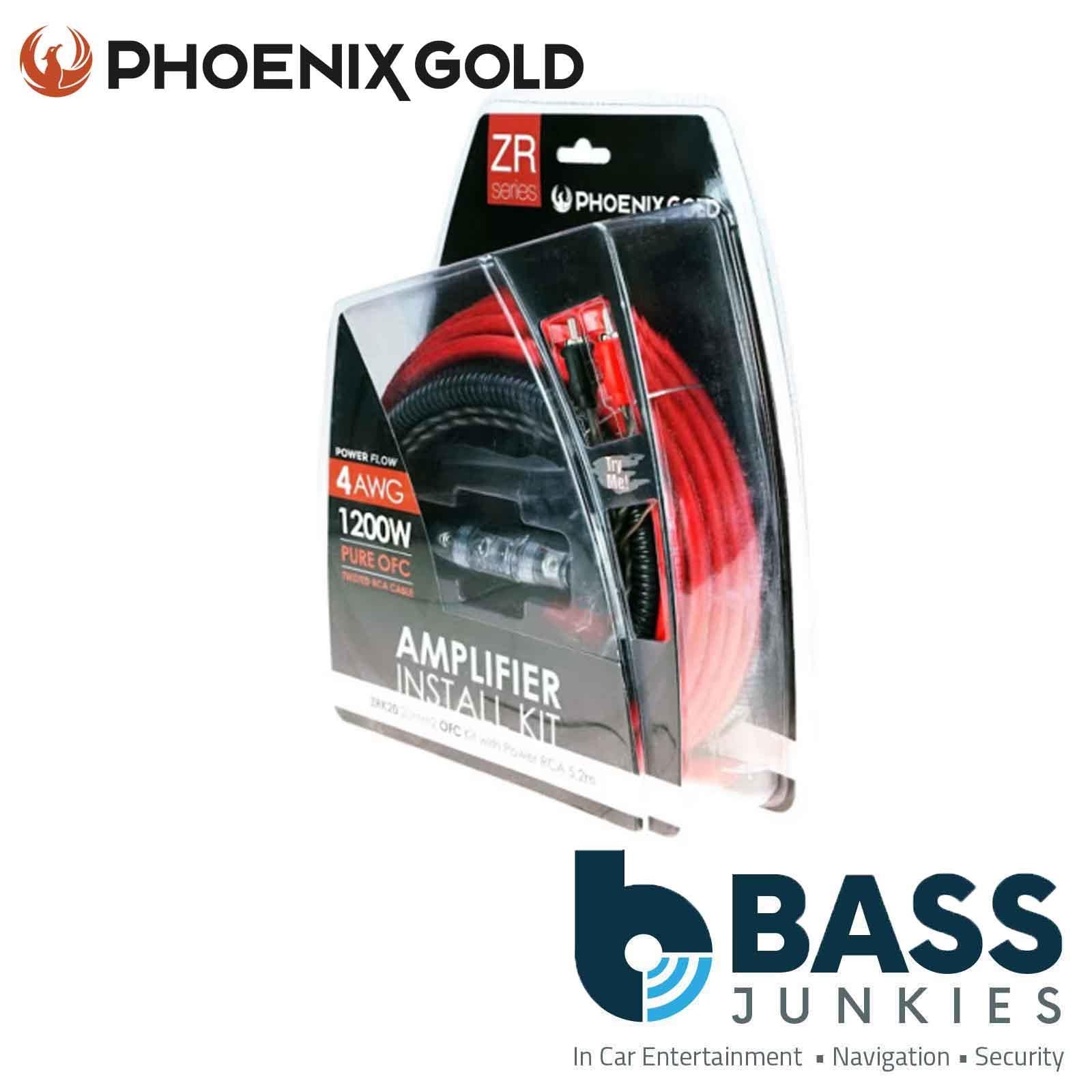

Phoenix Gold ZRK20 Amp Wiring Kit
Go big or go home with the ZRK20 – the wiring kit that delivers the power and performance your system deserves.
Features
- 1 x 5.2m 20mm2 100% Copper Red Power Wire
- 1 x 0.8m 20mm2 100% Copper Black Ground Wire
- 1 x 5.2m Twisted RCA Cable
- 1 x 1.8m Split Loom Tubing
- 1 x Fuse Holder and Fuse
Whats Included
- 1 x 12" MX Series Phoeniex Gold Sub
- 1 x Black Carpeted Sealed
- 1 x 4 Channel Car Amp
- 1 x 6x9 Car speakers
- 1 x Car Amp kit
