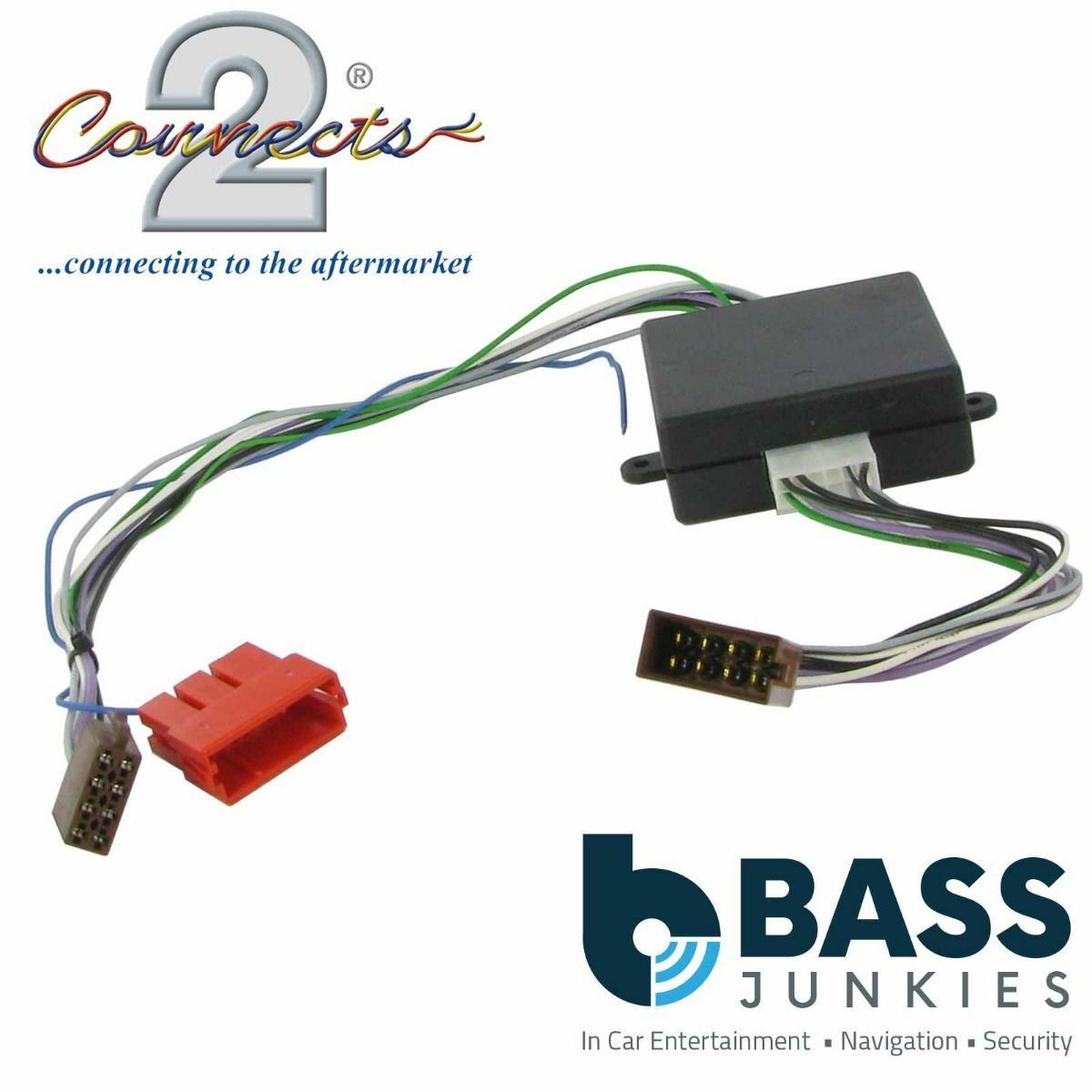

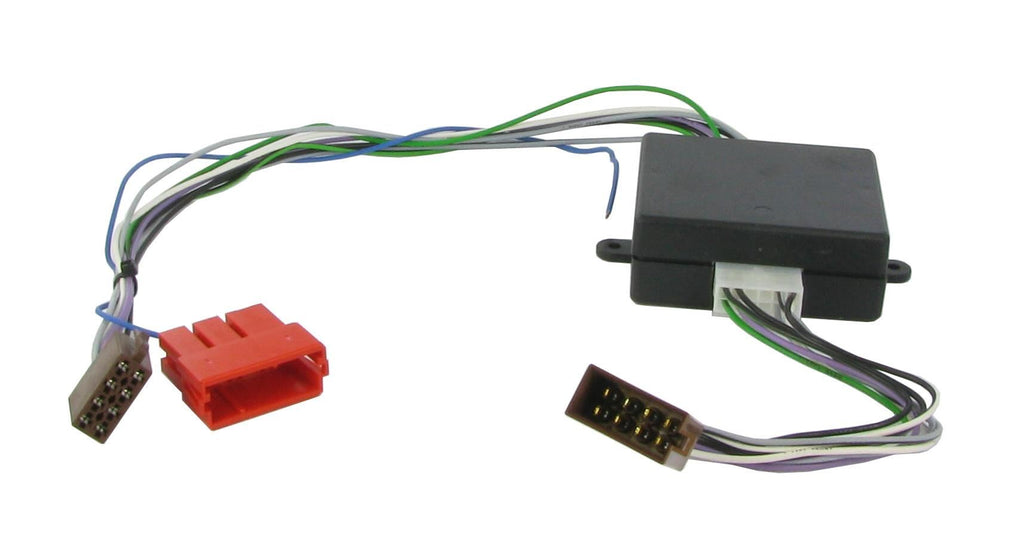

Connects2 CT51-MZ01 Mazda Amplified Active System Car Stereo Retention Interface Adapter
This adaptor is required to replace factory fitted amplified radio with an aftermarket headunit (Alpine, Pioneer, Kenwood, Sony, JVC etc.). It will convert the car original power and speakers wiring connector to a standard ISO connector and actives the factory on board Harmon Kardon amplifier
Key Features:
- Allows the installation of an aftermarket head unit into a vehicle with an OEM amplifier
Fits the following vehicles:
|
Manufacturer
|
Model
|
Note
|
Year From
|
Year To
|
Headunit
|
Connection
|
|
Mazda
|
All-Models
|
Vehicles With Front/Rear BOSE System
|
2008
|
|
|
OEM Specific
|
Installation tips:
Please make sure before you make your purchase that this harness is for your vehicle by checking to see if the make, model and year is listed in our description, we also recommend you check to see if the connection in the picture listed is the same as what you have in your vehicle. If unsure please email us so we can advise further
To activate the on board Harmon Kardon amplifier, the blue and white wire on the red mini ISO plug needs to be connected to the blue wire coming off the new head unit (marked amp remote)
