JL Audio CP110-W03 10"" Ported Car Sub Woofer Bass Box Enclosure & JX500/1 500 Watts Amplifier Package
This powerful slot-ported BassWedge subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge shape has extended sides so that it can be placed with the woofer firing out or straight down off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired loaded and ready to connect via a push-button terminal.
JL Audio CP110-W0V3 Specifications:
- 300 watt 4 ohm 10” Subwoofer Enclosure
- Finish: Dark gray high-grade automotive carpet with ""JL AUDIO"" embroidery on the top edge and
- Slot-Ported BassWedge embroidered on the port mouth.
- Construction: MDF
- Recommended amplifier power: 75 - 300W
- Nominal Impedance: 4 Ohms
- 15-5/8""W x 14""H x 17-5/8""D1 x 13-5/8""D2
JL Audio JL JX-500.1 Specifications:
- Class A/B Monoblock Subwoofer Amplifer
- 340 Watts RMS x 1 @ 4 ohm
- 420 Watts RMS x 1 @ 3 ohm
- 500 Watts RMS x 1 @ 2 ohm
- Frequency Response 10 Hz - 150 Hz (+0 -1dB)
- S/N Ratio referred to highest rated power - >90 dB below rated power (A-weighted 20 Hz - 20 kHz noise bandwidth)
- Min Copper Power / Ground Wire Gauge - 4AWG Cable
- Dimensions (LxWxH) 348mm x 195mm x 53mm
- JL Audio JX500/1 Car Amplifier

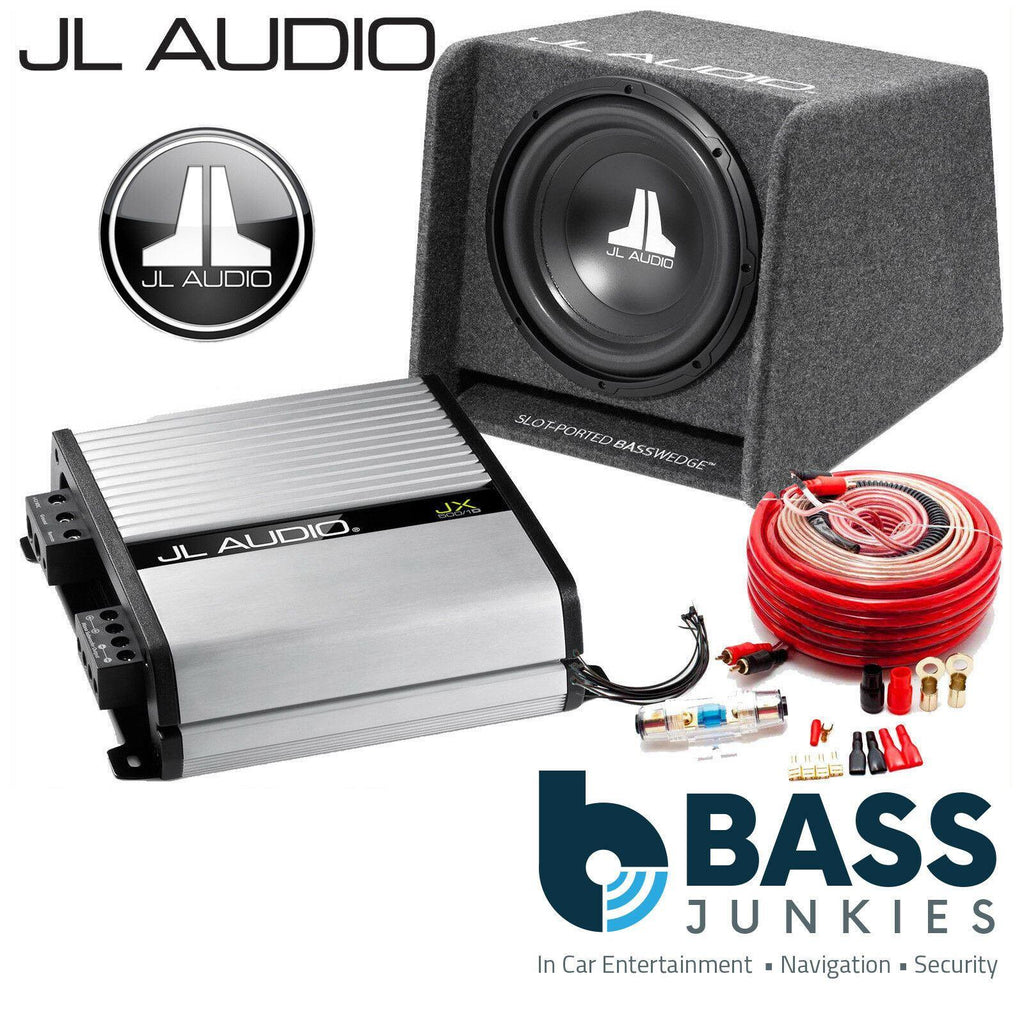

Kit Contains:
- CP110-W03
- JX500/1
- Wiring Kit
"
