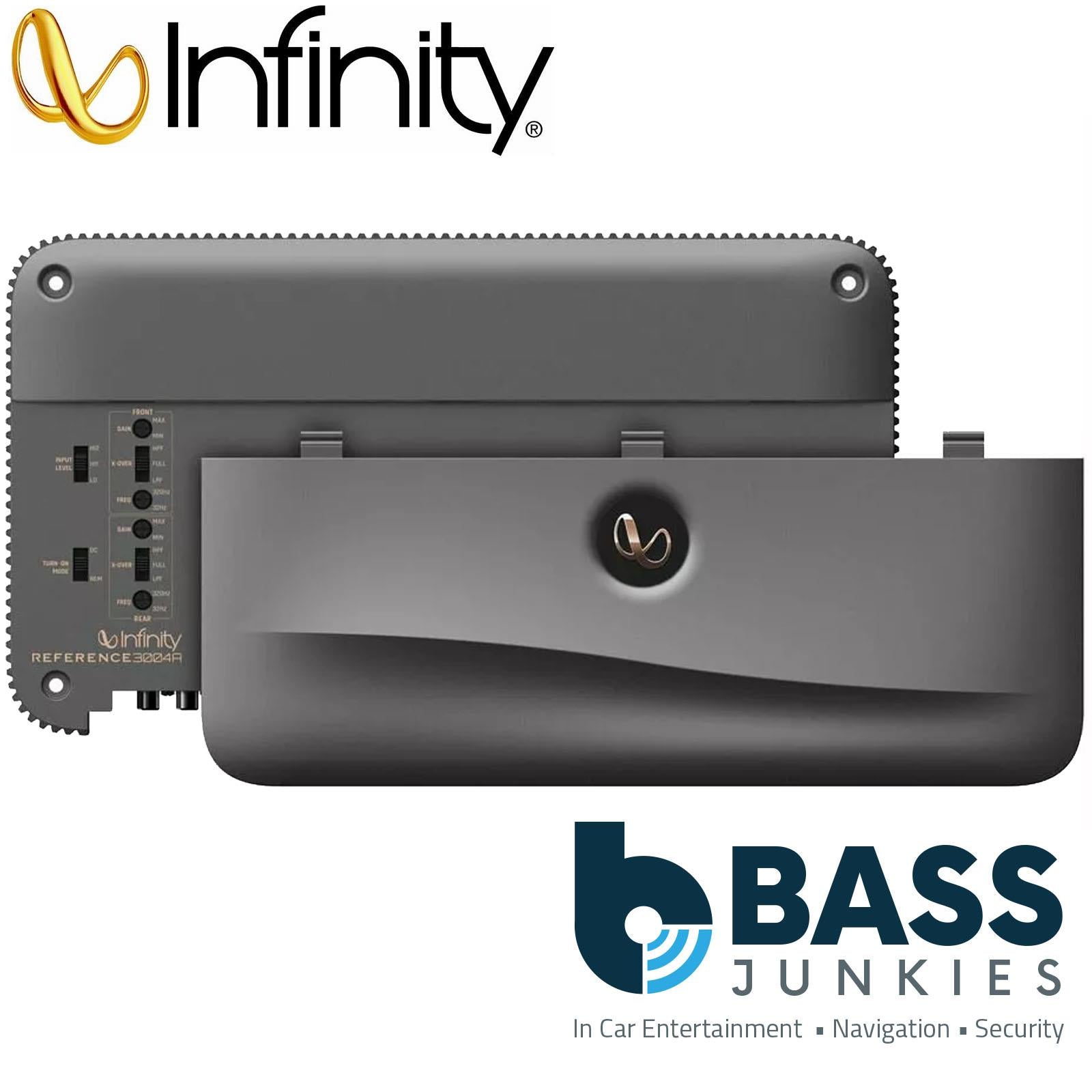

Infinity 3004A - 4 Channel 4x75 Watts 4 Ohm High Performance Car Amp Amplifier
Infinity's Reference 3004A amplifier will add plenty of muscle to your music without breaking a sweat, and it'll look good doing it. This 4-channel powerhouse delivers 75 watts RMS to each of the front and rear speakers in your car. Into planning ahead? You could use this amp in 2-channel mode now to drive a couple subwoofers with 200 watts RMS each, then reassign it to your front and rear speakers when you get a bigger sub amp. Speaker-level inputs allow this amplifier to work in almost any system, even if you're keeping your car's factory radio. You can use the separate high- and low-pass filters on the front and rear channels to maximize the performance of your speakers or subs.
Features:
Compact size
Infinity Reference amplifiers have been engineered with a compact footprint to fit in more vehicles even if available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Reference 3004A to integrate with both aftermarket and factory car stereo systems.
Variable crossover
Unlike many amplifiers available at similar prices, the Infinity Reference 3004A features variable electronic crossovers circuits allowing for precise system tuning and performance.
Low noise and distortion
The Reference 3004A has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

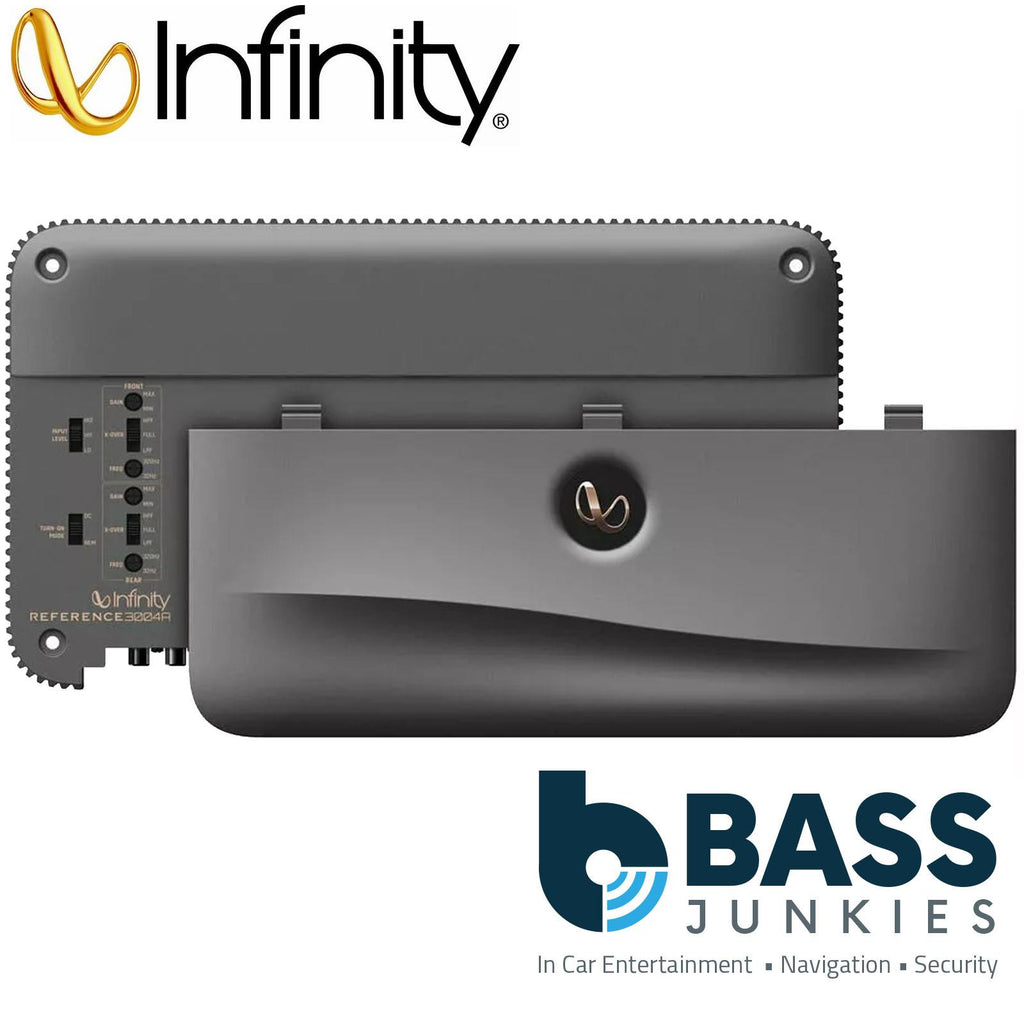

Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Reference 3004A from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Preamp Outputs
Using multiple amplifiers, the Reference 3004A has full range preamp outputs allowing you to feed an additional amplifier without using splitters.
Specifications:
- 75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)
- 200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)
- Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels

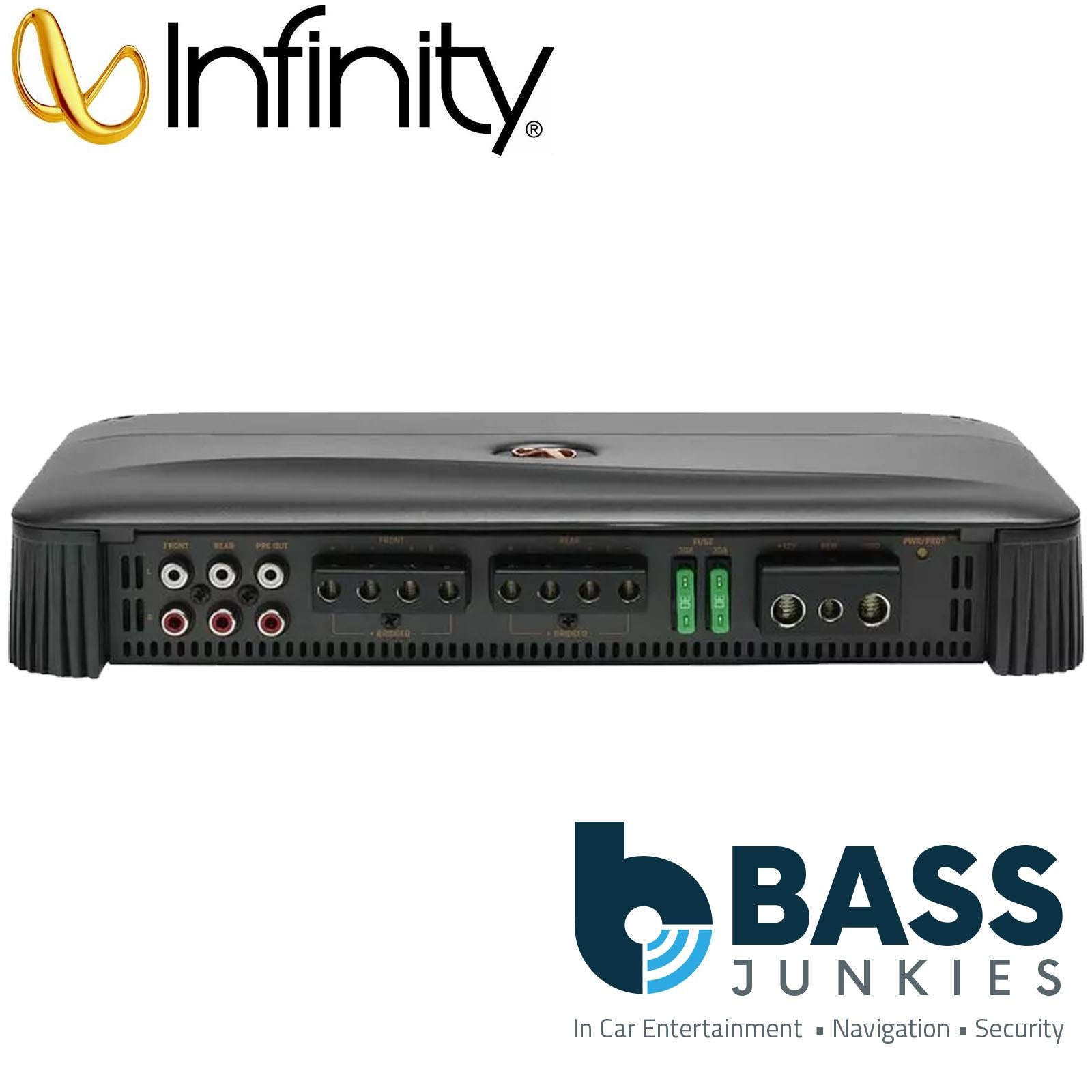

- Preamp and speaker-level inputs
- Preamp outputs
- Fuse rating 30A x 2
- 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- WxHxD=320mm x 55.5mm x 180mm WxHxD=12-5/8” x 2-3/16" x 7-1/8”
In The Box:
- 1 x Reference 3004A four channel amplifier
- 4 x Bare wire-to-RCA adapters
- 4 x 30A ATO fuses (2 installed, 2 spare)
- 4 x Mounting screws (M4 x 53mm)
- 2 x Infinity decals
- 1 x Owner's manual
