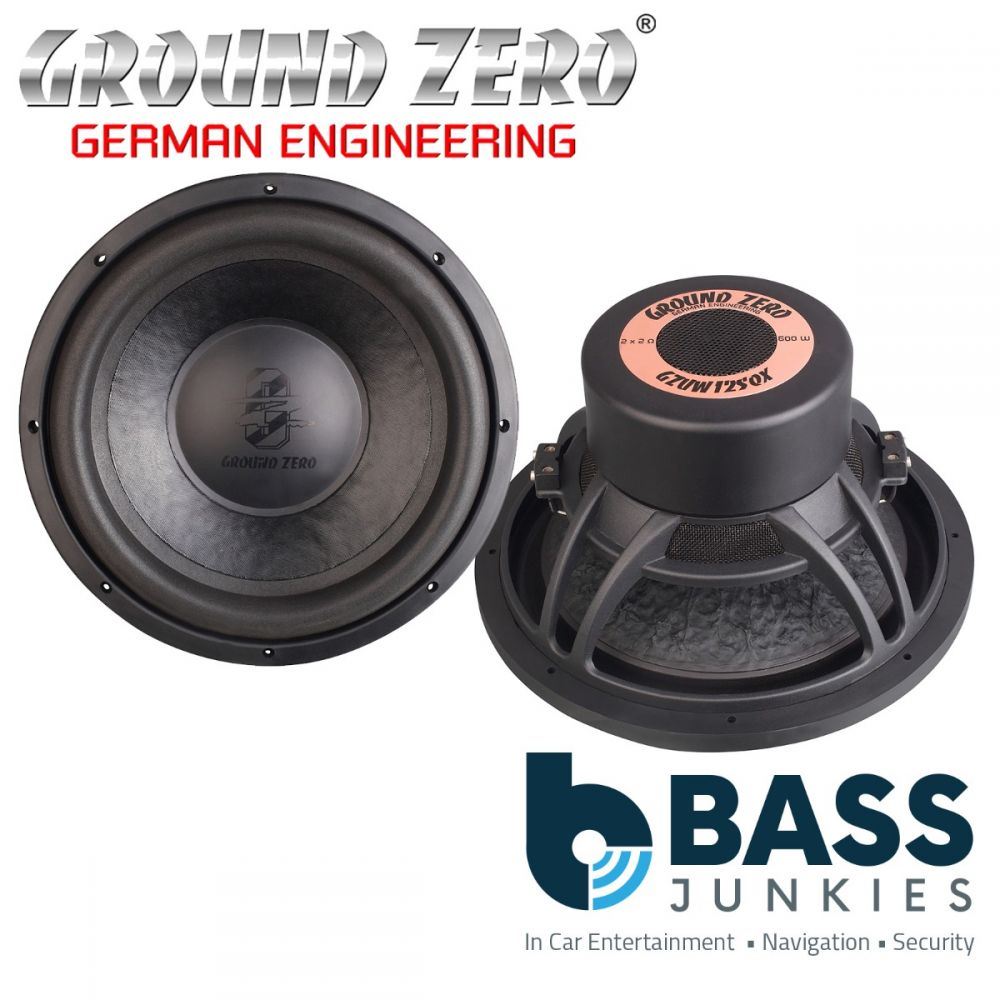

Ground Zero GZUW 12SQX - 30 cm / 12” Subwoofer - 2 x 2 ohm 2" voicecoil - 600 WRMS
Features:
- Cast basket
- Strong paper cone
- Dual voice coil 2 x 2 Ohm
- Copper voice coil
- Kapton former
- Audiophile POLYCOT spider
Technical data:
*Describes the subwoofer's ability for each kind of use.
☺ = Good ability
☺☺☺☺☺☺ = Excellent ability
- Model - GZUW 12SQ
- Diameter - 300 mm / 12"
- Mounting diameter - 281 mm / 12"
- Mounting depth - 150 mm / 5.91"
- Voice coil - 2" Round wire
- Cone - Reinforced paper
- Power Handling - 600 WRMS
- Impedance - 2 x 2 Ohm
- SPL - 87.4 dB
- Xmax - 20 mm / 0.79"
- Fs - 38.6 Hz
- Qts - 0.62
- Vas - 41,1 L / 1.45 cu.ft.
- Sound Quality*☺☺☺☺
- SPL Competition*☺
- Low bass performance 20 - 50 Hz*☺☺☺
- Mid bass performance 50 - 80 Hz*☺☺☺
- Box recommendation vented - 56 Liter / 1.98 cu.ft
- Box recommendation sealed7 - 30-50 Liter / 1.24 - 1.77 cu.ft
