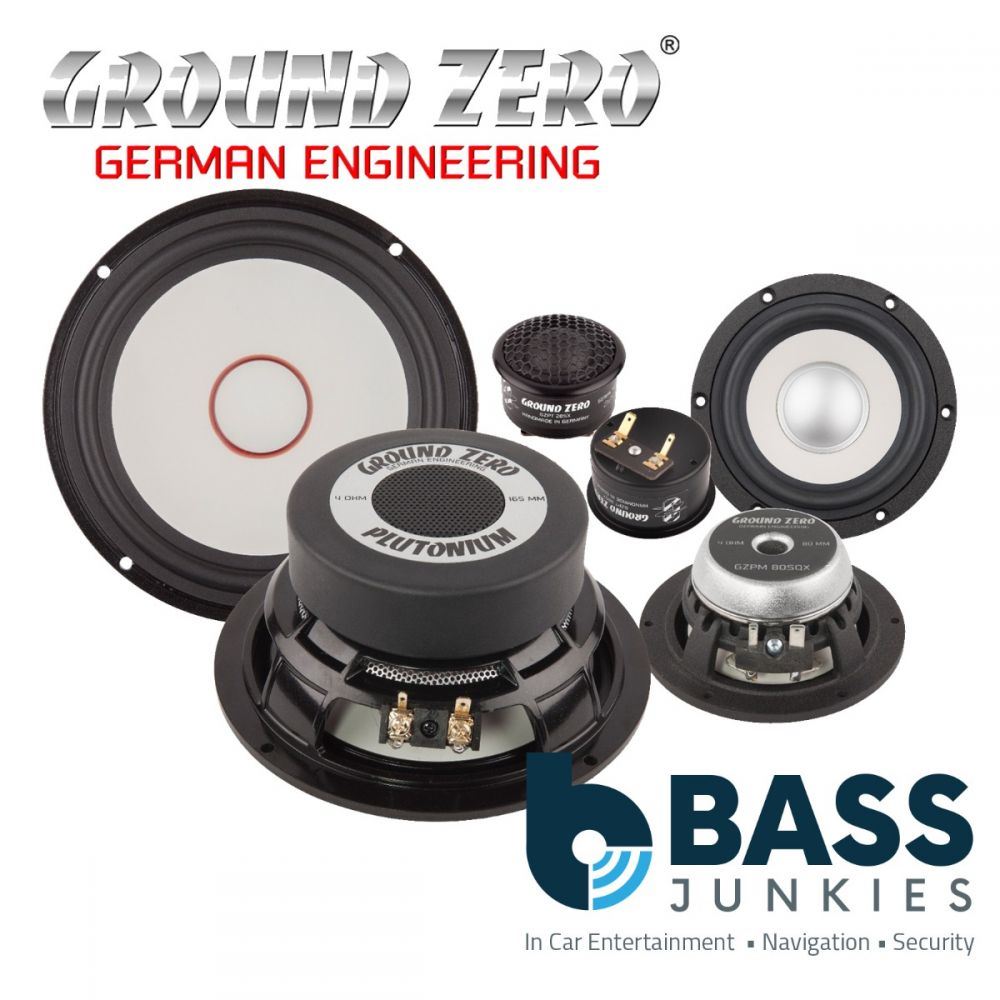

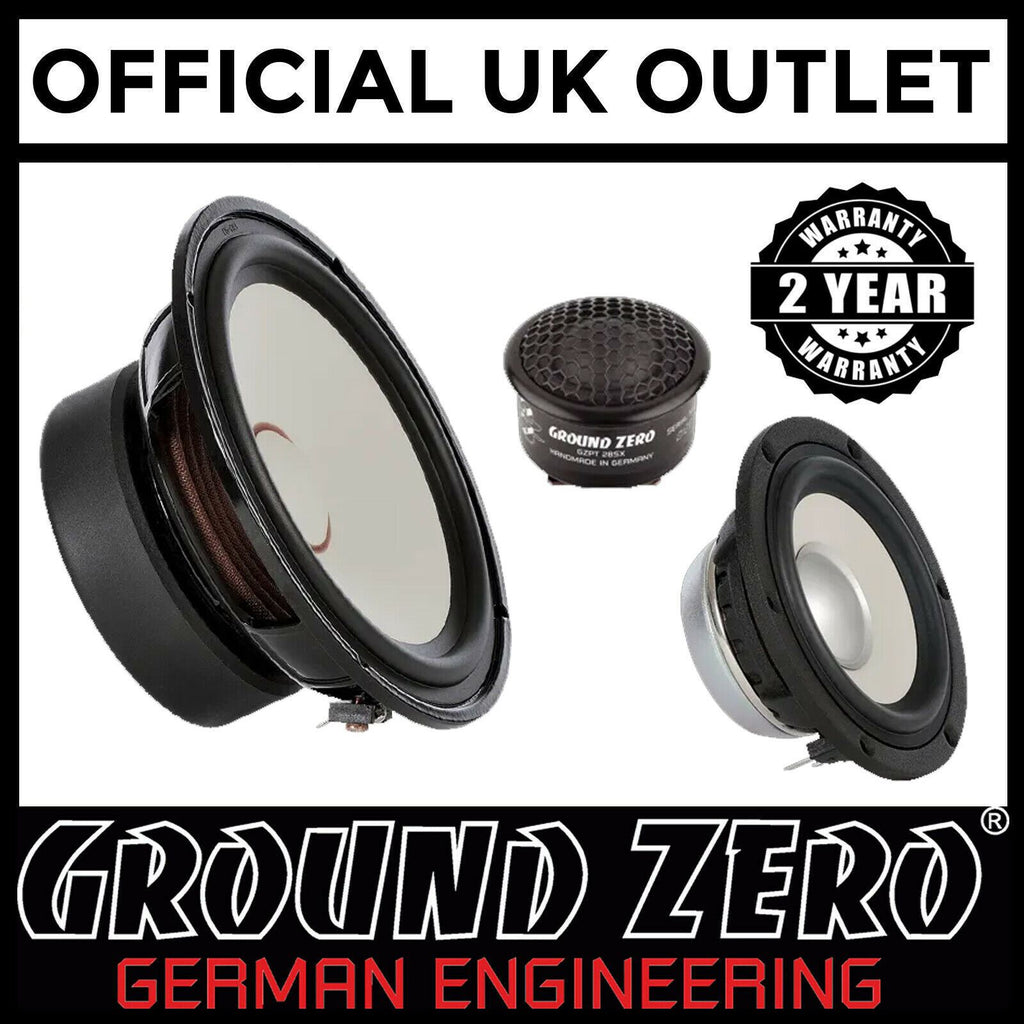

Ground Zero GZPC 16.3SQ-ACT - 16.5 cm 6.5" Active 3 Way Component System - 130 250 W
Key Features:
- 6.5” Woofer with alu-ceramic cone and linearised ferrit motor (GZPK 16SQ)
- 3.15” Midrange with magnesium cone and compact neodym motor (GZPM 80SQX)
- Resonance free cast basket
- Rubber surrounds and connex spiders
- 1.1” tweeter with coupled chamber and 2-layer coated silk dome (GZPT 28SX)
- Speakers verified with the Ground Zero owned Klippel system
Diameter of midwoofer or midrange - 165 mm / 6.5" (Woofer) - 80 mm / 3.15" (Mid)
Mounting diameter of midwoofer or midrange - 143,5 mm / 5.65" (Woofer) - 94 mm / 3.7" (Mid)
Mounting depth of midwoofer or midrange - 68 mm / 2.68” (Woofer) - 34 mm / 1.34" (Mid)
Voice coil of midwoofer or midrange - 36 mm / 1.42" (Woofer) - 25 mm / 1" (Mid)
Cone of midwoofer or midrange - Alu-ceramic (Woofer) - Magnesium (Mid)
Dustcap / Phaseplug of midwoofer or midrange - Alu-ceramic (Woofer) - IMPP (Mid)
Basket of midwoofer or midrange - Aluminum cast
Magnet of midwoofer or midrange - Ferrit (Woofer) - Neodym (Mid)
Diameter of tweeter - 54 mm / 2.1”
Mounting diameter of tweeter - 48 mm / 1.89"
Mounting depth of tweeter - 48 mm / 1.89”
Voice coil of tweeter - 28 mm / 1.1"
Cone of tweeter - Hand coated silk
Housing of tweeter - Black matt anodized
Magnet of tweeter - Dual Neodym
Power handling WRMS - 130 (Woofer) / 70 (Mid) / 100 (TW)
Power handling W peak - 210 (Woofer) / 110 (Mid) / 150 (TW)
SPL - 90 (Woofer) / 87 (Mid) / 90 (TW)
Frequency response - 30 - 30000 Hz
