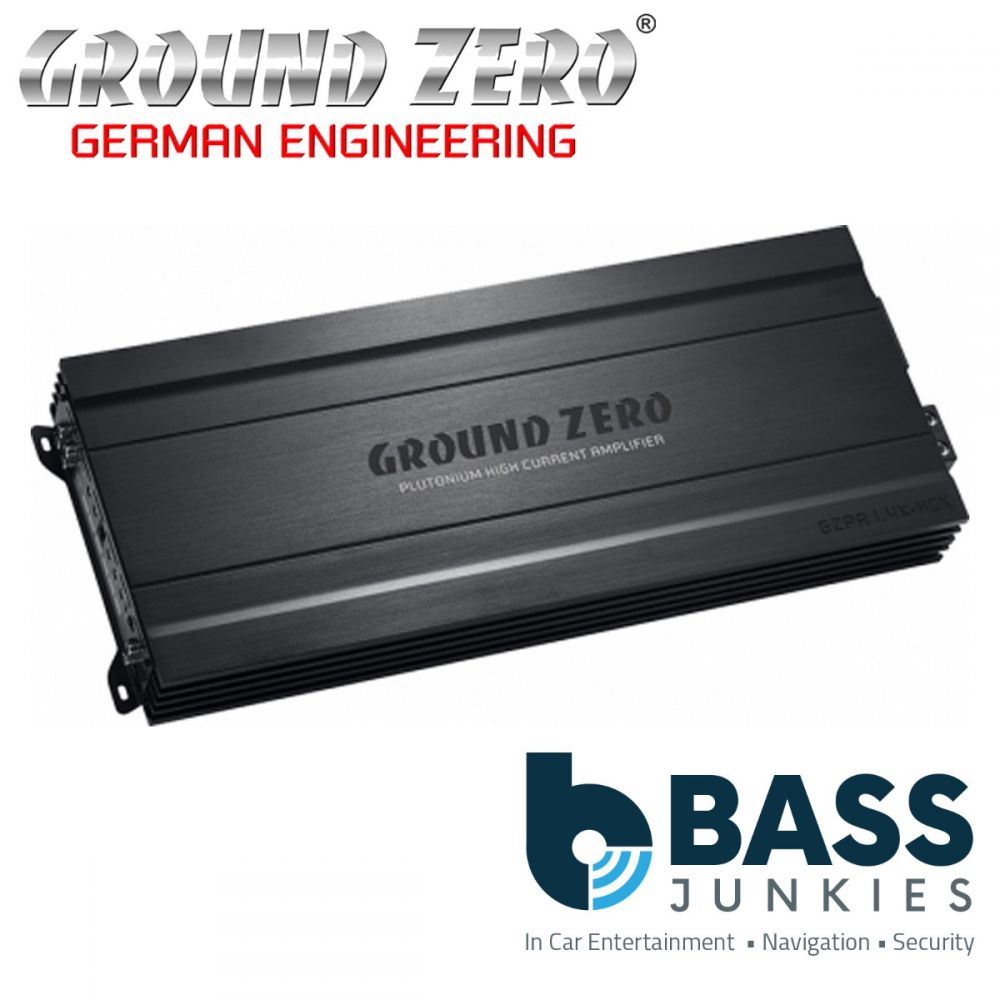

Ground Zero Plutonium GZPA 1.4K-HCX Mono Block Class D Amplifier 5000 Watts Max
Plutonium High End Experience
The products of the PLUTONIUM Line are suitable for either ultimate SPL Level or high-end sound quality.
To achieve one of these targets, Exceptional materials and technologies are applied during the development.
The technical, electrical and mechanical skills of the resulting products convince not only during worldwide SPL Competitions but also High End enthusiasts with outstanding audio reproduction ability.
Starting from the market release, the subwoofers have set benchmarks in all SPL competitions around the world and have been awarded for best performance by numerous test magazines.
Main Features:
- Class-D Design for high efficiency
- Stabilized dual power supply
- Linkable with 1 amplifier
- 1 Ω stable (Linkmode 2Ω)
- Full Power MOS-FET amplifier
- Power and protection indicator
- Variable lowpass 35 – 250 Hz
- Variable subsonic filter 10 – 70 Hz
- 180° variable Phase Shift
- Massive aluminum heat sink
- Adjustable input sensitivity 200mV ~ 10 Volt
- RCA Inputs & Outputs
- Bassremote control
- 0 ~ +12dB Bass boost (45 Hz)
Technical data
Model - GZPA 1.4K-HCX
- Type - 1 Channel Class D
- Output Power @ 4 Ohm (CEA*) - 1 x 1200 W
- Output Power @ 2 Ohm (CEA*) - 1 x 2400 W
- Output Power @ 1 Ohm (CEA*) - 1 x 4000 W
- Output power linkmode 2 Ohm - 1 x 10000 W
- Lowpass - 35 - 250 Hz
- Subsonic - 10 - 70 Hz
- Bassboost - 0 - 12 dB (45 Hz)
- Phaseshift - 0 - 180°
- Bass remote - Inklusive / Inclusive
- Line Out - Yes
- Dimensions cm / Inch - 55 x 6.3 x 23 cm / 21.65" x 2.48" x 9.06"
