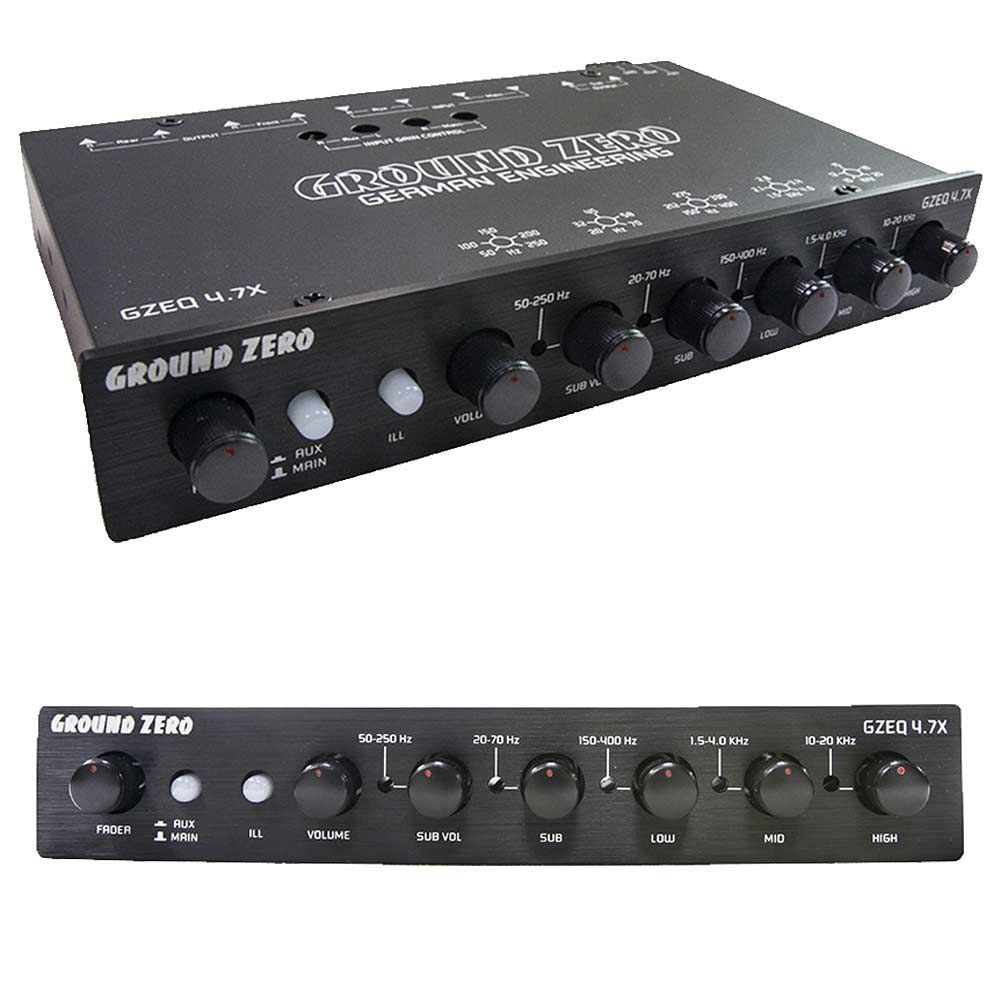

Ground Zero GZEQ 4.7X 4 Band Equalizer And Pre Amplifier EQ Bass High Low
Ground Zero equalizer.
It is a state-of-the-art product carefully designed and manufactured for vehicle use,
and has been thoroughly tested to ensure consistent and reliable performance.
If you have any question about the installation or operating of your Ground Zero speaker
system which is not answered by this manual, contact your dealer in the first instance.
Features
- Active gain pre amplifier with adjustable input sensitivity
- Volume control with up to 7 Volts RMS of output
- Individual left and right sensitivity control for Main & Aux
- Four band parametric equalizer with 18dB boost cut
- Specific bandwith for each band plus high frequency shelving
- Low noise BI-FET op-amp design yields minimum distortion
- On-board 30V bi-polar switching power supply
- Subwoofer outputs and level controls
- Subwoofer frequencies adjustable (50Hz ~ 250Hz)
- Universal Half-DIN chassis for ease of installation
- Gold plated RCA input connectors
- 20dB headroom eliminates signal overload
- Main/Aux (Radio/CD) input selector
