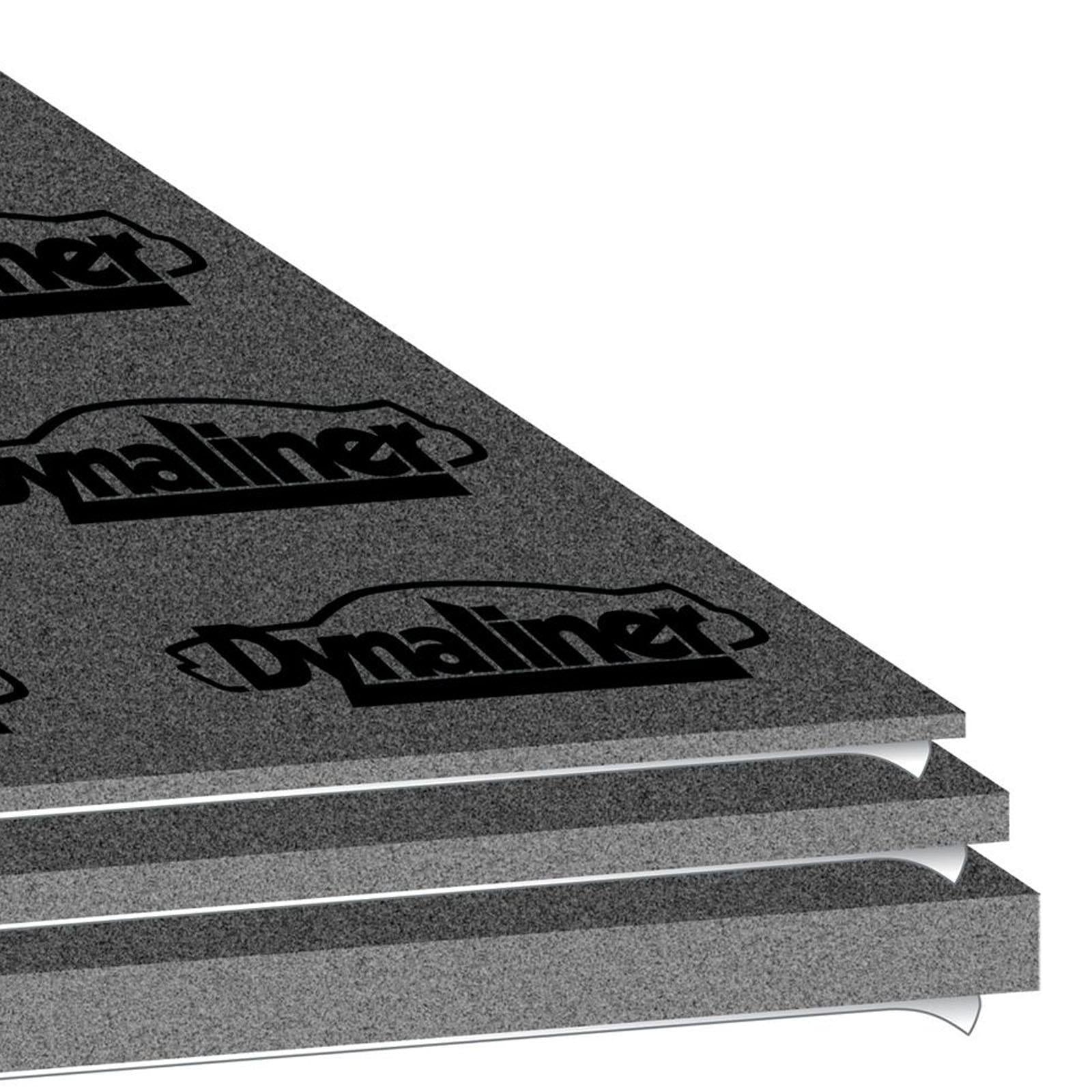

Dynamat Dynaliner 1/8" (3.18mm) Self-Adhesive Heat & Sound Insulation Sheet 1.12m²
The Dynamat Dynaliner 1/8" (3.18mm) is a premium lightweight thermal and acoustic insulation designed to be installed over Dynamat Xtreme for maximum sound and heat control. Manufactured from high-performance closed-cell synthetic foam, Dynaliner significantly reduces heat transfer while providing excellent acoustic isolation, making your vehicle quieter and more comfortable all year round.
Unlike conventional insulation materials, Dynaliner is oil resistant, waterproof, crush resistant and tear resistant. Its self-adhesive backing allows for quick peel-and-stick installation and it can easily be trimmed to shape for professional results. Perfect for roofs, doors, floors, firewalls, quarter panels, boots and even engine covers.
With an impressive 1.12m² (12 sq.ft) coverage from a single large sheet, Dynaliner provides outstanding thermal insulation without adding unnecessary weight to your vehicle.
Key Features
- ✔ Genuine Dynamat Dynaliner
- ✔ 1/8" (3.18mm) Premium Closed-Cell Foam
- ✔ Covers 1.12m² (12 sq.ft)
- ✔ Excellent Heat Blocking & Thermal Insulation
- ✔ Improves Acoustic Isolation & Cabin Comfort
- ✔ Waterproof, Oil Resistant & Non-Absorbent
- ✔ Crush & Tear Resistant Construction
- ✔ Self-Adhesive Peel & Stick Installation
- ✔ Ideal Companion to Dynamat Xtreme
Technical Specifications

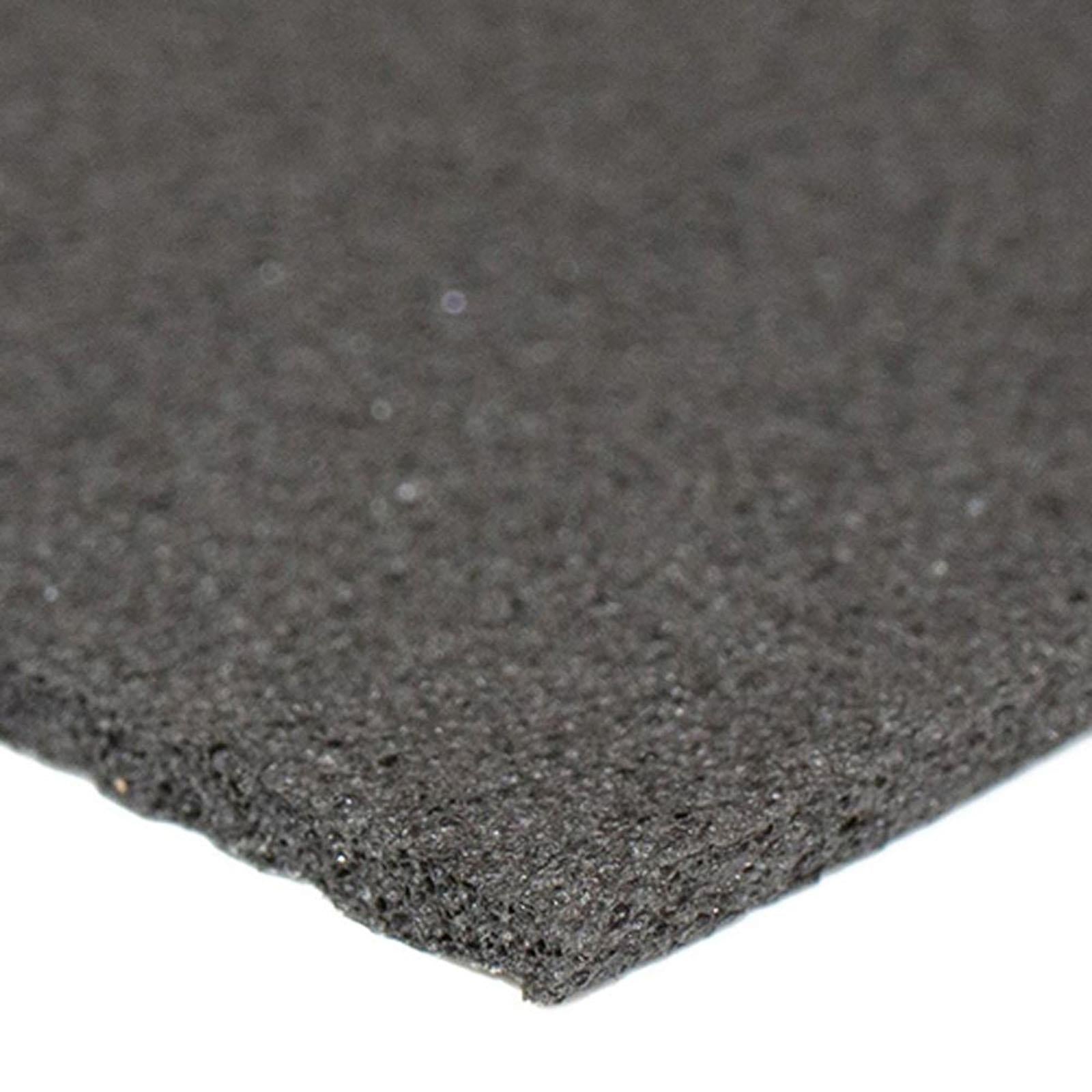

- Material: Closed-Cell Specialty Foam
- Purpose: Heat Blocking, Sound Absorption & Insulation
- Control Method: Absorption & Insulation
- Adhesive Type: Self-Adhesive
- Number of Sheets: 1
- Sheet Size: 813mm x 1372mm (32" x 54")
- Coverage Area: 1.12m² (12 sq.ft)
- Thickness: 3.18mm (1/8")
- Weight: 0.21kg/m²
- Density: 64.6kg/m³
- R-Value: 0.42°F·ft²·hr/Btu (0.07Km²·hr/W)
- UL Rating: UL 94 HF-1
- Operating Temperature: -34°C to +93°C
- Temperature Resistance: -54°C to +149°C
- FMVSS 302 Compliant (Equivalent to ISO 3795)
- Fire Classification: HF-1
- Colour: Grey
Ideal Applications
- ✔ Vehicle Roofs & Headliners
- ✔ Doors & Door Cards
- ✔ Floors & Firewalls
- ✔ Quarter Panels & Boots
- ✔ Engine Covers & Engine Bays
- ✔ Camper Vans & Motorhomes
- ✔ Marine & Industrial Applications
