Dynamat Dynaliner 1/4" (6.35mm) Self-Adhesive Heat & Sound Insulation Sheet 1.12m²

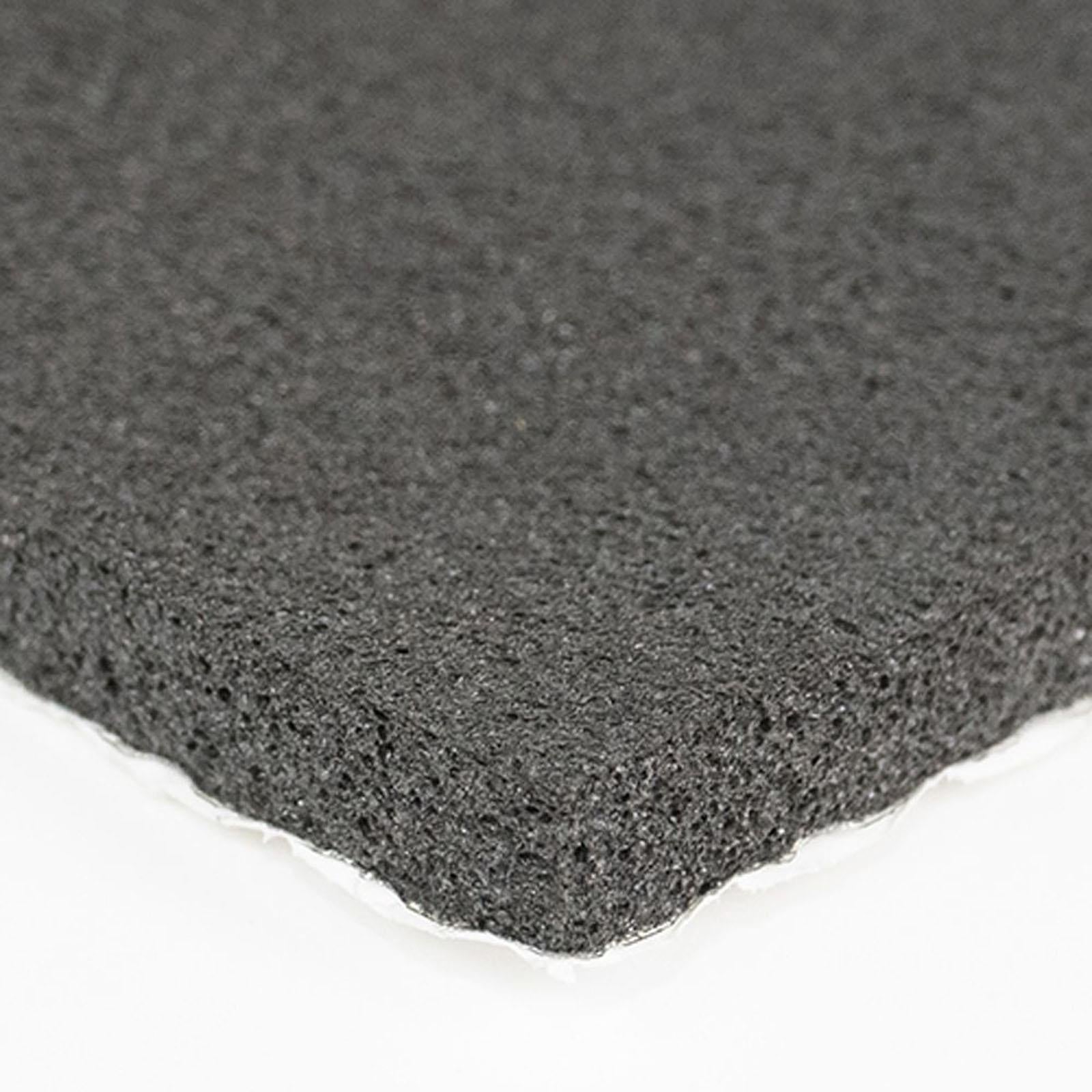

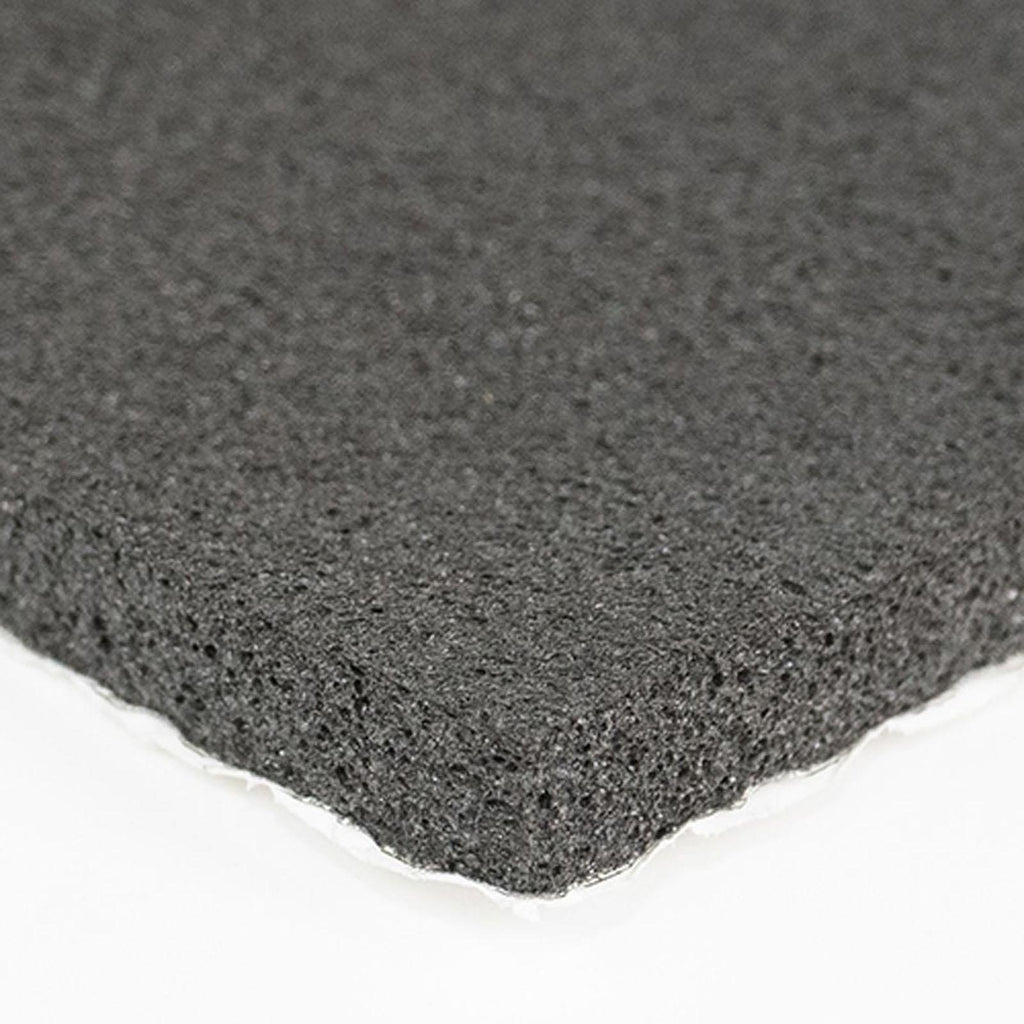

The Dynamat Dynaliner 1/4" (6.35mm) is a premium lightweight thermal and acoustic insulation designed to be installed over Dynamat Xtreme for maximum heat and sound control. Manufactured from high-performance closed-cell synthetic foam, Dynaliner dramatically reduces heat transfer while providing excellent acoustic isolation, making your vehicle quieter, cooler and more comfortable.

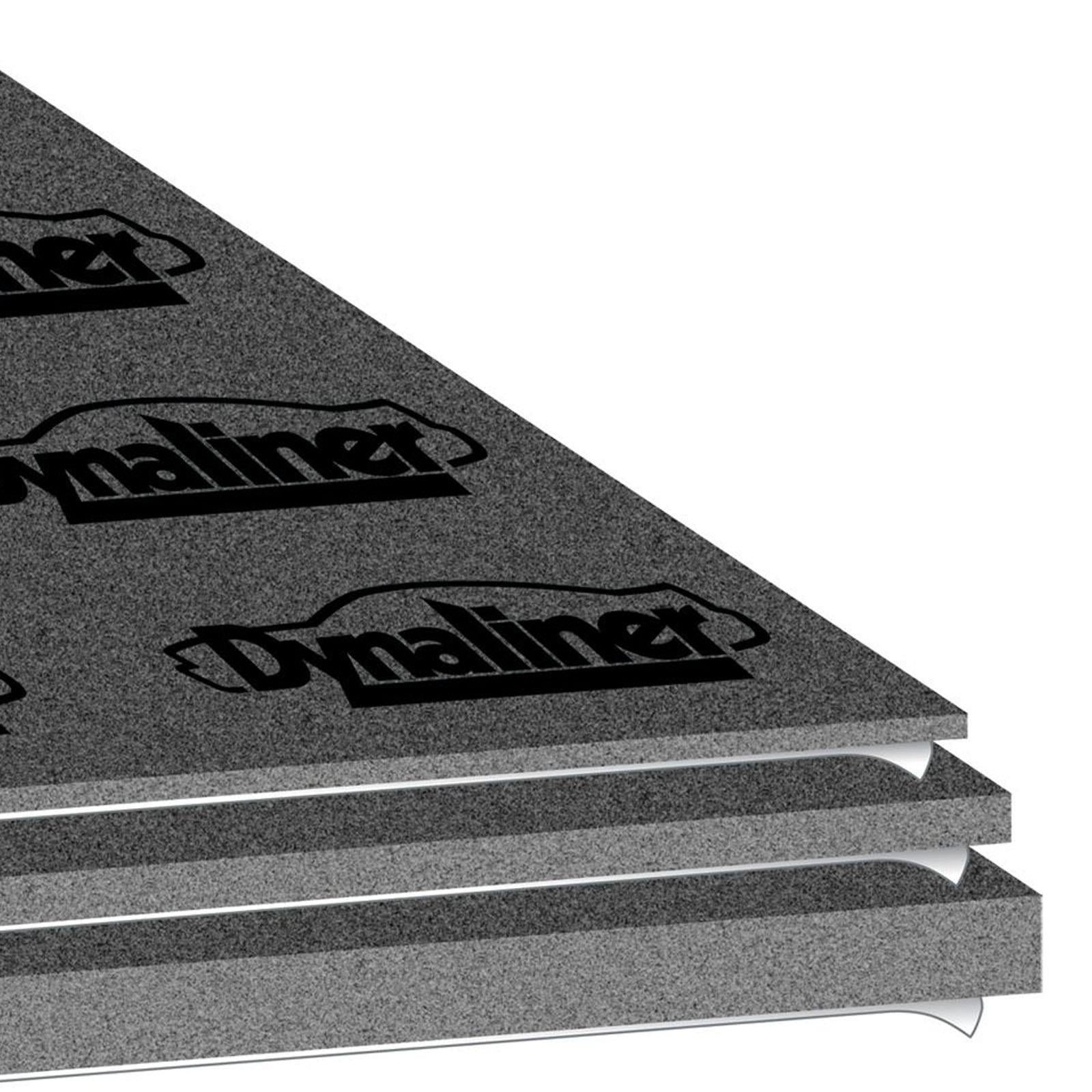

Unlike conventional insulation materials, Dynaliner is oil resistant, waterproof, crush resistant and tear resistant. Its thicker 6.35mm construction provides even greater thermal insulation than the 1/8" version while remaining lightweight and easy to install. The self-adhesive backing allows for quick peel-and-stick installation and can easily be trimmed to shape for a professional finish.
With an impressive 1.12m² (12 sq.ft) coverage from a single large sheet, Dynaliner is ideal for vehicle roofs, floors, firewalls, doors, quarter panels, boots and engine covers where superior heat blocking and acoustic insulation are required.
Key Features
- ✔ Genuine Dynamat Dynaliner
- ✔ 1/4" (6.35mm) Premium Closed-Cell Foam
- ✔ Covers 1.12m² (12 sq.ft)
- ✔ Superior Heat Blocking & Thermal Insulation
- ✔ Excellent Acoustic Isolation & Noise Reduction
- ✔ Waterproof, Oil Resistant & Non-Absorbent
- ✔ Crush & Tear Resistant Construction
- ✔ Self-Adhesive Peel & Stick Installation
- ✔ Ideal Companion to Dynamat Xtreme
Technical Specifications
- Material: Closed-Cell Specialty Foam
- Purpose: Heat Blocking, Sound Absorption & Insulation
- Control Method: Absorption & Insulation
- Adhesive Type: Self-Adhesive
- Number of Sheets: 1
- Sheet Size: 813mm x 1372mm (32" x 54")
- Coverage Area: 1.12m² (12 sq.ft)
- Thickness: 6.35mm (1/4")
- Weight: 0.41kg/m²
- Density: 64.6kg/m³
- R-Value: 0.83°F·ft²·hr/Btu (0.15Km²·hr/W)
- UL Rating: UL 94 HF-1
- Operating Temperature: -34°C to +93°C
- Temperature Resistance: -54°C to +149°C
- FMVSS 302 Compliant (Equivalent to ISO 3795)
- Fire Classification: HF-1
- Colour: Grey
Ideal Applications
- ✔ Vehicle Roofs & Headliners
- ✔ Doors & Door Cards
- ✔ Floors & Firewalls
- ✔ Quarter Panels & Boots
- ✔ Engine Covers & Engine Bays
- ✔ Camper Vans & Motorhomes
- ✔ Marine & Industrial Applications
