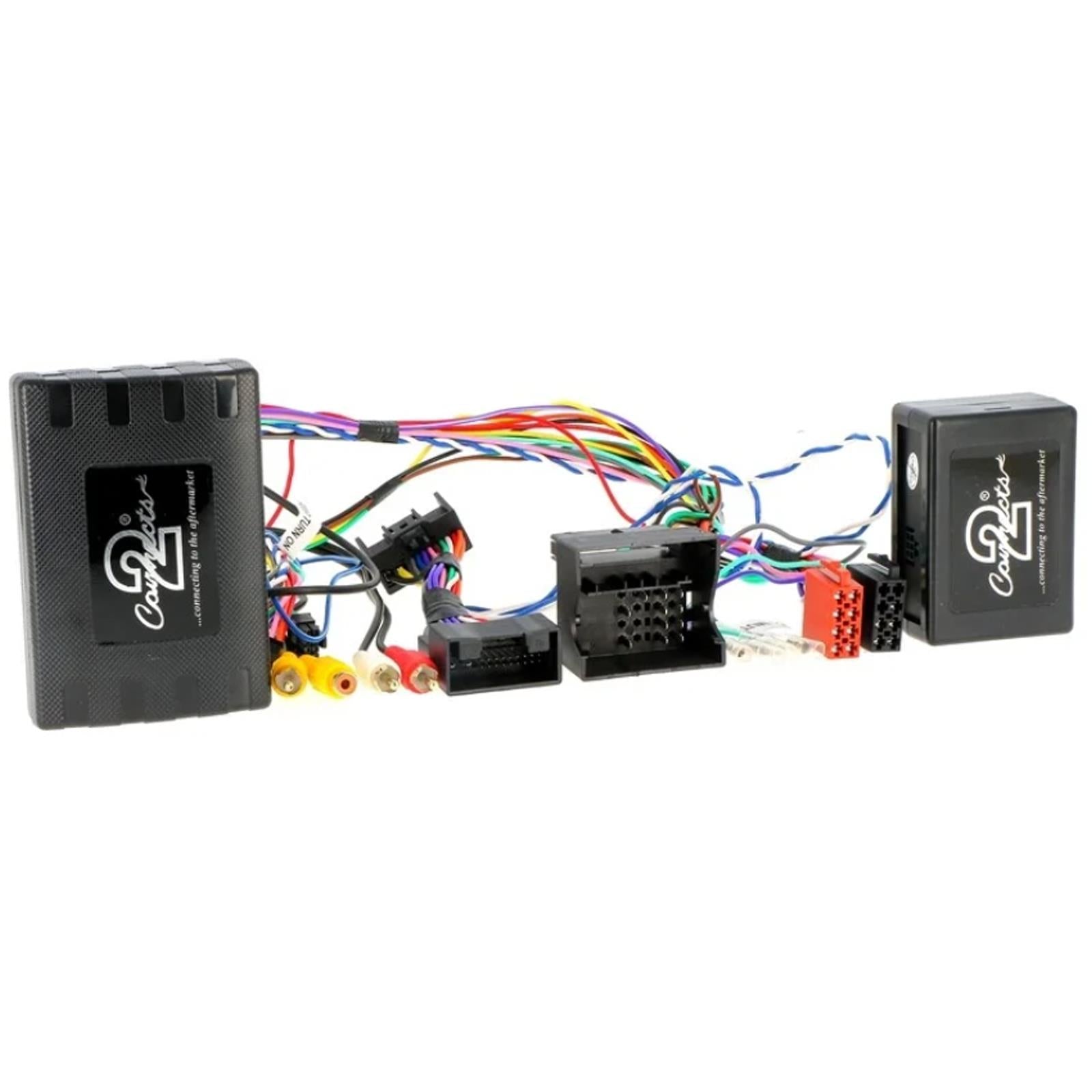

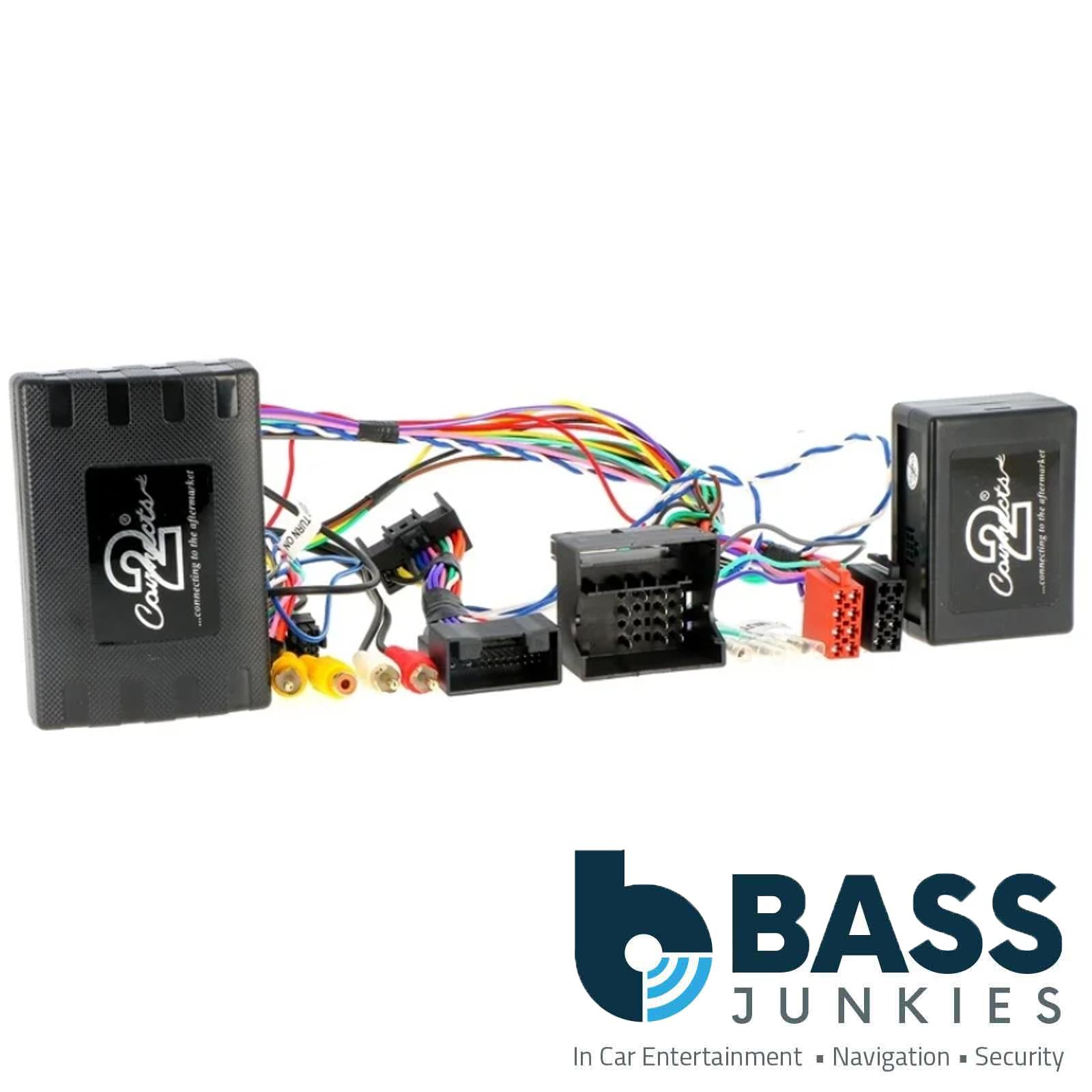

CTUAU07 Infodapter Interface for Audi Q5 (8R) 2008–2016
The CTUAU07 Infodapter is specifically designed for the Audi Q5 (8R) 2008–2016. It enables seamless installation of an aftermarket multimedia head unit while retaining the use of the vehicle’s factory steering wheel controls, phone buttons, and key on-screen vehicle functions. Compatible with vehicles using the Quadlock connector and factory amplified sound system (including MOST).
Key Features:
-
Retains factory steering wheel and phone button functionality.
-
Displays vehicle information such as optical parking sensors (OPS) and air-conditioning visuals on compatible aftermarket screens.
-
Maintains original sound system performance (Audi Sound System / Bang & Olufsen).
-
Provides CAN-Bus outputs for speed pulse, reverse gear, and handbrake.
-
Plug-and-play integration with factory wiring harness.
-
DIP switch configuration for head unit type and camera format.
-
Retains vehicle settings through steering wheel menu navigation.
-
RCA connections for camera input and Infodapter display output.
Compatibility:
-
Vehicle: Audi Q5 (8R)
-
Years: 2008–2016
-
Connection Type: Quadlock
-
System Type: MOST amplified / Sound System
-
Not compatible with: Full MMI 3G+ vehicles
Wiring Connections:
-
Pink: Speed pulse
-
Green: Handbrake
-
Purple/White: Reverse gear
-
Grey: Mute
-
Yellow RCA (Male): Infodapter display output
-
Yellow RCA (Female): Aftermarket camera input
-
Red/White RCA: Audio
DIP Switch Settings:
-
ON – Pioneer / OFF – All other head units
-
ON – PAL camera / OFF – NTSC (default)
-
Toggle OFF→ON – Reset Infodapter display (screen flashes red)
-
Not used
Important Notes:
-
Designed exclusively for Audi Q5 (8R) 2008–2016 with Quadlock and MOST sound system.
-
Not all vehicle settings are supported on every trim level.
-
Professional installation recommended due to MOST bus integration.
