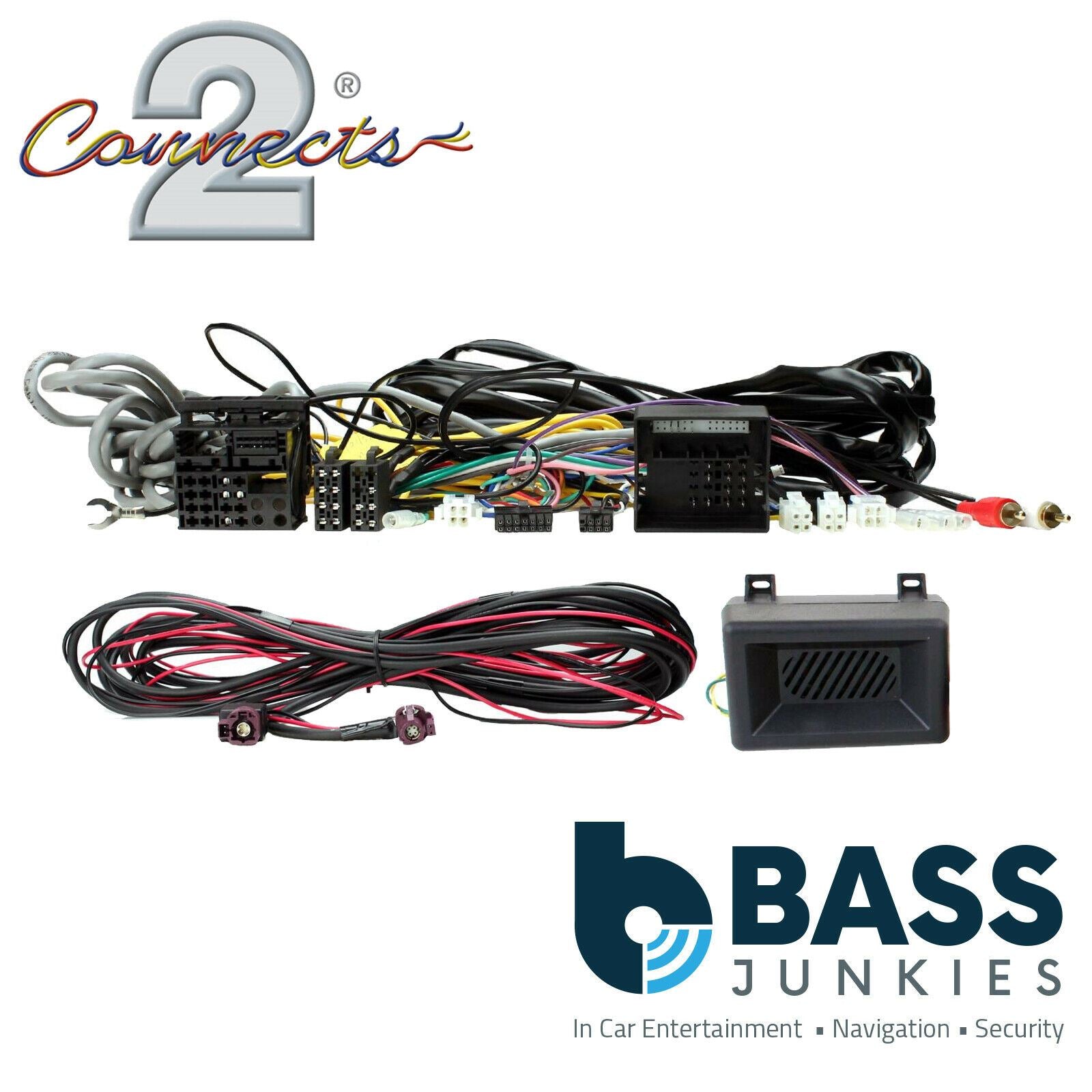

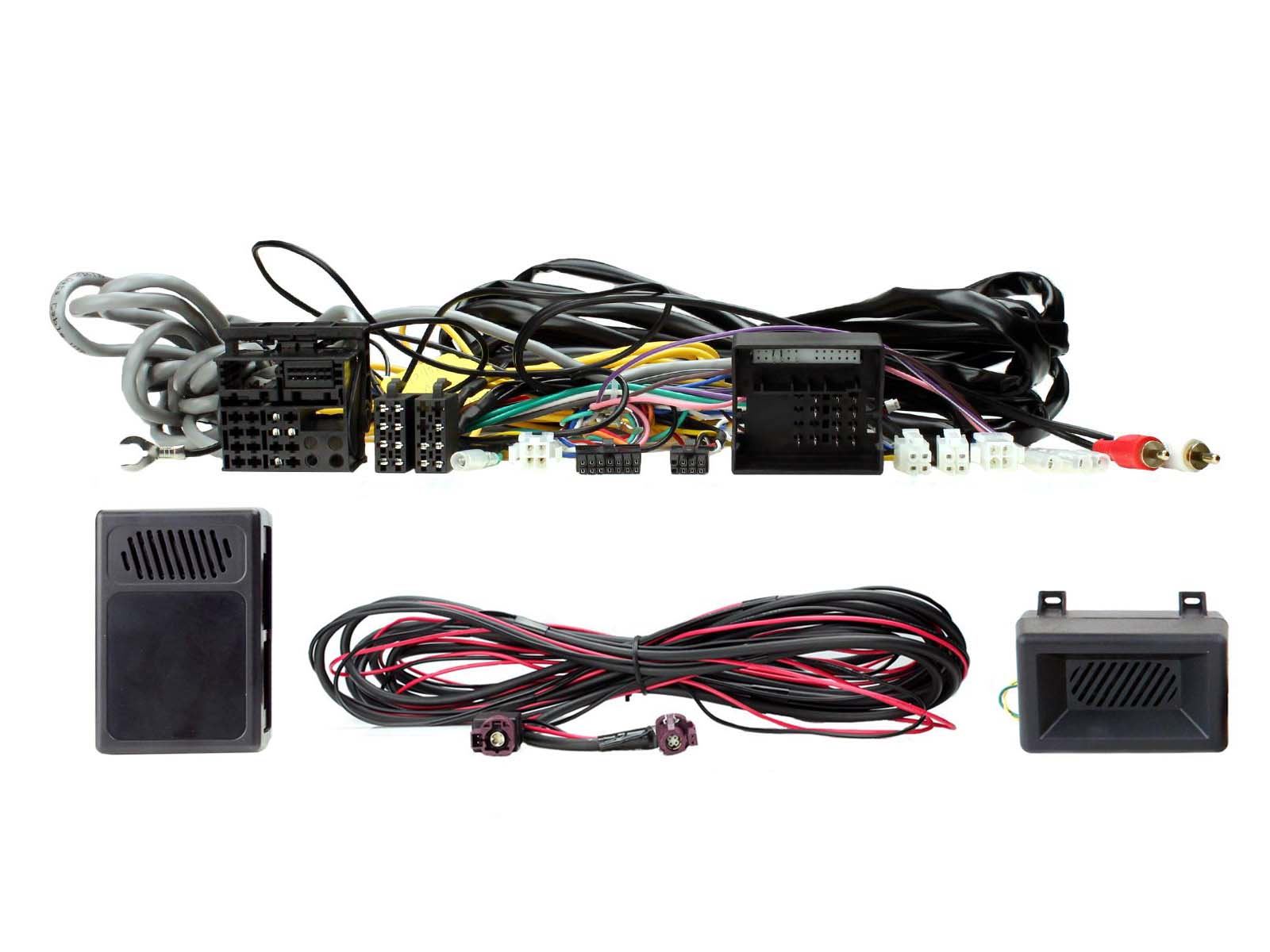

Connects2 CTSBM014.2 - BMW 1 2 3 4 Series Car Stereo Steering Wheel Interface Stalk Control
This interface has been designed to retain the steering wheel controls and other key features when installing an aftermarket head unit into the vehicle. The interface also allows for the retention of the original head unit for the purpose of retaining the vehicle settings menus
Fits the following vehicles: (Please Check Before You Buy)
| Manufacturer |
Model |
Note |
Year From |
Year To |
Headunit |
Connection |
| BMW |
3-Series |
F3** |
2012 |
2016 |
|
Quadlock (Fakra) |
| BMW |
4-Series |
F3** |
2012 |
2016 |
|
Quadlock (Fakra) |
| BMW |
1-Series |
F20/F21 |
2012 |
2016 |
|
Quadlock (Fakra) |
| BMW |
2 Series |
F22/F23/F87 |
2014 |
|
|
Quadlock (Fakra) |
Features & Benefits
- Retains steering wheel control functionality
- Retains phone button functionality
- Retains voice commands via SWC (if aftermarket head unit supports)
- Retains warning chimes/parking sensor audio (via integrated speaker)
- Retains voice commands from SWC (if head unit supports)
- Allows for relocation of OEM head unit to retain vehicle settings (via top display)
- Provides output feeds for Park Brake, Speed Pulse, Reverse Gear and Mute
- Updateable via USB
- This product has been developed through carefully documented data and research. Connects2 Ltd. cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.
"
