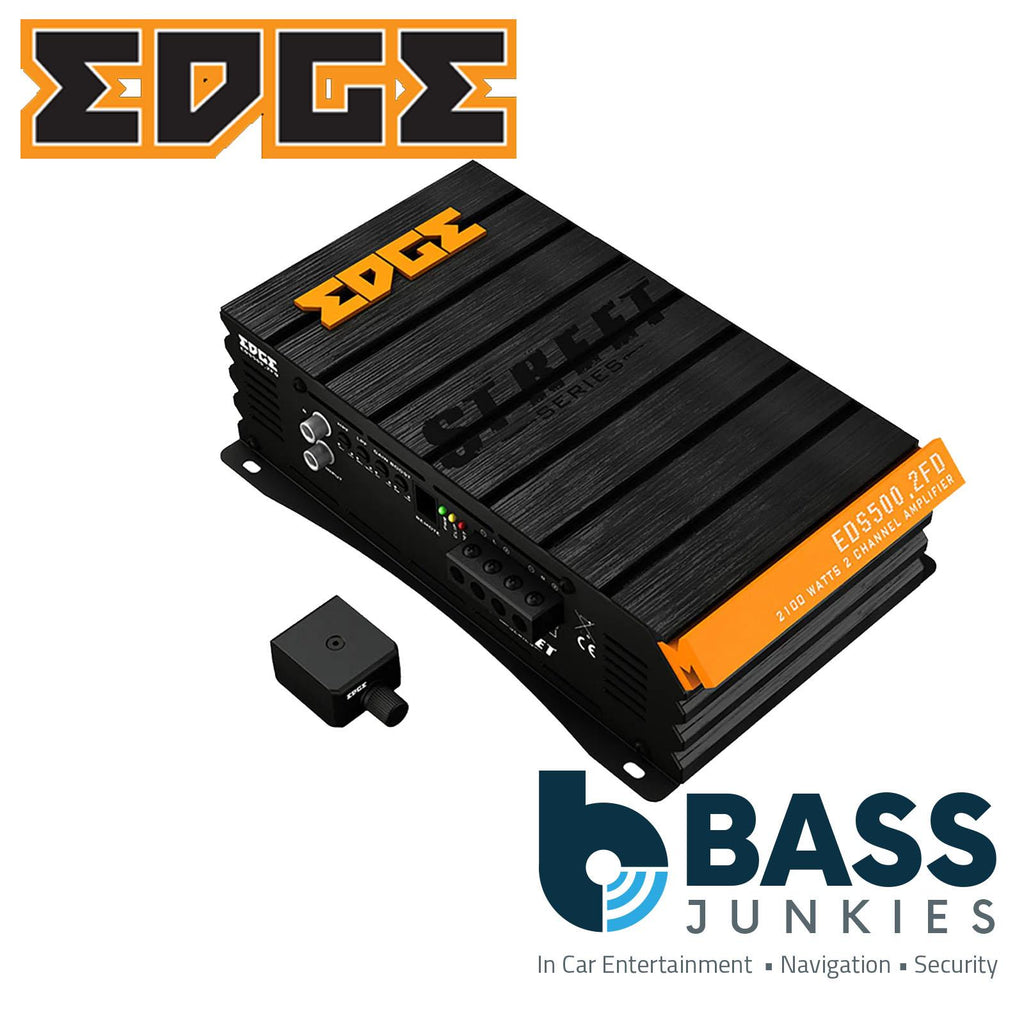

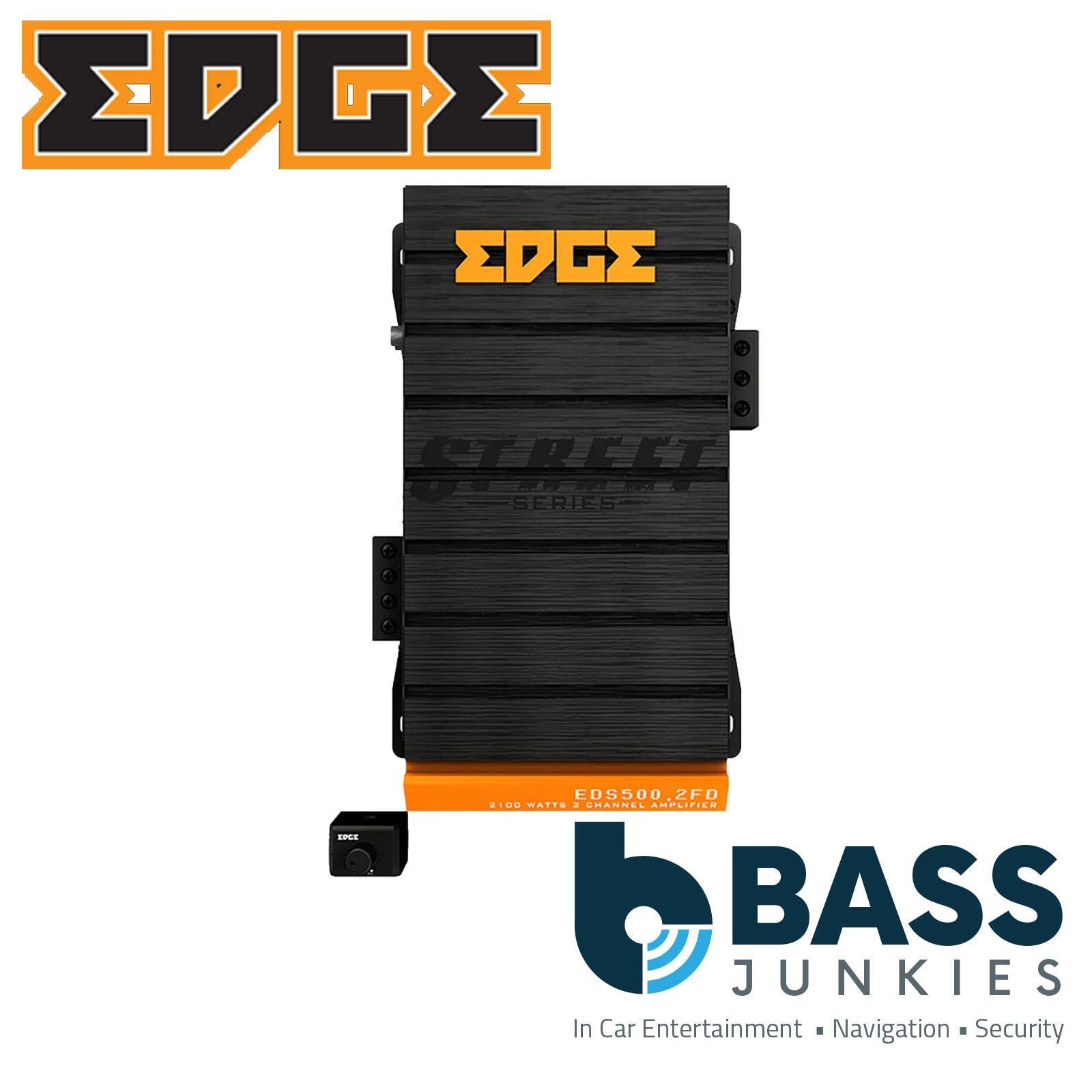

EDGE EDS500.2FD-E0 Street Series 2100 Watts 2 Channel Amplifier
The Street series amplifiers are new to the EDGE range, these amps feature Class D topology but use a full bridge method of power delivery.
This is more efficient method of converting DC power from your battery to AC output for your speakers. Full bridge technoology allows us to generate large power in a tiny footprint.
The custom tooled heatsink was designed with over engineered fins for excellent heat dissertation ensuring the amp works well and cools correctly.
All models have built in active crossovers and bass boost and can be used to power subwoofers, midrange drivers or tweeters.
Compact and powerful, the perfect amplifier upgrade for those wanting more than the norm.
Features
Built in active crossovers
Bass boost circuit
Ultran effecient class D topology
Wideband frequency response up to 20kHz
Full bridge technology
Compact footprint
Specification
Model: EDS500.2FD-E0
Configuration: 2 channel
RMS @ 4 Ohms Stereo: 2 x 225 watts
RMS @ 2 Ohms Stereo: 2 x 325 watts
RMS @ 1 Ohms Stereo: 2 x 525 watts
RMS @ 4 Ohms Mono: 1 x 650 watts
RMS @ 2 Ohms Mono: 1 x 1050 watts
Maximum Power: 2100 watts
Frequency Response: 20Hz - 20kHz
Crossover Type: LP / HP
Crossover Range: 15Hz - 15kHz
Recommended Fuse: 90A external fuse
Topology: Class D
Installation Tip
We do recommend the following car amplifier wiring kit below which can be purchased off our store as well
Vibe Slick VSAWK8
Dimensions
(H x W X D): 63mm x 175mm x 232mm (2.5" x 6.9" x 9.1")
