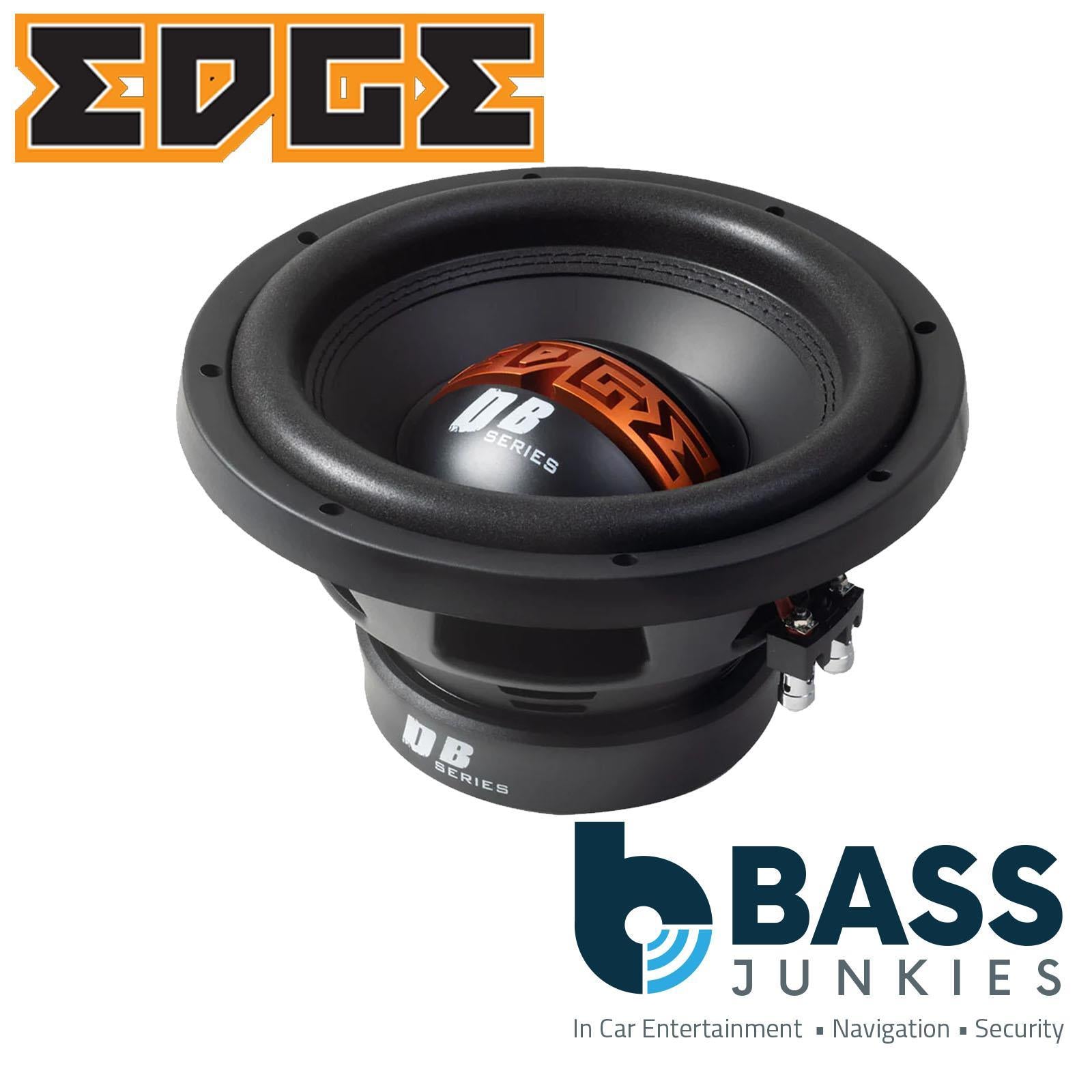

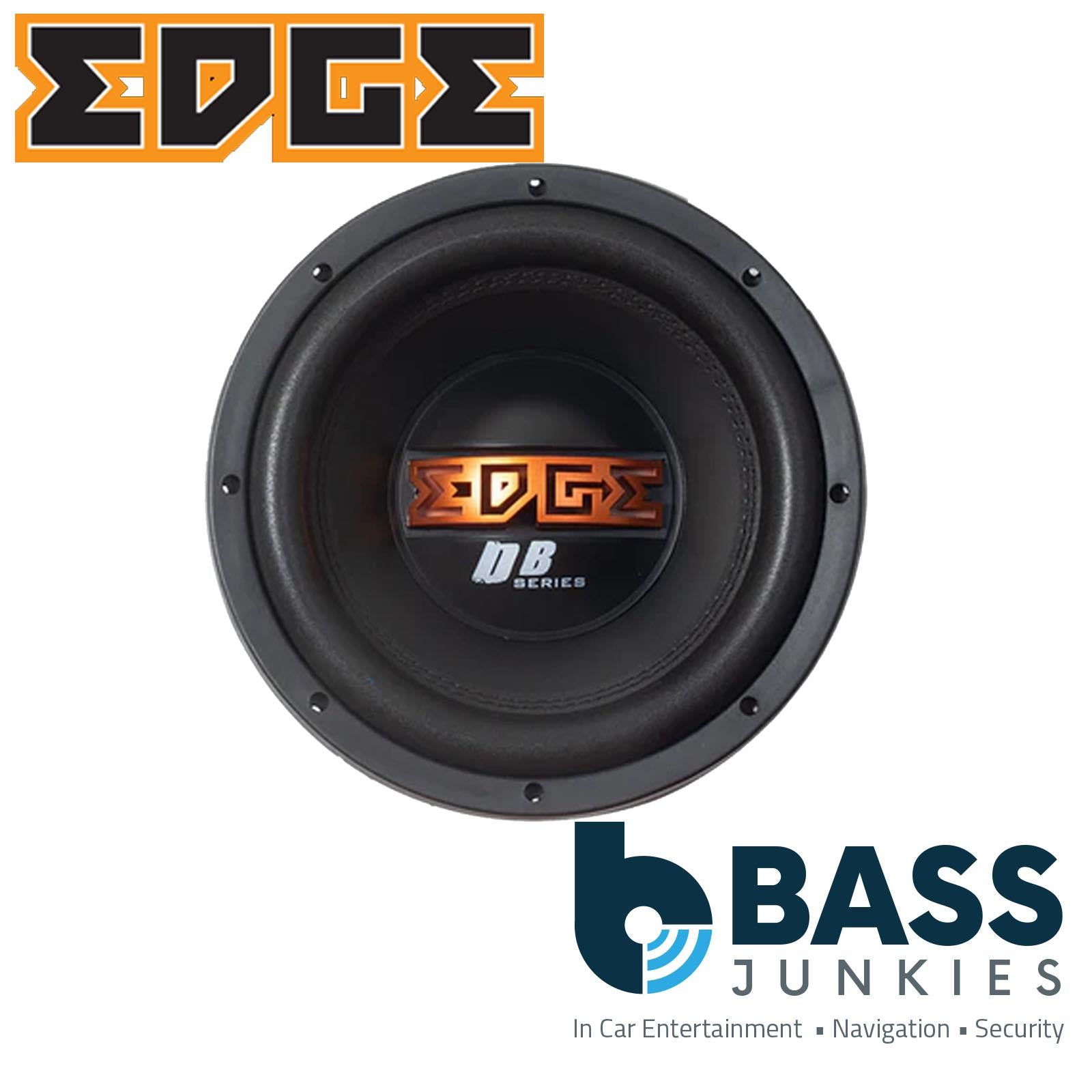

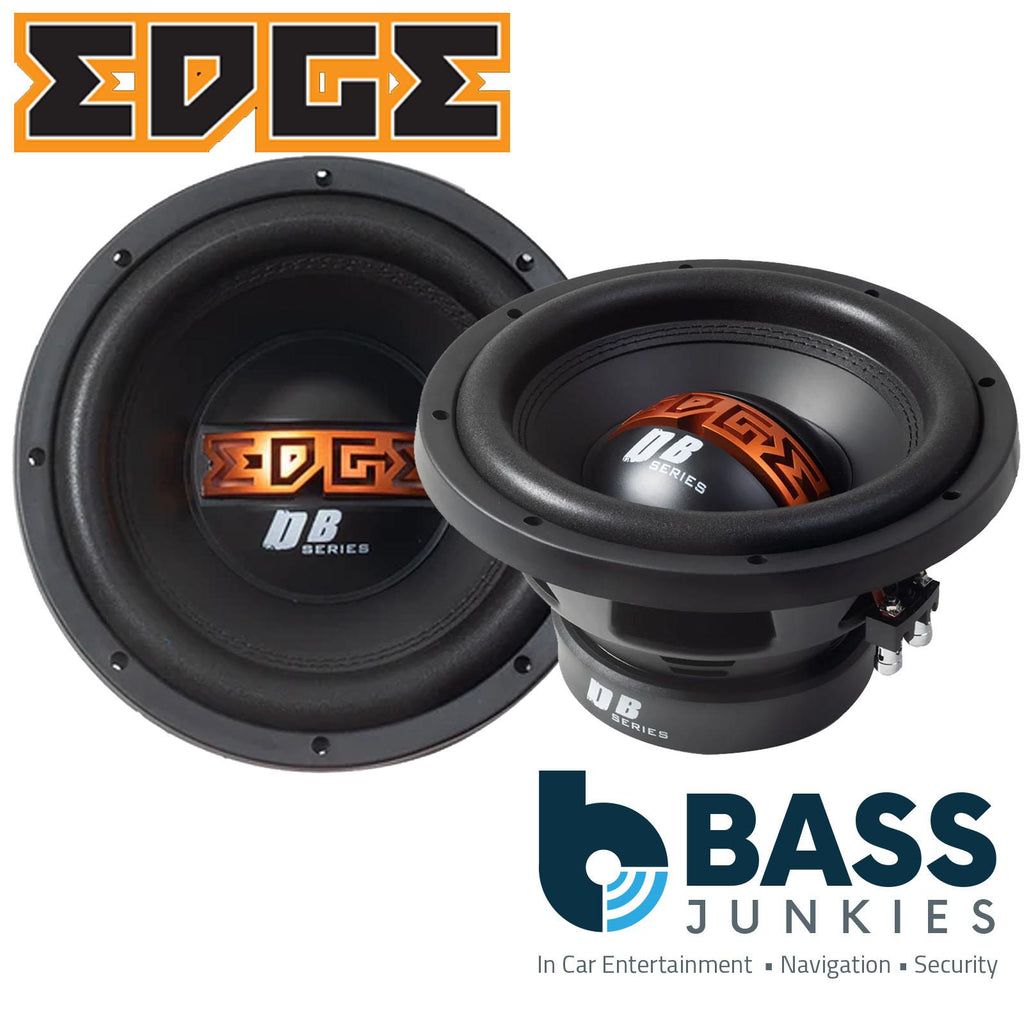

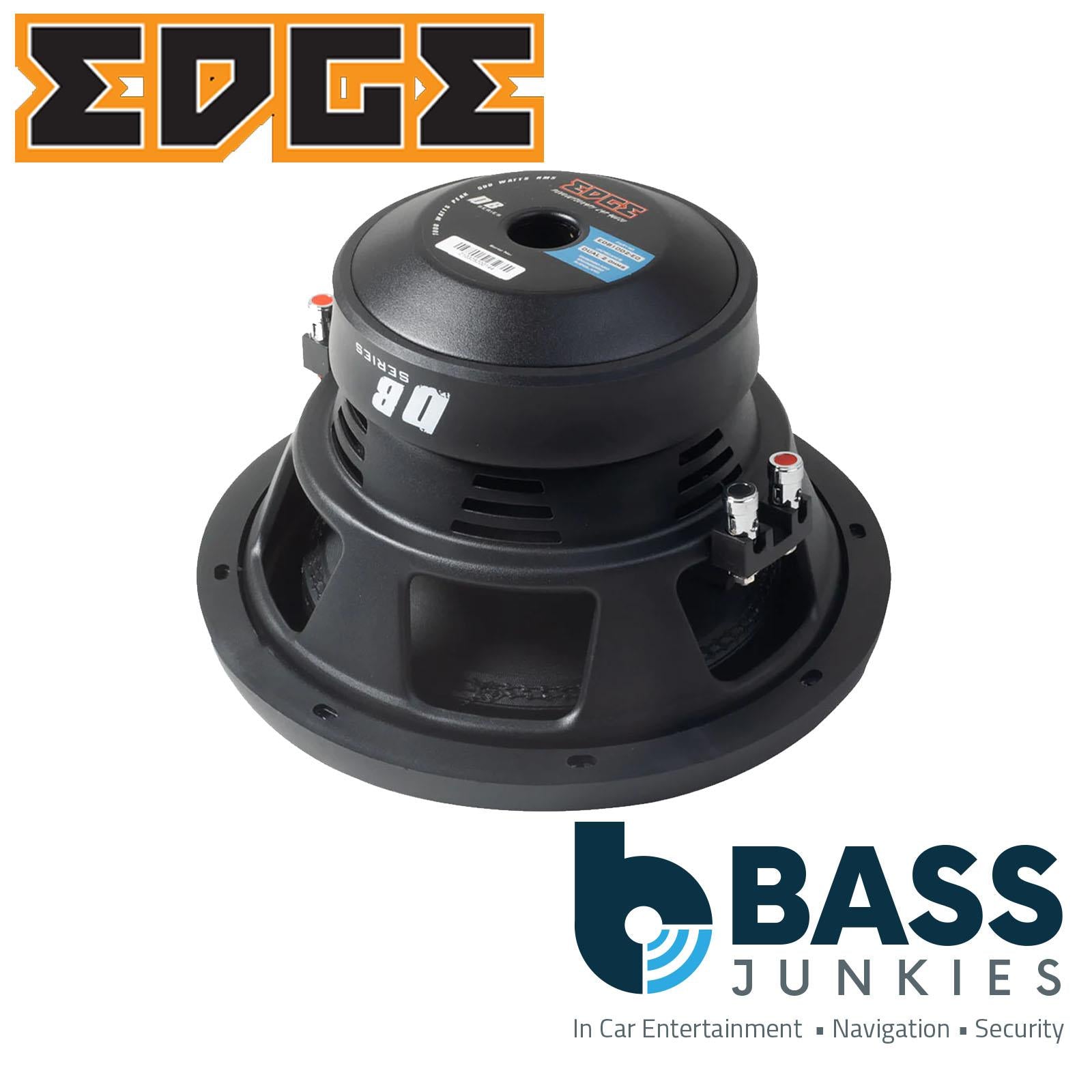

EDGE EDB10D2-E0 DB series 10'' subwoofer 500w RMS
The EDGE DB series features three subwoofers to cover a range of power and size applications.
The subwoofers In the DB Series harmonises hand-picked moving parts with structurally engineered magnet structure to create a balanced set of subwoofers which deliver precise bass reproduction as well as great levels of SPL output. Within the range we feature DB and DB Lite subwoofers with varying power abilities.
All woofers have undergone the same engineering practices and principles to produce an excellent entry level range of subwoofers.
Why add a subwoofer? In order to fully feel and experience the music, bringing the low bass that makes you feel the sound and feel fully immersed!
Features
- Non pressed paper cone
- Wide roll foam surround
- Dual poly cotton spiders
- Spring loaded connectors
- Y35 Ferrite magnet
- Double stitched surround
Specification
- Type: Subwoofer
- Subwoofer Size: 10" (274mm)
- RMS Power: 500 watts
- Peak Power: 1000 watts
- Sensitivity: 84dB
- Frequency Response: 30Hz - 1kHz
- Impedance: Dual 2 Ohms
- Voice Coil: 2" 4 Layer
- Recommended Amplifier: EDB500.1-E9
Dimension
- Magnet Weight: 55oz
- Magnet Dimensions: 5.7" x 1" (145mm x 25mm)
- Mounting Depth: 5.3" (135mm)
- Mounting Diameter: 9.2" (232mm)
