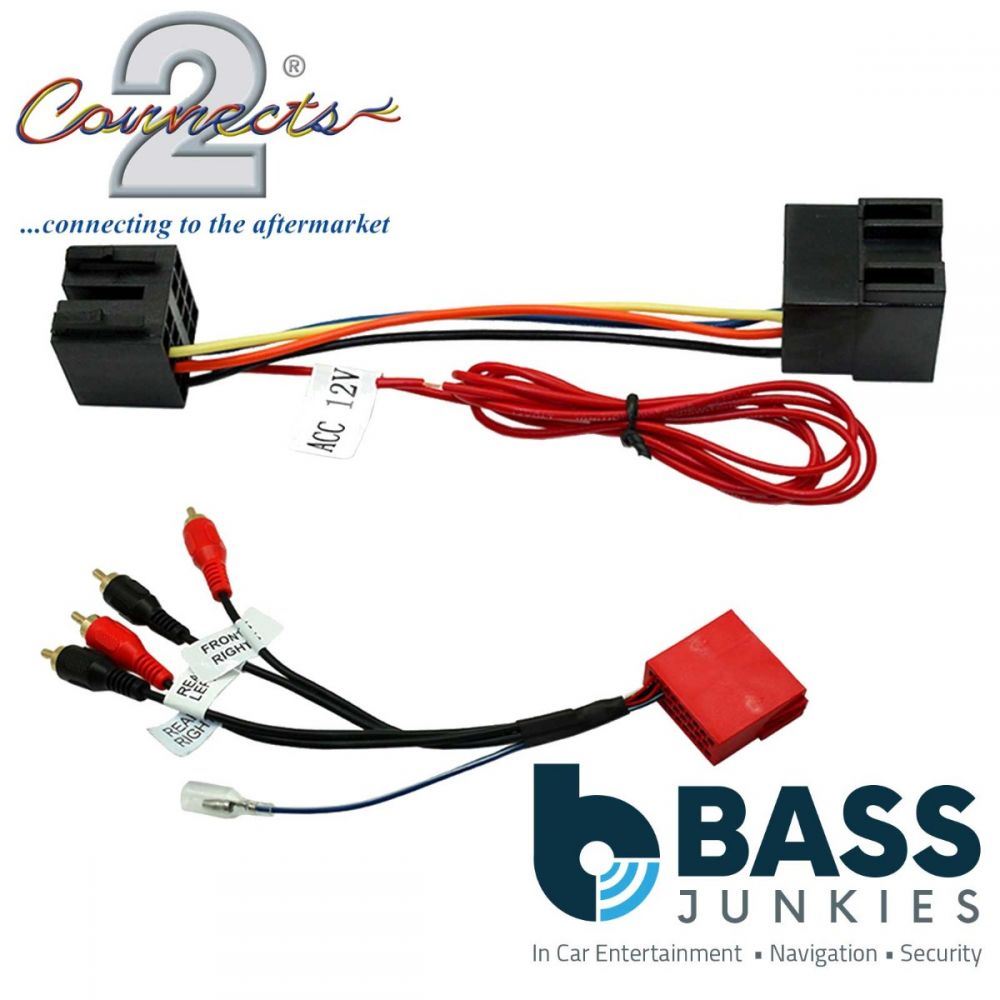

Connects2 CT20AU11 - Audi A3 A4 A6 TT BOSE Fully Amplified Front/Rear Bypass Car Stereo Lead

Audi A3 A4 A6 TT A8 Car Stereo Fully Amplified RCA Bypass Wiring Harness Cable

This interface lead is required when replacing the factory fitted Audi radio to an aftermarket headunit ie Alpine, Pioneer, Kenwood, Sony, JVC etc...

Please Note

Only for use with BOSE Fully-amplified (front and rear speakers) Audi audio systems This bypass lead converts the Audi wiring harness to RCA level inputs for connecting to a new car stereo.

Your new stereo MUST have 2 sets of rear RCA/phono on the rear for connecting this interface. If you only have 1 set then you will need to buy a RCA splitter to connect this interface. When this is done then you will lose fader control on the new radio, NOT recomennded. Please check radio before you buy

Installation Tips

To activate rear speakers, the blue & white wire on the Red mini ISO plug needs to be connected to the Blue wire coming off of the New Head Unit (marked Amp Remote)

You will also need to connect the red wire of our wiring harness provided within this kit to an ignition point in the car

You can take this feed from the cigarette lighter in your car or straight to the fuse box or the new radio will NOT power up

Disclaimer:

Please check the plugs and connections in our picture matches the plugs and connections in your vehicle before you make your purchase. If unsure please message us via sales@bassjunkies.com  with pictures of the plugs and connections so we can advise further.
