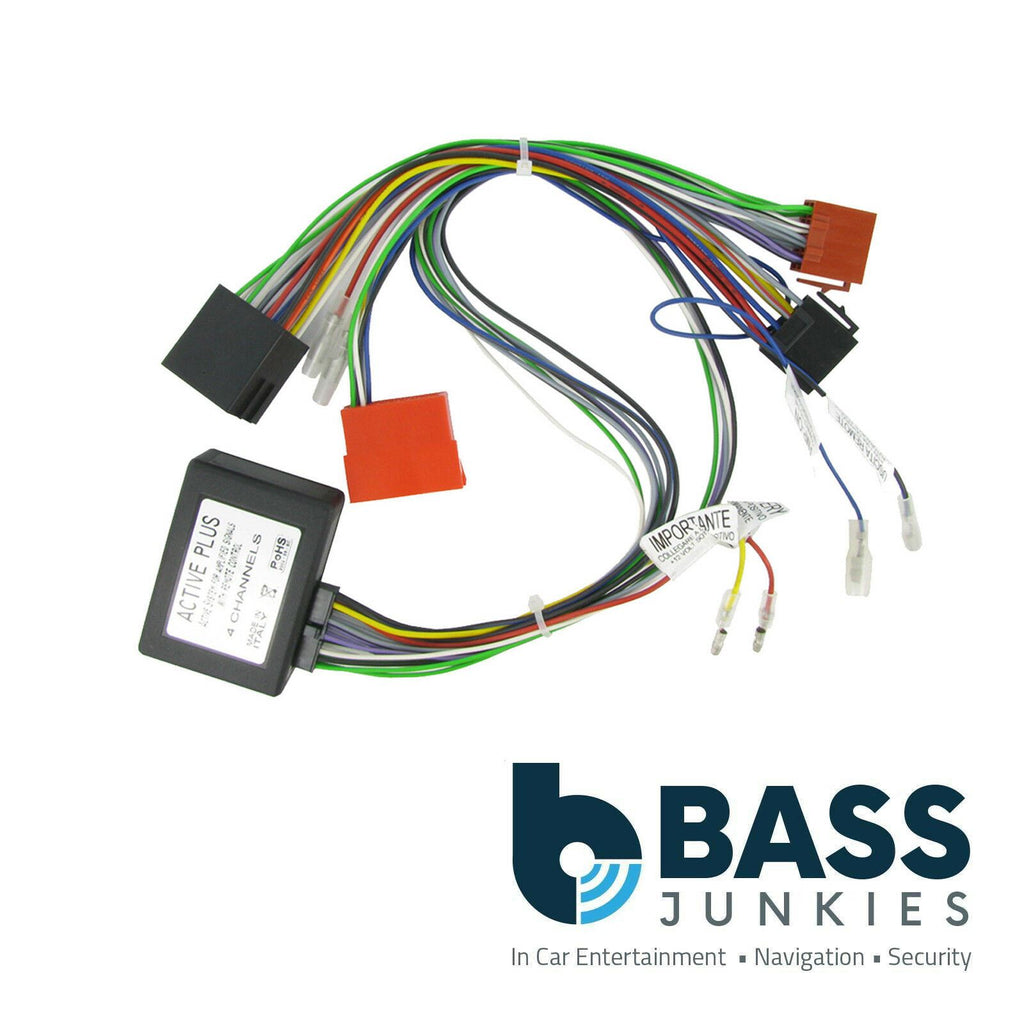

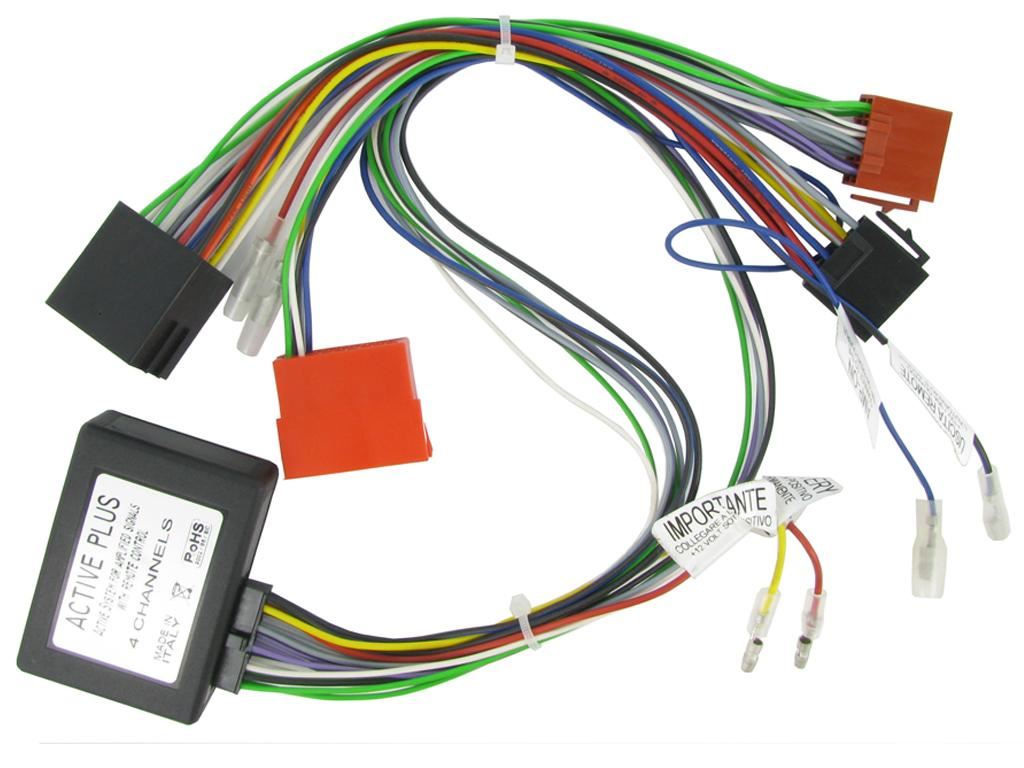

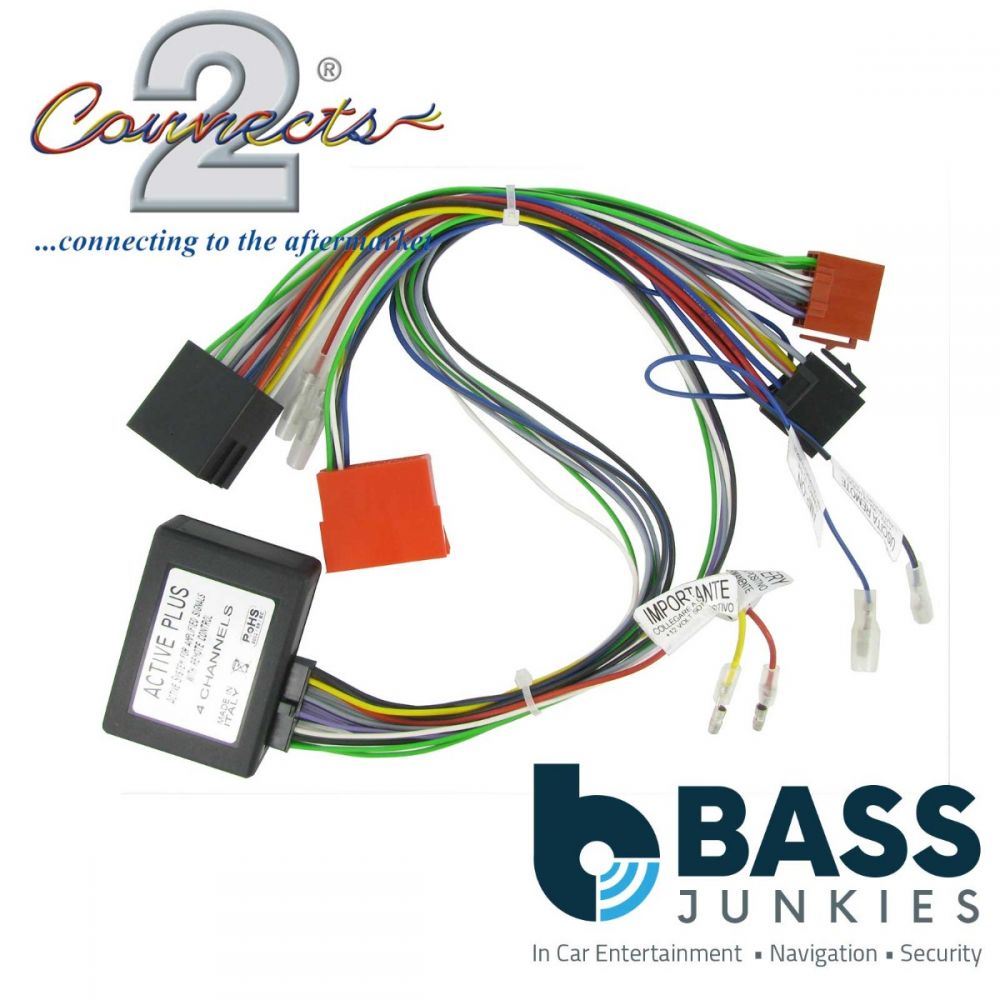

Connects2 CT53-AU04 - AUDI Car Stereo Fully Amplified BOSE Active Bypass Lead
Only for use with BOSE fully-amplified (front & rear speakers with Speaker radio wiring connection) audio systems
This adaptor allows an aftermarket head unit to be installed, whilst bypassing the factory fitted amplified system.
This adaptor is required to replace factory fitted radio with an aftermarket headunit (Alpine, Pioneer, Kenwood, Sony, JVC etc.). It will convert the car original power and speakers wiring connector to a standard ISO connector. Simply plug one end of the adaptor into your cars wiring harness, and the other end into your new radio
Fits the following vehicles
|
Manufacturer
|
Model
|
Note
|
Year From
|
Year To
|
Headunit
|
Connection
|
|
Audi
|
A2
|
For Vehicles With BOSE Amplified System
|
1999
|
2005
|
|
Mini ISO
|
|
Audi
|
A3
|
For Vehicles With BOSE Amplified System
|
1996
|
2005
|
|
Mini ISO
|
|
Audi
|
A4
|
For Vehicles With BOSE Amplified System
|
1995
|
2005
|
|
Mini ISO
|
|
Audi
|
TT
|
For Vehicles With BOSE Amplified System
|
1998
|
2006
|
|
Mini ISO
|
|
Audi
|
A6
|
For Vehicles With BOSE Amplified System
|
1994
|
2004
|
|
Mini ISO
|
|
Audi
|
A8
|
For Vehicles With BOSE Amplified System
|
1994
|
2002
|
|
Mini ISO
|
The above list of vehicles is a general guide and cannot be guaranteed in all cases.
Please Note make sure you have this SPEAKER ISO connection type wiring harness in your car before you make your purchase as they can vary depending on the year of your car and also the model of the radio fitted
If still unsure then send us pictures of the radio wiring and connections in your car via this eBay message system and our tech guys will come back to you
Installation Tip Blue wire needs to be connected to the Remote Antenna or ignition supply wire (if rem ant wire not available) on back of car stereo.
