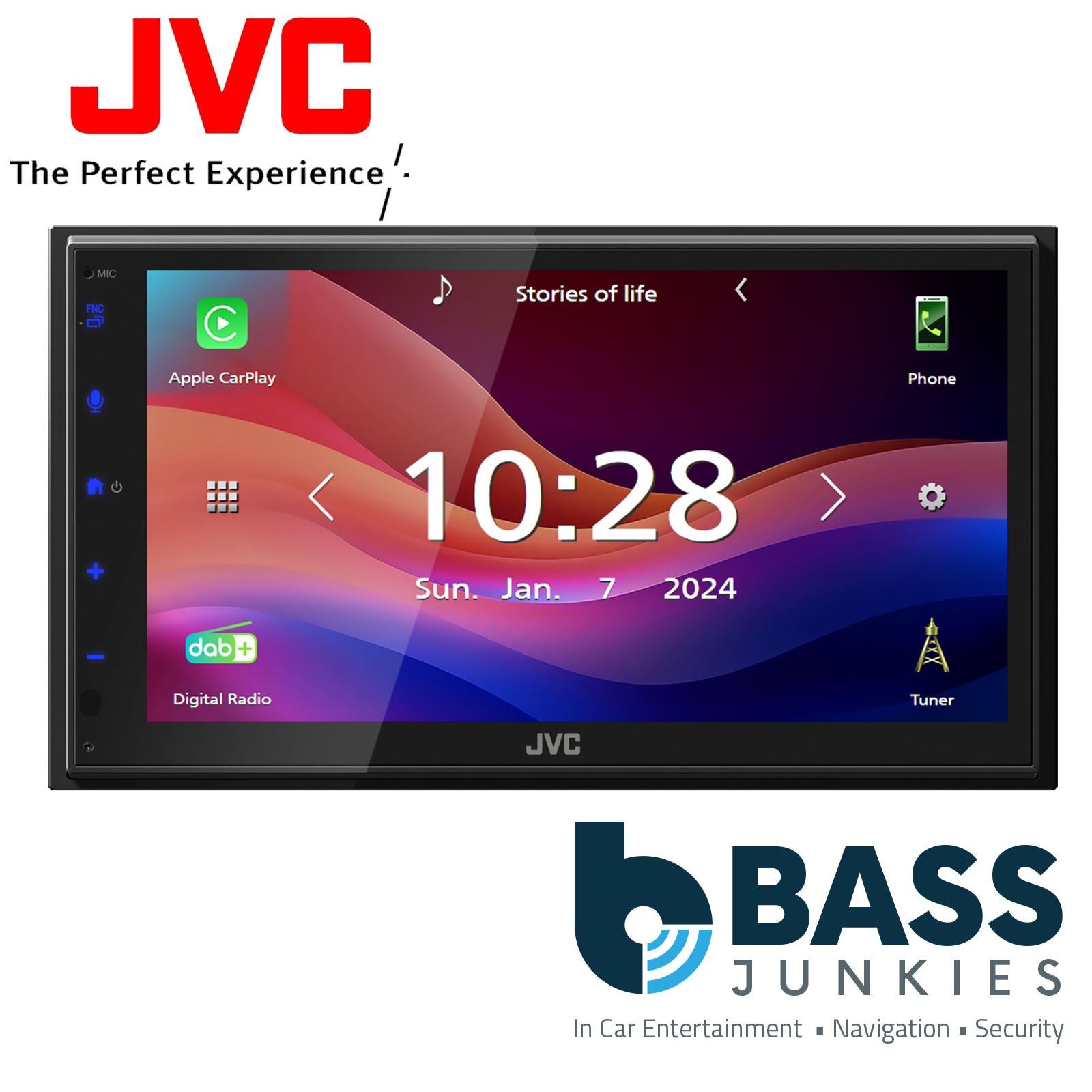

JVC Double Din Car Bluetooth Radio DAB Kit for BMW Mini Clubman R55 07-10

JVC KW-M595DBT-6.8 inch Bluetooth Wireless CarPlay Android Mirroring DAB+ Radio Car Stereo

Digital Media Receiver featuring 6.8 inch High Res WSVGA Monitor / Wired Apple CarPlay & Android Auto / iPhone & Android USB Mirroring & DAB+ Digtal Radio / Bluetooth / 13-Band EQ / Short Chassis

DAB Antenna is included

Key Features

• 6.8 inch WSVGA Capacitive Touch Screen
• White Key Illumination
• Enhanced GUI & Graphics
• Enhanced Smartphone Connections:
• Wired Apple CarPlay
• Wired Android Auto
• Wired iPhone & Android Auto USB Mirroring
• Built-in Bluetooth technology
• DAB+ Digital Radio Tuner / FM (RDS) / AM tuner
• High Speed USB Input-2.1A
• Full HD Video File Format Playback
• Rear Camera Input
• AV Input
• Video Output
• 13-Band Graphic Equaliser
• Digital Time Alignment
• Front, Rear Subwoofer Pre-outs-2.5V
• Steering Wheel Remote Interface ready
• Wireless Remote ready
• Single DIN Short Chassis Design

Monitor Features

• 6.80 inch WVGA (1024 x 600px) with Clear Capacitive Touch Screen
• Protective Film with Anti-Fingerprint
• White key illumination
• Fixed Panel
• 3 Display Mode: Full(Initial) / Auto(Full/Normal) Normal
• Screen adjustments: Brightness, tint, colour, contrast and Backlight
• Dimmer sensor: Manual/Sync & Dimmer level control (Auto/On/Off)
• NTSC / PAL judge (Auto)
• Display OFF mode

Graphical User Interface

• Demonstration Mode (default ON)
• Home screen, 4 Top SRC keys are customisable
• Wallpaper customizable (6 presets + 2 user set)
• Text scroll
• Rear view camera interrupt with parking guide lines & caution on screen
• Visual source mode: Mirroring / CarPlay / Android Auto
• Selection of 14 languages for menu & text:
• English UK(default) English US, Spanish, French, German, Italian, Dutch, Russian, Portuguese, Hebrew, Greek, Polish, Czech and Hungarian

Tuner Features

• FM / AM(LW/MW) radio / 24 x FM and 12x AM Presets
• RDS / EON / Radio text plus / PTY / Local seek / Traffic information
• Manual/Auto memory entry
• Auto1/Auto2/Manual tuning mode/seek mode/Seek/scanup/down.

DAB+ Tuner Features

• DAB+ (Band III) tuner / 15 presets
• DAB-DAB / DAB-FM Auto Switch / Seamless DAB-FM blending
• Traffic information / PTY search / PTY watch / ASW select
• Alphabet / Intelligent search / DLS (Dynamic label) / Slide Show / Softlink
• Audio Format: MPEG1 Audio Layer II, MPEG4 HE-AAC-v2

Bluetooth Features

• High quality wide-band Hands-free speech (HFP V1.7)
• High quality microphone built-in
• Private mode
• Interrupt call request
• Audio streaming (A2DP V1.2) with AAC / SBC codec support
• Music library browsing (AVRCP V1.6)
• Album artwork display
• Accessible phonebook entries (PBAP) with alphabet search (English / Hebrew)
• Secure Simple Pairing (SSP)
• Auto pairing via USB (iPhone & Android)
• Optimised Noise & Echo canceller

USB Input Features

• High speed type-A USB port / FAT16/32 NTFS/exFAT
• Max. 2.1A quick charge for selected phones (BC 1.2 compatible)
• Mass storage class
• Tag information display / Album art display / Time code display
• List access / Category search and Link search
• Folder or All random play / Folder, File or Repeat All play / Skip
• Drive change/Last position/resume play

Supported CODEC (USB)

• Audio: MP3 / WMA / AAC / WAV / FLAC
• Video: MPEG1 / MPEG2 / MPEG4 / H.264 / WMV / MKV
• Pictures (for user Wallpaper): JPEG / PNG / BMP

Android Features

• Works with Android Auto via USB
• USB mirroring for Android with MirrorApp+ smartphone app
• Music playback via Bluetooth

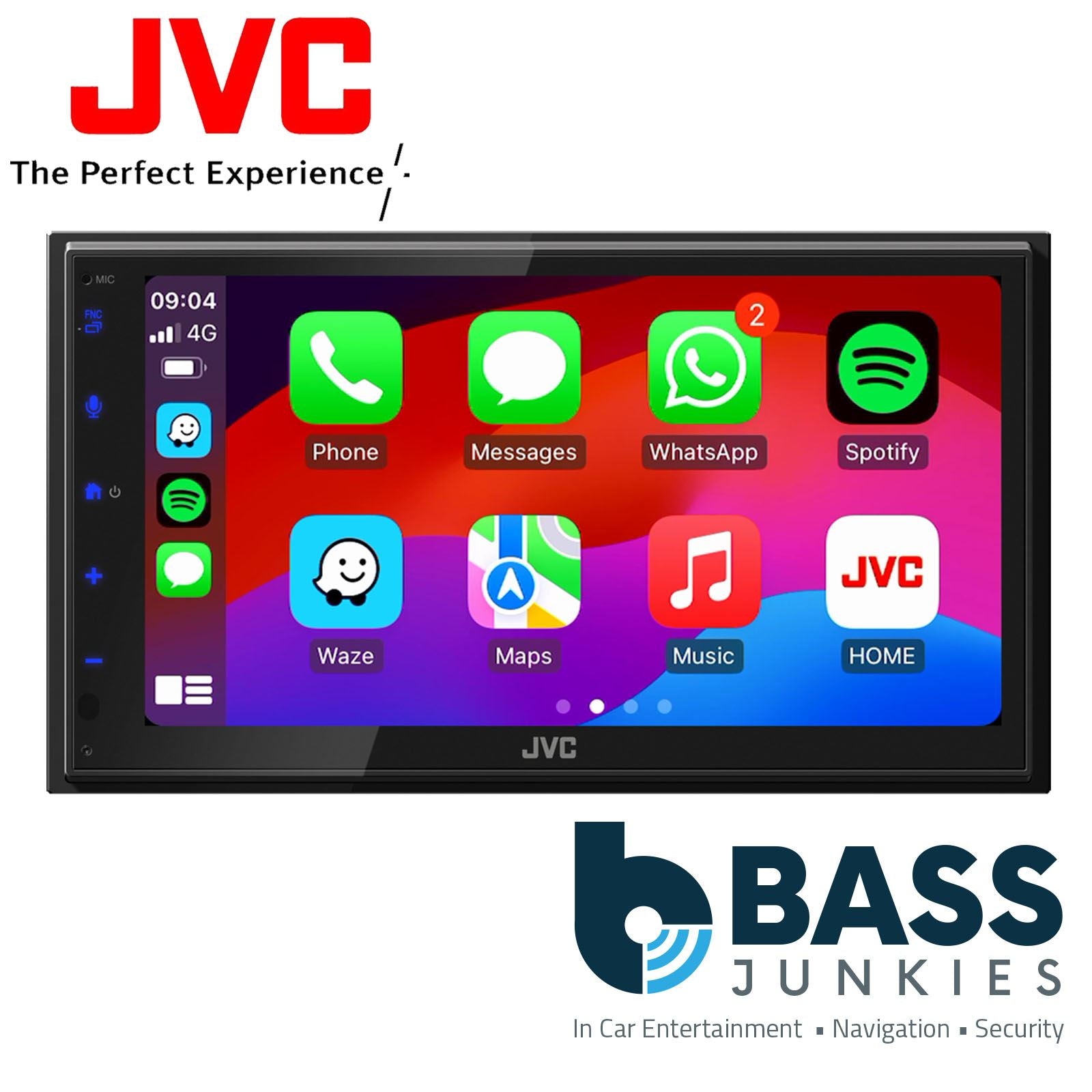

Apple CarPlay/iPhone Features

• Made for iPhone
• Works with Apple CarPlay (via USB)
• USB mirroring for iPhone with MirrorApp+ smartphone app

Audio Features

• 50W x 4 Max power output / 22W x 4 RMS
• 2 RCA pre-outs (Front & rear) + Subwoofer (mono) with 2,5V Preout level
• Reverse with Attenuator (-20dB) / Mute
• Beep On / Off (default)
• Balance & Fader control
• Volume offset for each source
• Built-in amplifier Off

Digital Sound Processor (DSP)

• Digital Time alignment (DTA): Position control + 4 presets, Position Room Size
• 13-Band graphic equaliser: 7 presets, 3 user set for each source
• High-pass filter / Low-pass filter.
• Subwoofer Phase Control (Normal/Reverse) / X over
• Speaker size control: Front/Rear/Subwoofer
• Channel level control / Bass Boost & Loudness control / Tweeter Volume

Video Features

• AV-out: Available Source: USB
• Rear Camera Input (NTSC/PAL auto Switching)

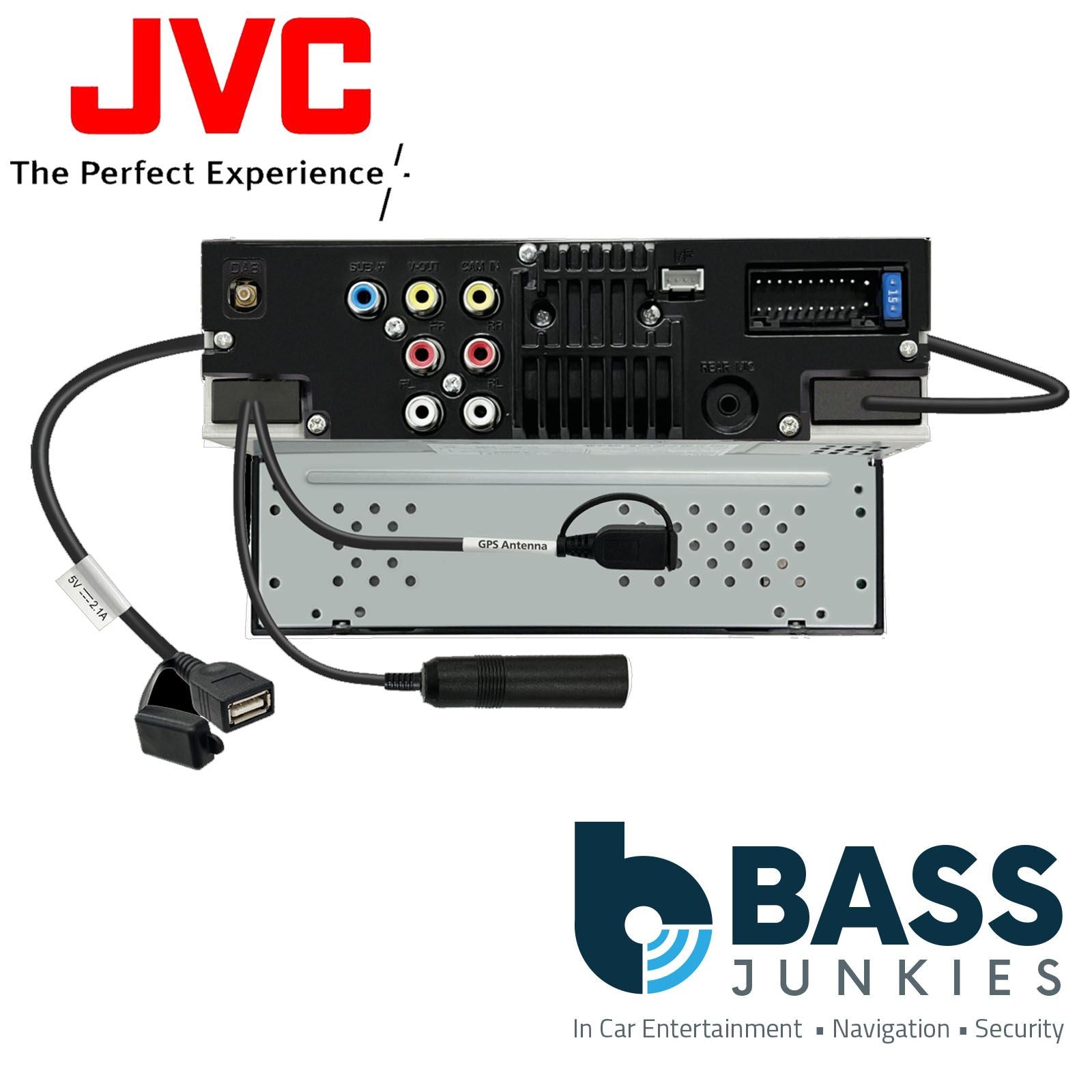

Connectivity

• Third-party Wired Steering Remote Interface ready. (Optional interface required)
• Learning Steering Remote (RESISTIVE protocols only)
• Rear view camera input (RCA)
• Video-out (RCA)
• Rear USB2.0 (pigtail 1m cable)
• 2 RCA pre-outs (Front & rear) + Subwoofer (mono)
• FM/AM antenna input (JASO)
• DAB antenna input (SMB)
• 22 Pin Molex Connector:
• Power Antenna Control
• Power Control
• (P-Cont) Illumination/Dimmer Wire
• Wired Remote Wire
• Reverse sensor wire
• Parking brake sensor wire

General Features

• Optional IR remote controller: KNA-RCDV331
• Firmware/software update via USB
• Backup memory
• Installation Dimensions (W H D): 182 112 86mm (with Sleeve)
• Operating Voltage: 14.4V (10.5 16V allowable)
• Maximum Current Consumption: 15A
• Weight: 1,3kg

Accessories

• 22Pin Molex Connector to ISO Connector lead
• GPS/Glonass antenna with mounting plate (3,5m cable)
• Extension Parking Cable (2m)
• 2DIN Sleeve & Lever
• 1DIN adapter bracket set (pre-mounted)
• Remover for Escutcheon (trim)

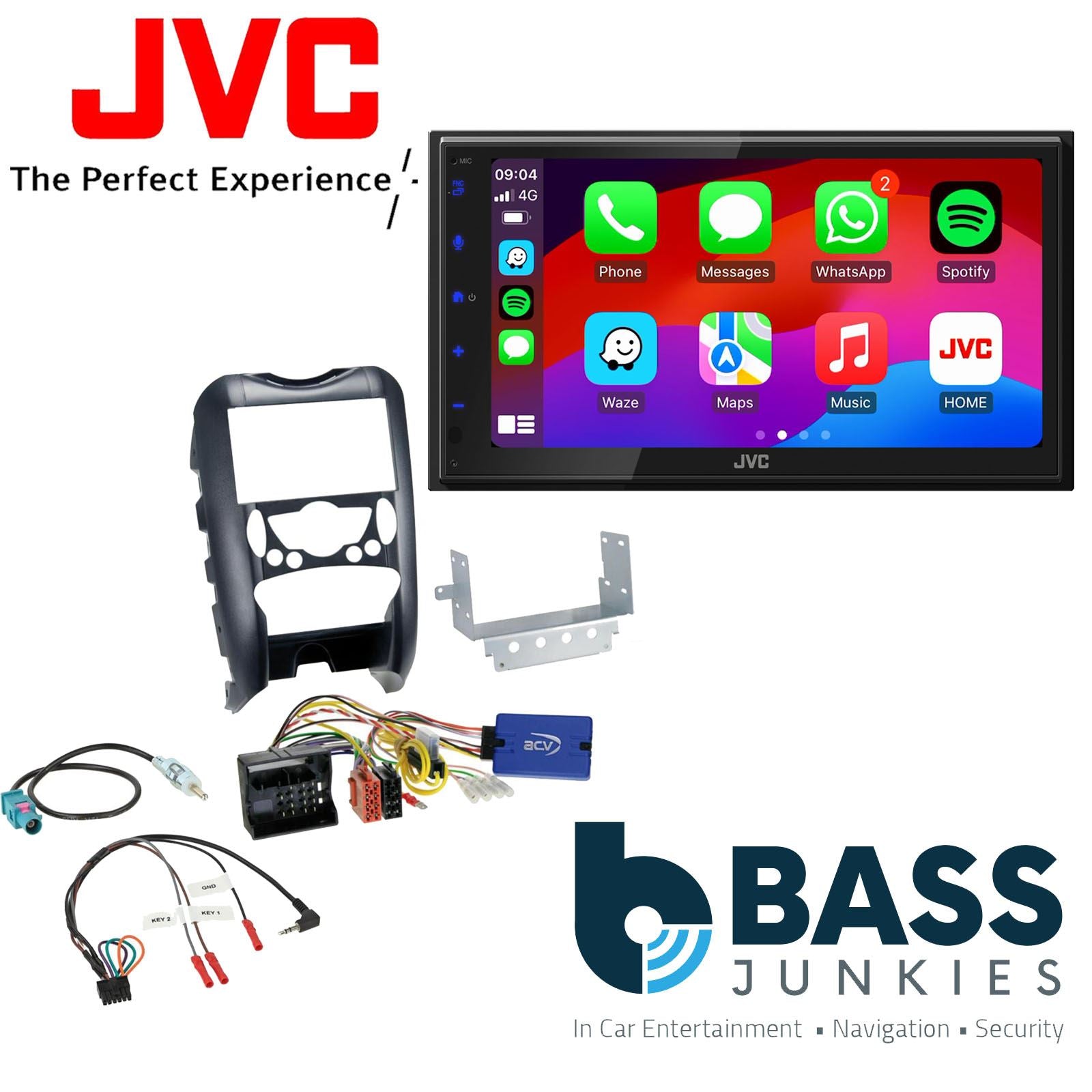

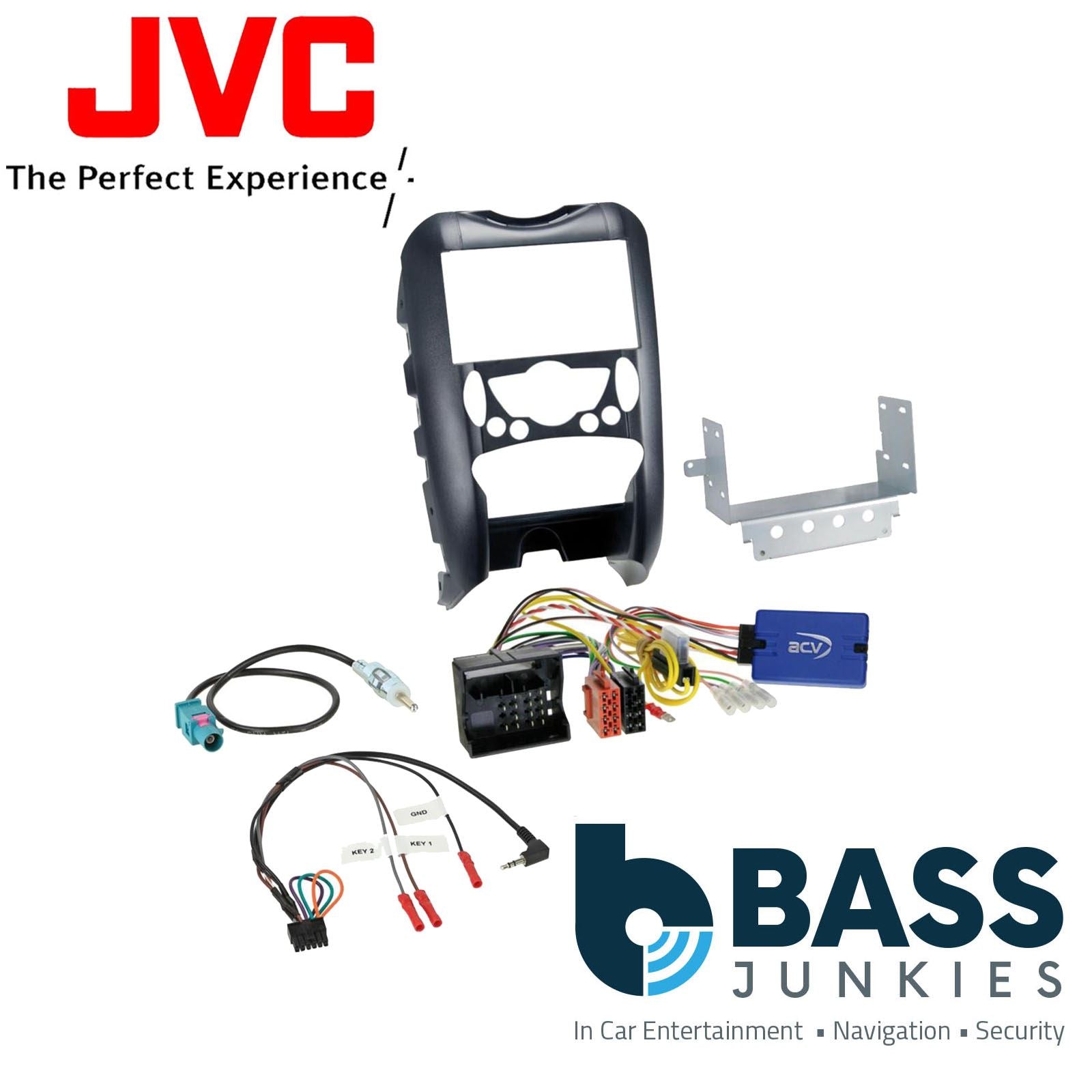

Car Stereo Double Din Fascia Panel & Steering Wheel Stalk Control & Mobile Phone Button Lead Interface & Fitting Kit

This complete Installation Kit allows the fitment of an aftermarket headunit to the listed vehicle. The kit is supplied with everything you require to complete the installation including with fascia, Steering Wheel Control Interface, Antenna Adapter & Universal Patch lead which is compatible with most Aftermarket radios.

Please makes sure your Stereo is compatible with this fitting kit before purchasing

Steering Wheel Control (SWC) Features

Steering Wheel Control interfaces allow plug and play installation of a new aftermarket car stereo head unit into a vehicle whilst maintaining use of the existing steering wheel volume, track up and down and mobile phone answering controls if factory fitted.

Mobile Phone Buttons (MPB) Features

Mobile Phone Buttons Support feature allows you to use Phone Buttons on the Steering Wheel if already factory fitted with any compatible an aftermarket Bluetooth Head Unit you install.

Please Note this kit is compatible with the following radio brands. If you have a different brand of unit other than what is listed below please call as a different patch lead maybe required at an additional cost

Alpine
Clarion
Grundig
JVC
Kenwood
Pioneer
Road Angel
Sony

Vehicle Compatibility

• BMW Mini Clubman Cooper R55 2007 2010
• BMW Mini Clubman Cooper R55 2009 2014
• BMW Mini Clubman One R55 2009 2010
• BMW Mini Clubman One R55 2010 2014
• BMW Mini Cooper R56 2006 2010
• BMW Mini Cooper R56 2010 2013
• BMW Mini Cooper Cabrio R57 2009 2015
• BMW Mini One R56 2007 2010
• BMW Mini One R56 2010 2013
• BMW Mini One Convertible R57 2009 2010
• BMW Mini One Convertible R57 2010 2015

Vehicle Notes

• Vehicles with Business Professional OEM Device
• Vehicles without iDrive
• Vehicles without OEM MOST Sound System
• PDC / Warning Tones Not Supported

Please note every effort is made to get the parts listed within the listing correct to the best of our knowledge but we can not be responsible for vehicles on a change over year from the manufacturer

It is your responsibility to ensure the compatibility and we recommend that the parts pictured in our listing are compared to the actual connectors/parts in your vehicle before you make your purchase or you will have to return the incorrect item at your cost. If still unsure please contact us via the eBay messaging system with pictures that must be attached of the wiring and connections that you are trying to install so our tech guys can help and advise before you make your purchase

This panel is designed to fit most 6"- 7" double din units. Japanese brands such as Kenwood, Pioneer, JVC, Sony, Alpine and Clarion will suit this panel.

If you are fitting a NON branded unit from China with brands such as EONON and Xtrons, there is a VERY high possibility YOU will have to modify this panel to suit the stereo and accommodate it in your dash however by doing this you will NOT be able to return the panel back for a refund and this is at your own risk.

These panels are designed based on Japanese stereo's which are a uniformed standard size, stereos from China can be different sizes and we can not guarantee the stereo will fit without modification.
